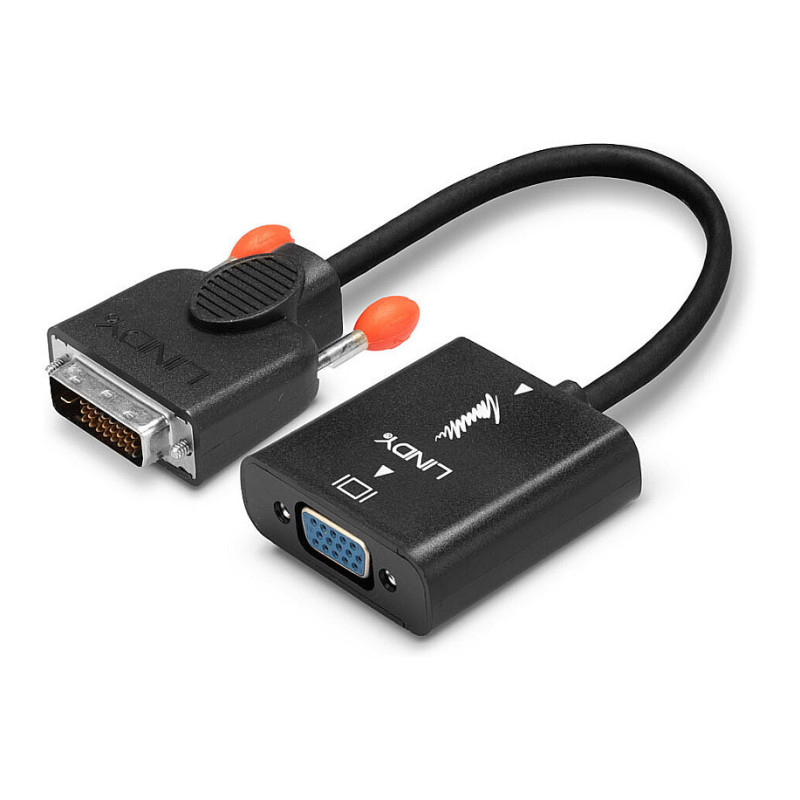

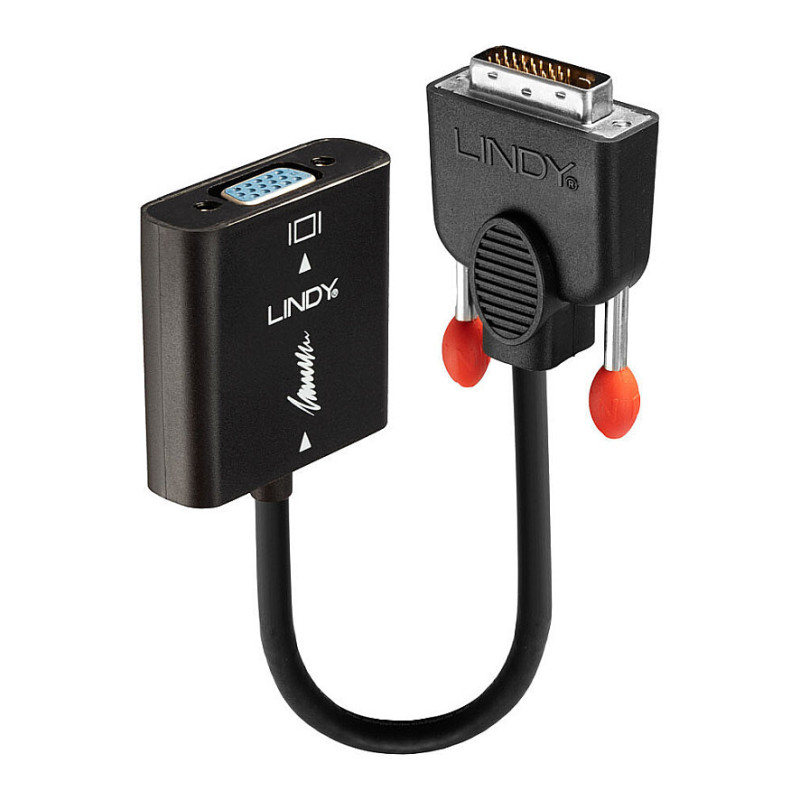

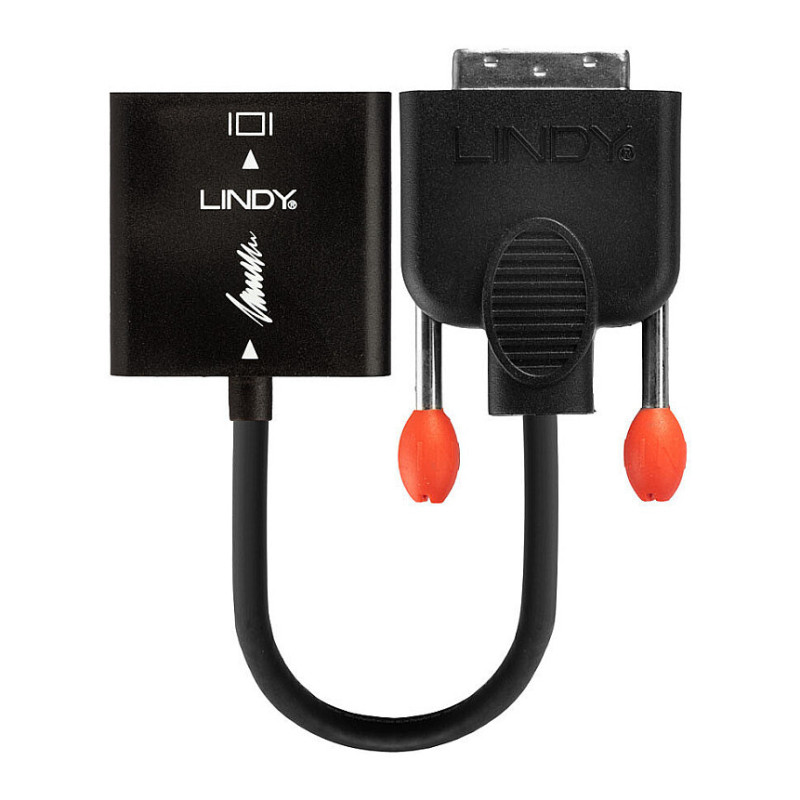

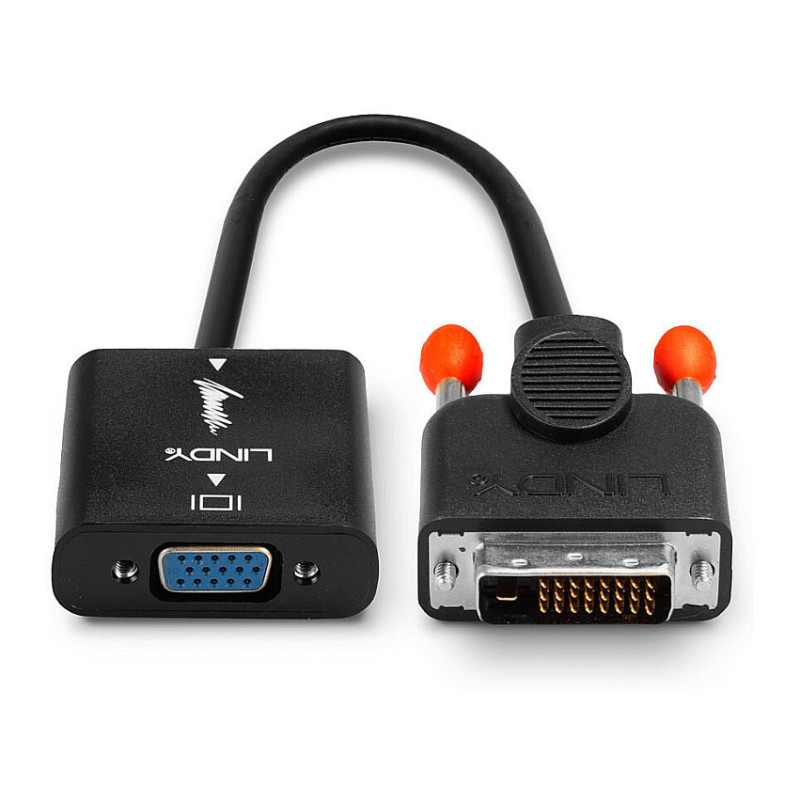

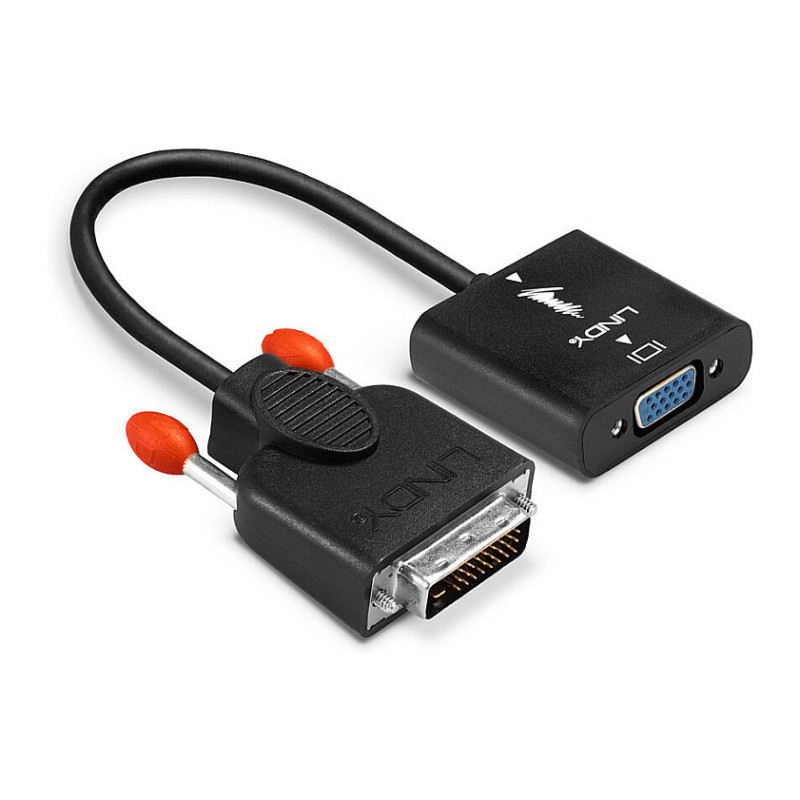

Lindy 38189 video cable adapter

Lindy DVI-D to VGA Converter. Cable length: 0.1 m, Connector 1: DVI-D, Connector 2: VGA (D-Sub). Certification: CE, UKCA, FCC, RoHS, REACH. Cable diameter: 5.5 mm, Connector 1 dimensions (WxDxH): 40 x 52.25 x 16.5 mm, Connector 2 dimensions (WxDxH): 44 x 45 x 15 mm. Package width: 160 mm, Package depth: 160 mm, Package height: 20 mm. Quantity per pack: 1 pc(s)
The Lindy DVI to VGA converter converts signals from a DVI-D equipped source into a VGA signal. It supports resolutions up to 1080p and 1920x1200 for VGA displays. This allows the connection of DVI capable devices, such as PC's, notebooks and ultrabooks, to an older VGA display or projector.
The converter can also be used to add another display to extend the available desktop workspace. It is also ideally suited for travelling due to its compact, lightweight form factor and convenient plug and play installation.

Features

Connector 1 form factor: Straight
Connector 2 form factor: Straight
Cable length: 0.1 m
Connector 1: DVI-D
Connector 2: VGA (D-Sub)
Connector 1 gender: Male
Connector 2 gender: Female
HDCP: No
Dual Link DVI: No
Maximum resolution: 1920 x 1200 pixels
Supported graphics resolutions: 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Supported video modes: 1080p
Data transfer rate: 4.95 Gbit/s
Bend radius (min): 5.5 cm
Product colour: Black
Chipset: CH7101
Jacket material: Polyvinyl chloride (PVC)
Connector housing material: Polyvinyl chloride (PVC)

Operational conditions

Operating temperature (T-T): -20 - 80 °C
Storage temperature (T-T): -20 - 80 °C
Operating relative humidity (H-H): 20 - 90%

Certificates

Certification: CE, UKCA, FCC, RoHS, REACH

Weight dimensions

Cable diameter: 5.5 mm
Connector 1 dimensions (WxDxH): 40 x 52.25 x 16.5 mm
Connector 2 dimensions (WxDxH): 44 x 45 x 15 mm
Weight: 62 g

Packaging data

Package width: 160 mm
Package depth: 160 mm
Package height: 20 mm
Package weight: 77 g
Package type: Polybag

Packaging content

Quantity per pack: 1 pc(s)

Logistics data

Harmonized System (HS) code: 84733080
