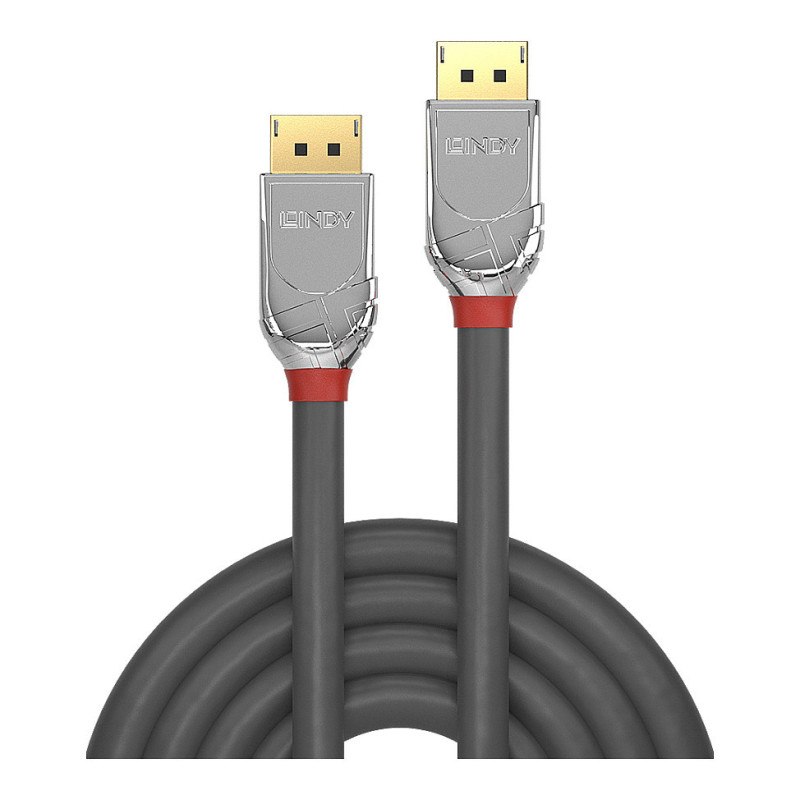

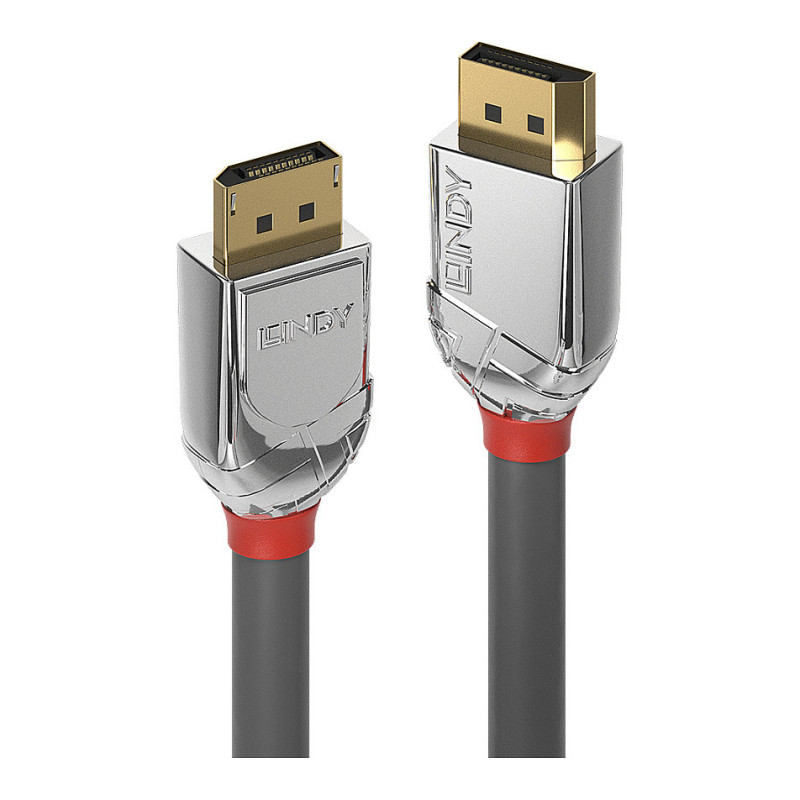

Lindy 36302 DisplayPort cable
Product reference: 29-4002888363020

Lindy 2m DisplayPort 1.4 Cable, Cromo Line, 2 m, DisplayPort, DisplayPort, Male, Male, 7680 x 4320 pixels

Lindy 36302 DisplayPort cable

Product reference: 29-4002888363020

Lindy 2m DisplayPort 1.4 Cable, Cromo Line, 2 m, DisplayPort, DisplayPort, Male, Male, 7680 x 4320 pixels

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
66,88 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
5 - 10
business days

Your message has been successfully sent!
Fill in the required fields*

Lindy 2m DisplayPort 1.4 Cable, Cromo Line. Cable length: 2 m, Connector 1: DisplayPort, Connector 2: DisplayPort. Compliance certificates: REACH, RoHS, UL, Certification: RoHS, REACH, UL,. Cable diameter: 7.3 mm, Connector 1 dimensions (WxDxH): 19.7 x 12 x 38.9 mm, Connector 2 dimensions (WxDxH): 19.7 x 12 x 38.9 mm. Package width: 194 mm, Package depth: 174 mm, Package height: 30 mm. Products per master (outer) case: 60 pc(s)

Features

Connector 1 form factor: Straight
Connector 2 form factor: Straight
Connector contacts plating: Gold
DisplayPort version: 1.4
Maximum resolution: 7680 x 4320 pixels
Supported graphics resolutions: 7680 x 4320
Maximum refresh rate: 60 Hz
Cable length: 2 m
Connector 1: DisplayPort
Connector 2: DisplayPort
Connector 1 gender: Male
Connector 2 gender: Male
Product colour: Grey
Cable material: Tinned copper
Cable shielding: Copper
Jacket material: Polyvinyl chloride (PVC)
Connector housing material: Acrylonitrile butadiene styrene (ABS)
AWG wire size: 28
Data transfer rate: 32.4 Gbit/s
Contact material: Phosphor copper
Connector material: Gold
Colour sampling: 4:2:2
Cable type: Round cable
Nominal attenuation: 300kHz-825MHz <5dB, 825MHz-2.475GHz <5dB, 2.475GHz-4.125GHz <12dB, 4.125GHz-5.1GHz <20dB

Operational conditions

Operating temperature (T-T): -20 - 80 °C
Storage temperature (T-T): -25 - 85 °C

Certificates

Compliance certificates: REACH, RoHS, UL
Certification: RoHS, REACH, UL,

Weight & dimensions

Cable diameter: 7.3 mm
Connector 1 dimensions (WxDxH): 19.7 x 12 x 38.9 mm
Connector 2 dimensions (WxDxH): 19.7 x 12 x 38.9 mm
Bend radius (min): 7.3 cm

Packaging data

Package width: 194 mm
Package depth: 174 mm
Package height: 30 mm
Package type: Polybag

Technical details

Housing material: Acrylonitrile butadiene styrene (ABS)

Logistics data

Harmonized System (HS) code: 84733080
Products per master (outer) case: 60 pc(s)

Other features

Connector(s): DP Male to DP Male
Depth: 42.5 mm
Height: 12.5 mm
Supported resolutions: 4 8bit
Width: 20.5 mm


Gamintojo kodas 36302
Weight 0 kg
