InLine 4043718172504 project mount
Product reference: 29-4043718172504

InLine Flat & Bevel Roof Bracket for TFT / LED / Plasma 32-55" up to 50kg, Ceiling, 50 kg, Black, Manual, 1050 - 1560 mm, 200 x 100 mm

InLine 4043718172504 project mount

Product reference: 29-4043718172504

InLine Flat & Bevel Roof Bracket for TFT / LED / Plasma 32-55" up to 50kg, Ceiling, 50 kg, Black, Manual, 1050 - 1560 mm, 200 x 100 mm

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
97,20 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
5 - 10
business days

Your message has been successfully sent!
Fill in the required fields*

InLine Flat & Bevel Roof Bracket for TFT / LED / Plasma 32-55" up to 50kg. Mounting type: Ceiling, Maximum weight capacity: 50 kg, Product colour: Black. Weight: 5.62 kg, Package width: 230 mm, Package depth: 870 mm. Package volume: 15000 cm³

Space-saving ceiling mounting with adjustable height and tilt

Reliable load capacity up to 50 kg: Mount displays securely to the ceiling.
Variable mounting height in 10 cm steps: Ceiling distance 105-156 cm for the right position.
Tilt function 0 to -15 °: Reduce reflections and adjust the viewing angle.

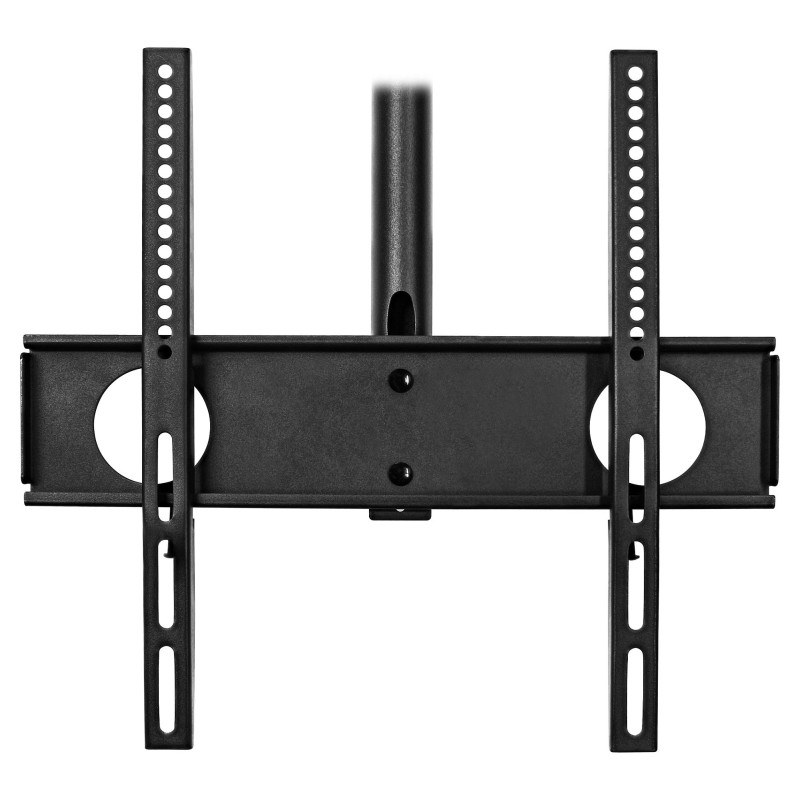

Wide VESA compatibility: 200x100, 200x200, 200x400, 400x400 mm for many devices.
Tidy cable routing: Integrated cable management keeps things organized.

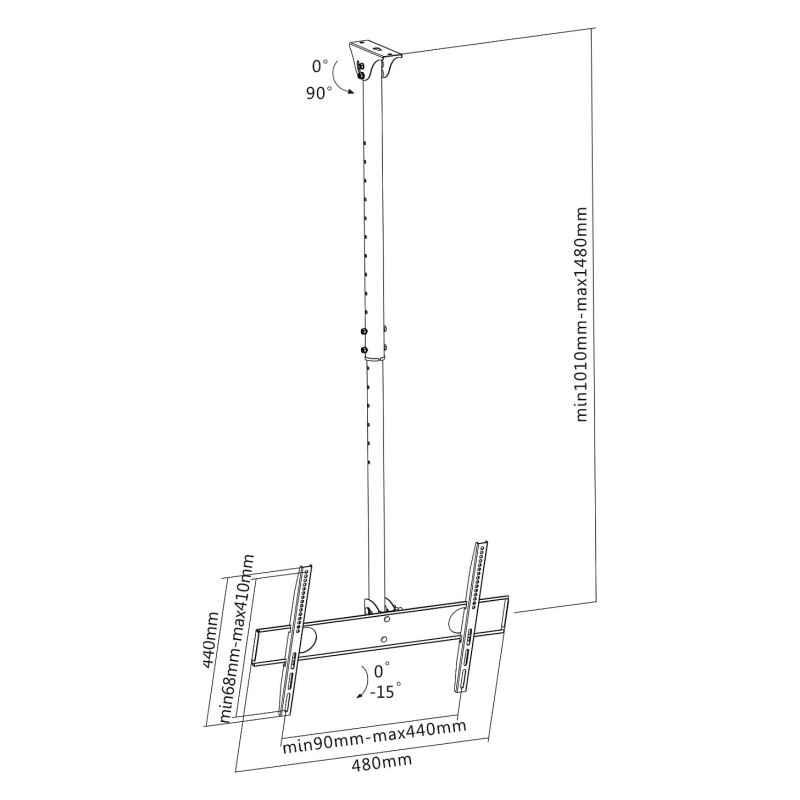

The ceiling mount accommodates flat-panel displays of 81-140 cm (32-55") and offers an adjustable tilt of 0 to -15 °. The mounting height can be set in 10 cm steps between 105 and 156 cm. The integrated cable management routes cables neatly to the ceiling. The scope of delivery includes accessories for mounting to the ceiling and the display. The mount can be installed on level ceilings and sloped ceilings. The supported VESA hole patterns are 200x100, 200x200, 200x400 and 400x400 mm.
In meeting and training rooms, ceiling mounting creates free floor space and a clear line of sight. In reception areas, sales floors, or information zones, the screen height can also be precisely adjusted and cables remain protected. This is ideal for professional IT environments, on-site installations, service deployments, and existing infrastructures in companies and public institutions.

Mounting type: ceiling
Screen size: 81-140 cm (32-55")
VESA: 200x100, 200x200, 200x400, 400x400 mm
Tilt: 0 to -15 °
Ceiling distance: 105-156 cm (in 10 cm steps)
Load capacity: up to 50 kg
Ceiling types: level ceilings and sloped ceilings
Scope of delivery: accessories for mounting to ceiling and display
Cable management: integrated

Performance

Mounting type: Ceiling
Maximum weight capacity: 50 kg
Product colour: Black
Feature: Cable management
Feature: Height adjustment
Height adjustment type: Manual
Height adjustment range: 1050 - 1560 mm
Minimum VESA mount: 200 x 100 mm
Maximum VESA mount: 400 x 400 mm
Panel mounting interface: 200 x 100,400 x 400 mm
Tilt angle range: 0 - 15°
Ceiling mounting tube length (max): 156 cm
Ceiling mounting tube length (min): 105 cm
Feature: Tilt adjustment

Weight & dimensions

Weight: 5.62 kg
Package width: 230 mm
Package depth: 870 mm
Package height: 75 mm
Package weight: 6.25 kg

Technical details

Maximum screen size: 139.7 cm (55")
Minimum screen size: 81.3 cm (32")

Logistics data

Package volume: 15000 cm³


Gamintojo kodas 23149A
Weight 6.16 kg
