ICY BOX IB-MS525-T

ICY BOX IB-MS525-T. Mounting: Clamp/Grommet, Maximum weight capacity: 21 kg, Maximum screen size: 76.2 cm (30"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -45 - 90°. Product colour: Grey, Silver

Mounting

Maximum weight capacity: 21 kg
Number of displays supported: 3
Maximum weight capacity (per display): 7 kg
Maximum screen size: 76.2 cm (30")

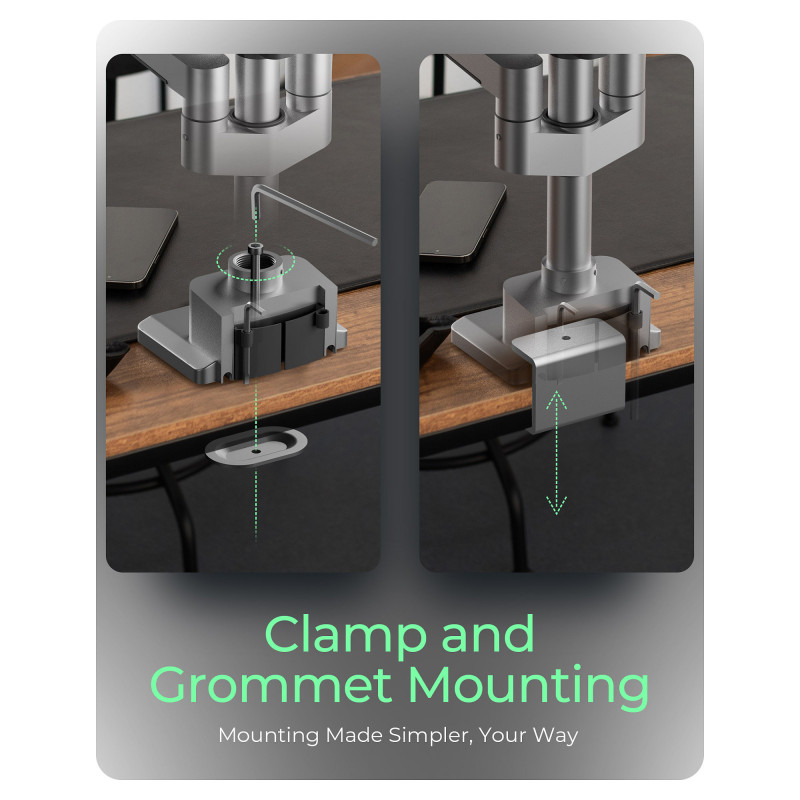

Mounting: Clamp/Grommet
Mounting type: Desk

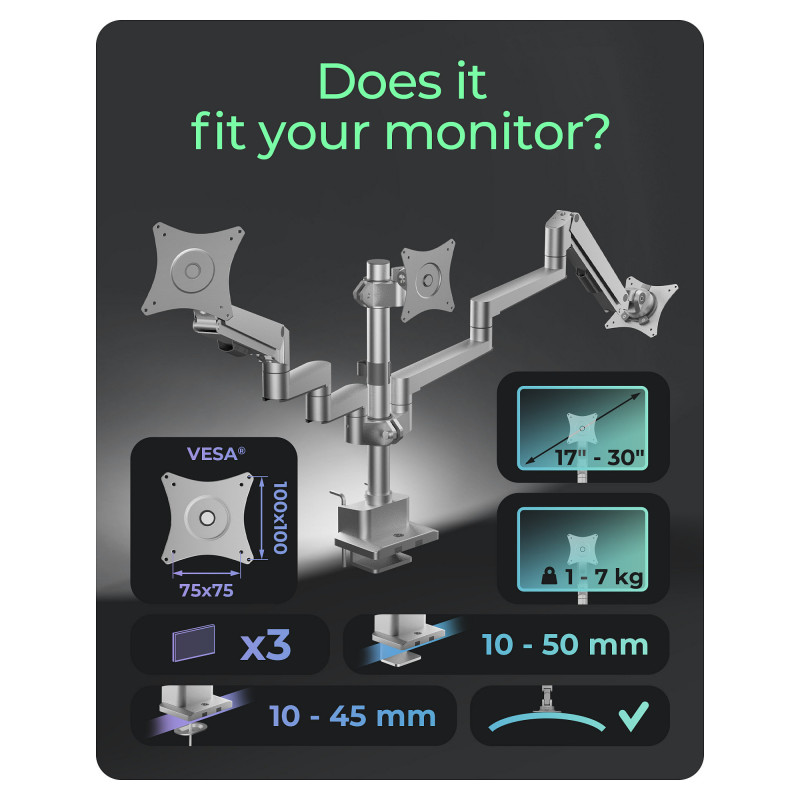

Minimum VESA mount: 75 x 75 mm
Maximum VESA mount: 100 x 100 mm
Panel mounting interface: 75 x 75,100 x 100 mm
Extension arm (max): 67 cm
Desk thickness (min): 1 cm
Desk thickness (max): 4.5 cm
Clamp mount desk thickness (max): 1 cm
Grommet mount desk thickness (max): 5 cm

Ergonomics

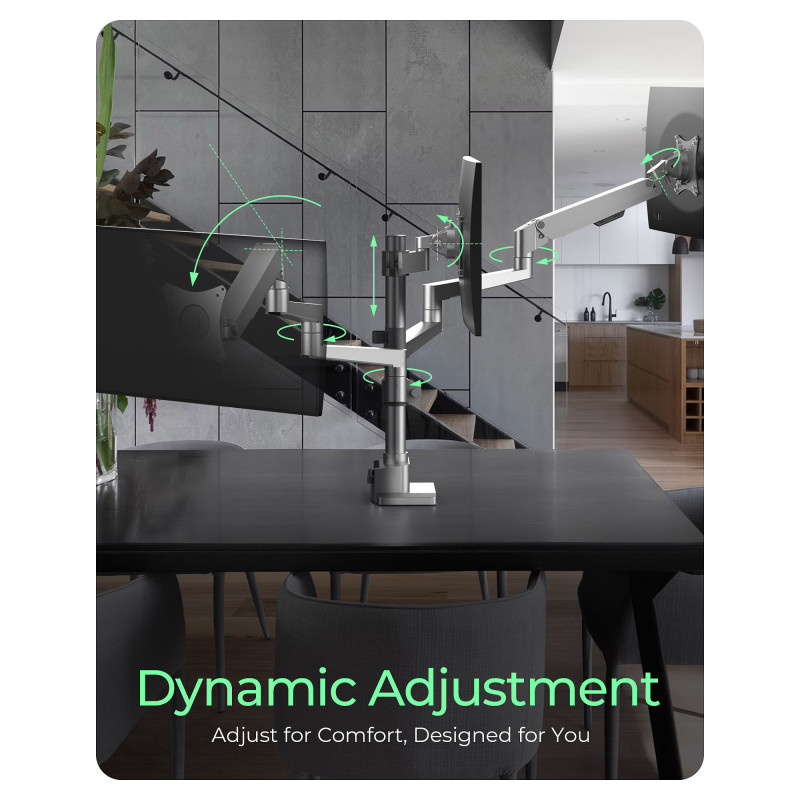

Feature: Height adjustment

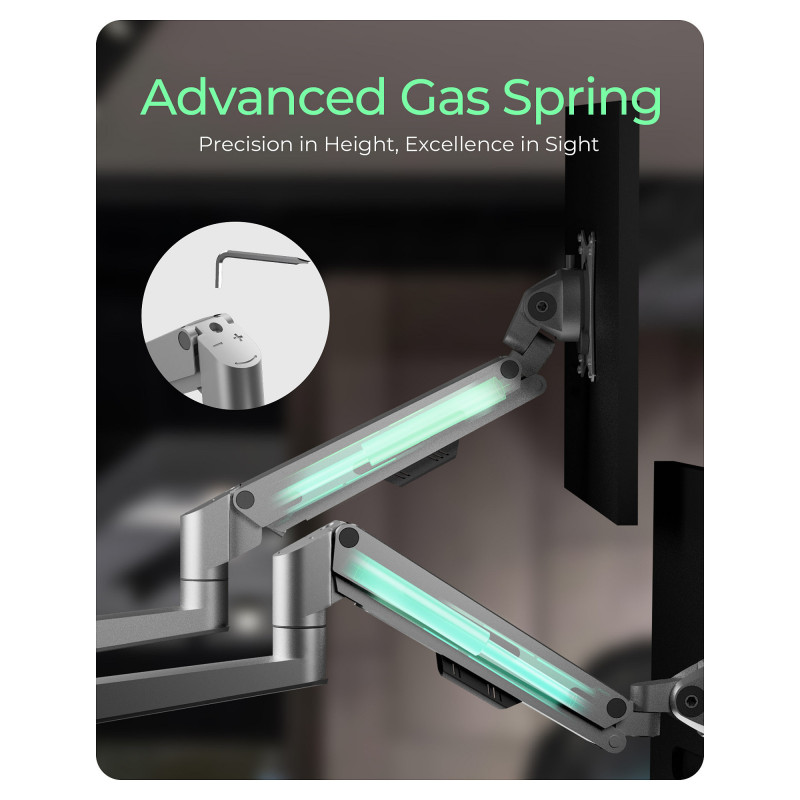

Height adjustment type: Gas spring
Height adjustment range: 0 - 280 mm
Feature: Tilt adjustment
Tilt angle range: -45 - 90°
Feature: Swivelling
Swivel angle: 180°
Swivel angle range: -90 - 90°
Feature: Rotating
Angle of rotation: 360°
Feature: Cable management

Design

Housing material: Aluminium, Plastic, Steel
Product colour: Grey, Silver

Weight & dimensions

Width: 430 mm
Depth: 320 mm
Height: 140 mm
Weight: 6.42 kg

Packaging data

Quantity per pack: 1 pc(s)
Package weight: 7.71 kg

Packaging content

Feature: VESA mount included
Feature: Mounting kit
Feature: Manual

Logistics data

Products per master (outer) case: 2 pc(s)
Country of origin: China
Harmonized System (HS) code: 73269098
