ICY BOX IB-MS524-T

ICY BOX IB-MS524-T. Mounting: Clamp/Grommet, Maximum weight capacity: 18 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -45 - 90°. Product colour: Grey, Silver

Mounting

Maximum weight capacity: 18 kg
Minimum screen size: 43.2 cm (17")
Number of displays supported: 2
Maximum weight capacity (per display): 9 kg
Maximum screen size: 81.3 cm (32")

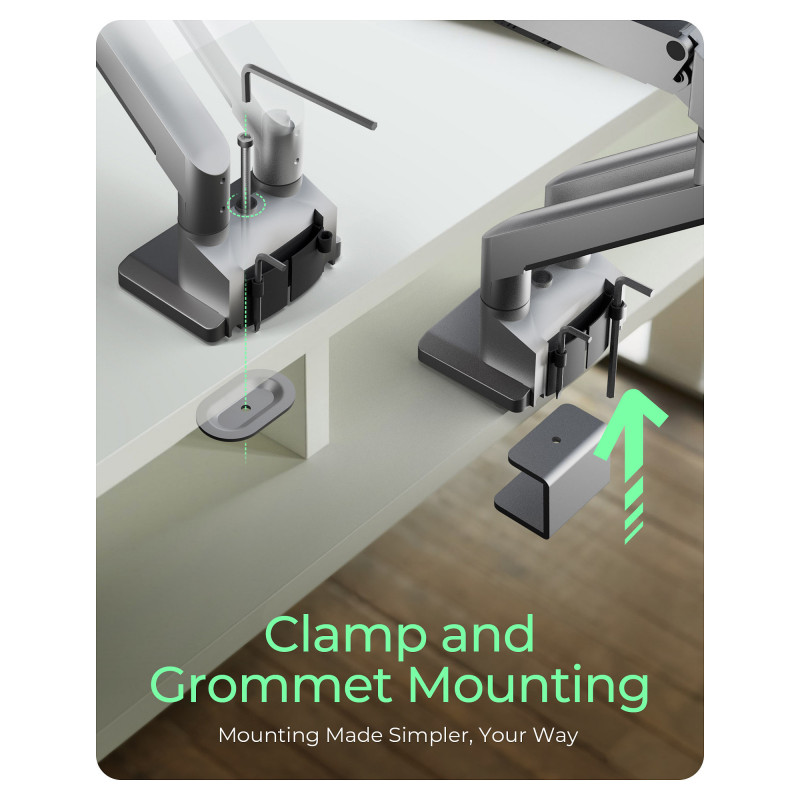

Mounting: Clamp/Grommet
Mounting type: Desk

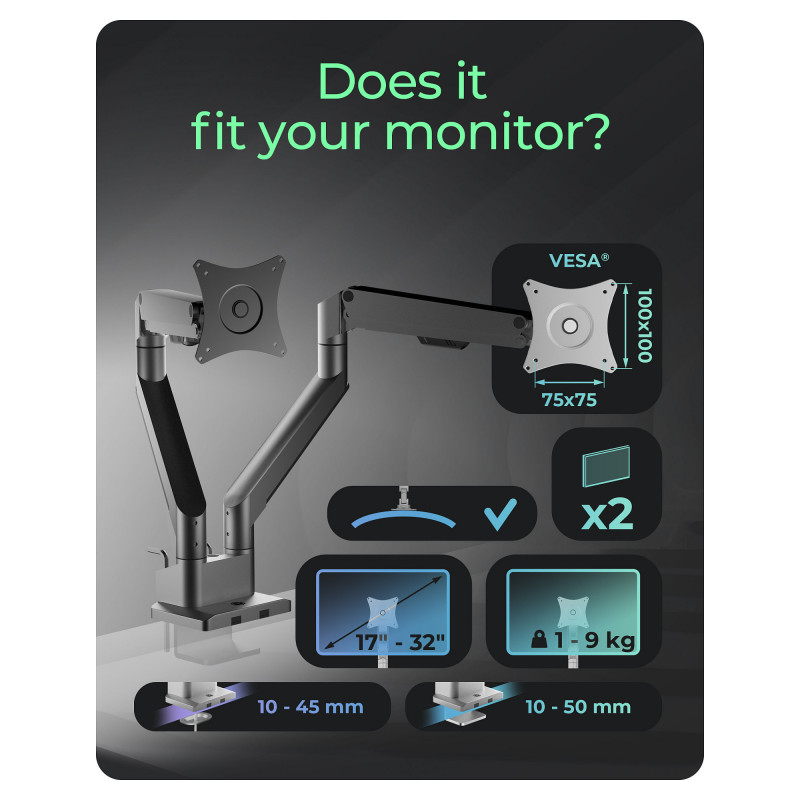

Minimum VESA mount: 75 x 75 mm
Maximum VESA mount: 100 x 100 mm
Panel mounting interface: 75 x 75,100 x 100 mm
Extension arm (max): 55 cm
Desk thickness (min): 1 cm
Desk thickness (max): 4.5 cm
Clamp mount desk thickness (max): 1 cm
Grommet mount desk thickness (max): 5 cm

Ergonomics

Feature: Height adjustment

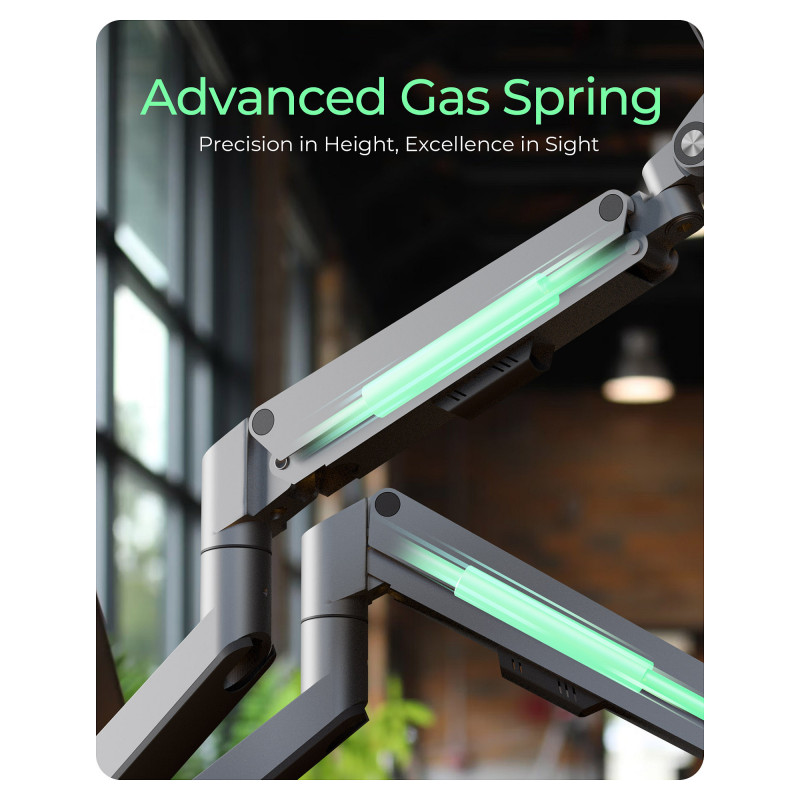

Height adjustment type: Gas spring
Height adjustment range: 0 - 280 mm
Feature: Tilt adjustment
Tilt angle range: -45 - 90°
Feature: Swivelling
Swivel angle: 180°
Swivel angle range: -90 - 90°
Feature: Rotating
Angle of rotation: 360°
Feature: Cable management

Design

Housing material: Aluminium, Plastic, Steel
Product colour: Grey, Silver

Weight & dimensions

Width: 435 mm
Depth: 195 mm
Height: 145 mm
Weight: 4.15 kg

Packaging data

Quantity per pack: 1 pc(s)
Package weight: 5.2 kg

Packaging content

Feature: VESA mount included
Feature: Mounting kit
Feature: Manual

Logistics data

Products per master (outer) case: 4 pc(s)
Country of origin: China
Harmonized System (HS) code: 73269098
