ICY BOX IB-MS314-T

ICY BOX IB-MS314-T. Mounting: Clamp, Maximum weight capacity: 16 kg, Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Swivel angle range: -90 - 90°, Tilt angle range: -45 - 90°. Product colour: Black

Flexible
No matter how you like to work - the different joints of the monitor arm can be moved in many angles. This allows the monitor to be aligned exactly as required. A full rotation is possible, the adjustment of hight and inclination or the distance to the wall.

Simplified monitor mounting
The removable VESA® flange made of exquisite steel offers longevity and easy installation. The connection is quick and easy to disconnect.

With firm hold
The desk mount allows the IB-MS314-T to be attached to desks. The ingenious design ensures a uniformly distributed weight and firm hold on the desk. No more crawling under desks on your hands and knees! The IB-MS314-T single monitor arm is supplied with a fixation that can be operated from above.

Mounting

Maximum weight capacity: 16 kg
Number of displays supported: 2
Maximum weight capacity (per display): 8 kg
Maximum screen size: 81.3 cm (32")
Mounting: Clamp
Mounting type: Desk
Minimum VESA mount: 75 x 75 mm
Maximum VESA mount: 100 x 100 mm
Panel mounting interface: 75 x 75,100 x 100 mm
Desk thickness (min): 1 cm
Desk thickness (max): 5 cm

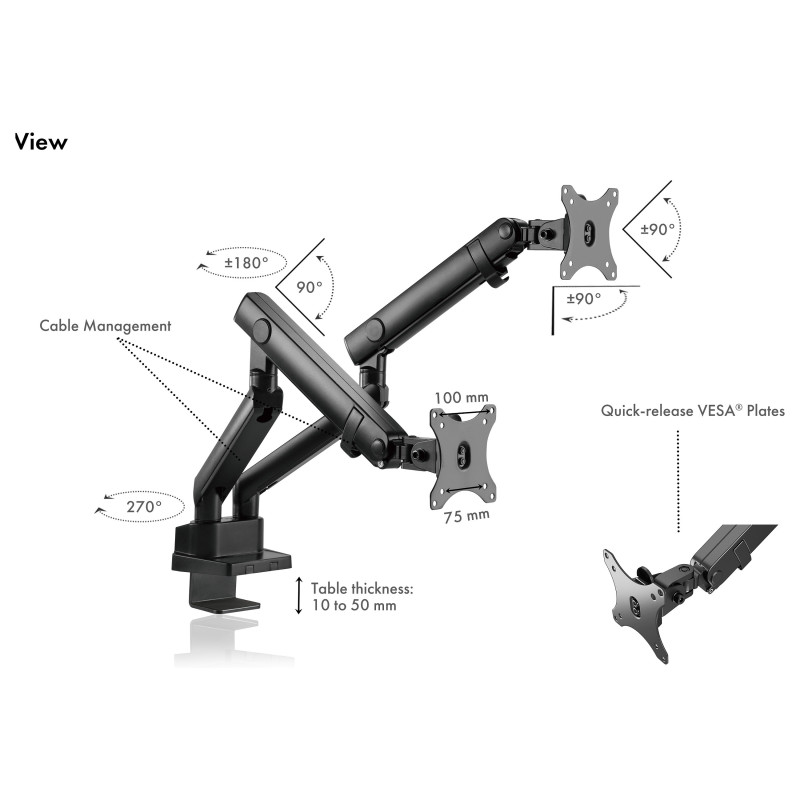

Ergonomics

Tilt angle range: -45 - 90°
Swivel angle range: -90 - 90°
Feature: Rotating
Angle of rotation: 360°
Pivot angle: -90 - 90°

Design

Housing material: Aluminium, Plastic, Steel
Product colour: Black

Weight & dimensions

Width: 1100 mm
Depth: 547 mm
Height: 450 mm
Weight: 4.8 kg

Packaging data

Package width: 130 mm
Package depth: 440 mm
Package height: 320 mm
Package weight: 6.25 kg

Packaging content

Feature: Mounting kit
Feature: Manual

Logistics data

Master (outer) case width: 460 mm
Master (outer) case length: 655 mm
Master (outer) case height: 285 mm
Master (outer) case gross weight: 25 kg
Products per master (outer) case: 4 pc(s)
Country of origin: China
Harmonized System (HS) code: 73269098
