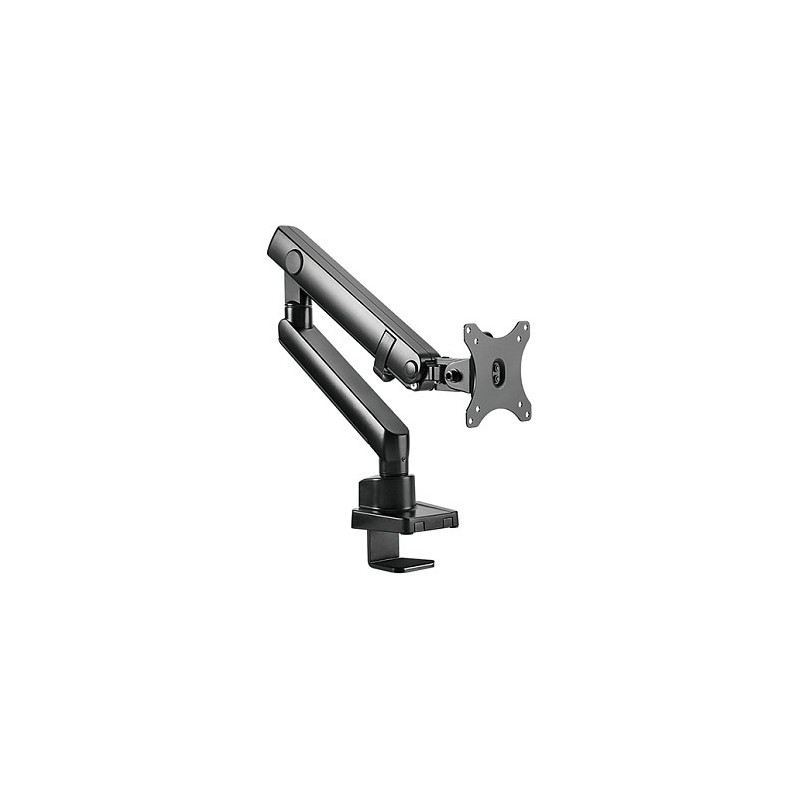

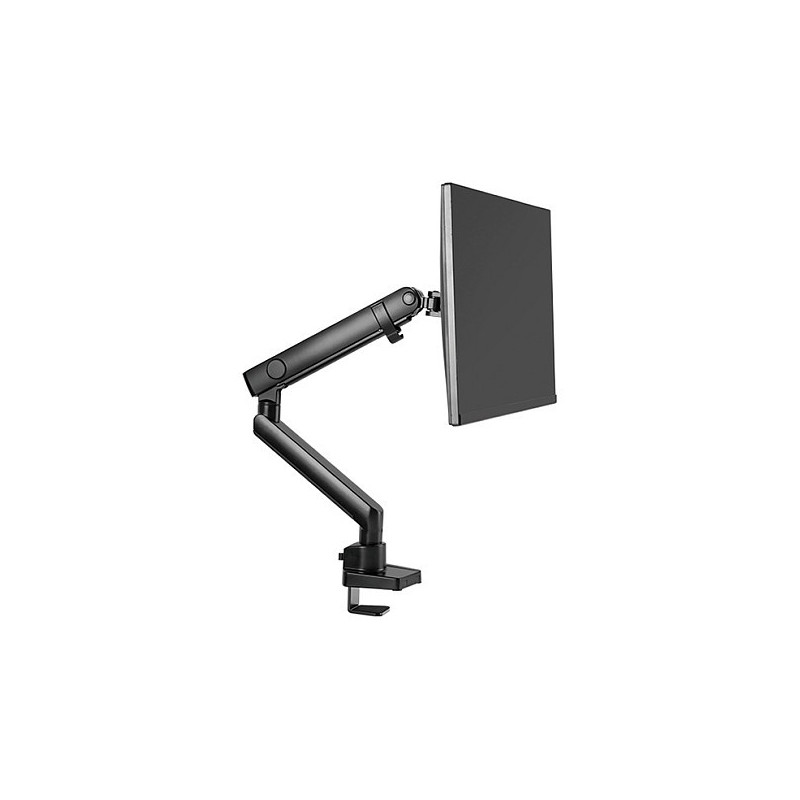

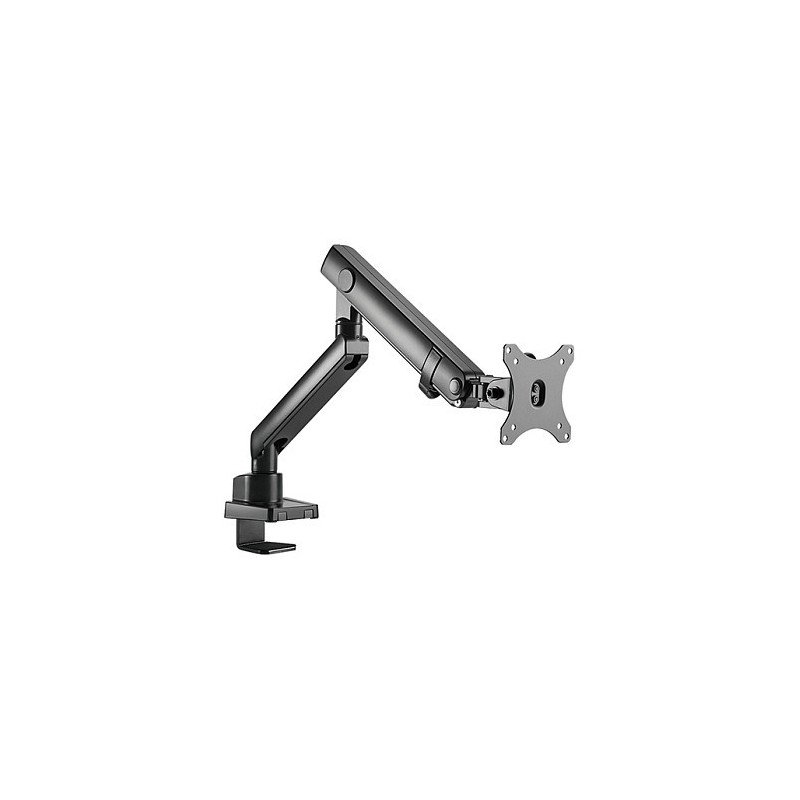

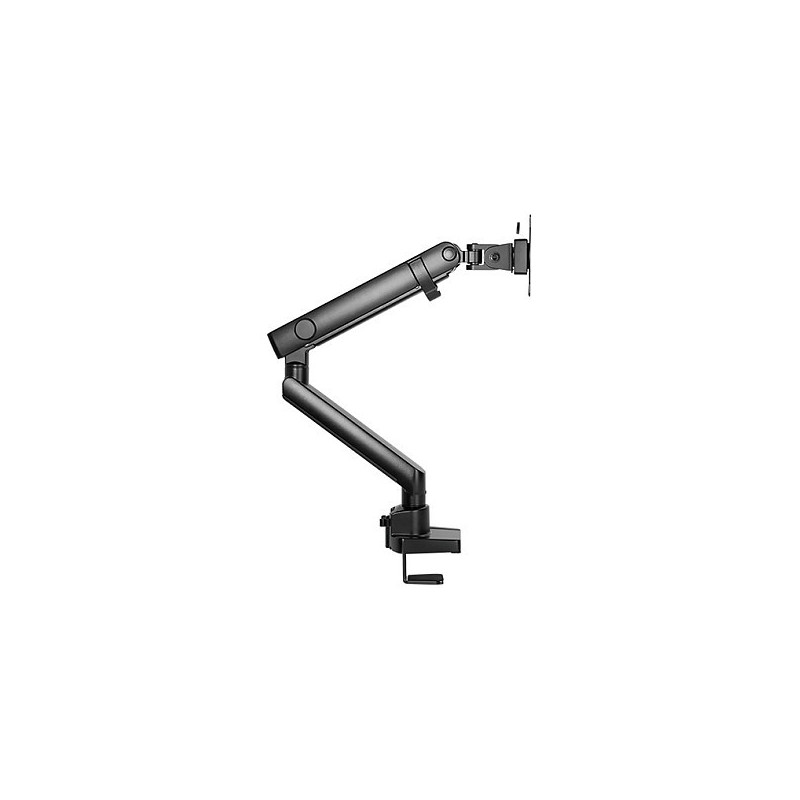

ICY BOX IB-MS313-T

ICY BOX IB-MS313-T. Mounting: Clamp, Maximum weight capacity: 8 kg, Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Swivel angle range: -90 - 90°, Tilt angle range: -45 - 90°. Product colour: Black

Mounting

Maximum weight capacity: 8 kg
Number of displays supported: 1
Maximum screen size: 81.3 cm (32")
Mounting: Clamp
Mounting type: Desk
Minimum VESA mount: 75 x 75 mm
Maximum VESA mount: 100 x 100 mm
Panel mounting interface: 75 x 75,100 x 100 mm
Desk thickness (min): 1 cm
Desk thickness (max): 5 cm

Ergonomics

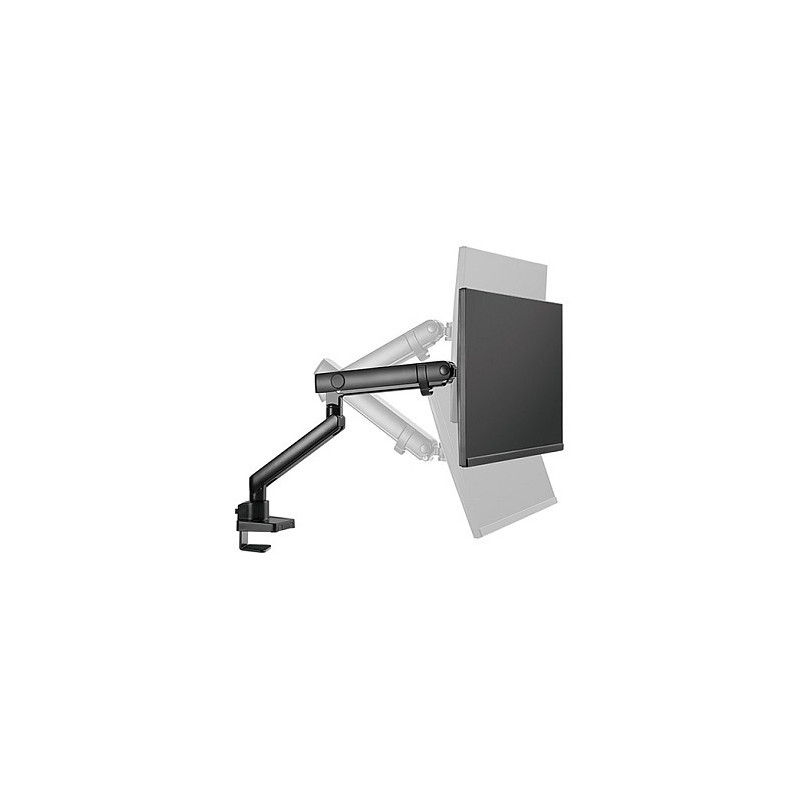

Tilt angle range: -45 - 90°
Swivel angle range: -90 - 90°
Feature: Rotating
Angle of rotation: 360°
Pivot angle: -90 - 90°
Feature: Cable management

Design

Housing material: Aluminium, Plastic, Steel
Product colour: Black

Weight & dimensions

Width: 547 mm
Depth: 547 mm
Height: 445 mm
Weight: 2.52 kg

Packaging data

Package width: 120 mm
Package depth: 440 mm
Package height: 245 mm
Package weight: 3.6 kg

Packaging content

Feature: Mounting kit
Feature: Manual

Logistics data

Master (outer) case width: 460 mm
Master (outer) case length: 500 mm
Master (outer) case height: 380 mm
Master (outer) case gross weight: 21.6 kg
Products per master (outer) case: 6 pc(s)
Country of origin: China
Harmonized System (HS) code: 73269098
