Ergotron HX Series HX ARM WITH VERY HEAVY DUTY PIVOT DESK

Ergotron HX Series HX ARM WITH VERY HEAVY DUTY PIVOT DESK. Mounting: Clamp, Maximum weight capacity: 17 kg, Maximum screen size: 144.8 cm (57"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Tilt angle range: 5 - 20°. Product colour: Black

Enable immersive viewing experiences and take back your desk space. Our best-selling HX Monitor Arm is now available with a very heavy-duty tilt pivot, giving gamers and office professionals the freedom to move and position ultra-wide curved displays 9.1"-13.8" (23-35 cm) deep and 28.7-37.5 lbs (13-17 kg), like the Samsung® 57″ Odyssey G9 Gaming Monitor.

note: Other variations of the Samsung G9 are compatible with the standard HX Arm or the HX Arm with HD Pivot. Check your display's weight and depth to ascertain which mount is appropriate.

Mounting

Maximum weight capacity: 17 kg
Number of displays supported: 1
Maximum weight capacity (per display): 17 kg
Maximum weight capacity (per curved/ultra-wide display): 17 kg
Maximum screen size: 144.8 cm (57")
Mounting: Clamp
Feature: Suitable for TV
Mounting type: Desk
Minimum VESA mount: 75 x 75 mm
Maximum VESA mount: 100 x 100 mm
Panel mounting interface: 75 x 75,100 x 100 mm

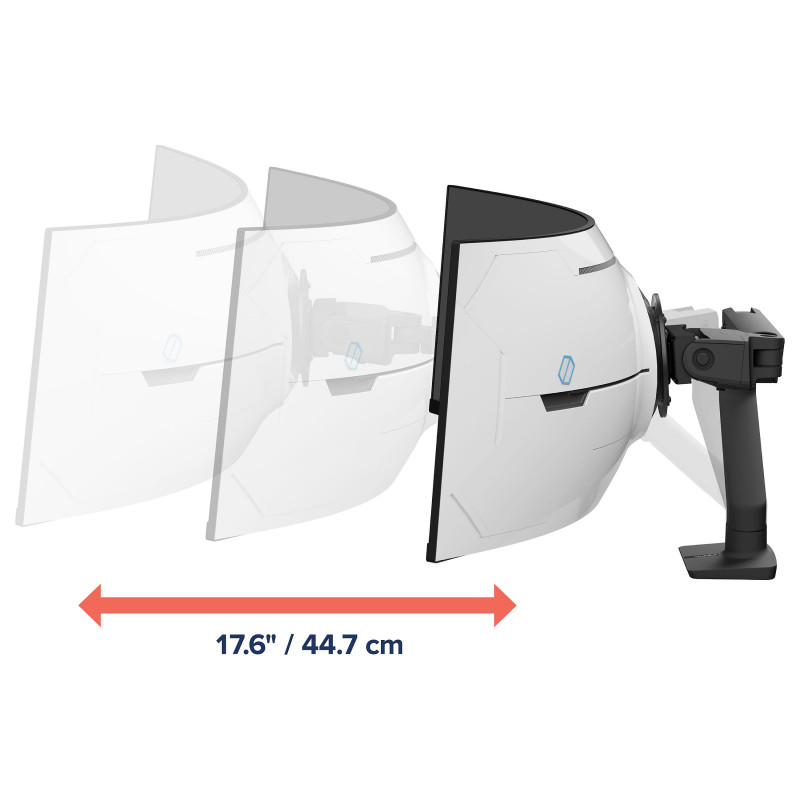

Extension arm (max): 44.7 cm
Desk thickness (min): 1 cm
Desk thickness (max): 6.6 cm

Ergonomics

Feature: Height adjustment

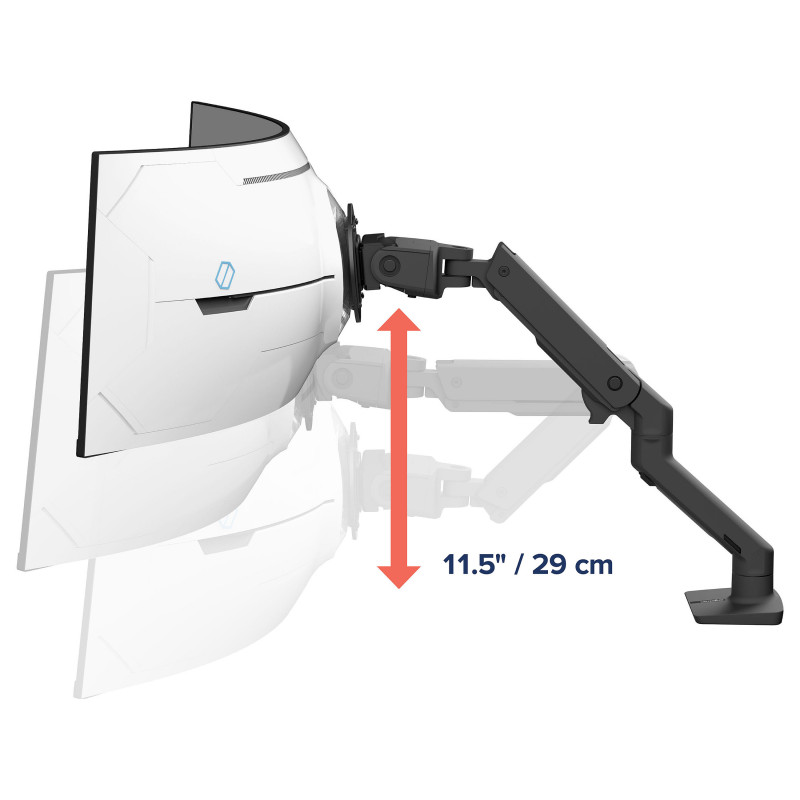

Height adjustment range: 0 - 292 mm
Feature: Adjustable depth
Feature: Tilt adjustment
Tilt angle range: 5 - 20°
Feature: Swivelling
Feature: Rotating
Angle of rotation: 20°
Pan range: 0 - 180°
Number of arms: 1
Feature: Cable management

Design

Product colour: Black
Orientation: Landscape
Feature: Easy to install

Packaging content

Feature: Clamp included
Feature: VESA mount included
Feature: Mounting kit
Feature: Manual

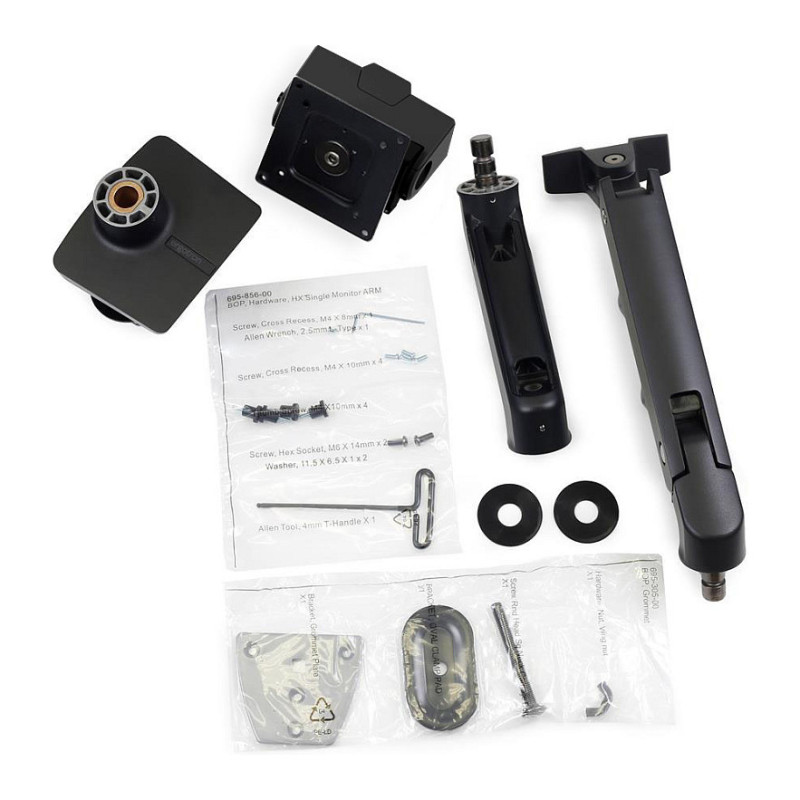

Packaging content: HX Arm, Very Heavy-Duty Tilt Pivot, extension, desk clamp, grommet mount, mounting hardware

Other features

Warranty period: 10 year(s)

Logistics data

Country of origin: China
