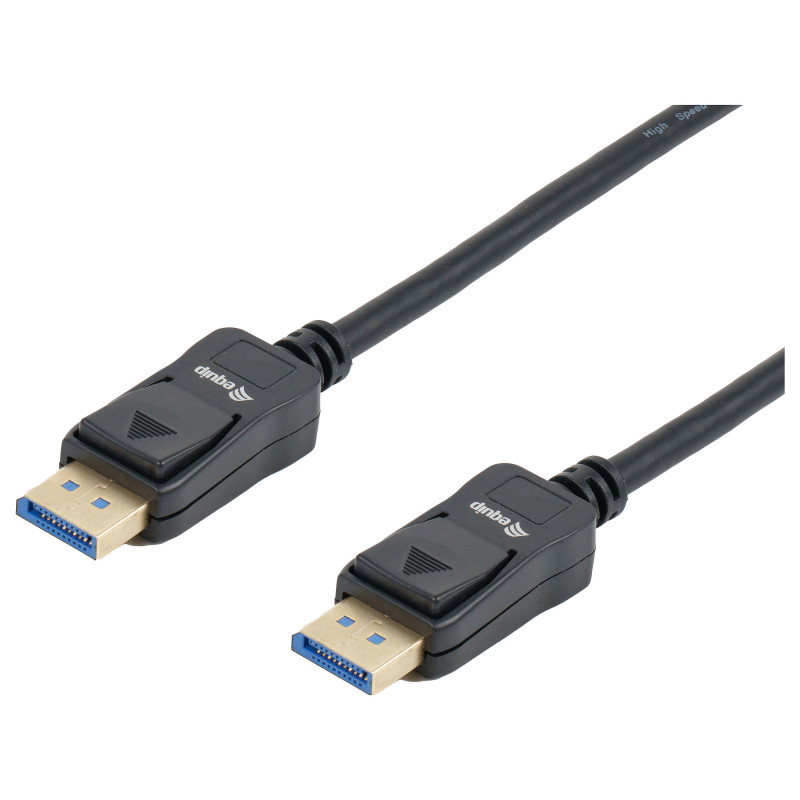

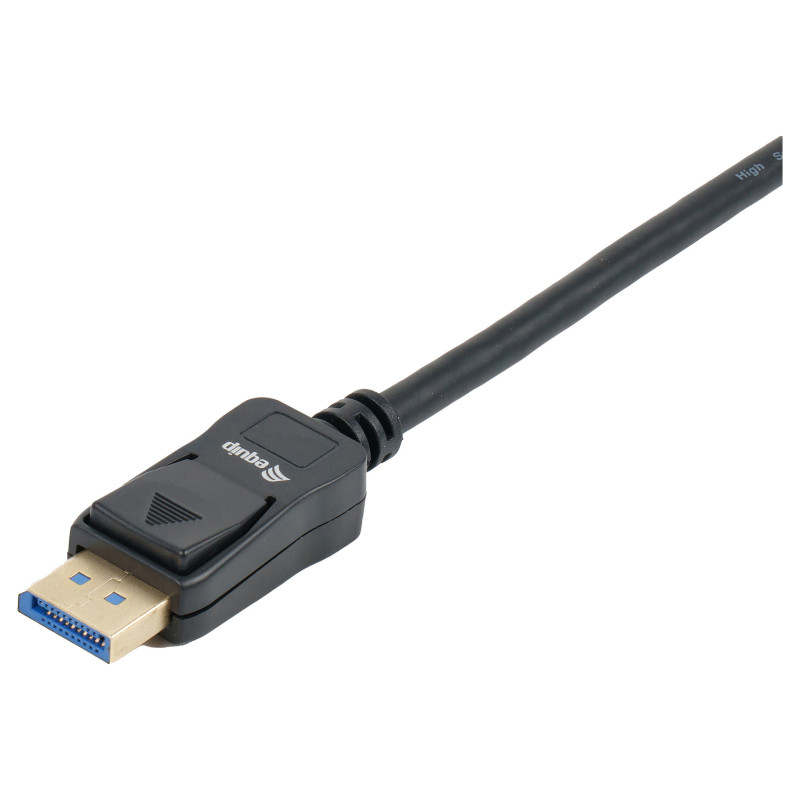

Equip 119274 DisplayPort cable

Equip 119274. Cable length: 5 m, Connector 1: DisplayPort, Connector 2: DisplayPort. Compliance certificates: RoHS, REACH. Weight: 229 g. Package width: 200 mm, Package depth: 300 mm, Package height: 40 mm. Country of origin: China, Master (outer) case width: 400 mm, Master (outer) case length: 300 mm

The 119274 DisplayPort 2.1 Cable is built for high-bandwidth video and audio transmission, enabling modern gaming, professional graphics, and multi-display workstation setups over a 5.0m run.

With DisplayPort 2.1 support and up to 40Gbps bandwidth, it delivers up to 16K at 60Hz (with DSC on supported devices) and stays backward compatible with DisplayPort 1.4/1.3/1.2/1.1 for easy upgrades across existing GPUs and monitors. It supports HDR10/HDR10+ for improved contrast and color on compatible content, MST for multi-stream transport (daisy-chain / multi-monitor output where supported), and HDCP 1.4/2.2/2.3 for protected content playback.

For stable performance over longer distance, the cable is designed to reduce signal loss and interference, while gold-plated connectors help maintain reliable contact. A PVC jacket improves flexibility for routing and installation in office, studio, and home entertainment environments.

Features

Connector 1 form factor: Straight
Connector 2 form factor: Straight
Connector contacts plating: Gold
DisplayPort version: 2.1
Maximum resolution: 15360 x 8640 pixels
Supported graphics resolutions: 15360 x 8640, 10240 x 4320, 7680 x 4320, 5120 x 2880, 3840 x 2160, 2560 x 1440, 1920 x 1200 (WUXGA)
Maximum refresh rate: 240 Hz
Feature: HDCP
HDCP version: 1.4/2.3
Feature: Display Stream Compression (DSC)
Cable length: 5 m
Connector 1: DisplayPort
Connector 2: DisplayPort
Connector 1 gender: Male
Connector 2 gender: Male
Product colour: Black
Jacket material: Polyvinyl chloride (PVC)
Feature: High Dynamic Range (HDR) supported
Data transfer rate: 40 Gbit/s
Feature: Multi-Stream Transport (MST)
Cable type: Round cable

Certificates

Compliance certificates: RoHS, REACH

Weight & dimensions

Weight: 229 g

Packaging data

Package width: 200 mm
Package depth: 300 mm
Package height: 40 mm
Package weight: 238 g
Package type: Polybag

Logistics data

Customs product code (TARIC): 8544421000
Country of origin: China
Master (outer) case width: 400 mm
Master (outer) case length: 300 mm
Master (outer) case height: 300 mm
Master (outer) case gross weight: 10.3 kg
Products per master (outer) case: 40 pc(s)
