Equip 650637 TV mount / stand

Equip 55"-100" Economy TV Trolley. Maximum weight capacity: 70 kg, Minimum screen size: 139.7 cm (55"), Maximum screen size: 2.54 m (100"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 800 x 600 mm. Tilt angle range: -10 - 5°. Product colour: Black

The 55"-100" Economy TV Trolley offers a robust and flexible display solution designed for large-format screens in offices, classrooms, conference rooms, and commercial environments. Supporting TV sizes from 55 to 100 inches, it accommodates most VESA-compatible flat panels with secure, stable mounting. The heavy-duty steel frame ensures reliable strength and durability, making it suitable for both professional and educational use.

Equipped with smooth-rolling lockable casters, the trolley provides easy mobility and safe positioning anywhere it's needed. Adjustable height settings allow users to achieve optimal viewing angles for presentations, meetings, or digital signage applications. An integrated cable management system keeps wires neatly organized, ensuring a clean, clutter-free appearance. Combining practicality, affordability, and stability, the 55"-100" Economy TV Trolley delivers excellent performance for large-screen displays—ideal for users seeking a dependable, mobile solution for dynamic and modern visual presentations.

Mounting

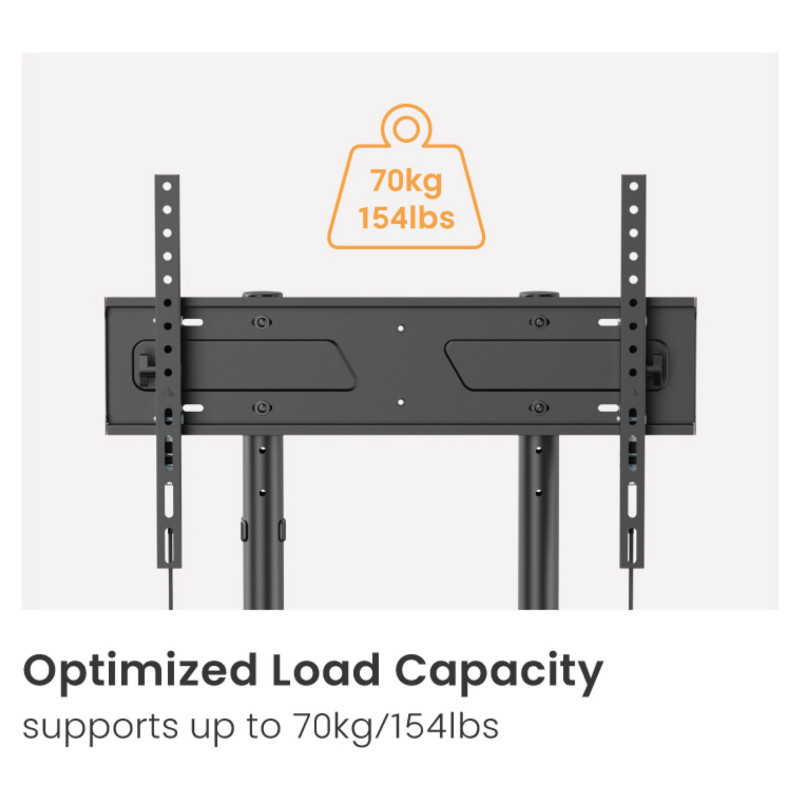

Maximum weight capacity: 70 kg
Minimum screen size: 139.7 cm (55")
Number of displays supported: 1
Maximum weight capacity (per display): 70 kg
Maximum screen size: 2.54 m (100")
Minimum VESA mount: 100 x 100 mm
Maximum VESA mount: 800 x 600 mm
Panel mounting interface: 100 x 100,200 x 200,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300,600 x 400,600 x 600,800 x 600
Mounting type: Floor

Ergonomics

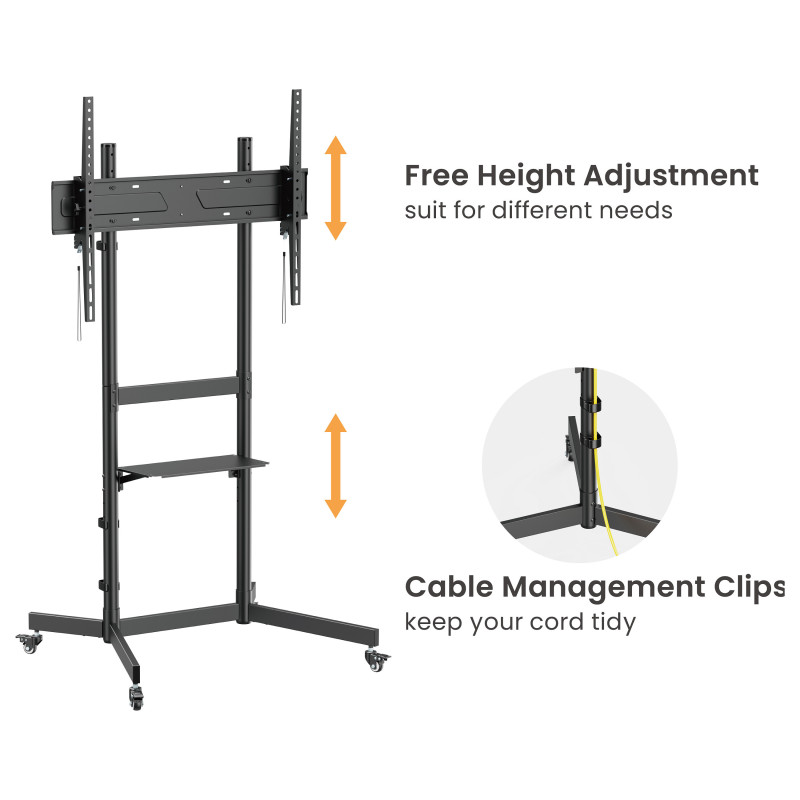

Feature: Height adjustment
Feature: Tilt adjustment

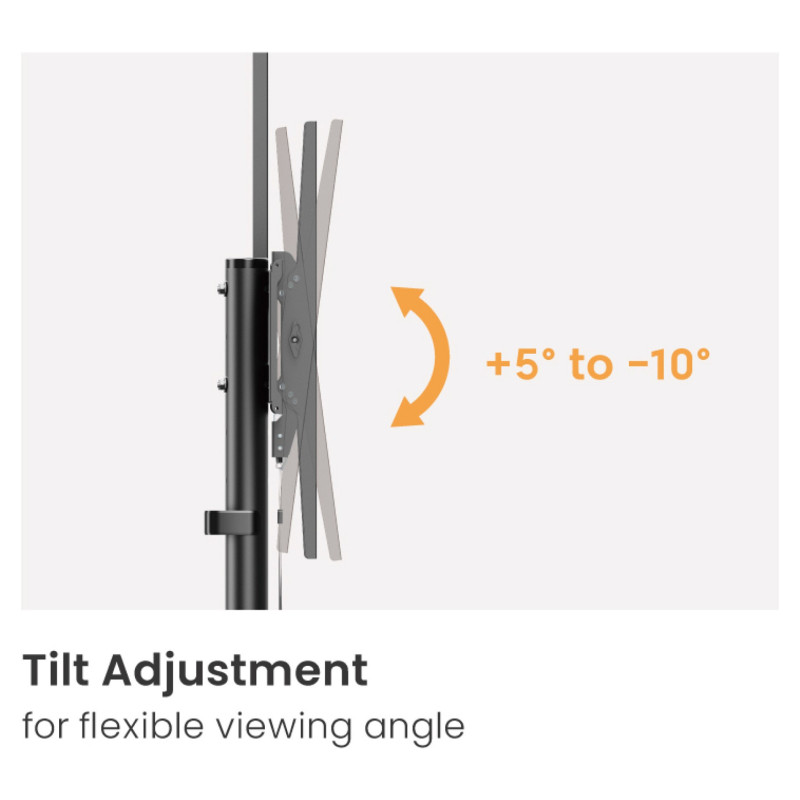

Tilt angle range: -10 - 5°
Feature: Wheels
Number of wheels: 4 wheel(s)

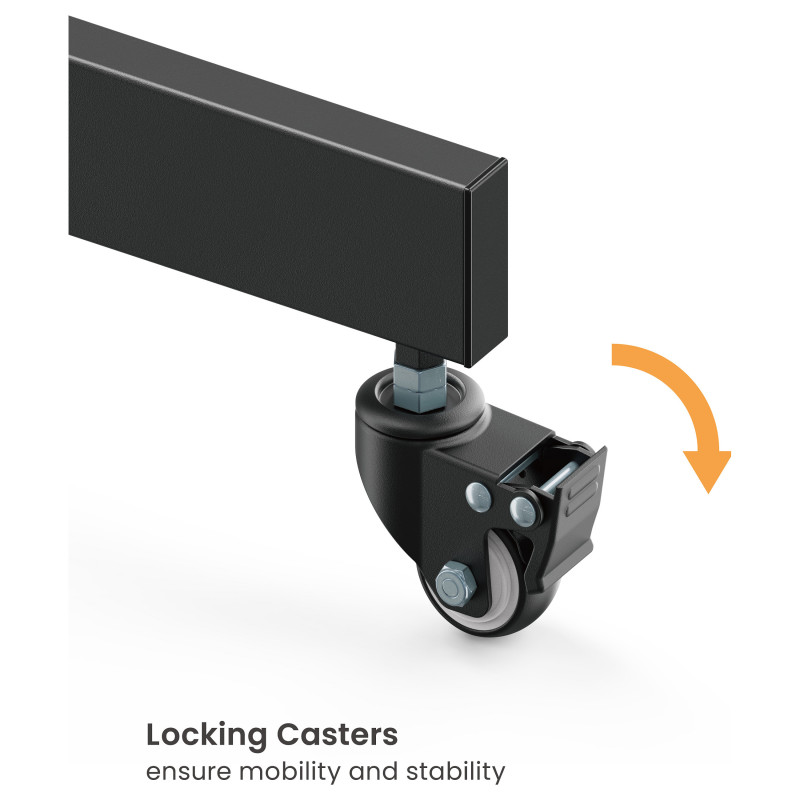

Feature: Lockable wheels
Feature: Built-in shelf
Number of shelves: 1 shelves

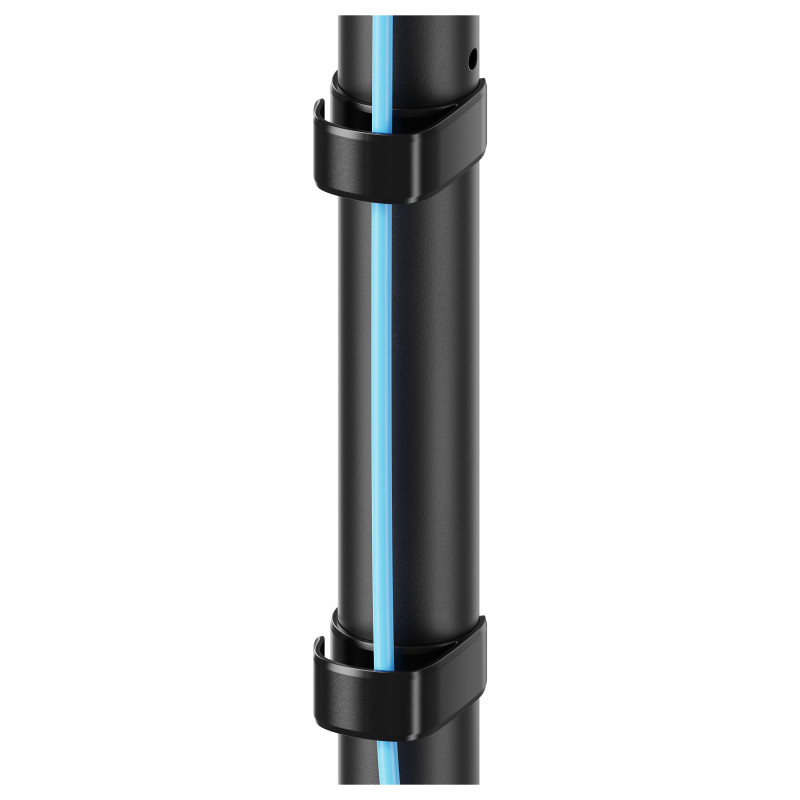

Feature: Cable management
Feature: Suitable for curved screen

Design

Product colour: Black
Housing material: Plastic, Stainless steel
Feature: Anti-theft function

Technical details

Country of origin: China
Compliance certificates: RoHS

Packaging content

Feature: Screws included
Feature: Manual

Weight & dimensions

Width: 808 mm
Depth (max): 69 cm
Height: 1740 mm
Weight: 12.6 kg

Packaging data

Package width: 850 mm
Package depth: 260 mm
Package height: 150 mm
Package weight: 13.5 kg

Logistics data

Master (outer) case width: 850 mm
Master (outer) case length: 260 mm
Master (outer) case height: 150 mm
Master (outer) case gross weight: 13.5 kg
Products per master (outer) case: 1 pc(s)
Customs product code (TARIC): 8529909700
