Equip 650602 signage display mount

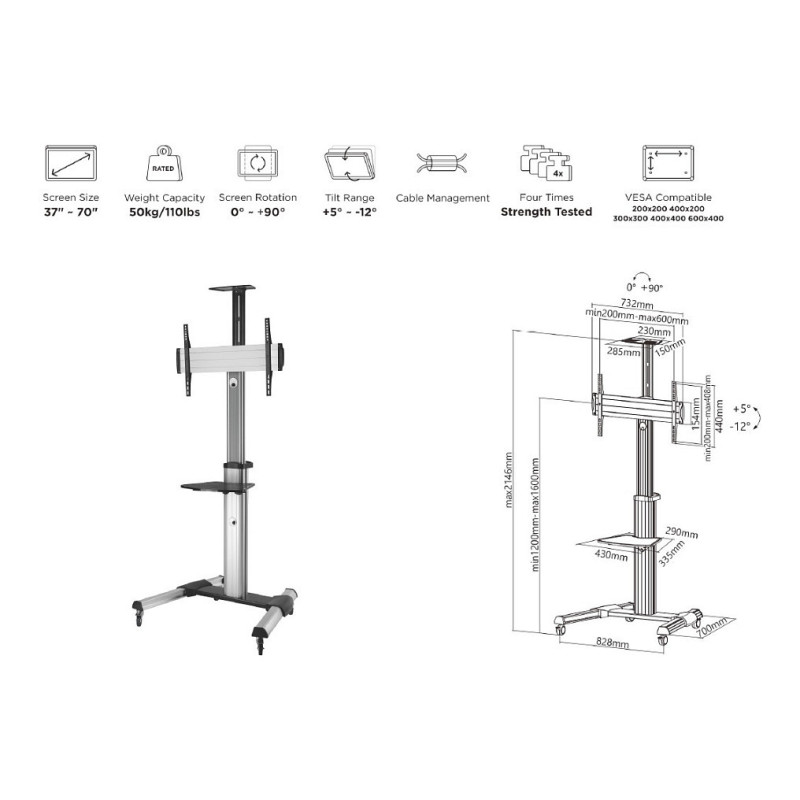

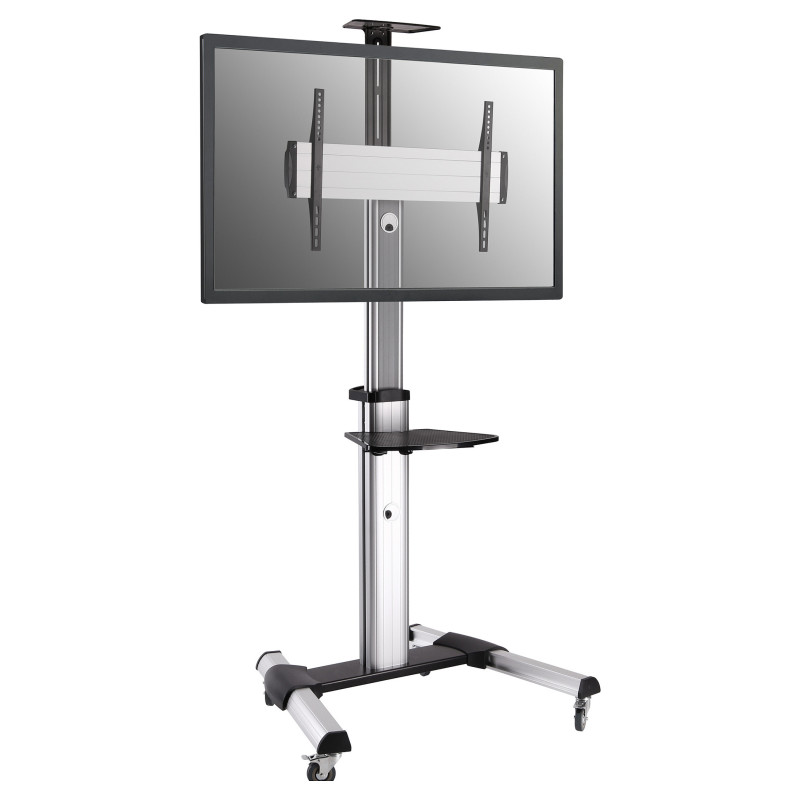

Equip 650602 37-70" 90° Rotate Single Display LFD Trolley. Maximum weight capacity: 50 kg, Minimum screen size: 94 cm (37"), Maximum screen size: 177.8 cm (70"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 600 x 400 mm. Tilt angle range: -12 - 5°. Product colour: Black, White

"The equip 650602 single display TV cart with stylish, technical and functional design to provide solid presentation solution for most 37-70"" LED, LCD flat panel TVs loading capacity up to 50kg.

Its flat panel TV brackets vertically allow effortless height adjustment of max. +5°~-10° freely tilting allows easy angle adjustment and reduces glare from lights or windows to obtain the optimal viewing comfort.

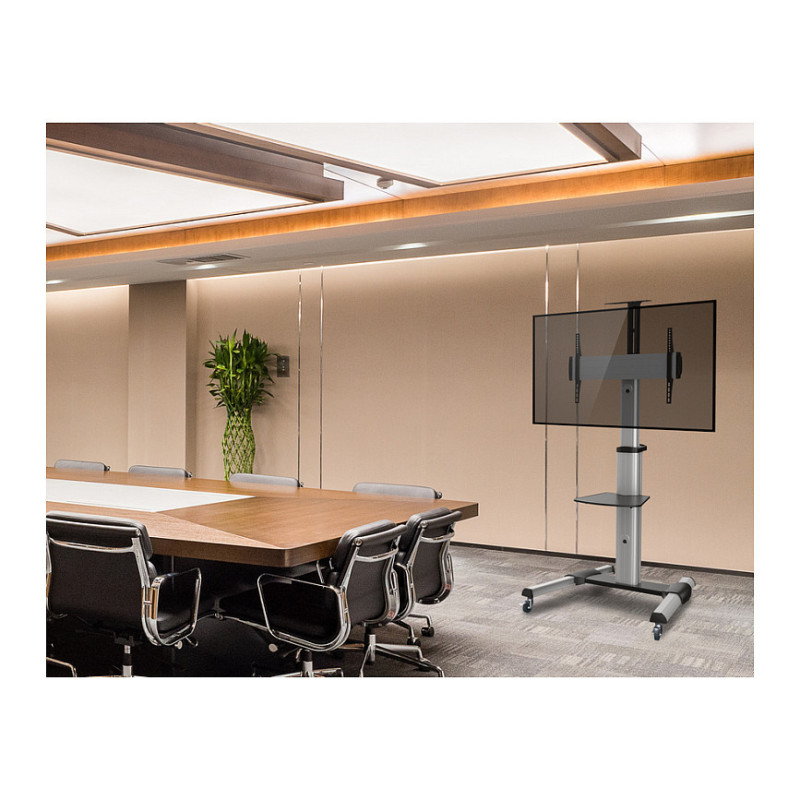

Solid base provides additional security by removing the possibility of tripped over and ensures reliable performance for years of use. Locking casters make TV carts easy to move and stop for. Internal cable management hides wires from view to keep a clutter-free appearance. Ideal for conferencing, public displays or other professional presentation."

Mounting

Maximum weight capacity: 50 kg
Minimum screen size: 94 cm (37")
Number of displays supported: 1
Maximum screen size: 177.8 cm (70")
Mounting type: Floor
Minimum VESA mount: 200 x 200 mm
Maximum VESA mount: 600 x 400 mm
Panel mounting interface: 200 x 200,300 x 300,400 x 200,400 x 400,600 x 400

Ergonomics

Feature: Height adjustment
Tilt angle range: -12 - 5°
Angle of rotation: 90°
Feature: Adjustable shelves
Included number of shelves: 1
Number of wheels: 4 wheel(s)
Feature: Lockable wheels
Feature: Adjustable
Feature: Cable management

Design

Type: Portable flat panel floor stand
Product colour: Black, White
Housing material: Aluminium

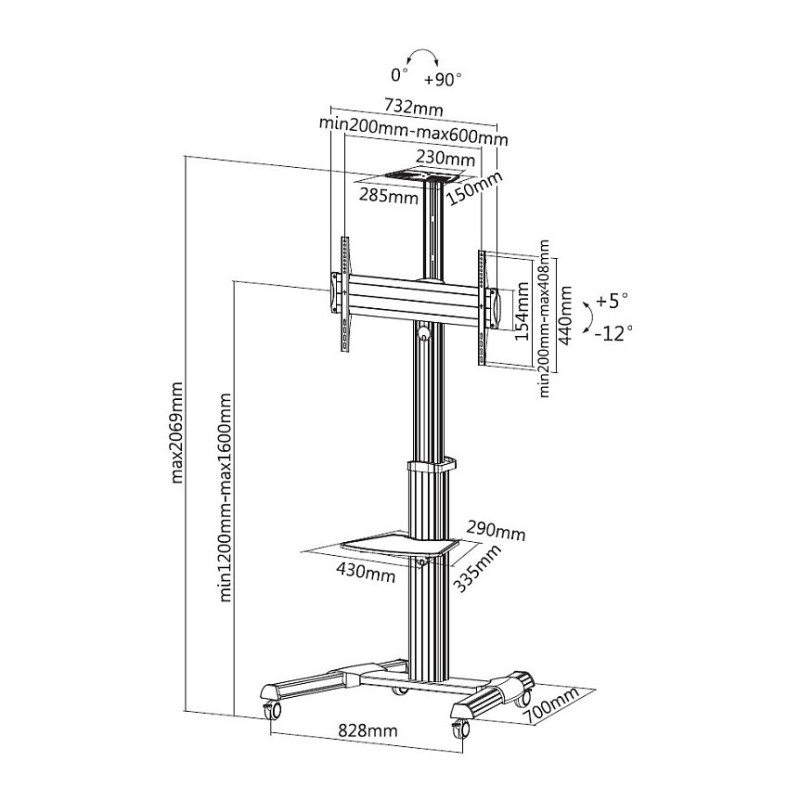

Weight & dimensions

Width: 828 mm
Depth: 700 mm
Height: 2069 mm
Height (max): 2.07 m
Weight: 21.1 kg
Width top shelf: 43 cm
Depth top shelf: 33.5 cm

Packaging data

Package width: 545 mm
Package depth: 1145 mm
Package height: 260 mm
Package weight: 24.2 kg

Packaging content

Feature: User guide
Feature: Mounting kit

Logistics data

Harmonized System (HS) code: 85299097
