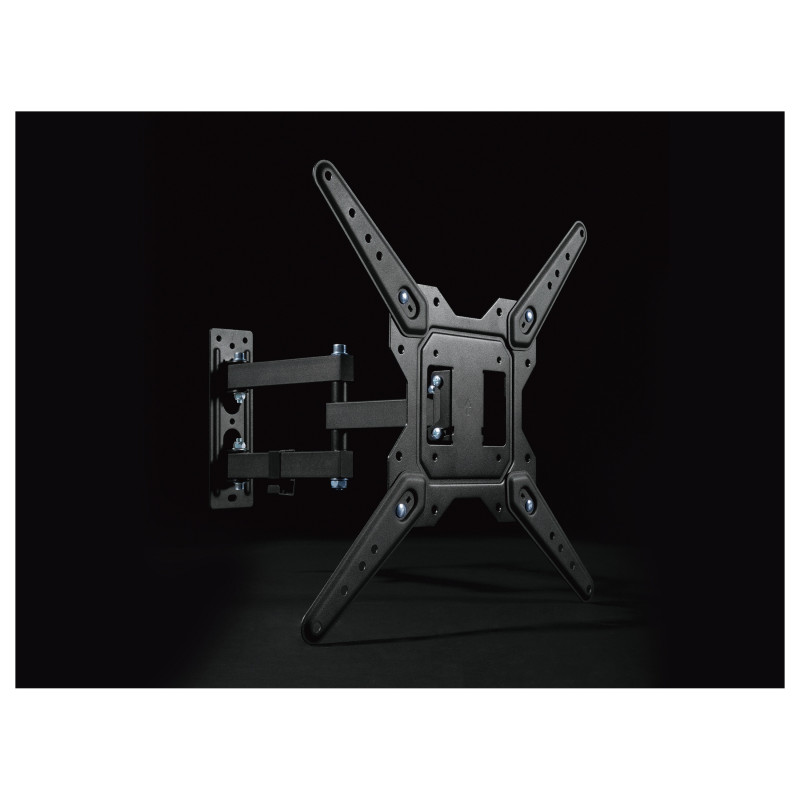

Equip 650413 TV mount / stand

Equip 23"-55" Full Motion TV Wall Mount Bracket. Maximum weight capacity: 30 kg, Minimum screen size: 58.4 cm (23"), Maximum screen size: 139.7 cm (55"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 400 x 400 mm. Tilt angle range: -10 - 3°, Swivel angle range: -90 - 90°, Distance to the wall (min): 6 cm, Distance to the wall (max): 38.2 cm. Product colour: Black

"The Equip 650413 23""-55"" Full Motion TV Wall Mount Bracket. This versatile bracket is designed to accommodate TVs ranging from 23 inches to 55 inches, offering a flexible solution for your viewing needs. The full-motion capabilities allow you to swivel, tilt, and extend your TV, ensuring the perfect angle and reducing glare for an optimal viewing experience from any seat in the room.

The installation process is straightforward, with all necessary hardware and step-by-step instructions included. The mount's sleek and low-profile design allows your TV to sit close to the wall, saving space and adding a modern touch to any room décor."

Mounting

Maximum weight capacity: 30 kg
Minimum screen size: 58.4 cm (23")
Number of displays supported: 1
Maximum screen size: 139.7 cm (55")
Minimum VESA mount: 100 x 100 mm
Maximum VESA mount: 400 x 400 mm

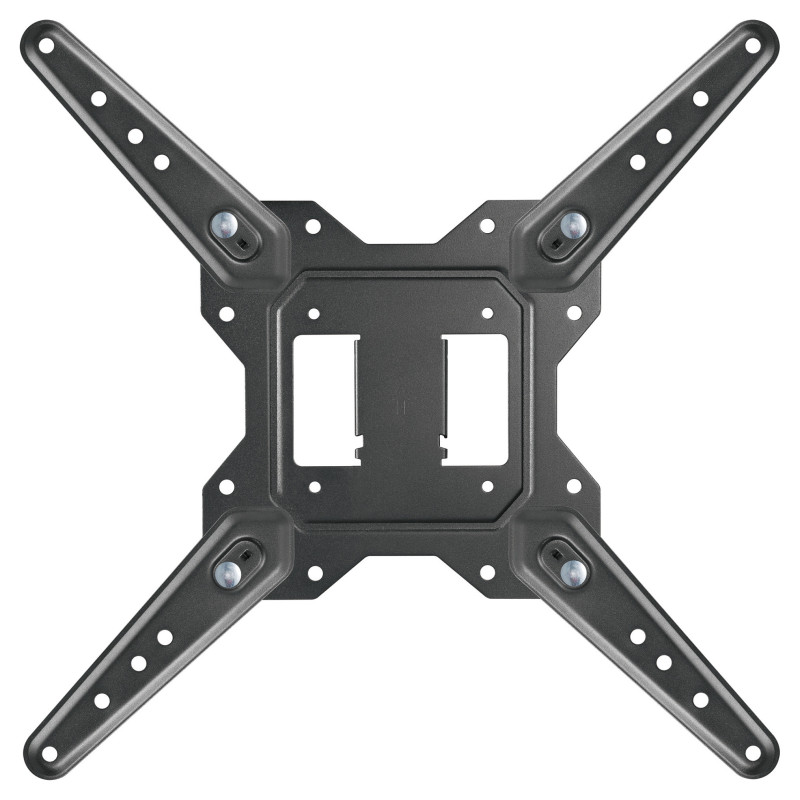

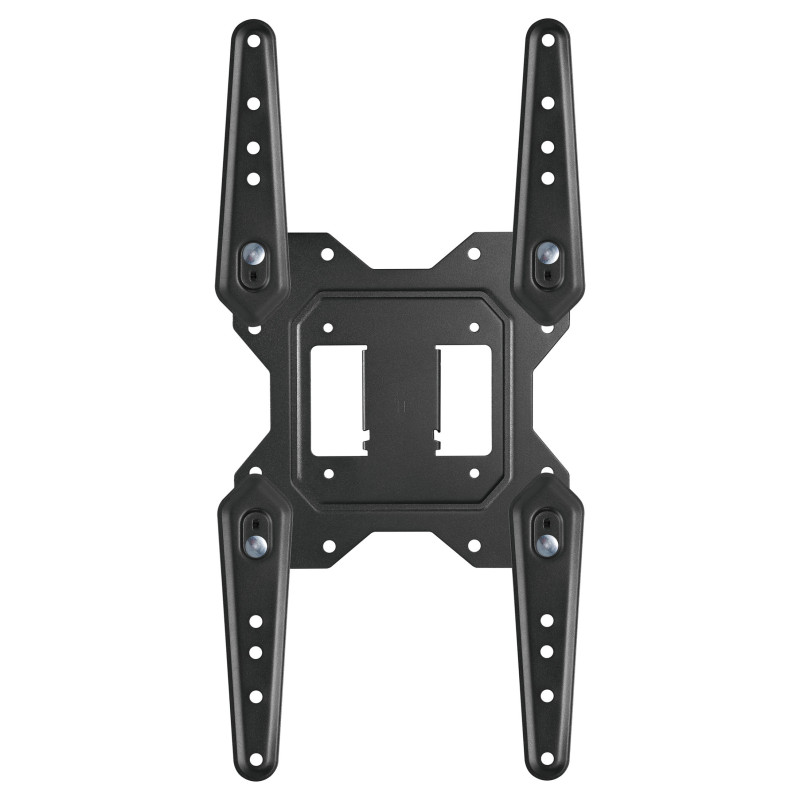

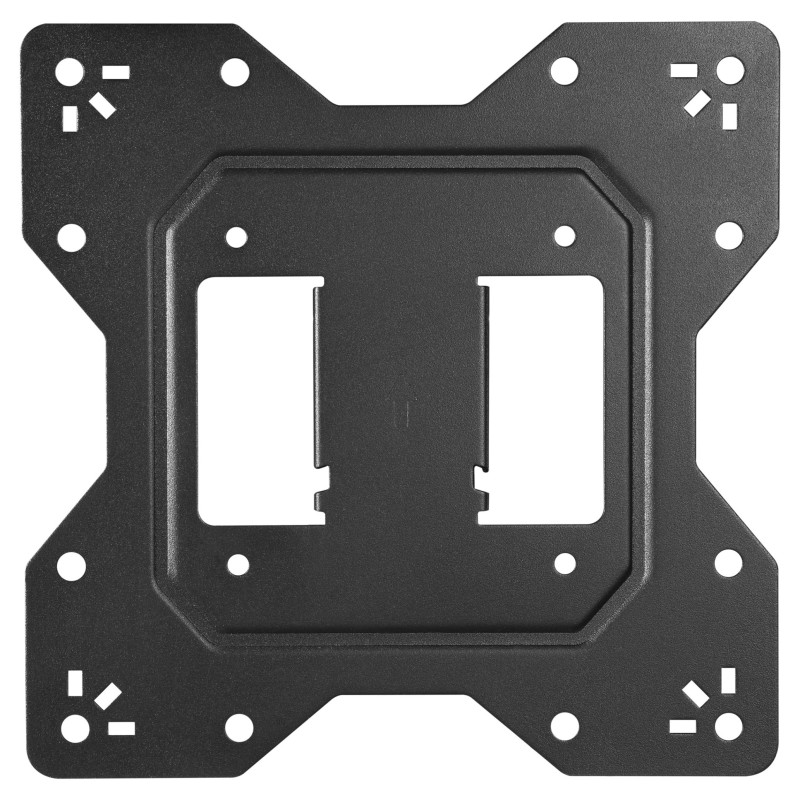

Panel mounting interface: 100 x 100,100 x 200,200 x 100,200 x 200,300 x 200,300 x 300,400 x 200,400 x 400,400 x 300
Mounting type: Wall

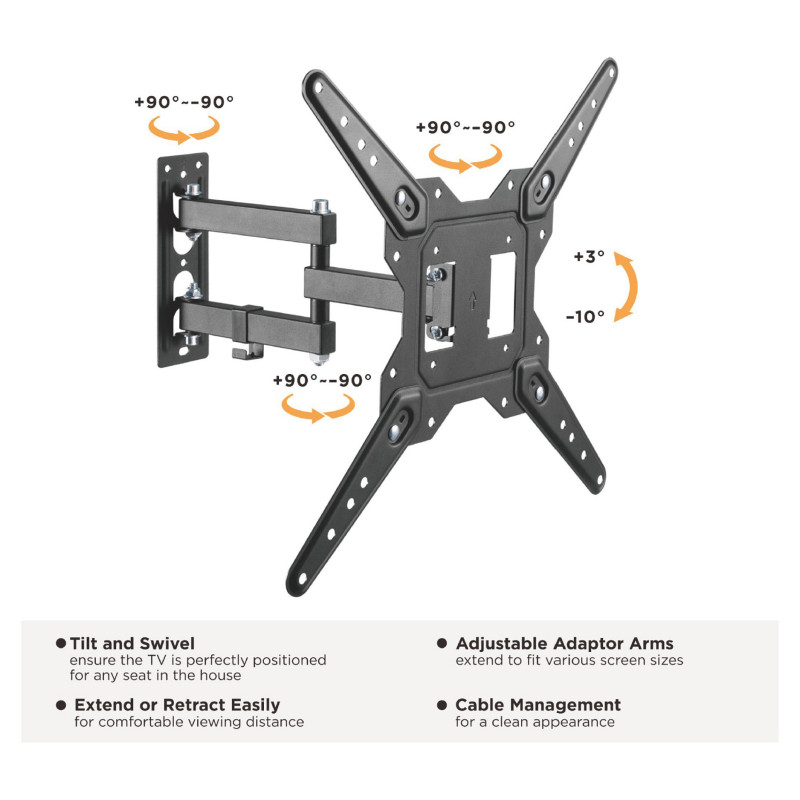

Ergonomics

Feature: Tilt adjustment

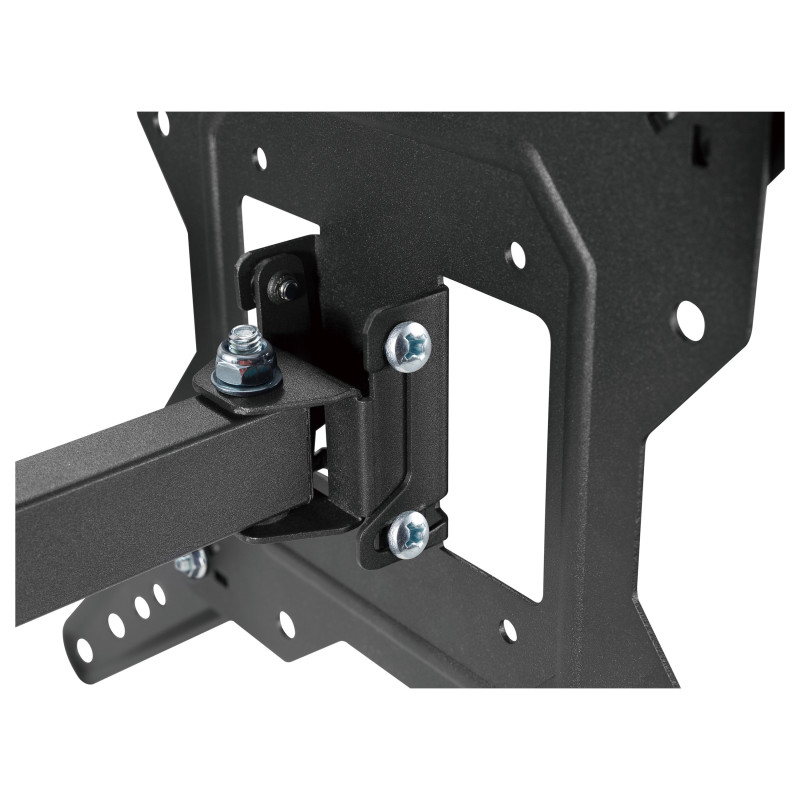

Tilt angle range: -10 - 3°
Feature: Swivelling
Swivel angle range: -90 - 90°

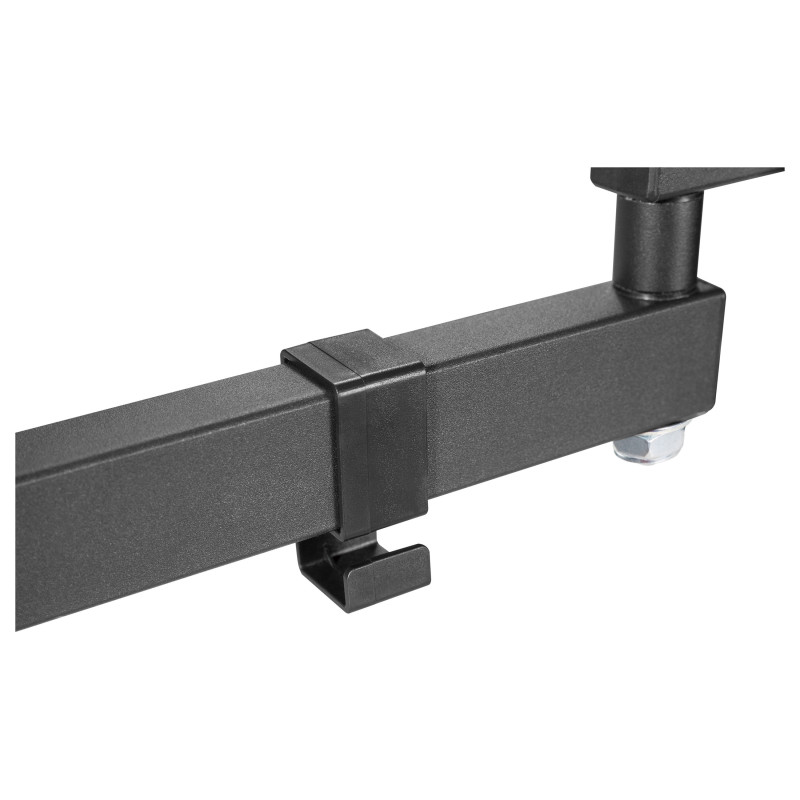

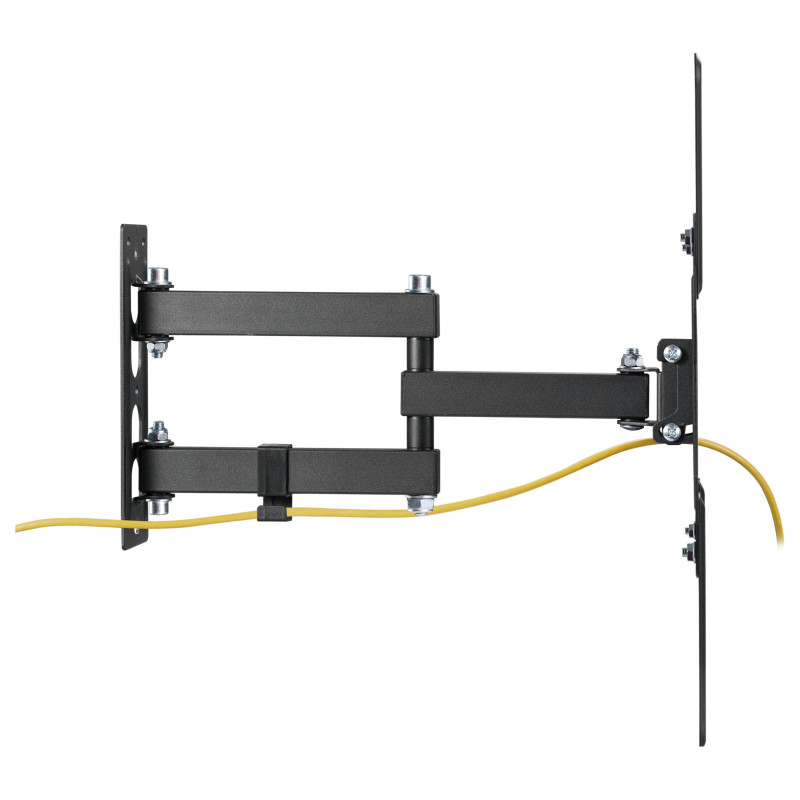

Feature: Cable management

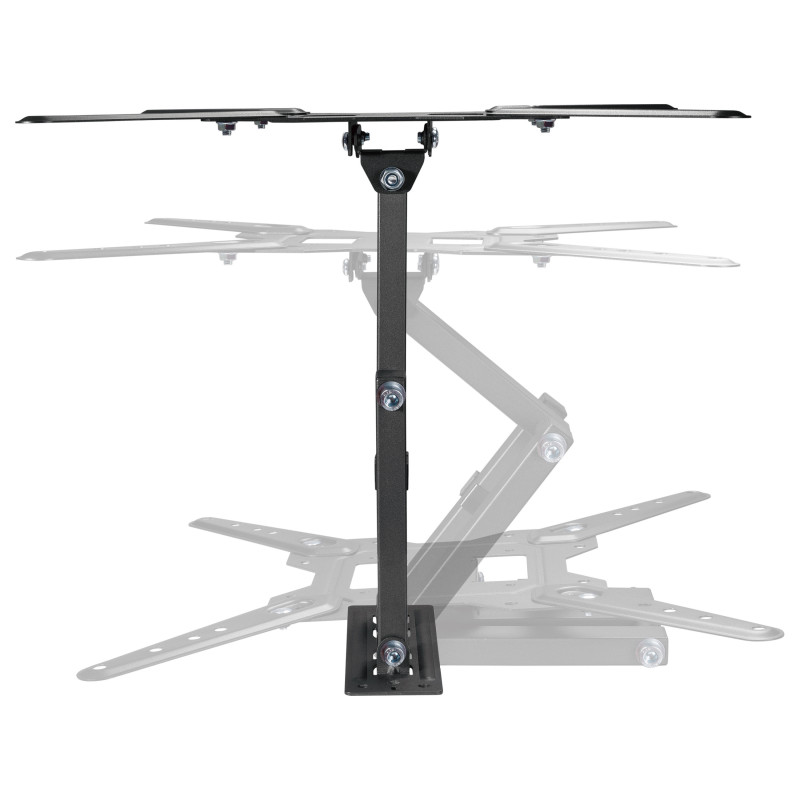

Distance to the wall (max): 38.2 cm
Distance to the wall (min): 6 cm

Design

Product colour: Black
Housing material: Stainless steel

Technical details

Country of origin: China
Compliance certificates: REACH, RoHS

Packaging content

Feature: Screws included
Feature: Manual

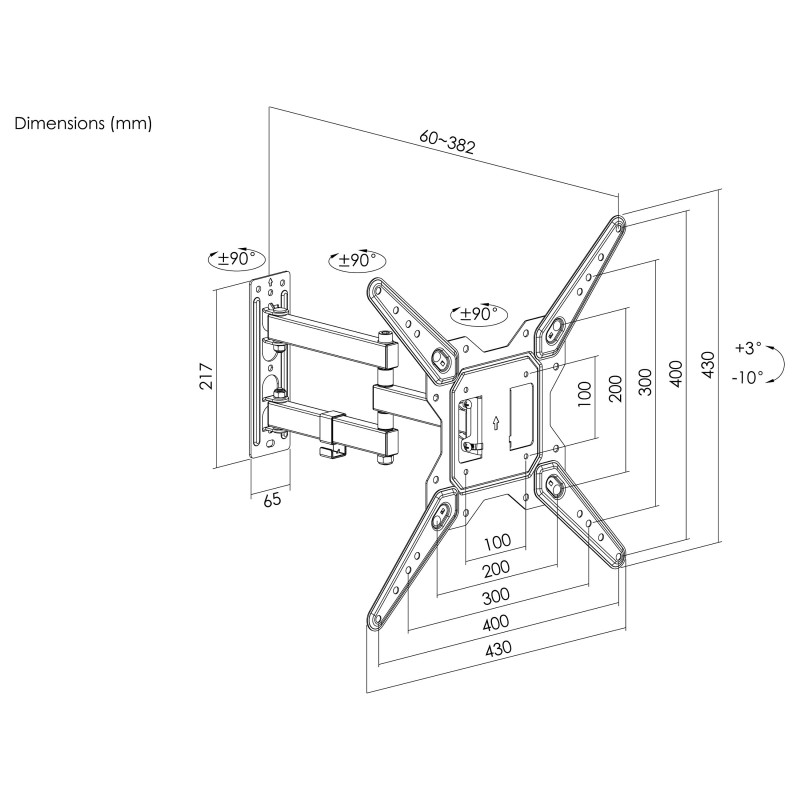

Weight & dimensions

Width: 430 mm
Height: 430 mm
Weight: 2.05 kg

Packaging data

Package width: 295 mm
Package depth: 238 mm
Package height: 65 mm
Package weight: 2.3 kg

Logistics data

Master (outer) case width: 495 mm
Master (outer) case length: 310 mm
Master (outer) case height: 290 mm
Master (outer) case gross weight: 19.2 kg
Products per master (outer) case: 8 pc(s)
Customs product code (TARIC): 8529909700
