Equip 650376 TV mount / stand

Equip 32"-60" Dual Screen Ceiling Mount. Maximum weight capacity: 80 kg, Minimum screen size: 81.3 cm (32"), Maximum screen size: 152.4 cm (60"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 600 x 400 mm. Swivel angle range: -180 - 180°. Product colour: Black

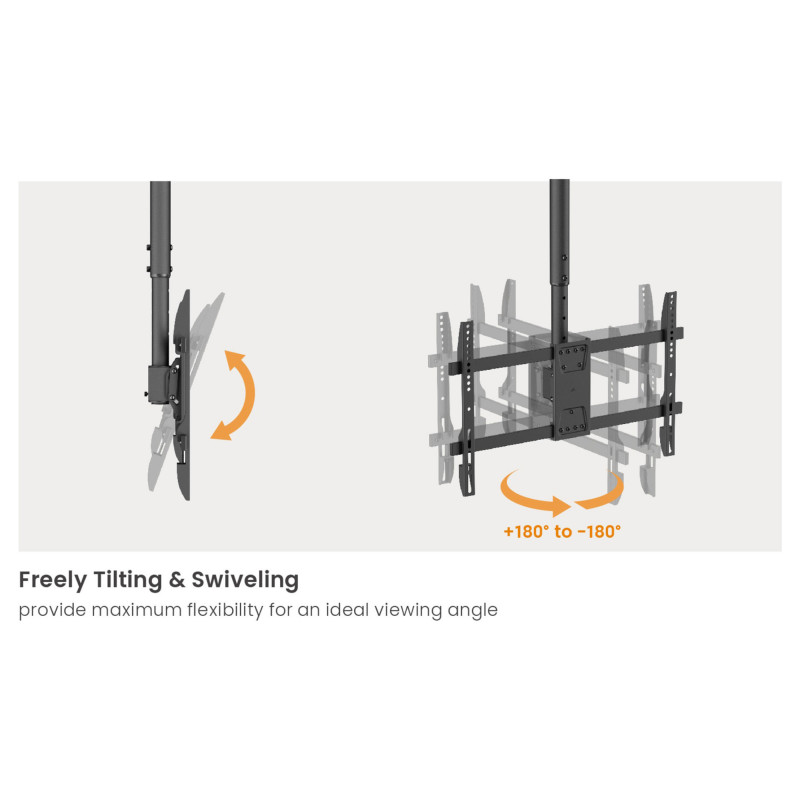

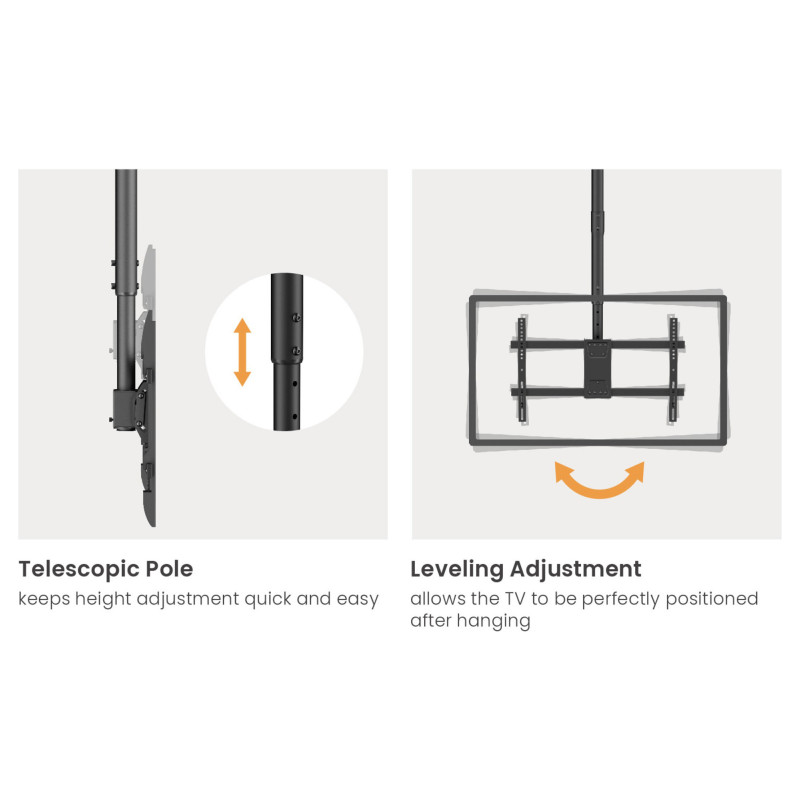

The 32"-60" Dual TV Ceiling Mount is a space-saving, professional display solution designed to support two side-by-side flat-panel TVs or monitors. Ideal for digital signage, advertising and information displays in retail stores, airports, restaurants, lobbies and meeting areas, it accommodates screens from 32 to 60 inches with compatible VESA mounting patterns. Sturdy steel construction provides stability and durability even in high-traffic environments. The telescopic pole and tilt mechanism allow flexible height and angle adjustment, while 360° rotation around the pole and freely angling and swiveling functions help you achieve optimal viewing from different directions. An integrated cable management system conceals and organizes wires for a clean, sleek installation.

Mounting

Maximum weight capacity: 80 kg
Minimum screen size: 81.3 cm (32")
Number of displays supported: 2
Maximum weight capacity (per display): 40 kg
Maximum screen size: 152.4 cm (60")
Minimum VESA mount: 200 x 200 mm
Maximum VESA mount: 600 x 400 mm
Panel mounting interface: 200 x 200,300 x 200,400 x 200,300 x 300,400 x 300,400 x 400,600 x 400
Mounting type: Ceiling

Ergonomics

Feature: Swivelling
Swivel angle range: -180 - 180°

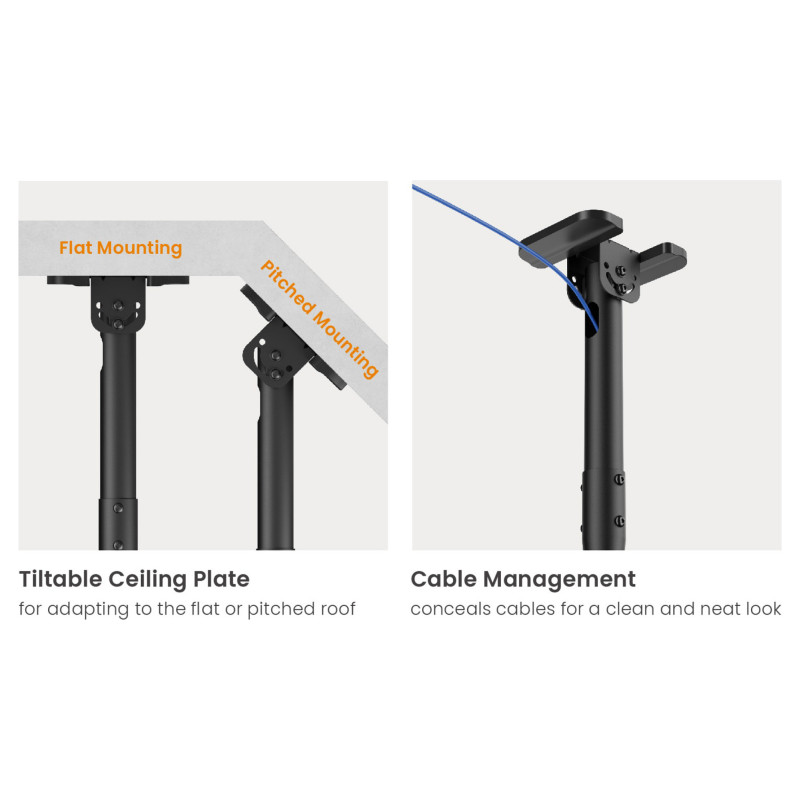

Feature: Cable management
Feature: Suitable for curved screen

Design

Product colour: Black
Housing material: Stainless steel

Technical details

Country of origin: China
Compliance certificates: RoHS, REACH

Packaging content

Feature: Screws included

Weight & dimensions

Width: 2090 mm
Depth: 180 mm
Height: 1880 mm
Weight: 11.8 kg

Packaging data

Package width: 915 mm
Package depth: 254 mm
Package height: 120 mm
Package weight: 12.8 kg

Logistics data

Master (outer) case width: 915 mm
Master (outer) case length: 254 mm
Master (outer) case height: 120 mm
Master (outer) case gross weight: 12.8 kg
Products per master (outer) case: 1 pc(s)
Customs product code (TARIC): 8529909700
