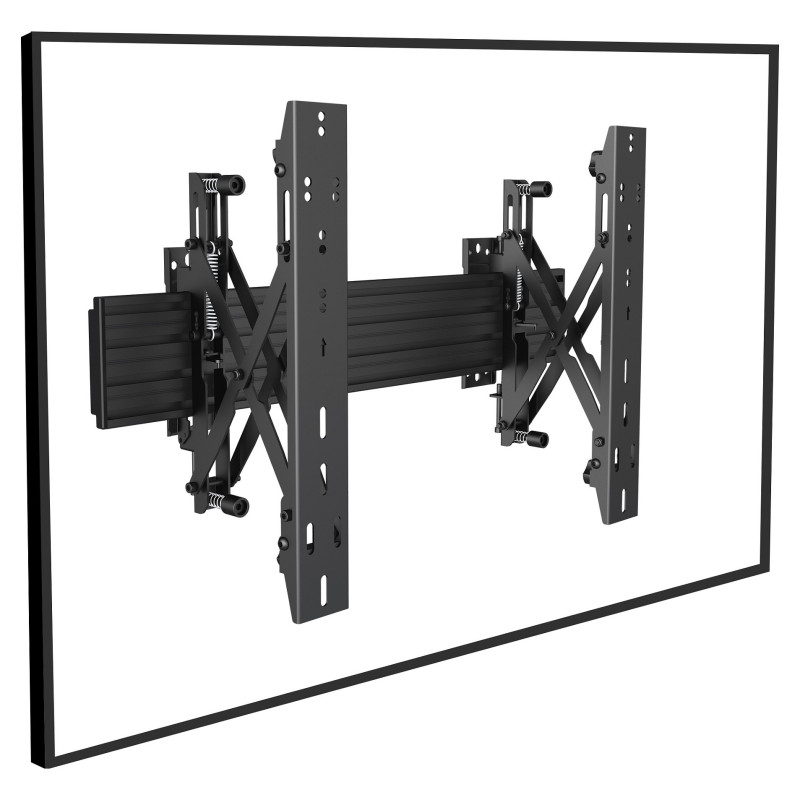

Equip 650355 signage display mount

Equip 37"-65" Modular Push-In Pop-Out TV Wall Mount Bracket. Maximum weight capacity: 30 kg, Minimum screen size: 94 cm (37"), Maximum screen size: 165.1 cm (65"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 600 x 400 mm. Tilt angle range: -3 - 3°. Product colour: Black

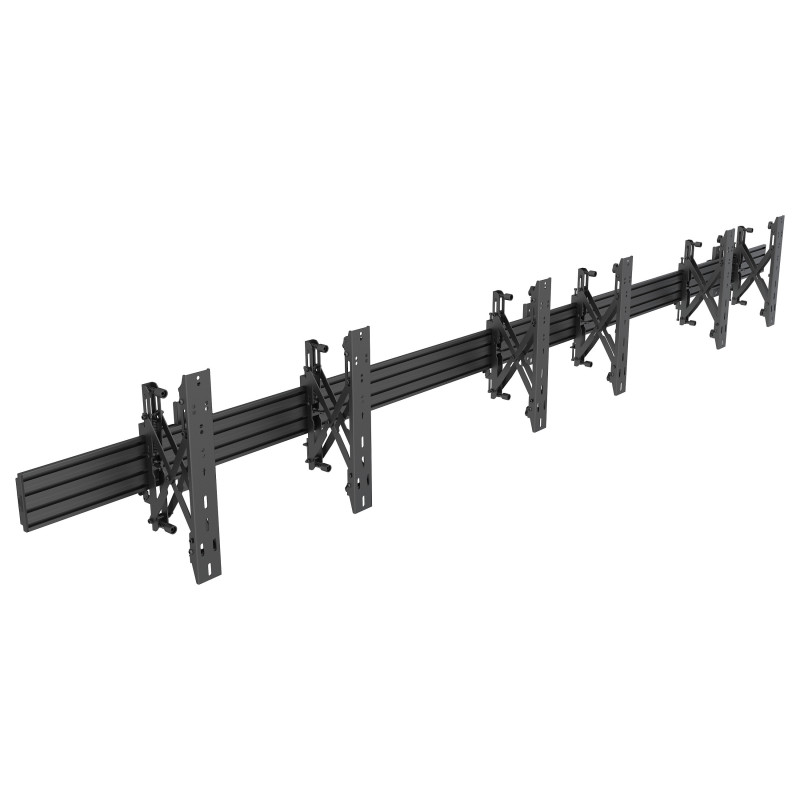

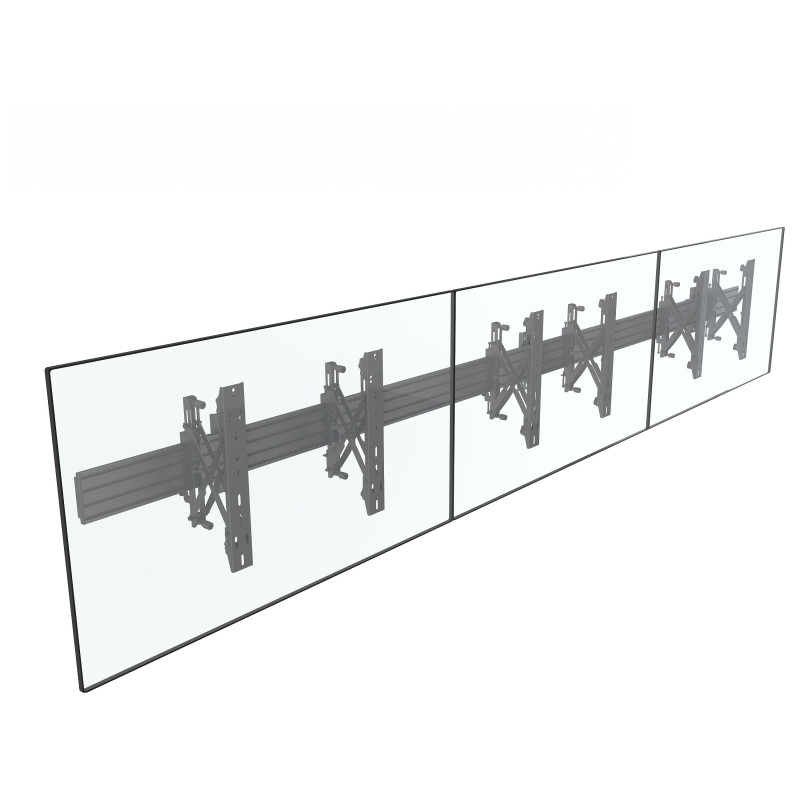

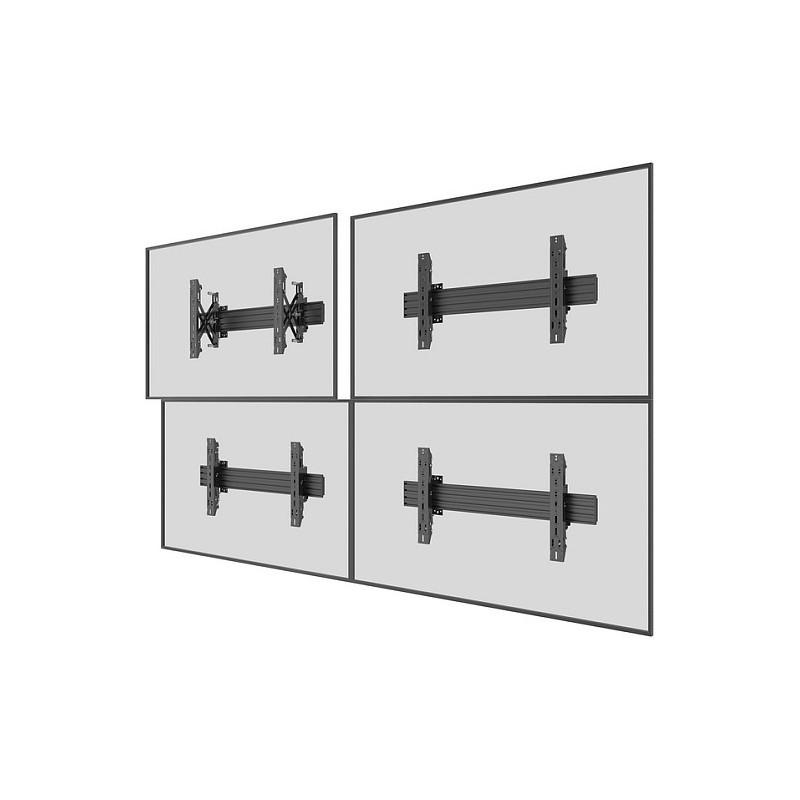

The equip® Push-In Pop-Out TV Wall Mount Bracket is a video wall solution quick to install, and easy to configure. Made especially for video wall applications. This is a professional mount focusing on multiple screen installations, easy and fast installation and simplified maintenance. The Push-In Pop-out feature gives easy-access to any display for quick serviceability. This is one of the major functions needed when building a video wall mounting solution or when integrating a single screen into the wall. Saving installation time and cost

Mounting

Maximum weight capacity: 30 kg
Minimum screen size: 94 cm (37")
Number of displays supported: 1
Maximum screen size: 165.1 cm (65")
Mounting type: Wall
Minimum VESA mount: 100 x 100 mm
Maximum VESA mount: 600 x 400 mm

Ergonomics

Tilt angle range: -3 - 3°
Angle of rotation: 180°
Feature: Cable management
Distance to the wall (min): 6.5 cm
Distance to the wall (max): 23.7 cm

Design

Product colour: Black
Housing material: Steel
Certification: CE

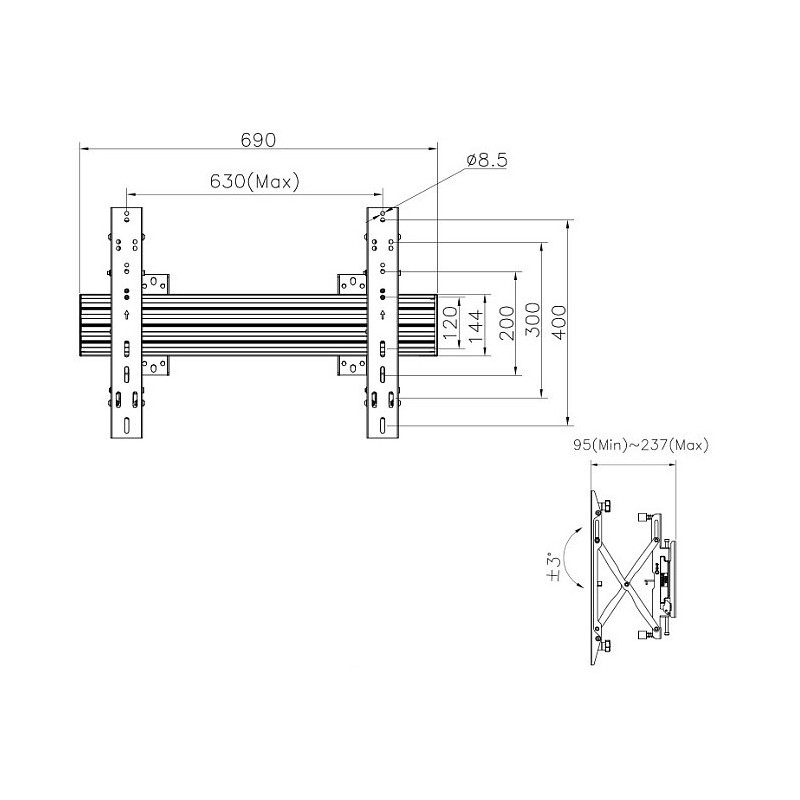

Weight & dimensions

Width: 420 mm
Depth: 95 mm
Depth (max): 9.5 cm
Height: 690 mm
Weight: 7 kg

Packaging data

Package width: 240 mm
Package depth: 140 mm
Package height: 700 mm
Package weight: 8 kg
Package type: Box

Packaging content

Feature: Manual
Feature: Mounting kit

Technical details

Feature: Sustainability compliance
Compliance certificates: RoHS

Other features

Country of origin: China

Logistics data

Harmonized System (HS) code: 85299097
Master (outer) case width: 240 mm
Master (outer) case length: 140 mm
Master (outer) case height: 700 mm
Master (outer) case gross weight: 8 kg
Products per master (outer) case: 1 pc(s)
