Equip 650352 monitor mount / stand

Equip 45"-70" Pop-Out Video Wall Mount Bracket. Maximum weight capacity: 70 kg, Minimum screen size: 114.3 cm (45"), Maximum screen size: 177.8 cm (70"), Maximum VESA mount: 600 x 400 mm. Tilt angle range: -3 - 2°. Product colour: Black

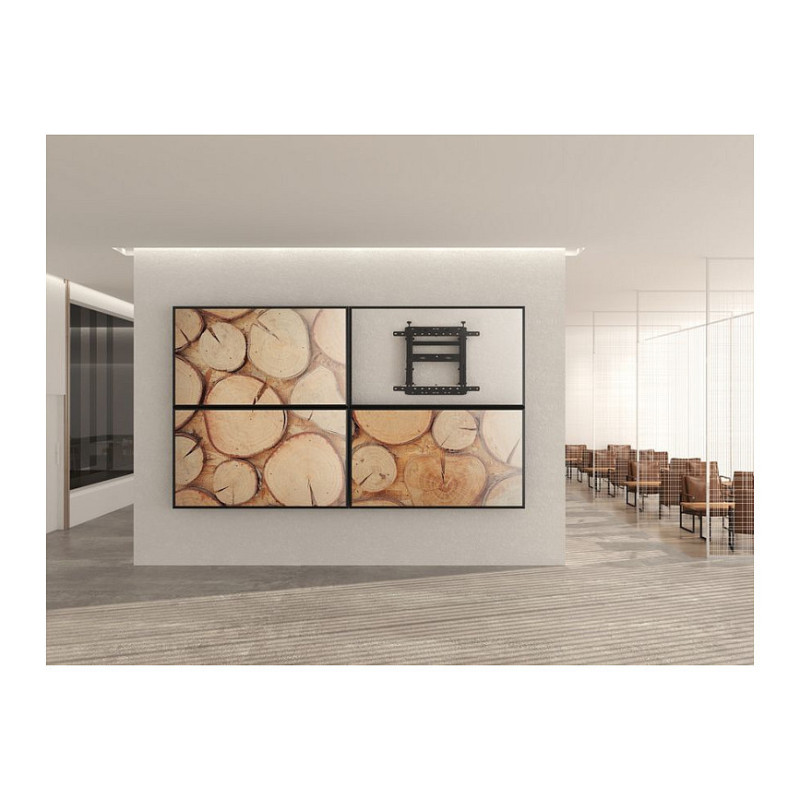

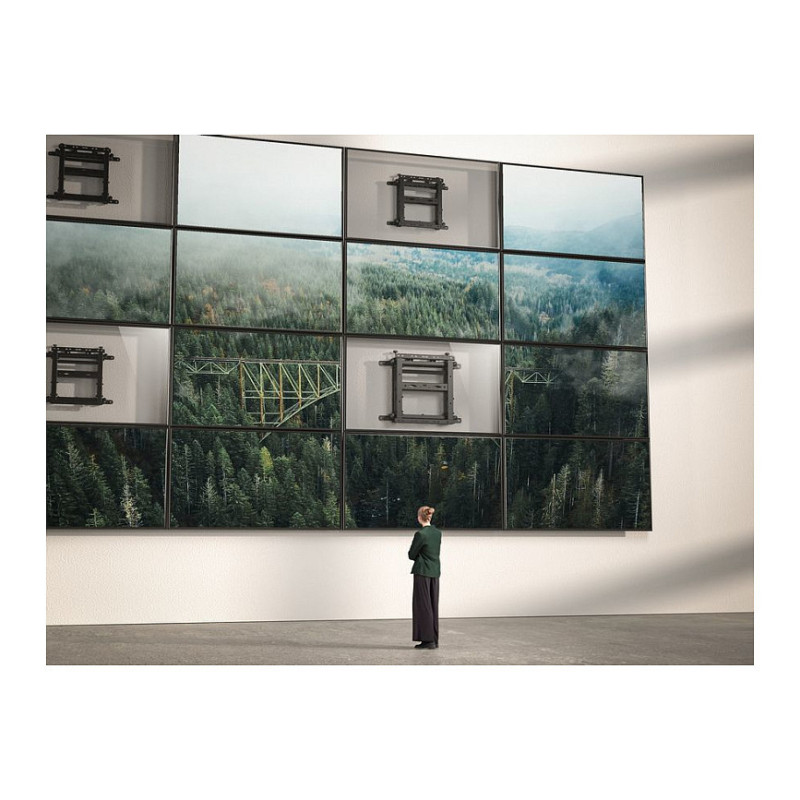

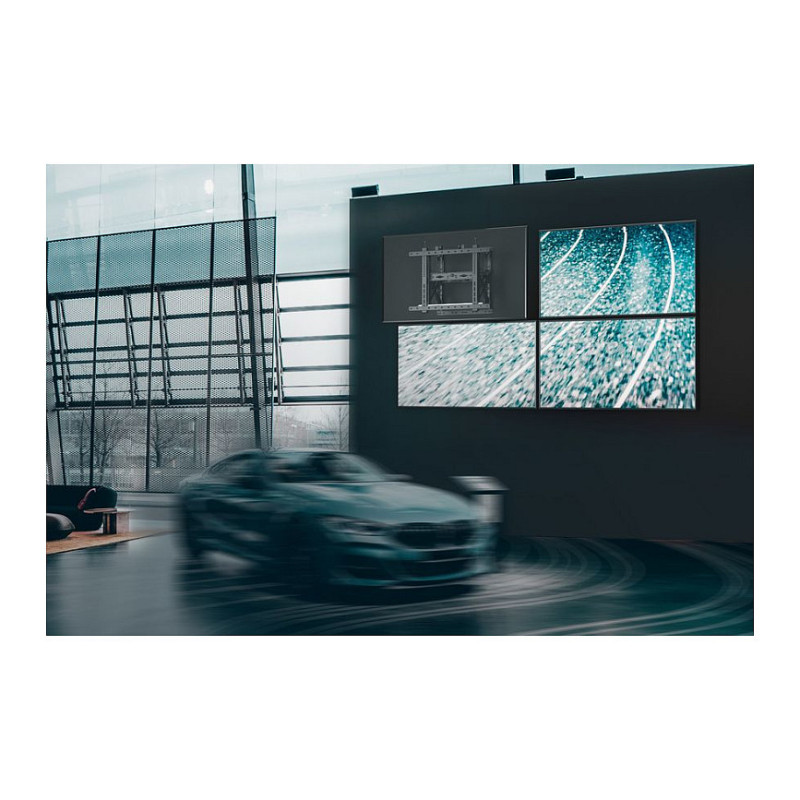

The equip® 650352 Video Wall TV Mount Bracket is a video wall solution quick to install, and easy to configure. Made especially for video wall applications. This is a professional mount focusing on multiple screen installations, easy and fast installation and simplified maintenance. The Pop-out feature gives easy-access to any display for quick serviceability. This is one of the major functions needed when building a video wall mounting solution or when integrating a single screen into the wall. Saving installation time and cost

Mounting

Maximum weight capacity: 70 kg
Minimum screen size: 114.3 cm (45")
Number of displays supported: 1
Maximum screen size: 177.8 cm (70")
Feature: Suitable for TV
Mounting type: Wall
Maximum VESA mount: 600 x 400 mm
Panel mounting interface: 200 x 200,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300,600 x 400
Distance to the wall (min): 12 cm
Distance to the wall (max): 32.5 cm

Ergonomics

Feature: Tilt adjustment
Tilt angle range: -3 - 2°
Feature: Cable management

Design

Housing material: Metal, Plastic
Product colour: Black
Feature: Anti-theft function

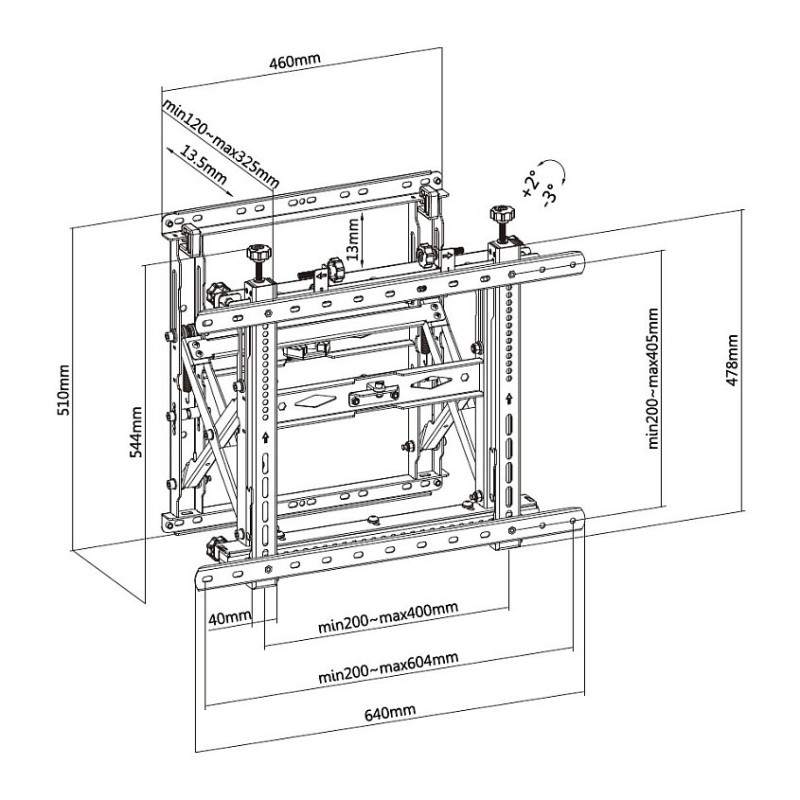

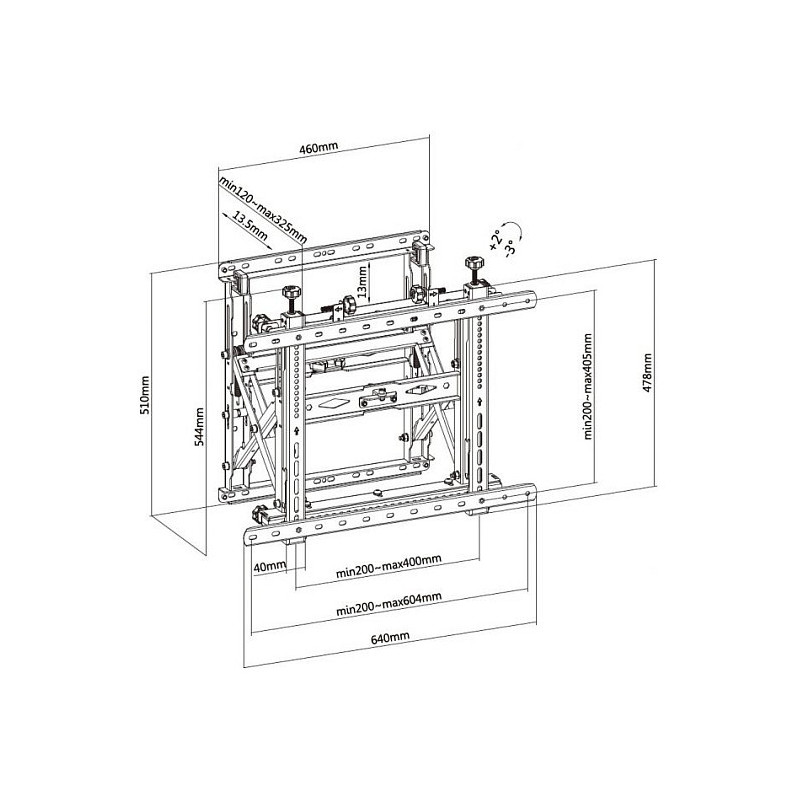

Weight & dimensions

Width: 325 mm
Depth: 544 mm
Height: 640 mm
Weight: 13.2 kg

Packaging data

Package width: 566 mm
Package depth: 135 mm
Package height: 585 mm
Package weight: 15.1 kg

Packaging content

Feature: Screws included
Feature: Manual

Other features

Compliance certificates: RoHS

Logistics data

Master (outer) case width: 566 mm
Master (outer) case length: 135 mm
Master (outer) case height: 585 mm
Master (outer) case gross weight: 15.1 kg
Products per master (outer) case: 1 pc(s)
Harmonized System (HS) code: 85299097
