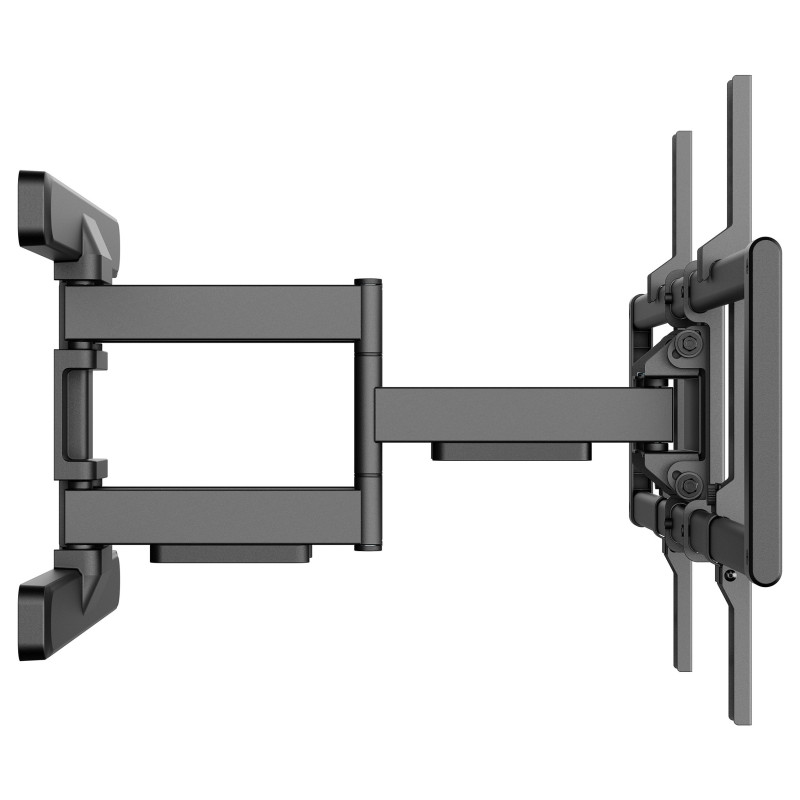

Equip 650348 TV mount / stand

Equip 43"-100" Full Motion TV Mount Bracket. Maximum weight capacity: 60 kg, Minimum screen size: 109.2 cm (43"), Maximum screen size: 2.54 m (100"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 800 x 400 mm. Tilt angle range: -10 - 5°, Swivel angle range: -60 - 60°, Distance to the wall (min): 6.5 cm, Distance to the wall (max): 48 cm. Product colour: Black

The Equip 650348 Full Motion TV Mount Bracket is a versatile and durable solution for mounting televisions ranging from 43 to 100 inches. Engineered for stability and convenience, this bracket supports a wide range of TV sizes and provides full motion capabilities, including tilt, swivel, and rotation. Constructed with high-quality materials, it ensures your TV remains securely in place while allowing for optimal viewing angles from any position in the room. The installation process is straightforward, with all necessary hardware included. Ideal for both home and office settings, the 650348 TV Mount Bracket combines functionality with sleek design, enhancing your viewing experience.

Mounting

Maximum weight capacity: 60 kg
Minimum screen size: 109.2 cm (43")
Number of displays supported: 1
Maximum screen size: 2.54 m (100")
Minimum VESA mount: 200 x 200 mm
Maximum VESA mount: 800 x 400 mm
Panel mounting interface: 200 x 200,300 x 200,300 x 300,400 x 200,400 x 400,400 x 300,600 x 400,800 x 400
Mounting type: Wall

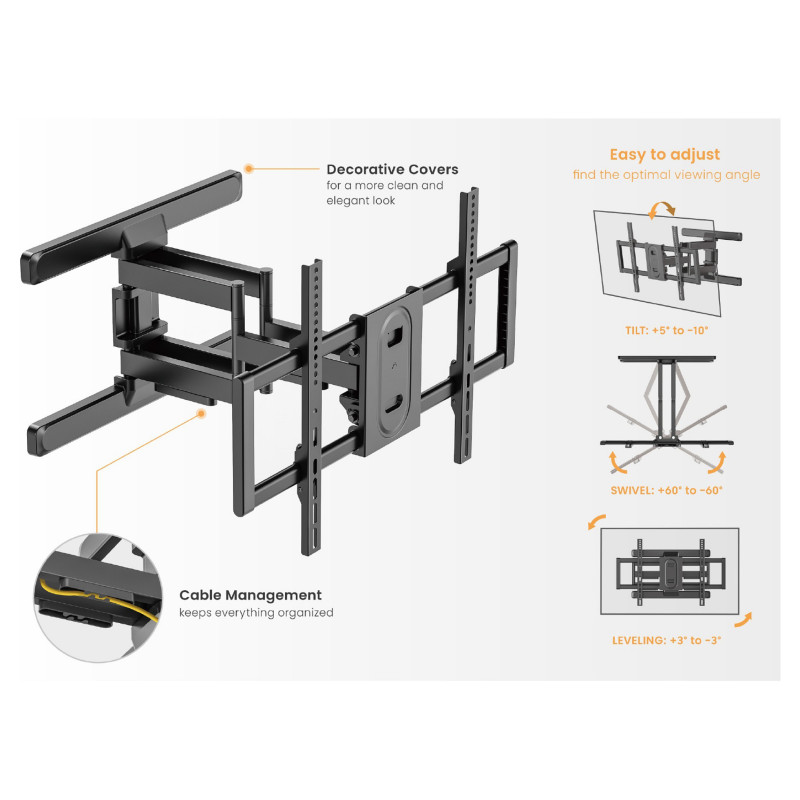

Ergonomics

Feature: Tilt adjustment

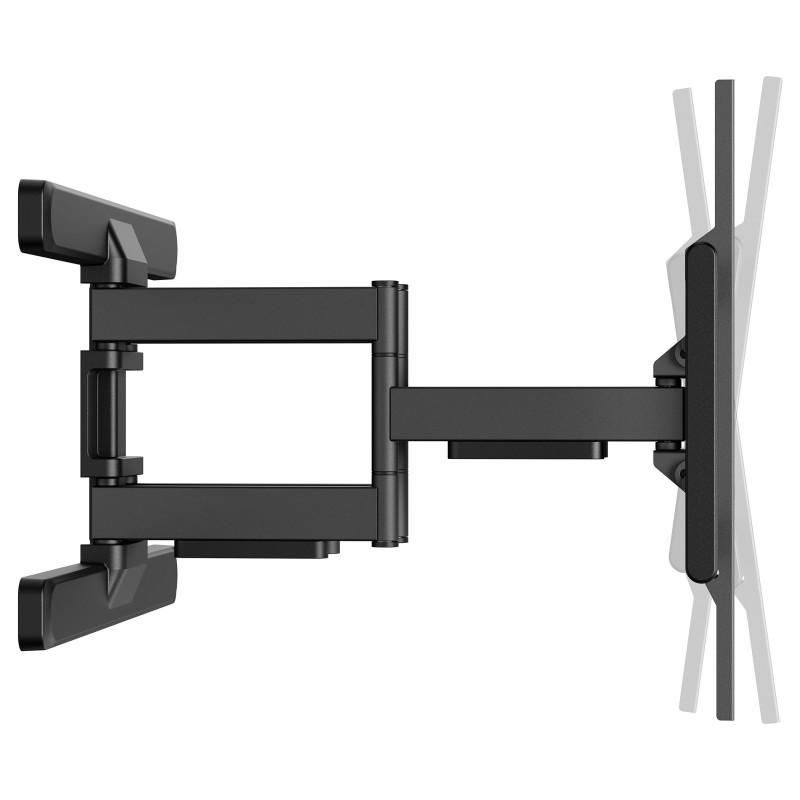

Tilt angle range: -10 - 5°
Feature: Swivelling
Swivel angle range: -60 - 60°
Feature: Cable management

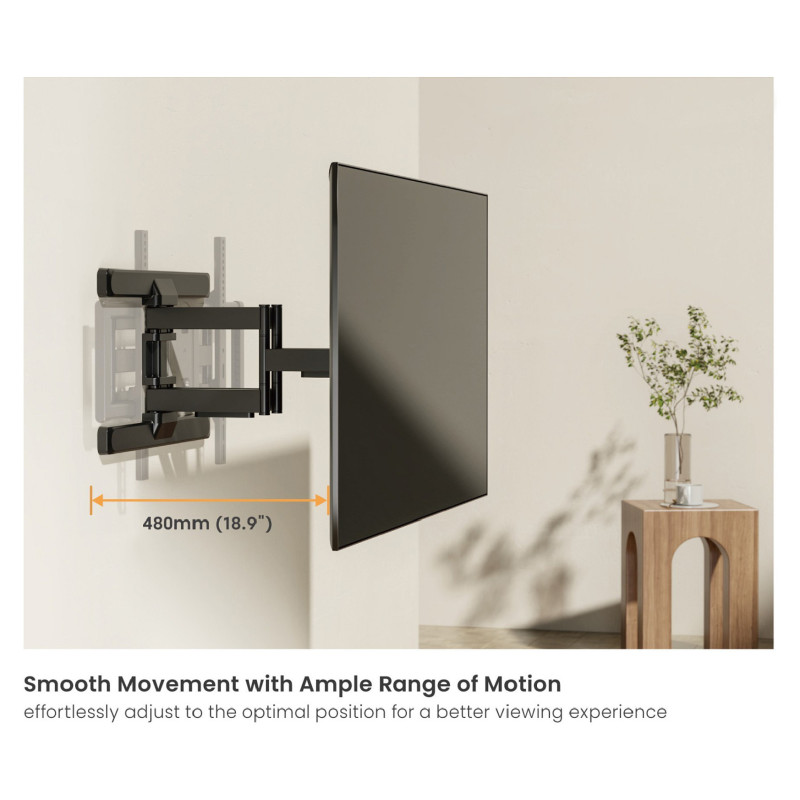

Distance to the wall (max): 48 cm
Distance to the wall (min): 6.5 cm

Design

Product colour: Black
Housing material: Plastic, Stainless steel

Technical details

Country of origin: China
Compliance certificates: REACH, RoHS

Packaging content

Feature: Screws included
Feature: Manual

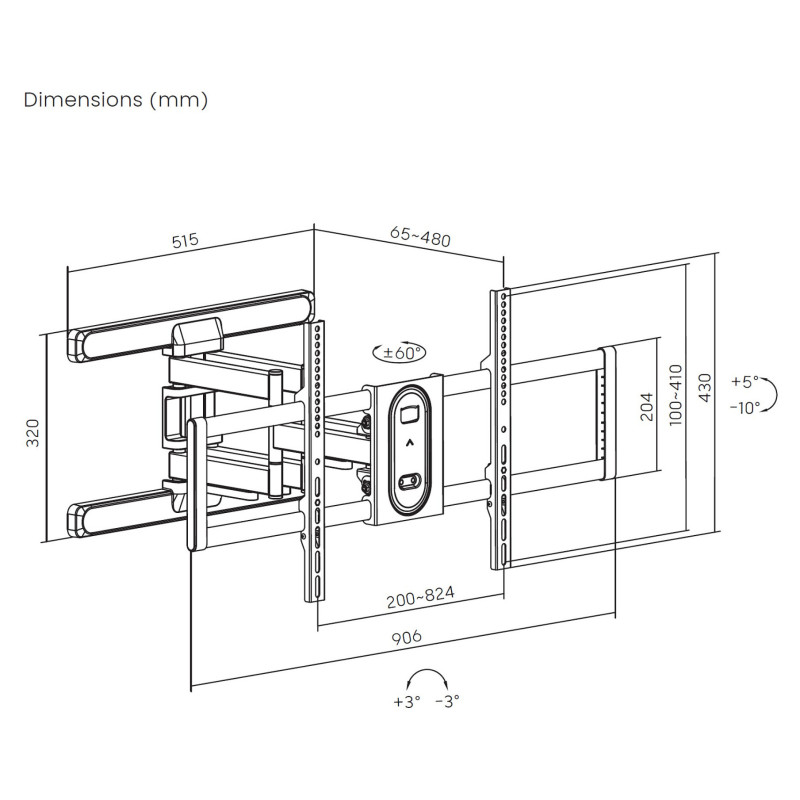

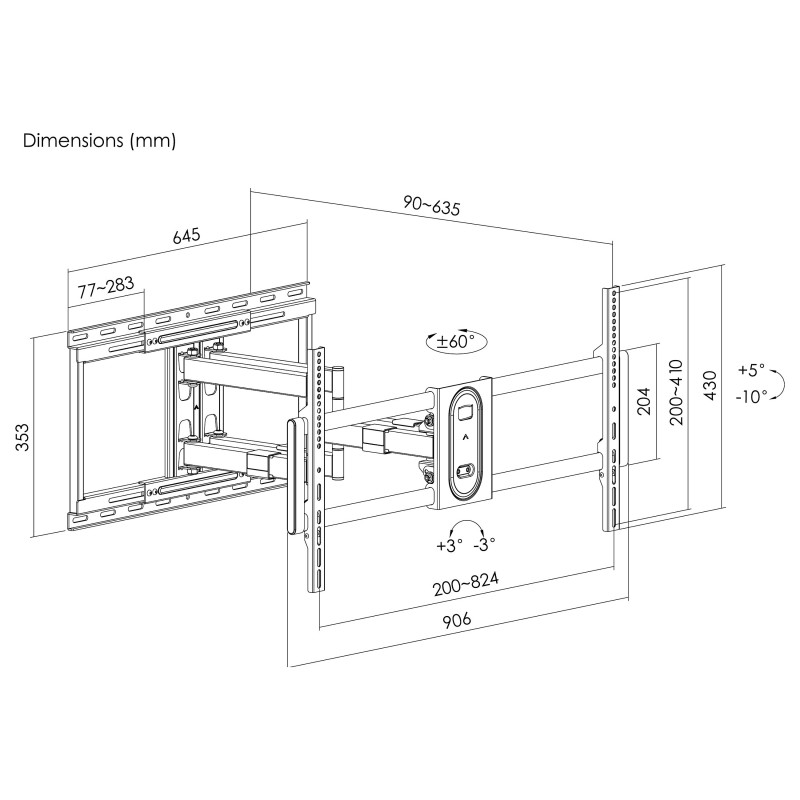

Weight & dimensions

Width: 906 mm
Height: 430 mm
Weight: 8.15 kg

Packaging data

Package width: 933 mm
Package depth: 325 mm
Package height: 70 mm
Package weight: 9 kg

Logistics data

Master (outer) case width: 950 mm
Master (outer) case length: 340 mm
Master (outer) case height: 160 mm
Master (outer) case gross weight: 18.9 kg
Products per master (outer) case: 2 pc(s)
Customs product code (TARIC): 8529909700
