Equip 650344 TV mount / stand

Equip 43"-90" Ultra-Slim Full Motion TV Wall Mount Bracket. Maximum weight capacity: 50 kg, Minimum screen size: 109.2 cm (43"), Maximum screen size: 2.29 m (90"), Minimum VESA mount: 100 x 200 mm, Maximum VESA mount: 600 x 400 mm. Tilt angle range: -15 - 3°, Swivel angle range: -30 - 30°, Distance to the wall (min): 1.95 cm, Distance to the wall (max): 25 cm. Product colour: Black

"The Equip 650344 43""-90"" Ultra-Slim Full Motion TV Wall Mount Bracket offers a sleek and versatile solution for mounting large TVs ranging from 43 inches to 90 inches. Engineered with precision, this bracket combines durability with a low-profile design to complement modern living spaces while maximizing viewing flexibility.

Constructed from high-grade materials, the bracket ensures strength and stability, securely holding your TV in place. Despite its ultra-slim profile, it provides full motion capabilities, allowing you to tilt, swivel, and extend your TV to achieve the perfect viewing angle from anywhere in the room."

Mounting

Maximum weight capacity: 50 kg
Minimum screen size: 109.2 cm (43")
Number of displays supported: 1
Maximum screen size: 2.29 m (90")
Minimum VESA mount: 100 x 200 mm
Maximum VESA mount: 600 x 400 mm
Panel mounting interface: 100 x 200,200 x 200,200 x 300,200 x 400,300 x 200,300 x 400,300 x 300,400 x 200,400 x 400,400 x 300,600 x 200,600 x 300,600 x 400
Mounting type: Wall

Ergonomics

Feature: Tilt adjustment

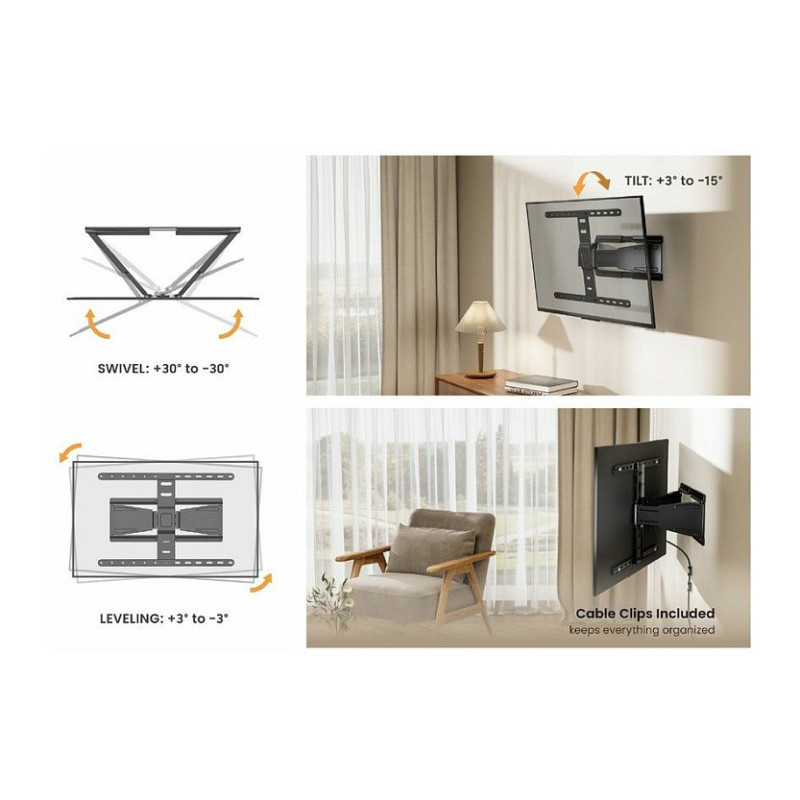

Tilt angle range: -15 - 3°
Feature: Swivelling

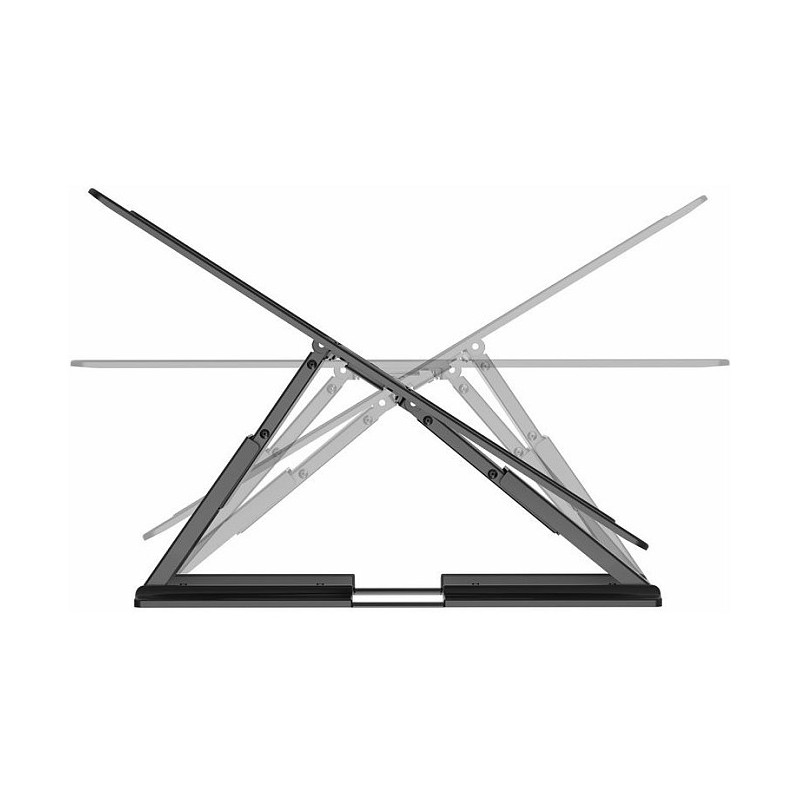

Swivel angle range: -30 - 30°
Feature: Cable management

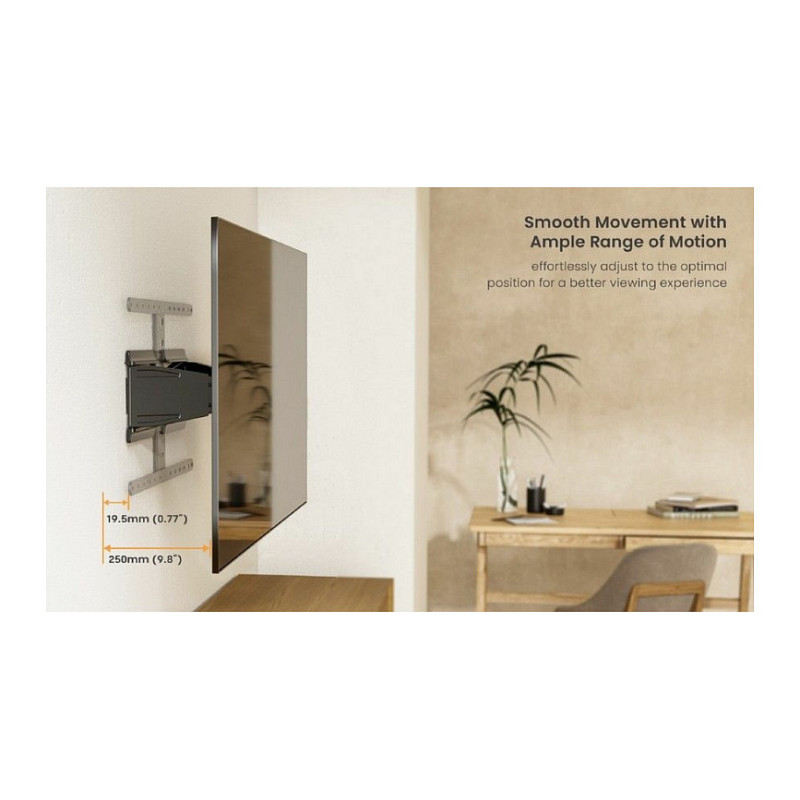

Distance to the wall (max): 25 cm

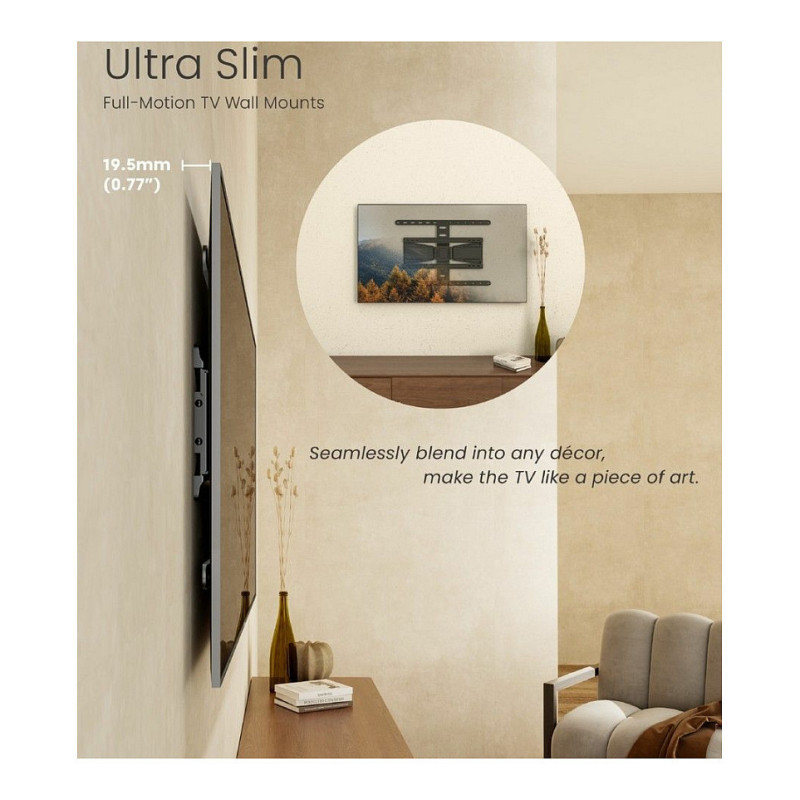

Distance to the wall (min): 1.95 cm

Design

Product colour: Black
Housing material: Plastic, Stainless steel

Technical details

Country of origin: China
Compliance certificates: RoHS

Packaging content

Feature: Screws included

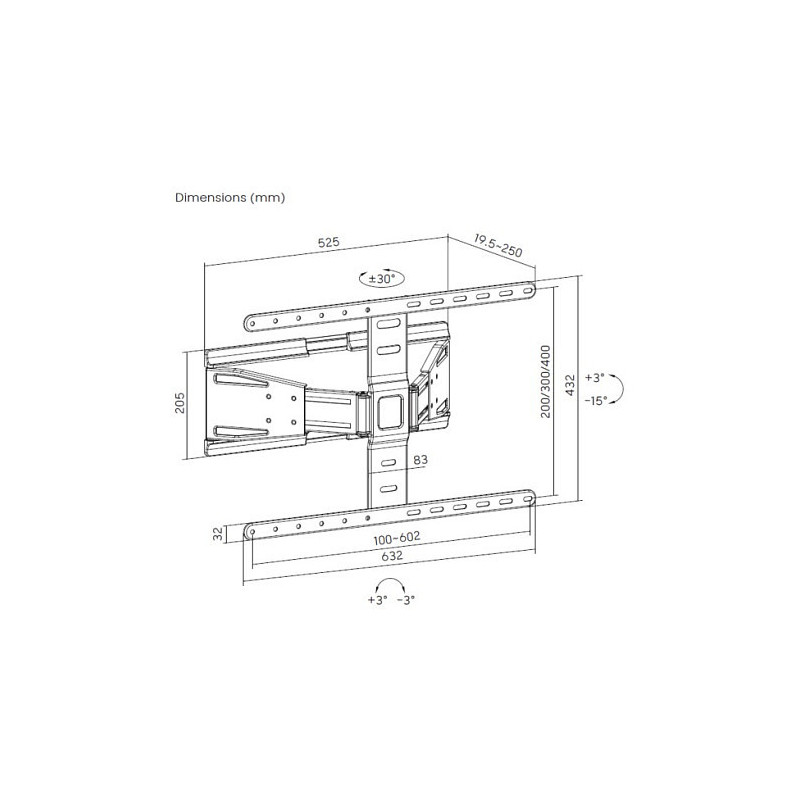

Weight & dimensions

Width: 632 mm
Depth (max): 25 cm
Height: 432 mm
Weight: 4.9 kg

Packaging data

Package width: 675 mm
Package depth: 443 mm
Package height: 35 mm
Package weight: 5.7 kg

Logistics data

Master (outer) case width: 705 mm
Master (outer) case length: 485 mm
Master (outer) case height: 120 mm
Master (outer) case gross weight: 17.9 kg
Products per master (outer) case: 3 pc(s)
Harmonized System (HS) code: 8529908100
