Equip 650332 TV mount / stand

Equip 650332 37"-75" Tilt TV Wall Bracket. Maximum weight capacity: 40 kg, Minimum screen size: 94 cm (37"), Maximum screen size: 177.8 cm (70"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 600 x 400 mm. Tilt angle range: -12 - 12°, Distance to the wall (max): 5.3 cm. Product colour: Black

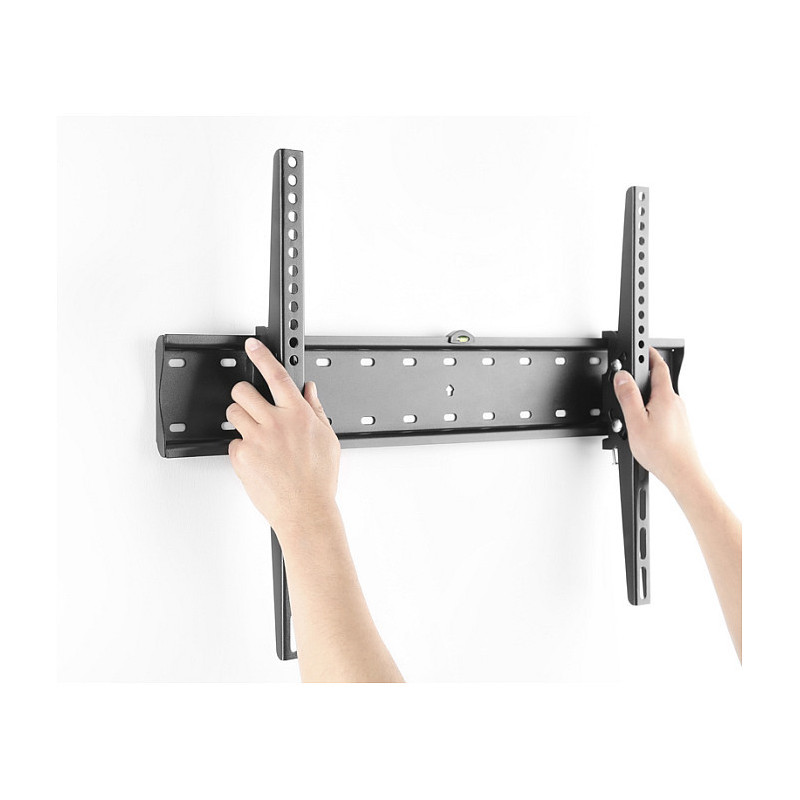

The equip® TV Wall Mount Bracket is a compact but sturdy product that ensures a reliable installation of your LCD/TV. Follow the graphic guide included in the package, you can install your TV on your own with ease. The wall bracket fits most of the wall materials- brick, concrete and wood, making the ideal choice for you to set up your screens.

Mounting

Maximum weight capacity: 40 kg
Minimum screen size: 94 cm (37")
Number of displays supported: 1
Maximum screen size: 177.8 cm (70")
Minimum VESA mount: 200 x 200 mm
Maximum VESA mount: 600 x 400 mm

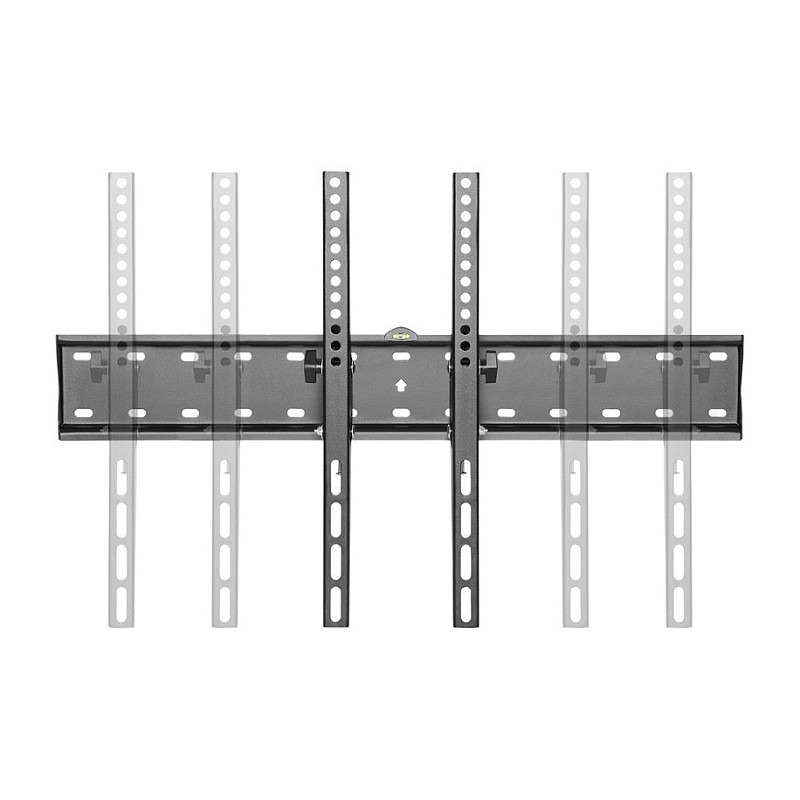

Panel mounting interface: 200 x 200,300 x 300,400 x 200,400 x 400,600 x 400
Mounting type: Wall

Ergonomics

Feature: Tilt adjustment
Tilt angle range: -12 - 12°
Distance to the wall (max): 5.3 cm

Design

Product colour: Black
Housing material: Stainless steel

Technical details

Country of origin: China

Packaging content

Feature: Mounting kit

Weight & dimensions

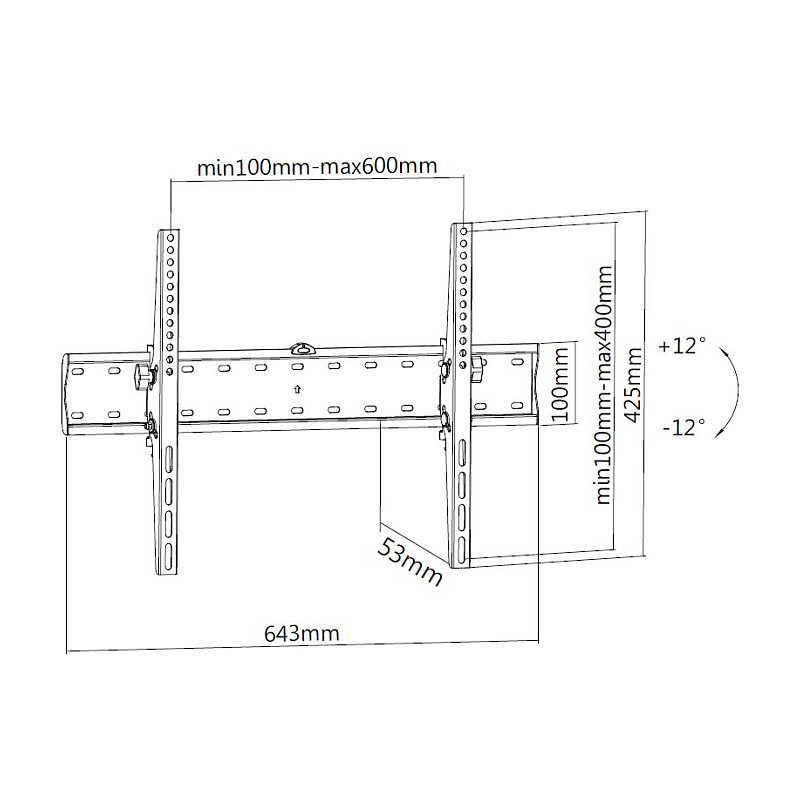

Width: 643 mm
Depth (max): 5.3 cm
Height: 425 mm
Weight: 1.82 kg

Packaging data

Quantity per pack: 1 pair(s)
Package width: 112 mm
Package depth: 56 mm
Package height: 662 mm
Package weight: 2.08 kg
Package type: Box

Logistics data

Harmonized System (HS) code: 85299097
