Equip 650331 TV mount / stand

Equip 37"-80" Universal Rotating Wall Bracket. Maximum weight capacity: 50 kg, Minimum screen size: 94 cm (37"), Maximum screen size: 2.03 m (80"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 600 x 400 mm. Distance to the wall (max): 4.5 cm. Product colour: Black

"The equip® 650331 TV Wall Mount Bracket is a compact but sturdy product that ensures a reliable installation of your LCD/Plasma TV. Follow the graphic guide included in the package, you can install your TV on your own with ease. The wall bracket fits most of the wall materials- brick, concrete and wood, making the ideal choice for you to set up your screens.

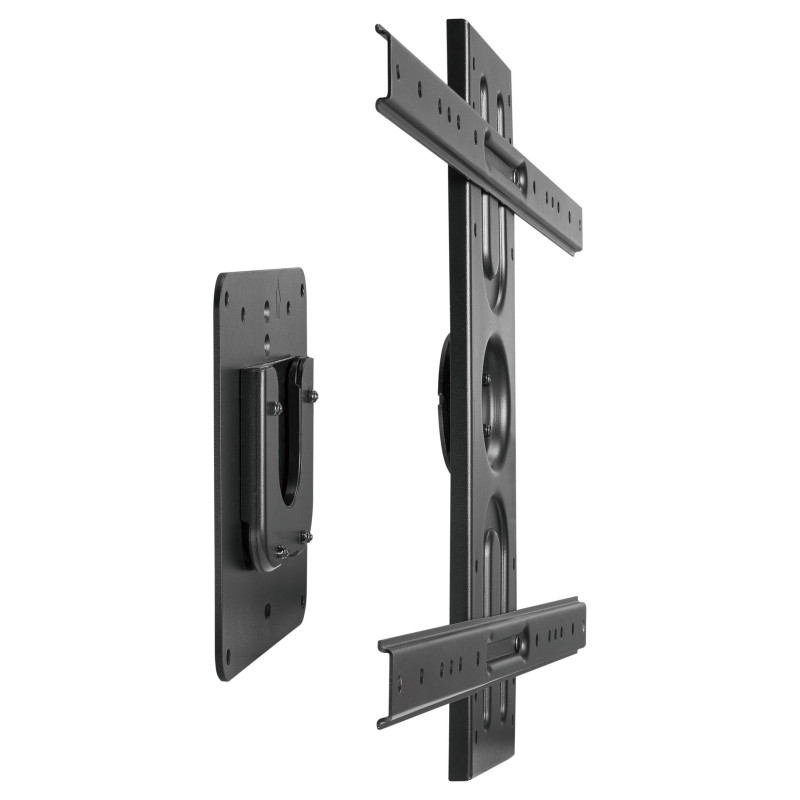

With 360 degree rotating mounting plate, the display can be effortlessly held in landscape or portrait position. The spring lock ensures a safe rotation adjustment. Slide-in mounting plate proivdes easy access for a attachment and detachment."

Mounting

Maximum weight capacity: 50 kg
Minimum screen size: 94 cm (37")
Number of displays supported: 1
Maximum screen size: 2.03 m (80")
Minimum VESA mount: 200 x 200 mm
Maximum VESA mount: 600 x 400 mm
Panel mounting interface: 200 x 200,300 x 200,300 x 300,350 x 350,400 x 200,400 x 400,400 x 300,400 x 600,600 x 400
Mounting type: Wall

Ergonomics

Pan range: -180 - 180°
Distance to the wall (max): 4.5 cm

Design

Product colour: Black
Housing material: Aluminium, Plastic, Stainless steel

Technical details

Country of origin: China
Orientation: Landscape/Portrait
Compliance certificates: RoHS

Packaging content

Feature: Manual
Feature: Mounting kit
Feature: Screw nuts included

Weight & dimensions

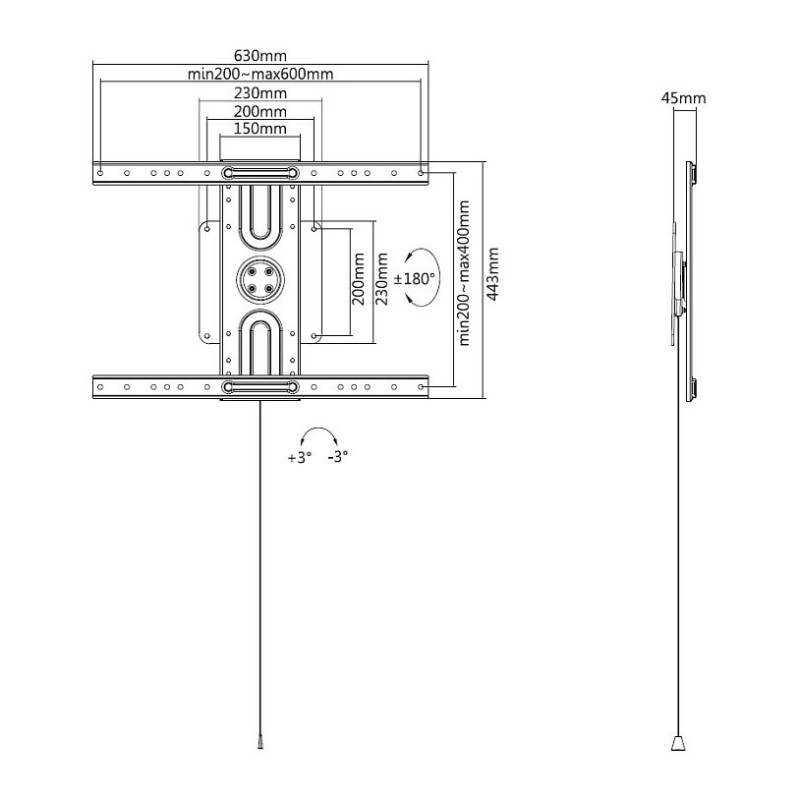

Width: 630 mm
Depth (max): 45 cm
Height: 45 mm
Weight: 4.7 kg

Packaging data

Quantity per pack: 1 pair(s)
Package width: 255 mm
Package depth: 44 mm
Package height: 660 mm
Package weight: 5.12 kg
Package type: Box

Logistics data

Harmonized System (HS) code: 85299097
