Equip 650328 TV mount / stand

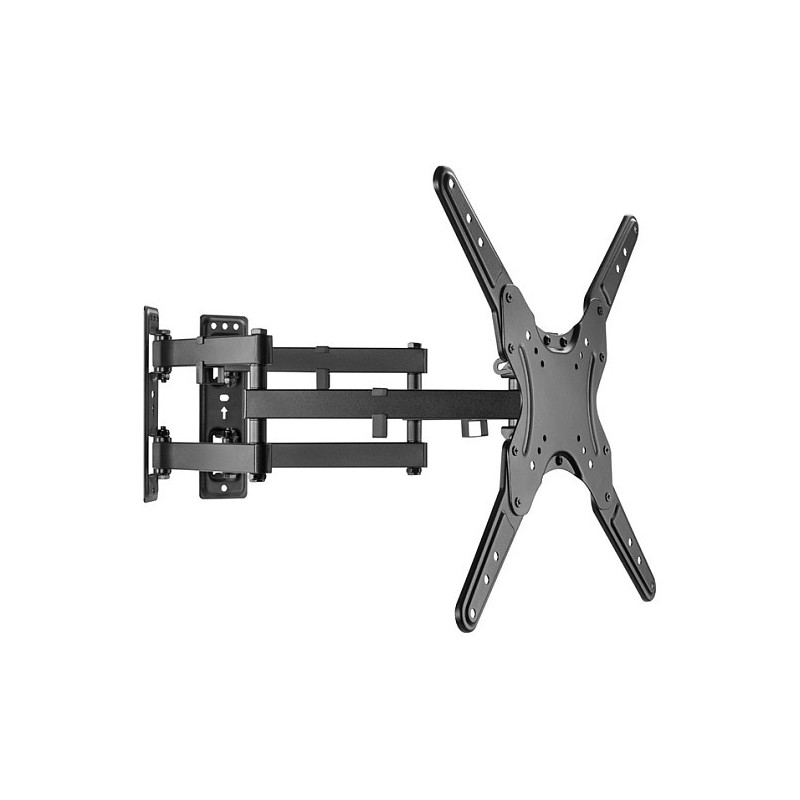

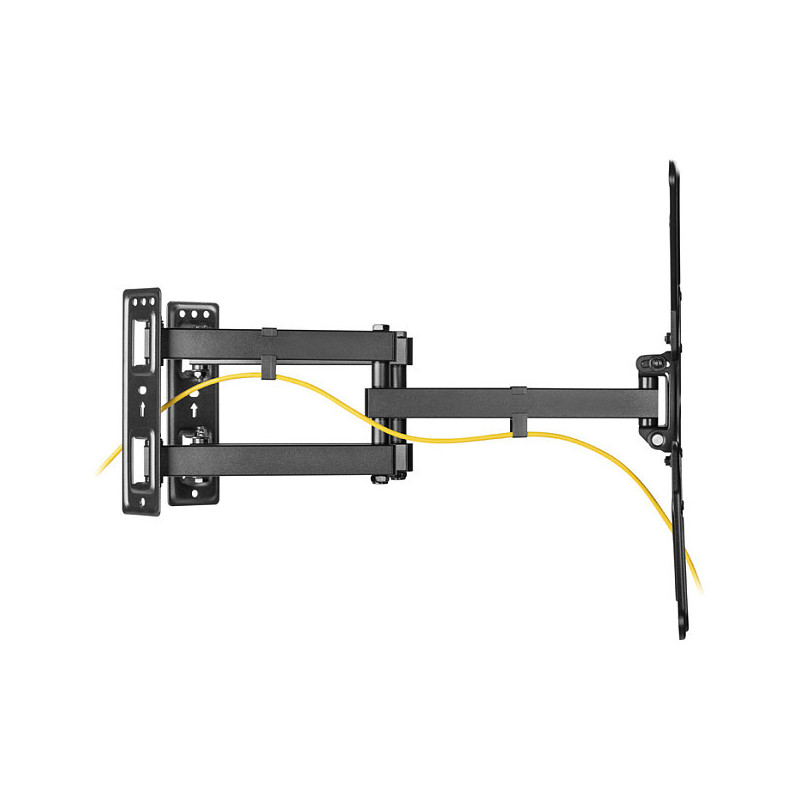

Equip 650328 23"-55" Full motion Corner TV Wall Mount Bracket. Maximum weight capacity: 45 kg, Minimum screen size: 58.4 cm (23"), Maximum screen size: 139.7 cm (55"), Minimum VESA mount: 200 x 100 mm, Maximum VESA mount: 400 x 400 mm. Tilt angle range: -15 - 2°. Product colour: Black

"The equip® TV Wall Mount Bracket is a compact but sturdy product that ensures a reliable installation of your LCD/TV. Follow the graphic guide included in the package, you can install your TV on your own with ease. The wall bracket fits most of the wall materials- brick, concrete and wood, making the ideal choice for you to set up your screens.

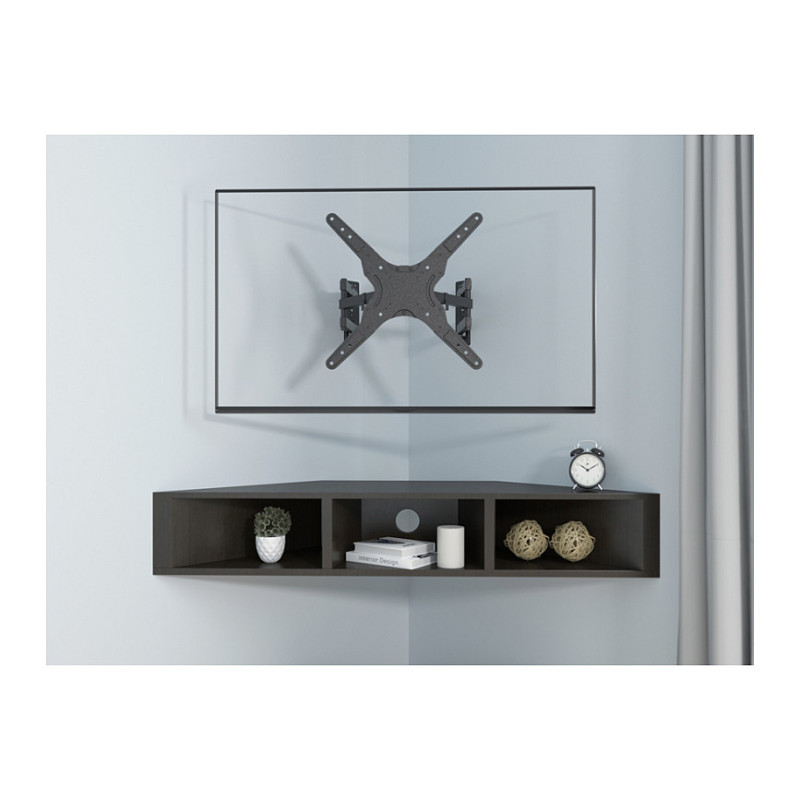

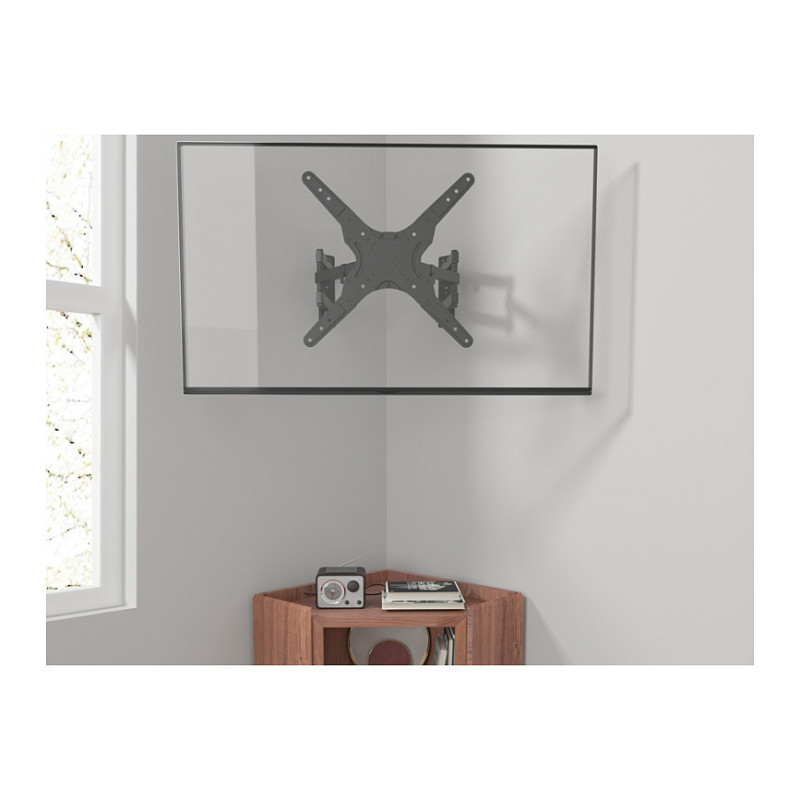

Split Wall Plate: works on different angled corner walls and save space (also can be installed on flat wall)"

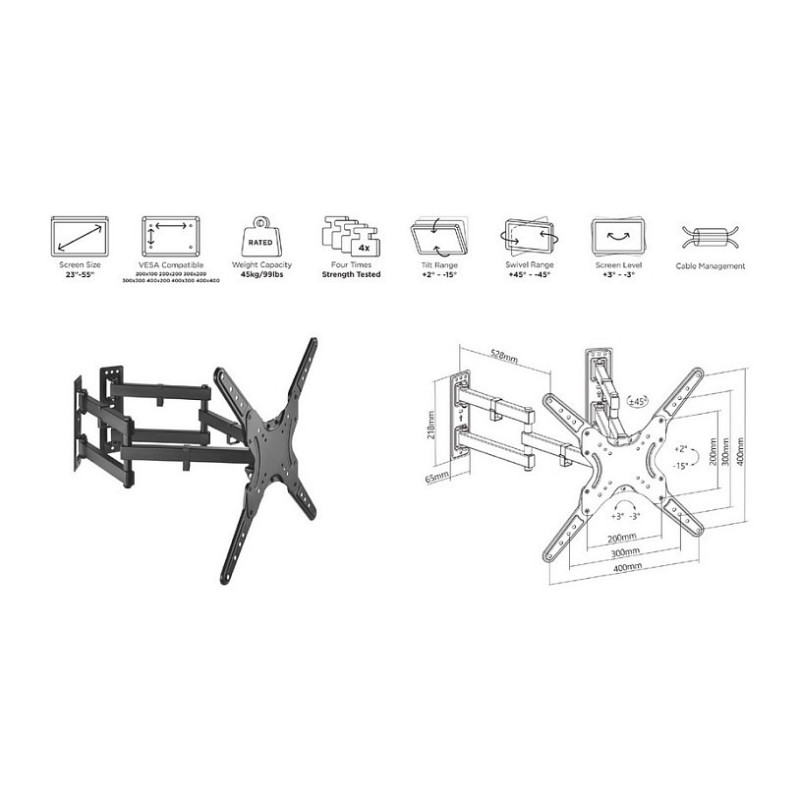

Mounting

Maximum weight capacity: 45 kg
Minimum screen size: 58.4 cm (23")
Number of displays supported: 1
Maximum screen size: 139.7 cm (55")
Minimum VESA mount: 200 x 100 mm
Maximum VESA mount: 400 x 400 mm
Panel mounting interface: 200 x 100,200 x 200,300 x 300,400 x 200,400 x 400,400 x 300
Mounting type: Wall

Ergonomics

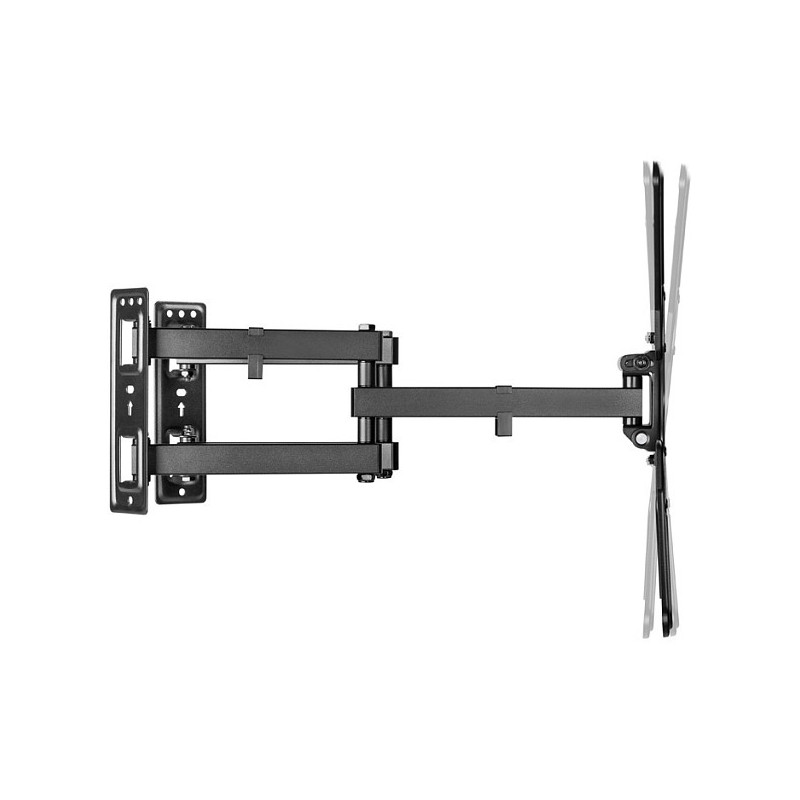

Feature: Tilt adjustment
Tilt angle range: -15 - 2°
Pan range: -45 - 45°

Design

Product colour: Black
Housing material: Plastic, Stainless steel
Certification: RoHS

Technical details

Country of origin: China

Packaging content

Feature: Mounting kit

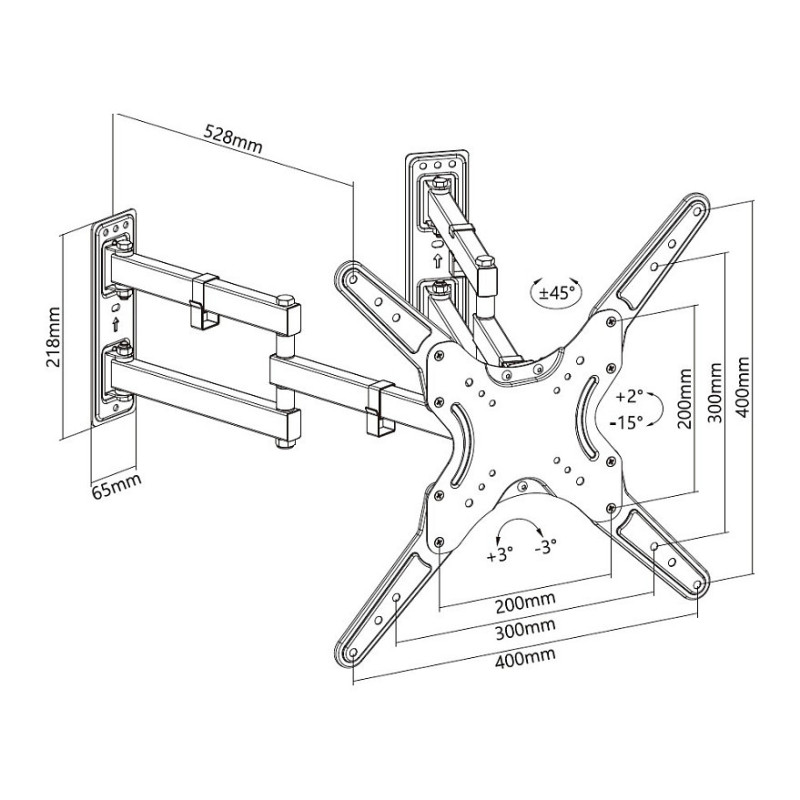

Weight & dimensions

Width: 435 mm
Depth (max): 52.8 cm
Height: 435 mm
Weight: 4.36 kg

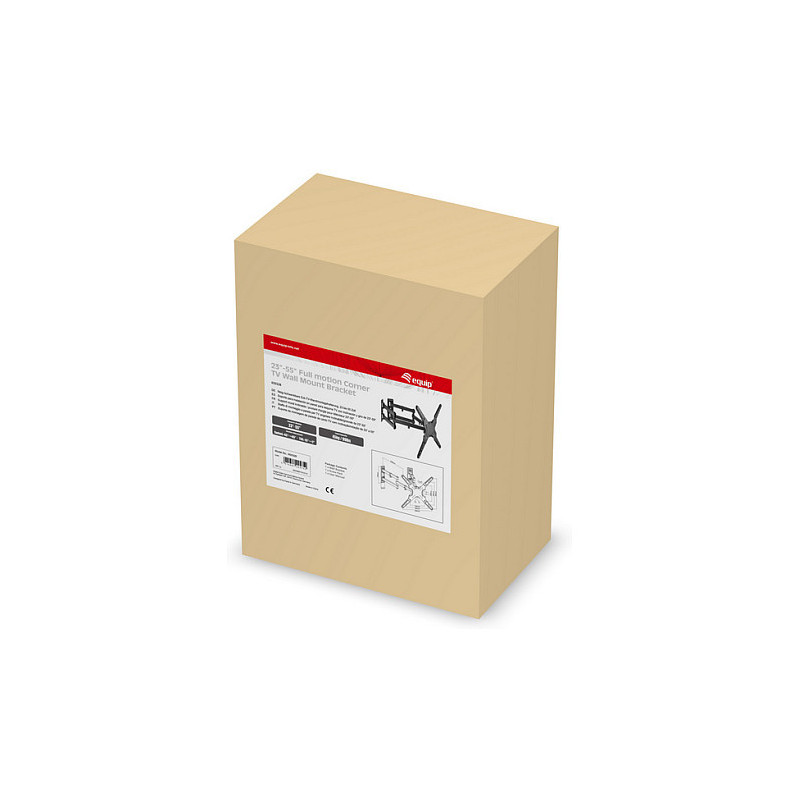

Packaging data

Quantity per pack: 1 pair(s)
Package width: 152 mm
Package depth: 320 mm
Package height: 240 mm
Package weight: 4.72 kg
Package type: Box

Logistics data

Harmonized System (HS) code: 85299097
