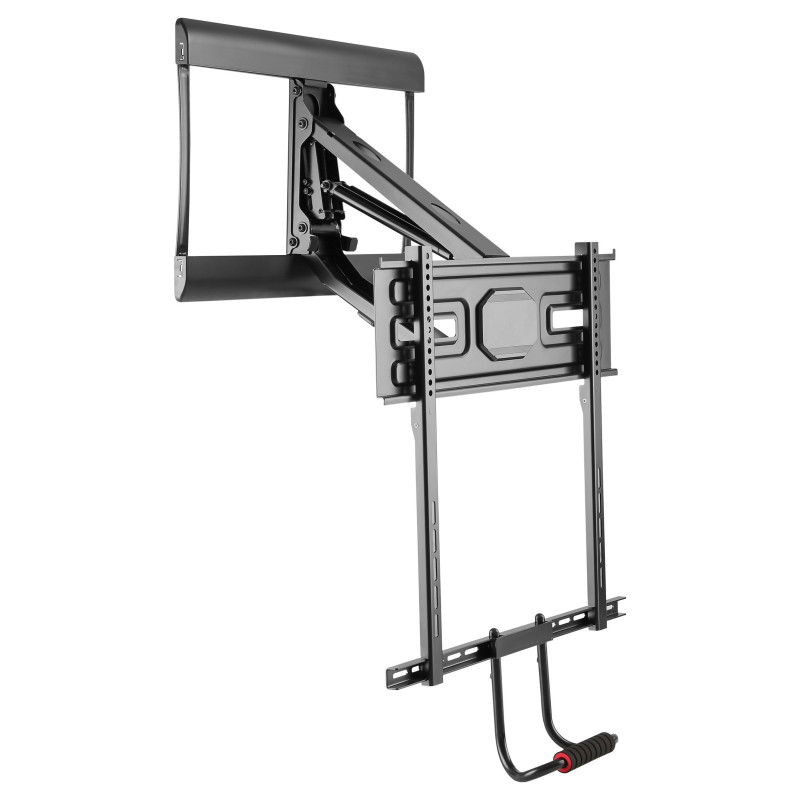

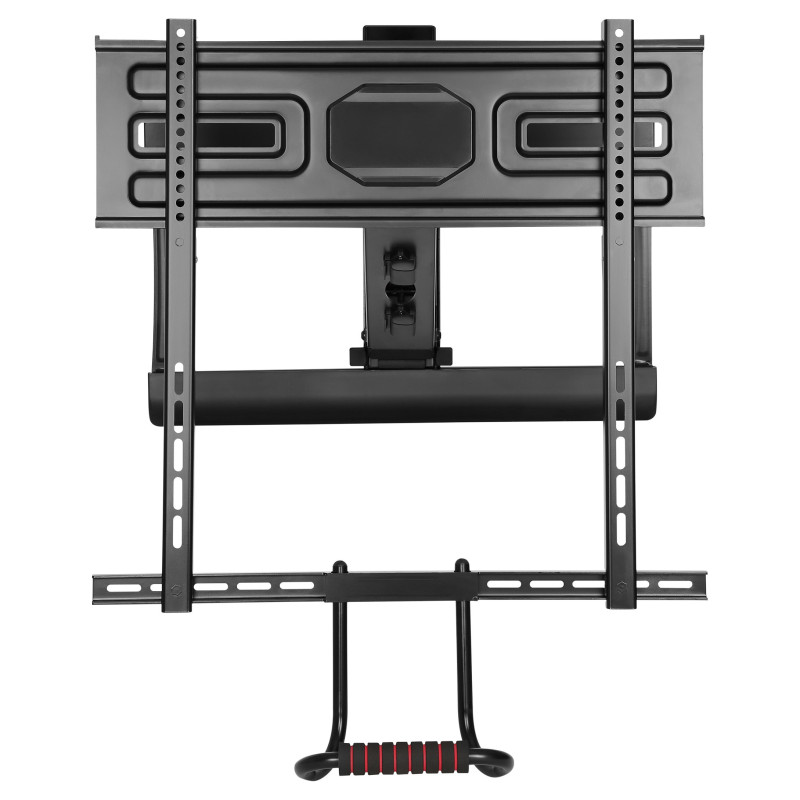

Equip 650326 TV mount / stand

Equip 43"-70" Pull-Down TV Wall Mount Bracket. Maximum weight capacity: 35 kg, Minimum screen size: 109.2 cm (43"), Maximum screen size: 177.8 cm (70"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 600 x 400 mm. Tilt angle range: -5 - -12°, Swivel angle range: -30 - 30°, Distance to the wall (min): 9 cm, Distance to the wall (max): 48.6 cm. Product colour: Black

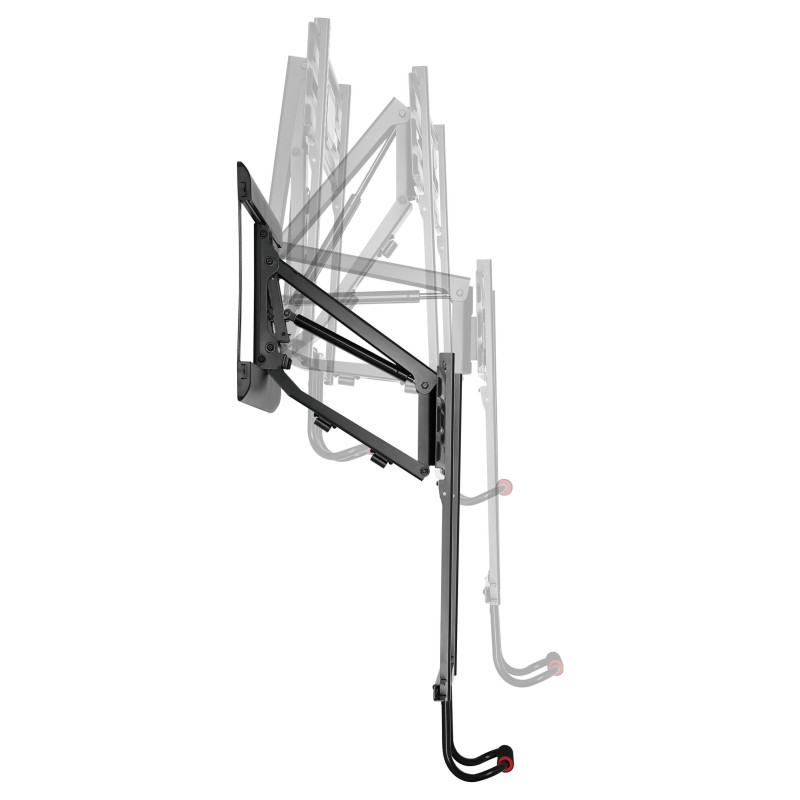

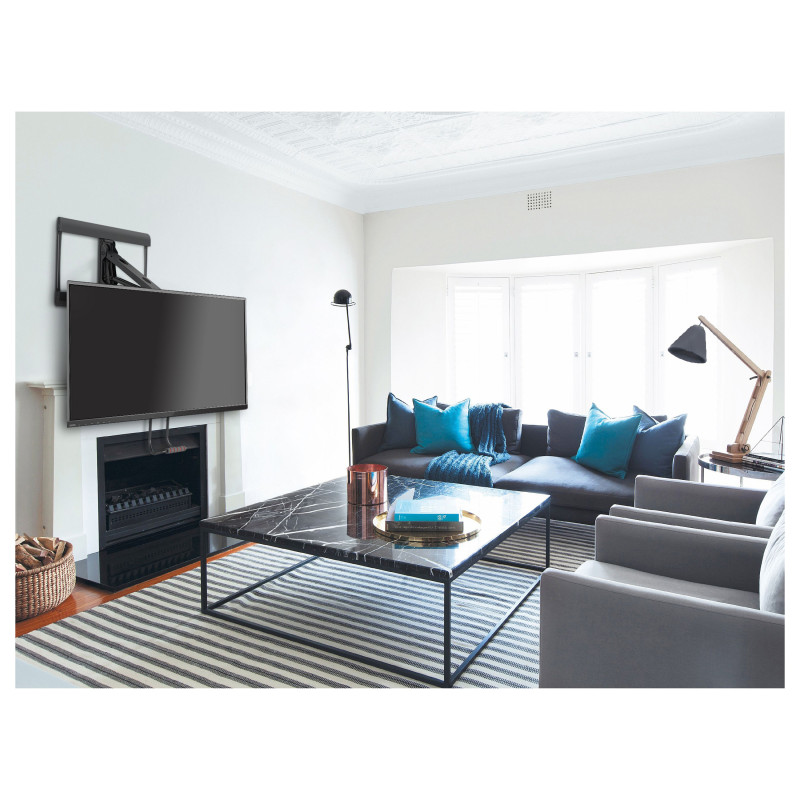

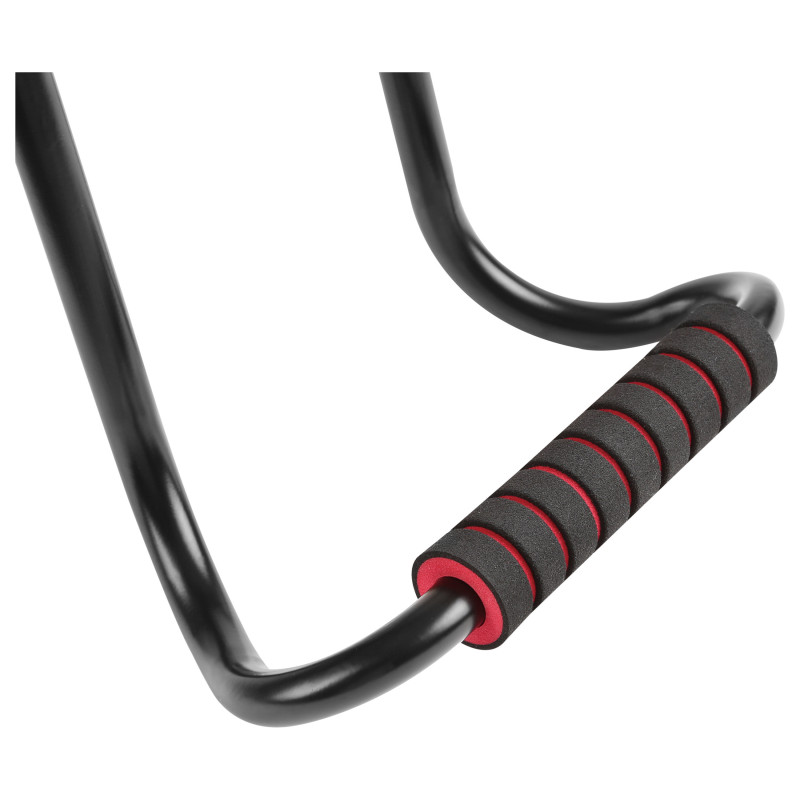

"The equip 650326 43""-70"" Pull-Down TV Wall Mount Bracket is a versatile and space-saving solution designed to securely hold and display flat-panel TVs within the 43 to 70 inch range. This innovative bracket features a pull-down mechanism, allowing you to lower the TV to a comfortable viewing height, making it ideal for installations at varying eye levels, such as over fireplaces or high on walls. Its sturdy construction and adjustable tilt angles ensure optimal viewing angles from multiple positions in the room.

With a sleek and unobtrusive design, it blends seamlessly with modern decor. The bracket typically comes with a built-in cable management system, concealing wires for a clutter-free appearance. Its compatibility with a wide range of TV sizes and the convenience of the pull-down feature make it a practical choice for creating an immersive entertainment experience in various living spaces."

Mounting

Maximum weight capacity: 35 kg
Minimum screen size: 109.2 cm (43")
Number of displays supported: 1
Maximum screen size: 177.8 cm (70")
Minimum VESA mount: 200 x 200 mm
Maximum VESA mount: 600 x 400 mm
Panel mounting interface: 200 x 200,300 x 200,300 x 300,400 x 200,400 x 400,400 x 300,600 x 400
Mounting type: Wall

Ergonomics

Feature: Tilt adjustment
Tilt angle range: -5 - -12°

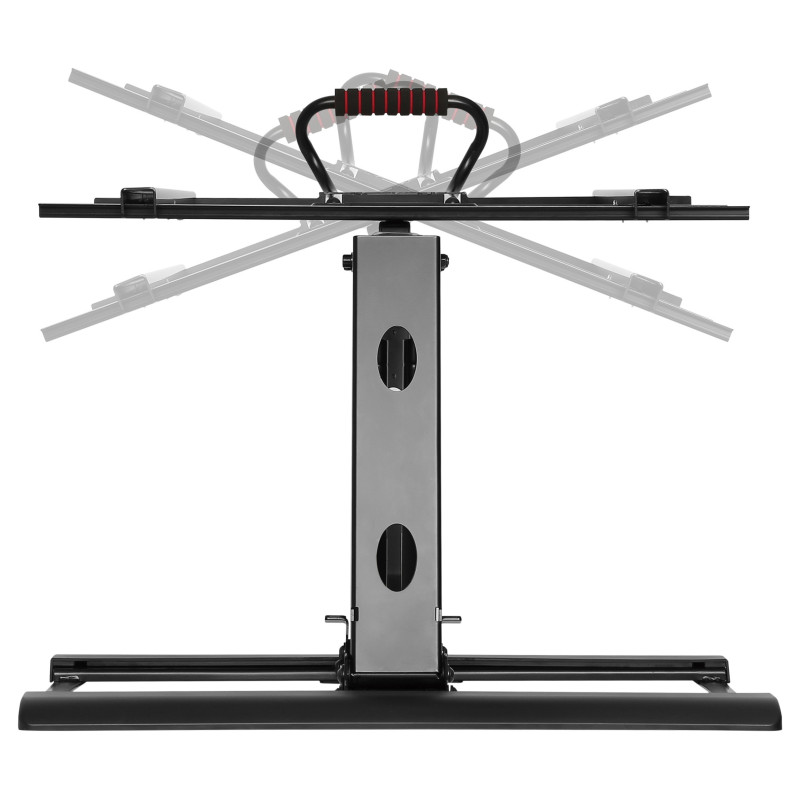

Swivel angle range: -30 - 30°

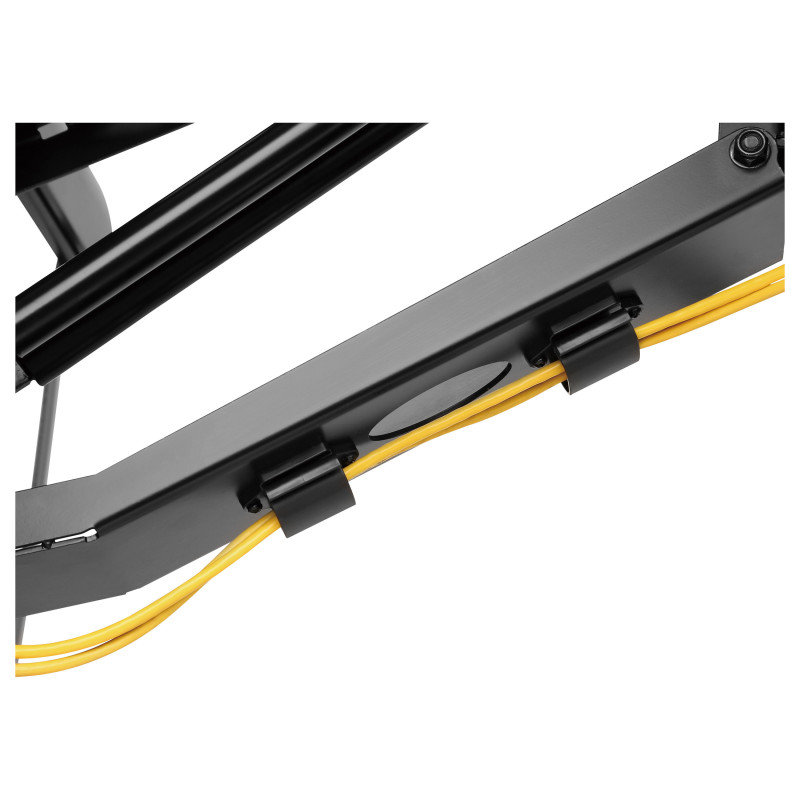

Feature: Cable management
Distance to the wall (max): 48.6 cm
Distance to the wall (min): 9 cm

Design

Product colour: Black
Housing material: Plastic, Steel
Certification: CE

Technical details

Country of origin: China

Packaging content

Feature: Screws included
Feature: Manual

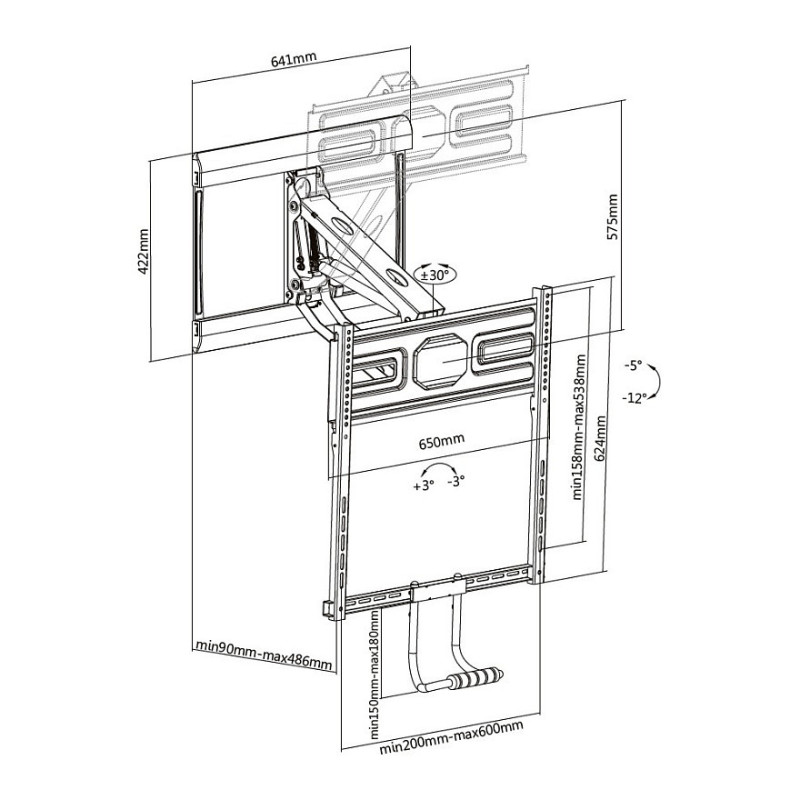

Weight & dimensions

Width: 572 mm
Depth (max): 65 cm
Height: 915 mm
Weight: 14.2 kg

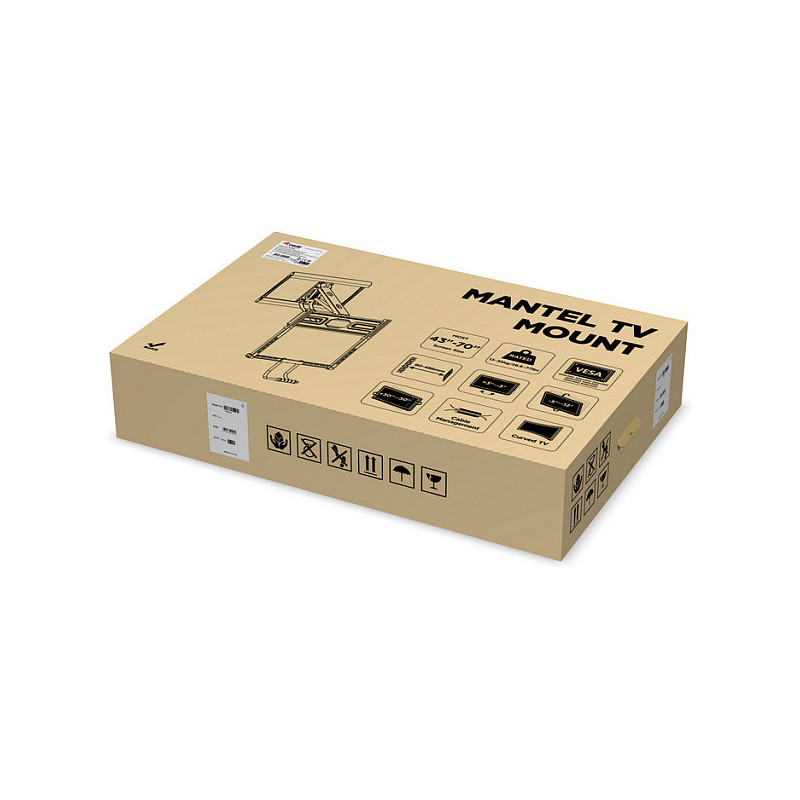

Packaging data

Package width: 510 mm
Package depth: 155 mm
Package height: 770 mm
Package weight: 16.3 kg
Package type: Box

Logistics data

Master (outer) case width: 510 mm
Master (outer) case length: 155 mm
Master (outer) case height: 770 mm
Master (outer) case gross weight: 16.3 kg
Products per master (outer) case: 1 pc(s)
Harmonized System (HS) code: 85299097
