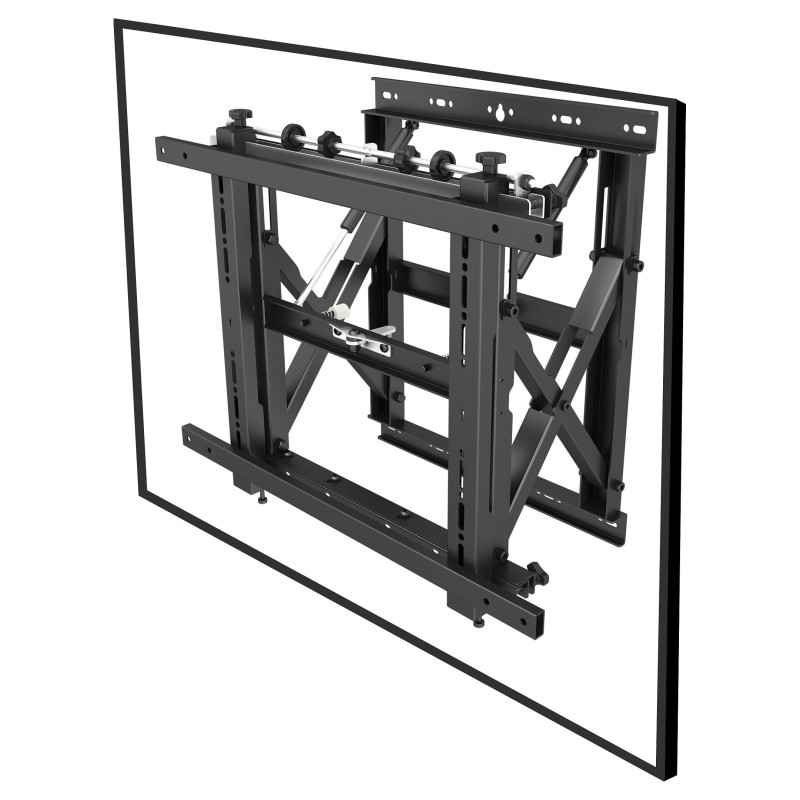

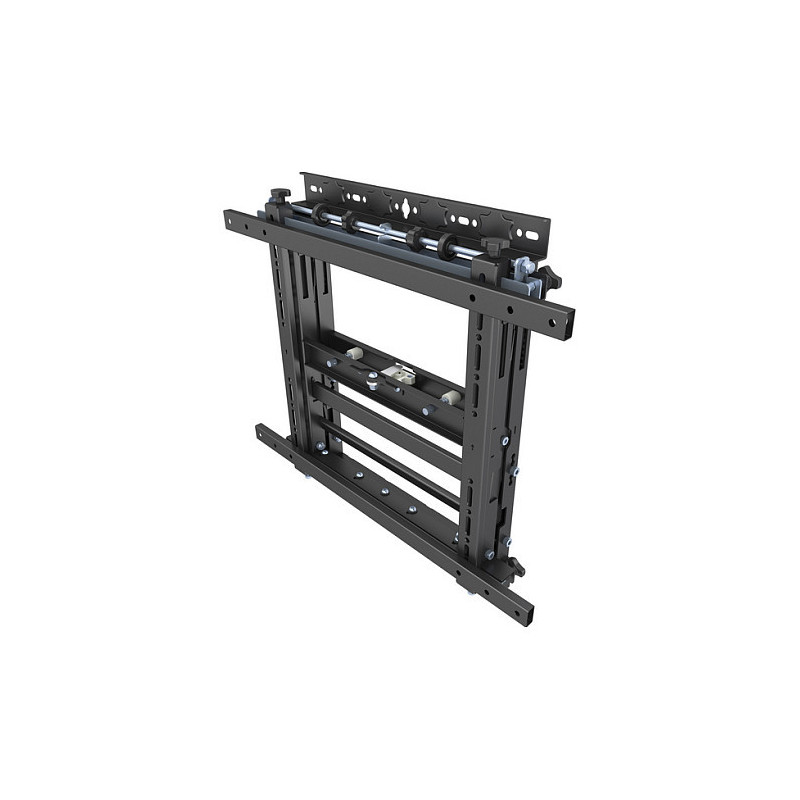

Equip 650325 signage display mount

Equip 19"-55" Push-In Pop-Out TV Wall Mount Bracket. Maximum weight capacity: 50 kg, Minimum screen size: 48.3 cm (19"), Maximum screen size: 139.7 cm (55"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 600 x 400 mm. Tilt angle range: 0 - 10°. Product colour: Black

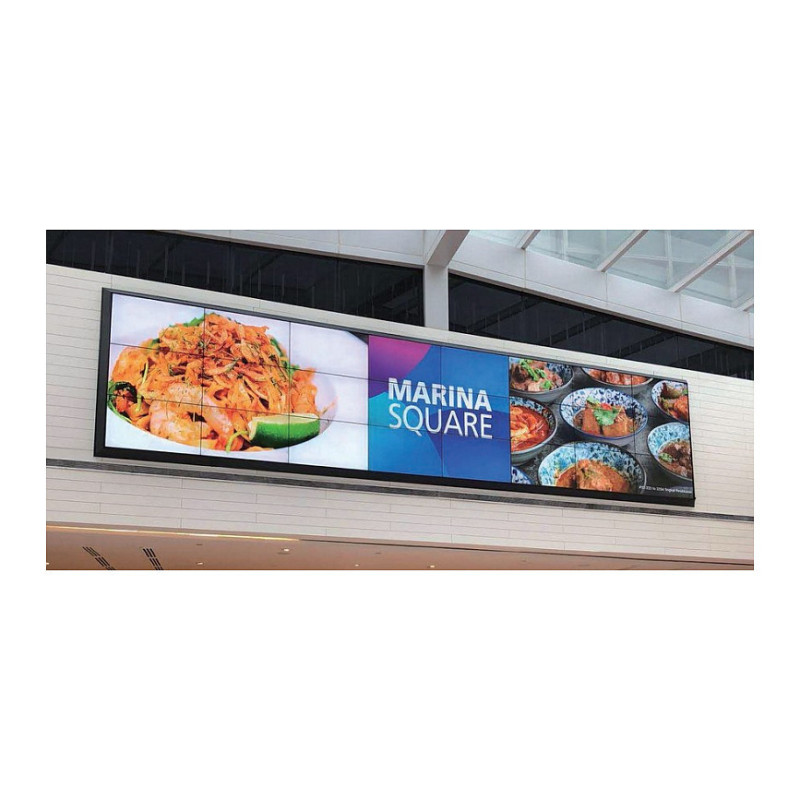

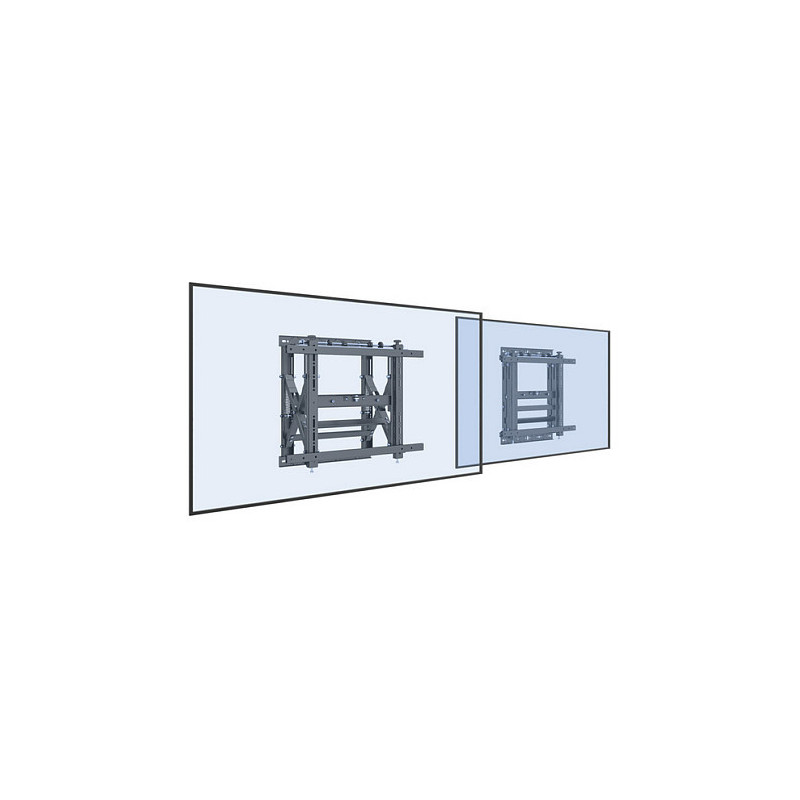

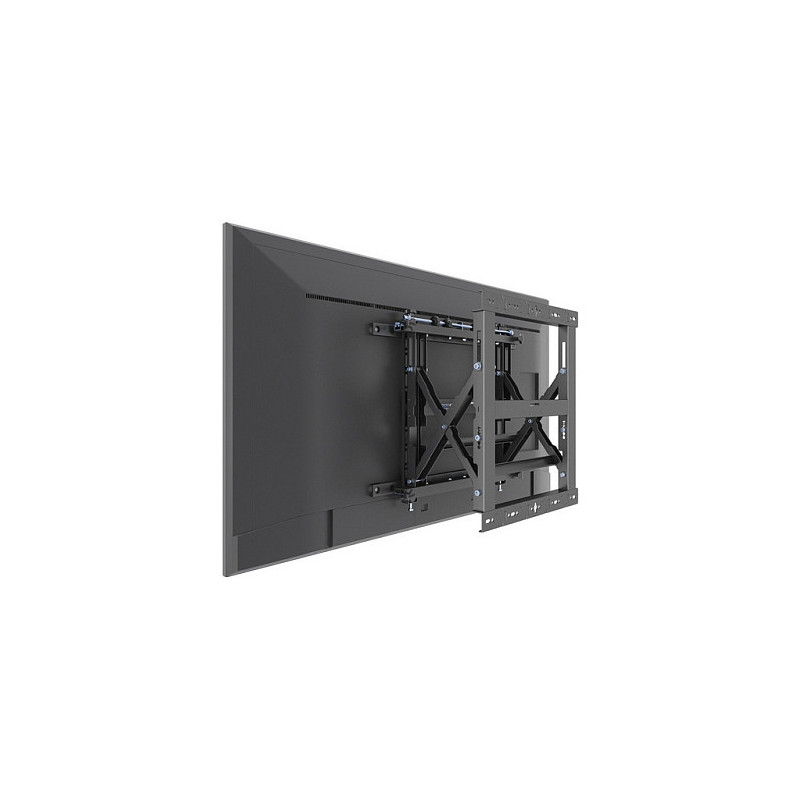

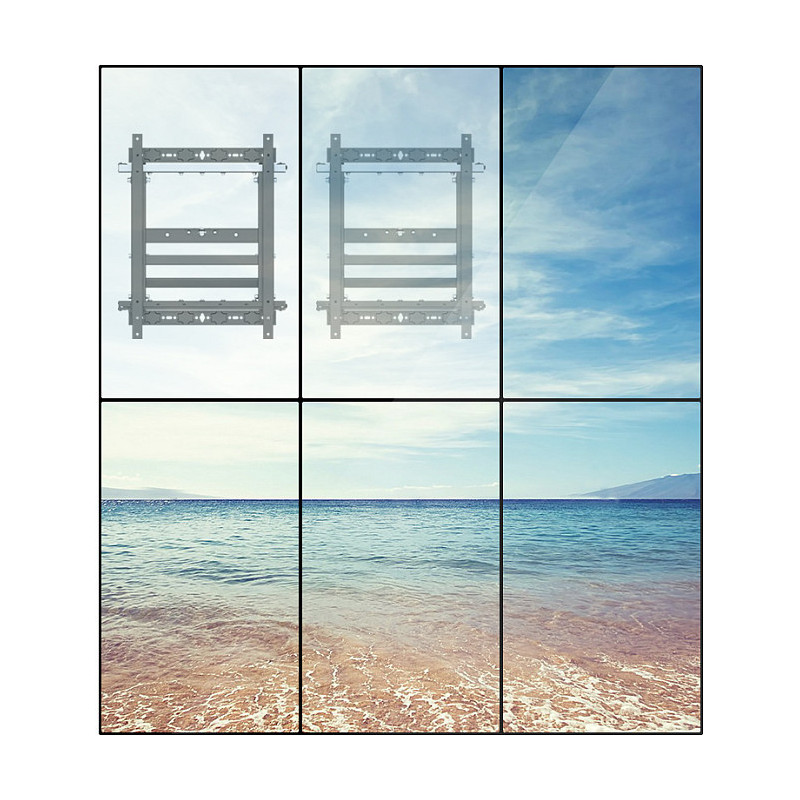

The equip® Push-In Pop-Out TV Mount Bracket is a mounting solution quick to install, and easy to configure. This is a professional mount focusing on single or multiple screen installations, easy and fast installation and simplified maintenance. The Push-In Pop-out feature gives easy-access to any display for quick serviceability, especially at video wall applications. This is one of the major functions needed when building a video wall mounting solution or when integrating a single screen into the wall

Mounting

Maximum weight capacity: 50 kg
Minimum screen size: 48.3 cm (19")
Number of displays supported: 1
Maximum screen size: 139.7 cm (55")
Mounting type: Wall
Minimum VESA mount: 100 x 100 mm
Maximum VESA mount: 600 x 400 mm

Ergonomics

Tilt angle range: 0 - 10°
Angle of rotation: 180°
Feature: Cable management
Distance to the wall (min): 11 cm
Distance to the wall (max): 31 cm

Design

Product colour: Black
Housing material: Steel
Certification: CE

Weight & dimensions

Width: 545 mm
Depth: 310 mm
Depth (max): 31 cm
Height: 610 mm
Weight: 14 kg

Packaging data

Package width: 600 mm
Package depth: 110 mm
Package height: 660 mm
Package weight: 15.5 kg
Package type: Box

Packaging content

Feature: Manual
Feature: Mounting kit

Technical details

Compliance certificates: RoHS

Other features

Country of origin: China

Logistics data

Harmonized System (HS) code: 85299097
Master (outer) case width: 600 mm
Master (outer) case length: 110 mm
Master (outer) case height: 660 mm
Master (outer) case gross weight: 15.5 kg
Products per master (outer) case: 1 pc(s)
