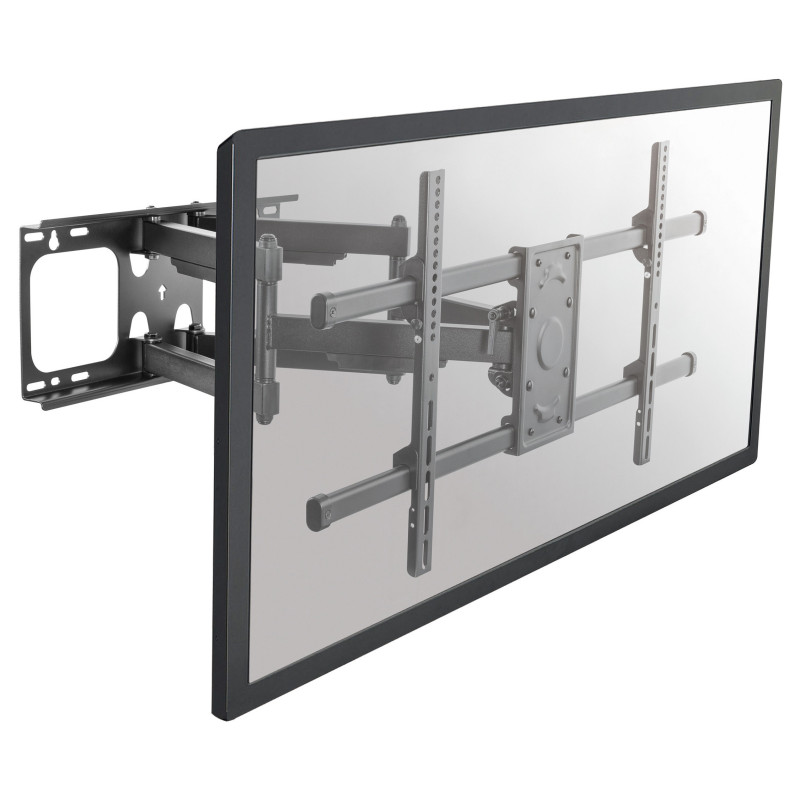

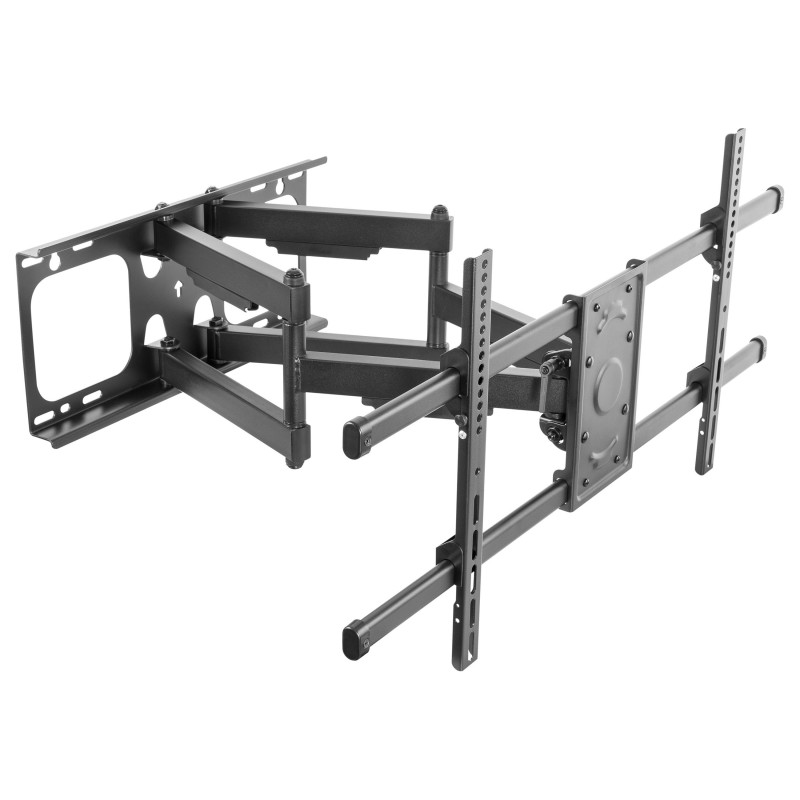

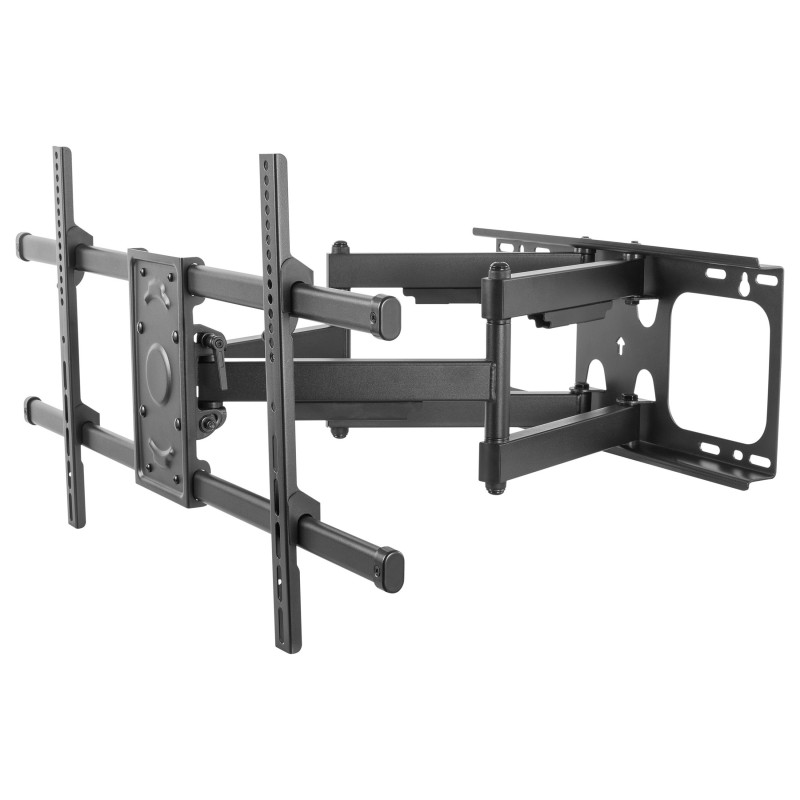

Equip 650324 TV mount / stand

Equip 37"-90" Tilt/Swivel TV Wall Mount Bracket. Maximum weight capacity: 75 kg, Minimum screen size: 94 cm (37"), Maximum screen size: 2.29 m (90"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 816 x 410 mm. Tilt angle range: -15 - 5°, Swivel angle range: -60 - 60°. Product colour: Black

The equip® TV Wall Mount Bracket is a compact but sturdy product that ensures a reliable installation of your LCD/Plasma TV. Follow the graphic guide included in the package, you can install your TV on your own with ease. The wall bracket fits most of the wall materials- brick, concrete and wood, making the ideal choice for you to set up your screens.

Mounting

Maximum weight capacity: 75 kg
Minimum screen size: 94 cm (37")
Number of displays supported: 1
Maximum screen size: 2.29 m (90")
Minimum VESA mount: 200 x 200 mm
Maximum VESA mount: 816 x 410 mm
Panel mounting interface: 200 x 200,300 x 300,400 x 200,400 x 400,600 x 400,800 x 400
Mounting type: Wall

Ergonomics

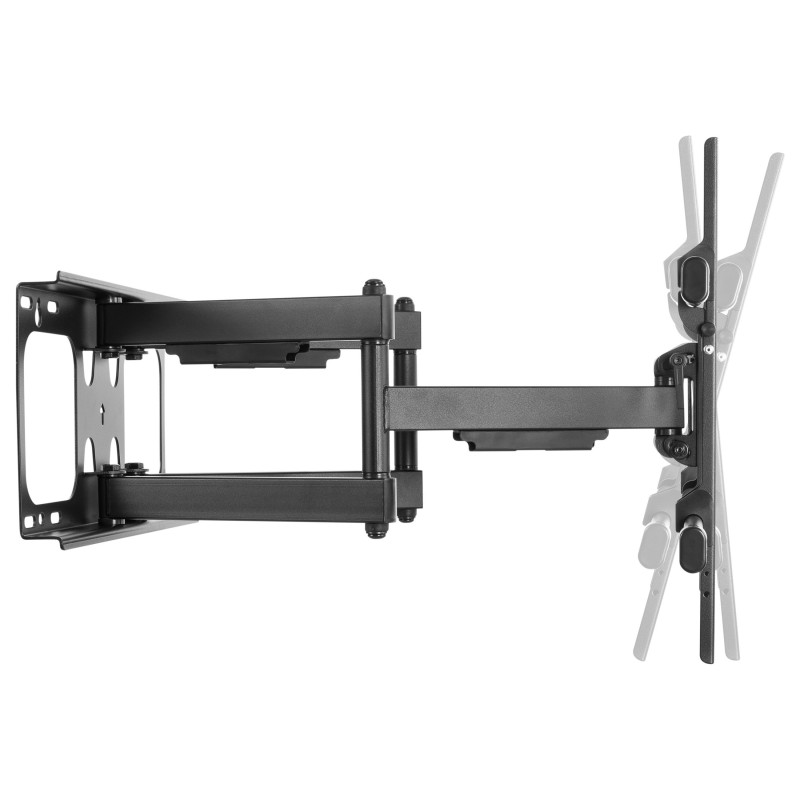

Tilt angle range: -15 - 5°
Swivel angle range: -60 - 60°

Design

Product colour: Black
Housing material: Steel

Technical details

Country of origin: China

Packaging content

Feature: Screws included
Feature: Quick installation guide

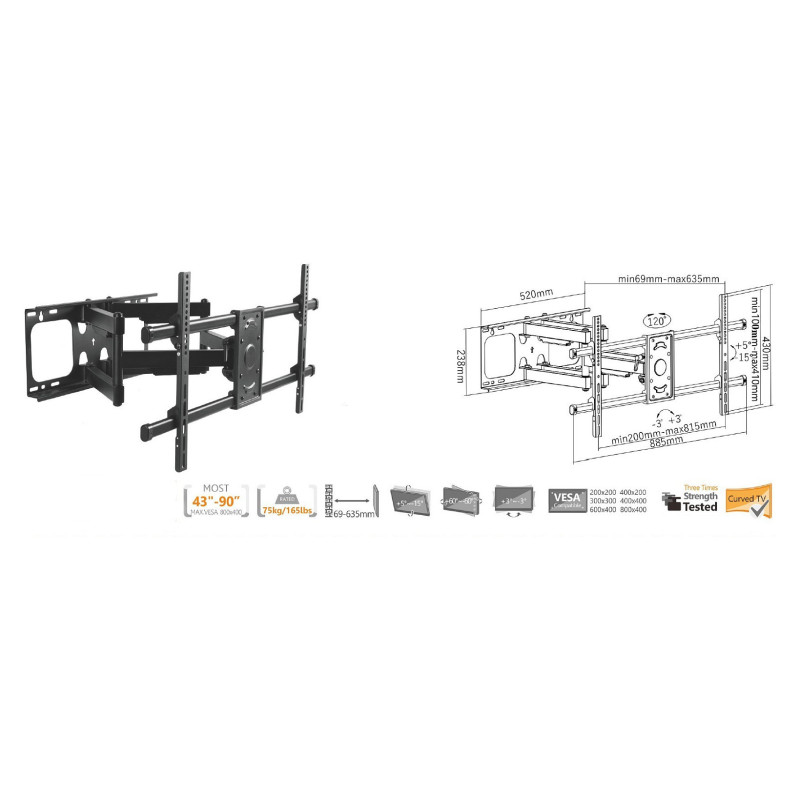

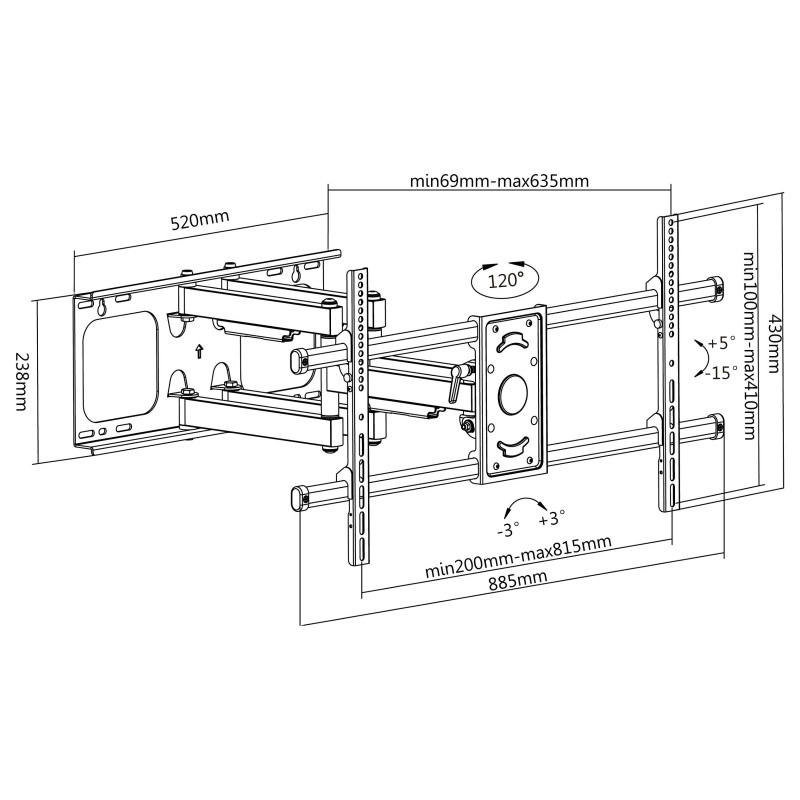

Weight & dimensions

Width: 885 mm
Depth: 635 mm
Height: 430 mm
Weight: 10.5 kg

Packaging data

Package width: 920 mm
Package depth: 288 mm
Package height: 73 mm
Package weight: 11.2 kg

Logistics data

Master (outer) case width: 935 mm
Master (outer) case length: 305 mm
Master (outer) case height: 165 mm
Master (outer) case gross weight: 23.1 kg
Products per master (outer) case: 2 pc(s)
Harmonized System (HS) code: 85299097
