Equip 650323 TV mount / stand

Equip 60"-100" Fixed Curved TV Wall Mount Bracket. Maximum weight capacity: 100 kg, Minimum screen size: 152.4 cm (60"), Maximum screen size: 2.54 m (100"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 900 x 600 mm. Distance to the wall (max): 3.2 cm. Product colour: Black

The equip® TV Wall Mount Bracket is a compact but sturdy product that ensures a reliable installation of your LCD/Plasma TV. Follow the graphic guide included in the package, you can install your TV on your own with ease. The wall bracket fits most of the wall materials- brick, concrete and wood, making the ideal choice for you to set up your screens.

Mounting

Maximum weight capacity: 100 kg
Minimum screen size: 152.4 cm (60")
Number of displays supported: 1
Maximum screen size: 2.54 m (100")
Minimum VESA mount: 200 x 200 mm
Maximum VESA mount: 900 x 600 mm
Panel mounting interface: 200 x 200,300 x 200,400 x 200,400 x 400,600 x 400,800 x 400,800 x 600,900 x 600
Mounting type: Wall

Ergonomics

Distance to the wall (max): 3.2 cm

Design

Product colour: Black
Housing material: Steel

Technical details

Country of origin: China

Packaging content

Feature: Screws included
Feature: Quick installation guide

Weight & dimensions

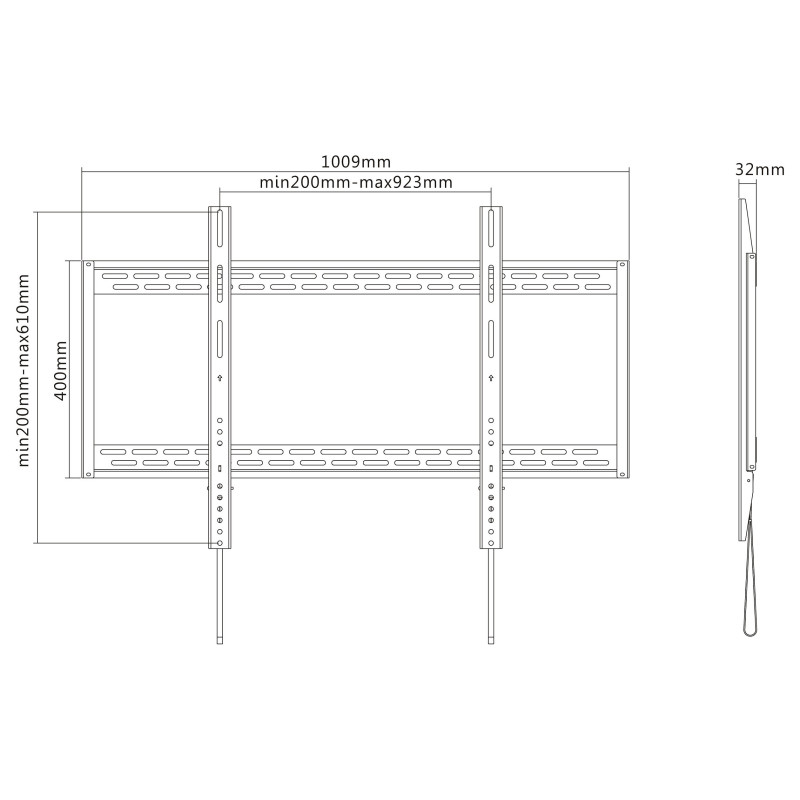

Width: 1009 mm
Depth: 32 mm
Height: 630 mm
Weight: 4.96 kg

Packaging data

Package width: 1115 mm
Package depth: 415 mm
Package height: 40 mm
Package weight: 5.9 kg

Logistics data

Master (outer) case width: 1130 mm
Master (outer) case length: 180 mm
Master (outer) case height: 430 mm
Master (outer) case gross weight: 25 kg
Products per master (outer) case: 4 pc(s)
Harmonized System (HS) code: 85299097
