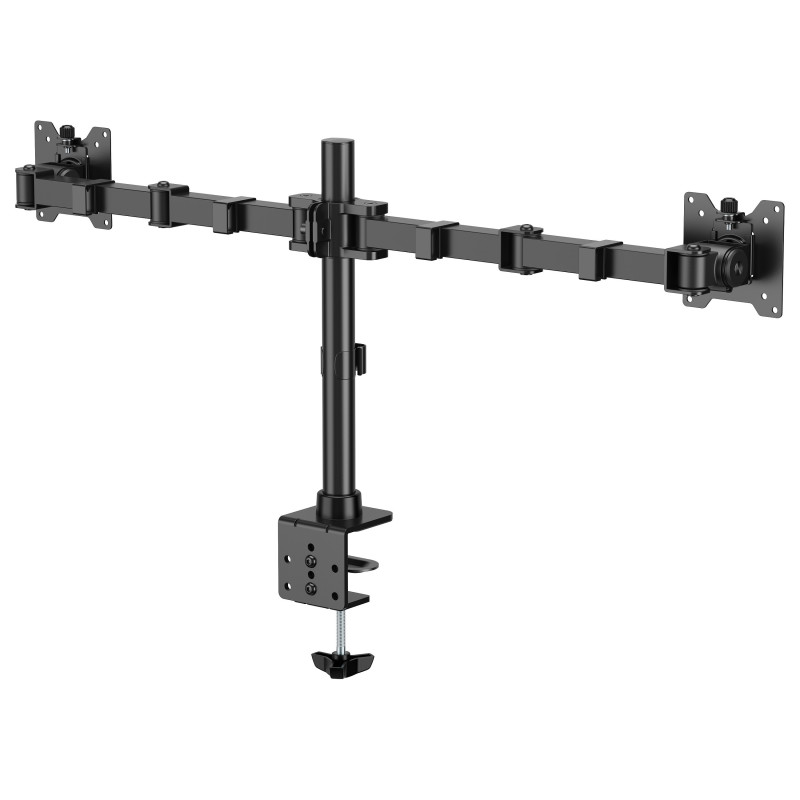

Equip 650177 monitor mount / stand

Equip 17"-35" Heavy-Duty Dual Monitor Desk Mount. Mounting: Clamp/Grommet, Maximum weight capacity: 40 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 88.9 cm (35"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -20 - 50°. Product colour: Black

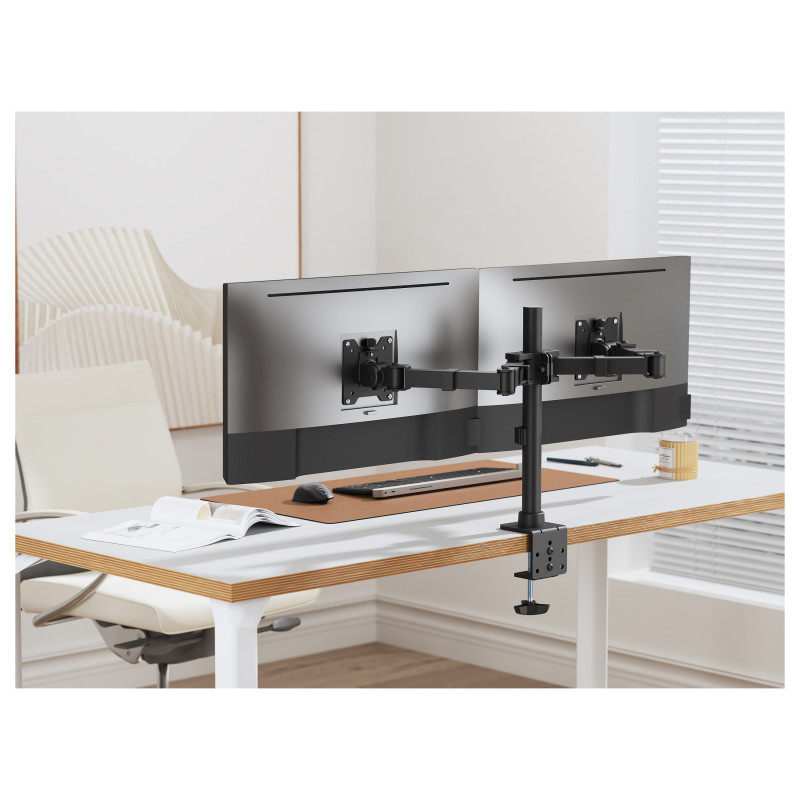

The 17"-35" Heavy-Duty Dual Monitor Desk Mount is designed to provide exceptional strength, stability, and flexibility for demanding dual-display setups. Supporting two monitors from 17" to 35", including larger and curved screens, this mount is ideal for gaming stations, professional offices, trading desks, and creative work environments that require reliable heavy-load performance.

Constructed from reinforced steel and high-grade aluminum, the heavy-duty structure ensures excellent load capacity and long-term durability. Each articulating arm allows independent adjustment of height, tilt, swivel, and rotation, enabling precise monitor positioning for optimal ergonomics and viewing comfort. Both portrait and landscape orientations are supported, offering flexibility for multitasking, content creation, and data-intensive workflows.

Mounting

Maximum weight capacity: 40 kg
Minimum screen size: 43.2 cm (17")
Number of displays supported: 2
Maximum weight capacity (per display): 20 kg
Maximum screen size: 88.9 cm (35")

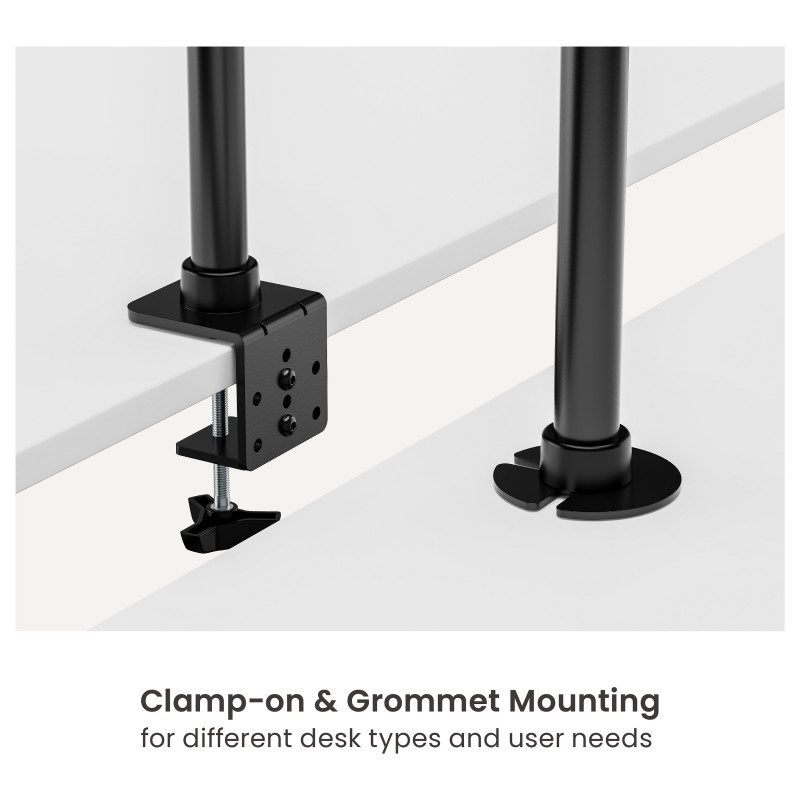

Mounting: Clamp/Grommet
Mounting type: Desk

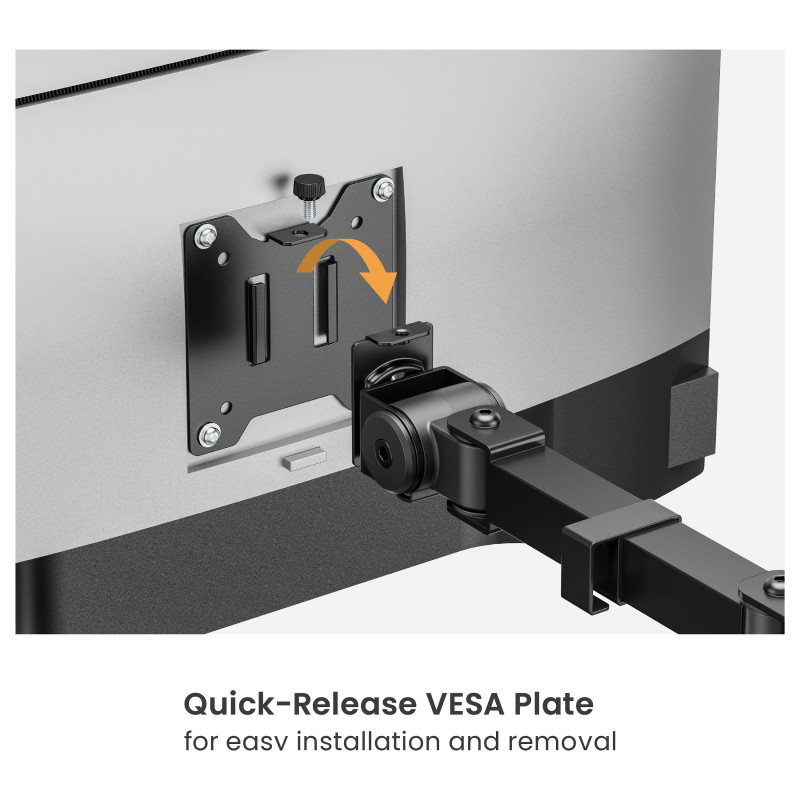

Minimum VESA mount: 75 x 75 mm
Maximum VESA mount: 100 x 100 mm
Clamp mount desk thickness (max): 8.5 cm
Grommet mount desk thickness (max): 4 cm

Ergonomics

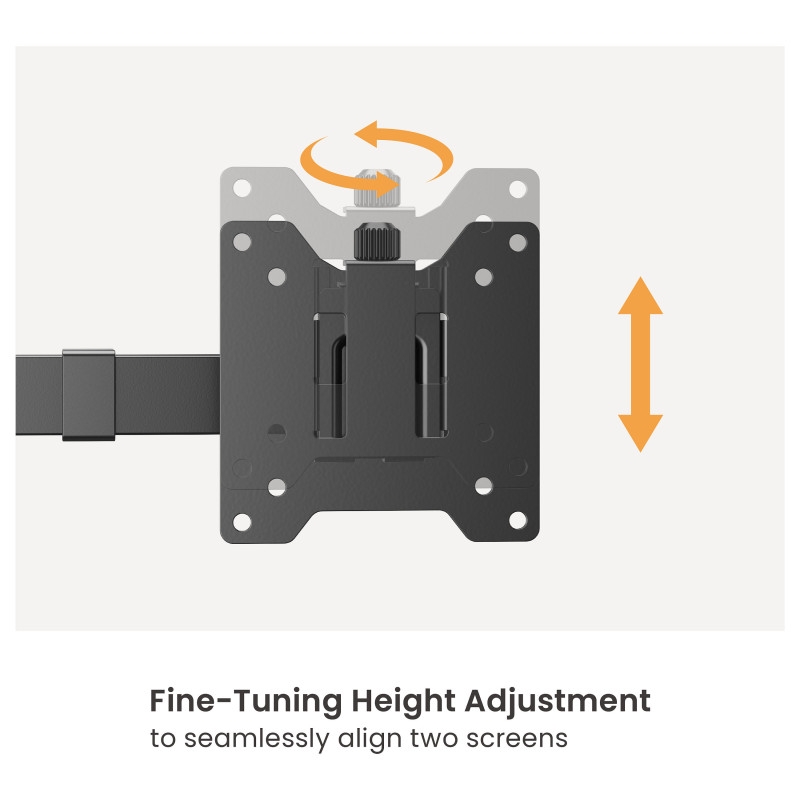

Feature: Height adjustment
Feature: Tilt adjustment
Tilt angle range: -20 - 50°
Feature: Swivelling
Swivel angle range: -90 - 90°
Feature: Rotating
Angle of rotation: 360°
Feature: Cable management

Design

Housing material: Stainless steel, Plastic, Aluminium
Product colour: Black
Orientation: Landscape/Portrait

Weight & dimensions

Width: 1002 mm
Depth: 125 mm
Height: 574 mm
Weight: 5.33 kg

Packaging data

Package width: 427 mm
Package depth: 287 mm
Package height: 100 mm
Package weight: 6.04 kg

Packaging content

Feature: Screws included
Feature: Manual

Other features

Compliance certificates: REACH, RoHS

Logistics data

Master (outer) case width: 442 mm
Master (outer) case length: 305 mm
Master (outer) case height: 324 mm
Master (outer) case gross weight: 18.8 kg
Products per master (outer) case: 3 pc(s)
Country of origin: China
Customs product code (TARIC): 8529909600
