Equip 650175 monitor mount / stand

Equip 17"-49" Heavy -Duty Articulating Monitor Desk Mount. Mounting: Clamp/Grommet, Maximum weight capacity: 20 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 124.5 cm (49"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -20 - 50°. Product colour: Black

The 17"-49" Heavy-Duty Articulating Monitor Desk Mount is engineered to support large and ultra-wide monitors with maximum strength, stability, and flexibility. Designed for monitors from 17" up to 49", including curved and ultra-wide displays, this mount is ideal for professional workstations, gaming setups, and control-room environments that demand reliable heavy-load support.

Built with reinforced steel and high-grade aluminum, the heavy-duty structure ensures exceptional load capacity and long-term durability. The fully articulating arm provides smooth height adjustment, tilt, swivel, and rotation, allowing users to position even large monitors at the optimal viewing angle for comfort and efficiency. Support for both portrait and landscape orientations adds versatility for multitasking and specialized workflows.

Mounting

Maximum weight capacity: 20 kg
Minimum screen size: 43.2 cm (17")
Number of displays supported: 1
Maximum weight capacity (per display): 20 kg
Maximum screen size: 124.5 cm (49")

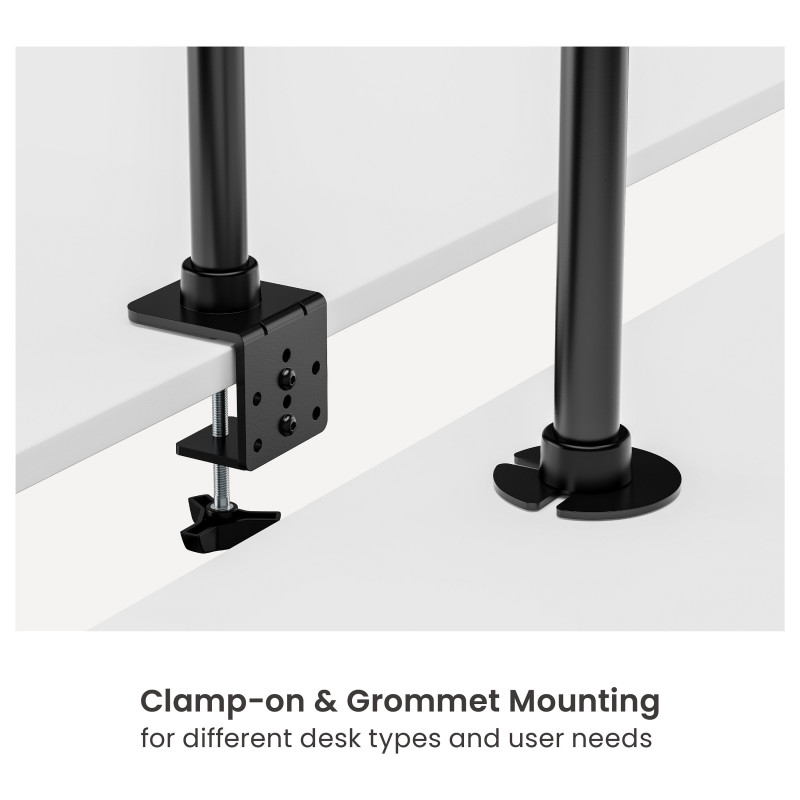

Mounting: Clamp/Grommet
Mounting type: Desk
Minimum VESA mount: 75 x 75 mm
Maximum VESA mount: 100 x 100 mm

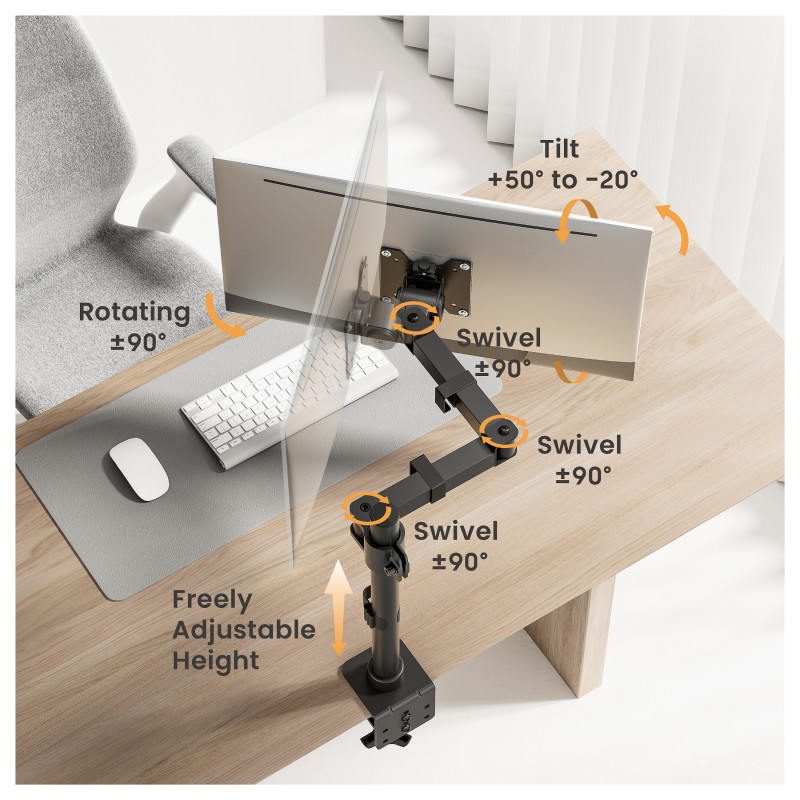

Ergonomics

Feature: Height adjustment
Feature: Tilt adjustment
Tilt angle range: -20 - 50°
Feature: Swivelling
Swivel angle range: -90 - 90°
Feature: Rotating
Angle of rotation: 360°
Feature: Cable management

Design

Housing material: Plastic, Stainless steel
Product colour: Black

Weight & dimensions

Width: 567 mm
Depth: 116 mm
Height: 574 mm
Weight: 3.83 kg

Packaging data

Package width: 415 mm
Package depth: 175 mm
Package height: 105 mm
Package weight: 4.2 kg

Packaging content

Feature: Screws included
Feature: Manual

Other features

Compliance certificates: REACH, RoHS

Logistics data

Master (outer) case width: 430 mm
Master (outer) case length: 365 mm
Master (outer) case height: 225 mm
Master (outer) case gross weight: 17.4 kg
Products per master (outer) case: 4 pc(s)
Country of origin: China
Customs product code (TARIC): 8529909600
