Equip 650174 monitor mount / stand

Equip 17"-32" Articulating Monitor Desk Mount. Mounting: Clamp/Grommet, Maximum weight capacity: 10 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -45 - 45°. Product colour: Black

The 17"-32" Articulating Monitor Desk Mount is a flexible and ergonomic mounting solution designed to improve comfort, productivity, and workspace efficiency. Suitable for monitors ranging from 17" to 32", it supports most flat and curved displays with standard VESA mounting patterns, making it ideal for office, home, and professional environments.

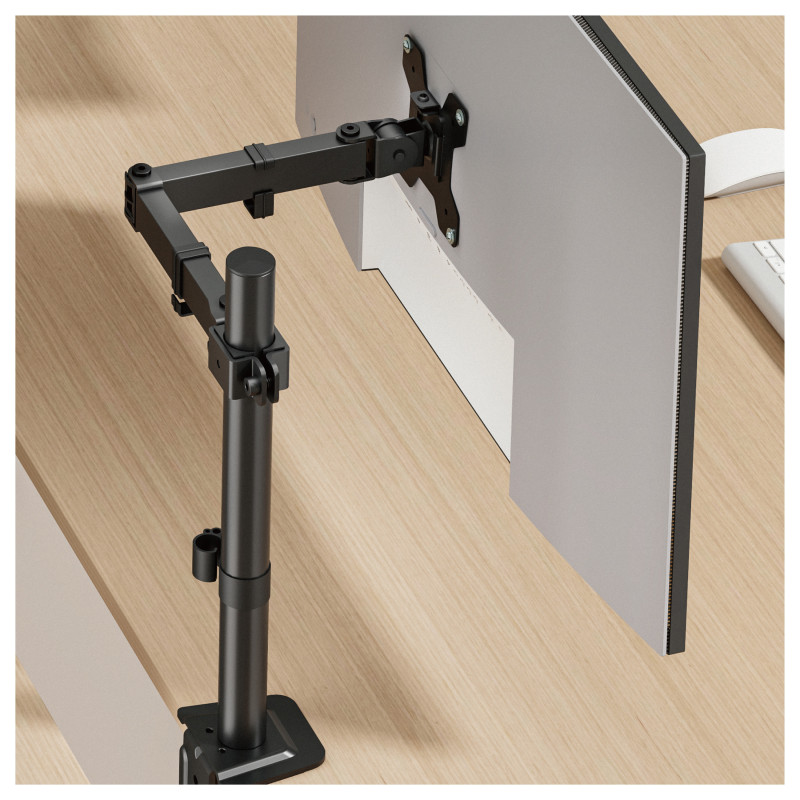

Featuring a fully articulating arm, the mount allows smooth and precise adjustment of height, tilt, swivel, and rotation. Users can easily position the monitor at the optimal viewing angle to reduce neck and eye strain, while support for both portrait and landscape orientations provides added versatility for different applications such as coding, document editing, and design work.

Mounting

Maximum weight capacity: 10 kg
Minimum screen size: 43.2 cm (17")
Number of displays supported: 1
Maximum weight capacity (per display): 10 kg
Maximum screen size: 81.3 cm (32")

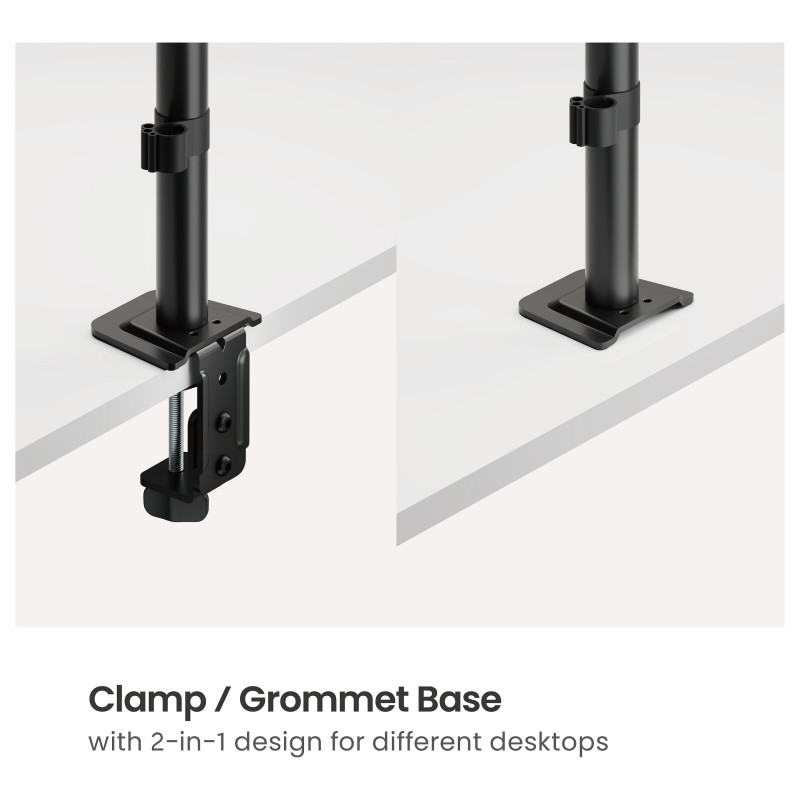

Mounting: Clamp/Grommet
Mounting type: Desk

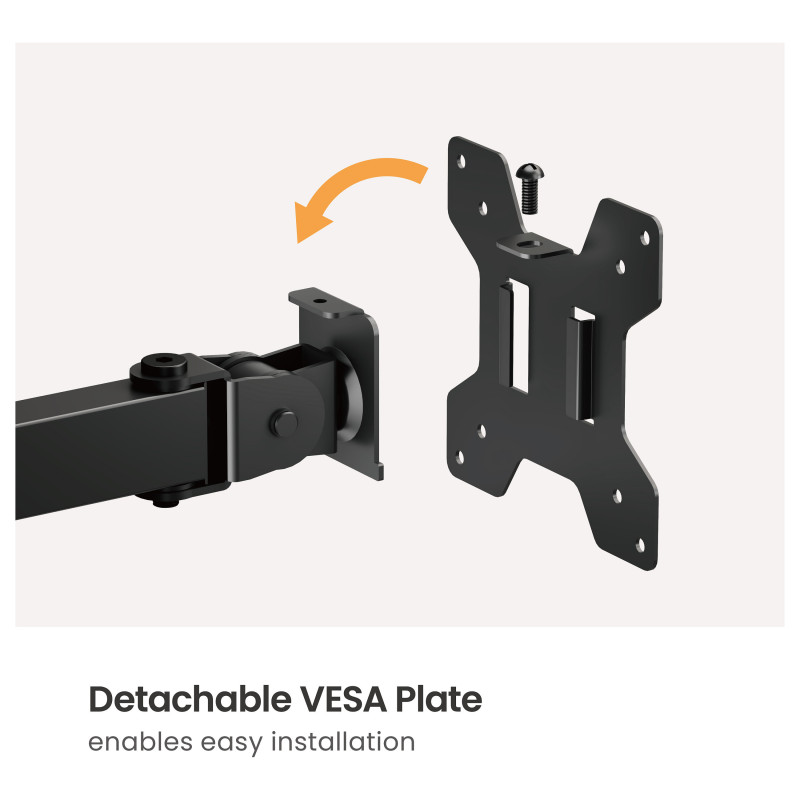

Minimum VESA mount: 75 x 75 mm
Maximum VESA mount: 100 x 100 mm

Ergonomics

Feature: Height adjustment
Feature: Tilt adjustment
Tilt angle range: -45 - 45°
Feature: Swivelling
Swivel angle range: -90 - 90°
Feature: Rotating
Angle of rotation: 360°
Feature: Cable management

Design

Housing material: Plastic, Stainless steel
Product colour: Black

Weight & dimensions

Width: 482 mm
Depth: 114 mm
Height: 548 mm
Weight: 2.28 kg

Packaging data

Package width: 436 mm
Package depth: 127 mm
Package height: 99 mm
Package weight: 2.65 kg

Packaging content

Feature: Screws included
Feature: Manual

Other features

Compliance certificates: REACH, RoHS

Logistics data

Master (outer) case width: 450 mm
Master (outer) case length: 278 mm
Master (outer) case height: 320 mm
Master (outer) case gross weight: 13.8 kg
Products per master (outer) case: 6 pc(s)
Country of origin: China
Customs product code (TARIC): 8529909600
