Equip 650159 monitor mount / stand

Equip 17"-32" Articulating Quad Monitor Desk Mount Bracket. Mounting: Clamp, Maximum weight capacity: 36 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Tilt angle range: -45 - 45°. Product colour: Black

"The equip® 13""-27"" Articulating Quad Monitor Desk Mount Bracket is a versatile solution designed to elevate your productivity and create an organized workspace. This bracket accommodates four flat-panel monitors ranging from 13 to 27 inches, offering a dynamic articulating arm system for each screen. With adjustable tilt, swivel, and rotation capabilities, it enables you to achieve ergonomic comfort and optimal viewing angles.

Ideal for multitasking, gaming, or professional work, this mount maximizes desk space while ensuring stability through its robust design. Integrated cable management keeps cables tidy and reduces clutter. Whether in an office, home workstation, or entertainment setup, the quad monitor desk mount enhances visual immersion and multitasking efficiency. It's a valuable accessory for those seeking a streamlined and flexible monitor arrangement to support their diverse computing needs."

Mounting

Maximum weight capacity: 36 kg
Minimum screen size: 43.2 cm (17")
Number of displays supported: 4
Maximum weight capacity (per display): 9 kg
Maximum screen size: 81.3 cm (32")

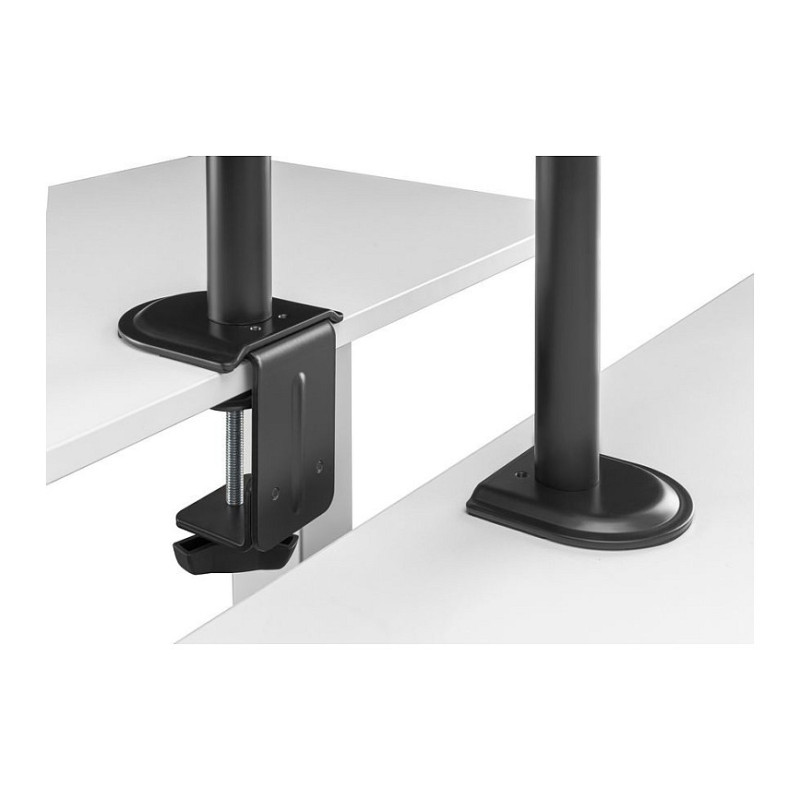

Mounting: Clamp
Mounting type: Desk
Minimum VESA mount: 75 x 75 mm
Maximum VESA mount: 100 x 100 mm
Desk thickness (min): 1 cm
Desk thickness (max): 8.5 cm

Ergonomics

Feature: Height adjustment
Feature: Tilt adjustment
Tilt angle range: -45 - 45°
Feature: Rotating
Angle of rotation: 180°
Pan range: -90 - 90°
Feature: Cable management

Design

Housing material: Metal, Plastic
Product colour: Black

Weight & dimensions

Width: 112 mm
Depth: 957 mm
Height: 869 mm
Weight: 6.12 kg

Packaging data

Package width: 260 mm
Package depth: 115 mm
Package height: 415 mm
Package weight: 6.7 kg

Packaging content

Feature: Screws included
Feature: Manual

Other features

Compliance certificates: RoHS

Logistics data

Master (outer) case width: 260 mm
Master (outer) case length: 115 mm
Master (outer) case height: 415 mm
Master (outer) case gross weight: 6.7 kg
Products per master (outer) case: 1 pc(s)
Harmonized System (HS) code: 85299097
