Equip 650156 monitor mount / stand

Equip 17"-32" Articulating Monitor Desk Mount Bracket. Mounting: Clamp, Maximum weight capacity: 9 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Tilt angle range: -45 - 45°. Product colour: Black

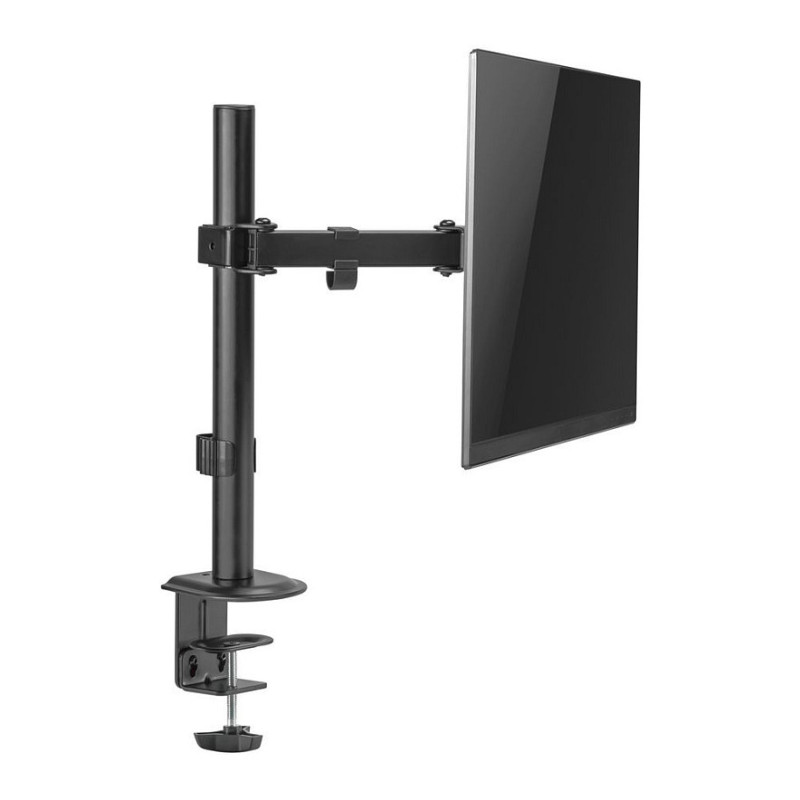

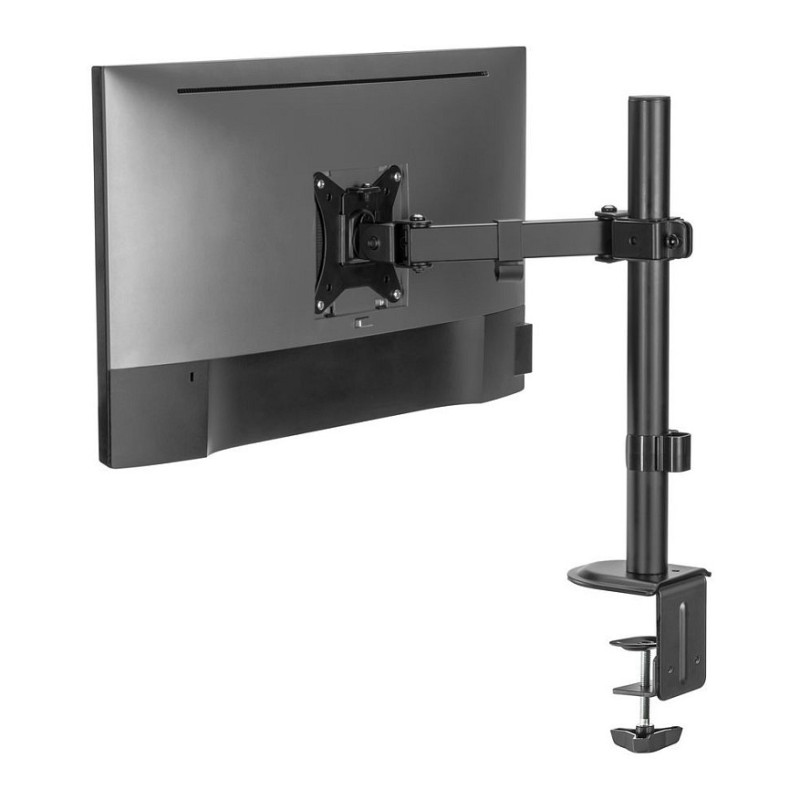

The equip® 650156 Monitor Desk Mount Bracket is a compact but sturdy product that ensures a reliable installation of your LCD/LED monitor. Flexible design for ample adjustment and viewing angles, adjustable for either portrait or landscape orientation. The freestanding base provides stability and support on any work surface. A convenient phone slot located on the base. A detachable VESA plate for user-friendly installation Installatioin Video

Mounting

Maximum weight capacity: 9 kg
Minimum screen size: 43.2 cm (17")
Number of displays supported: 1
Maximum screen size: 81.3 cm (32")

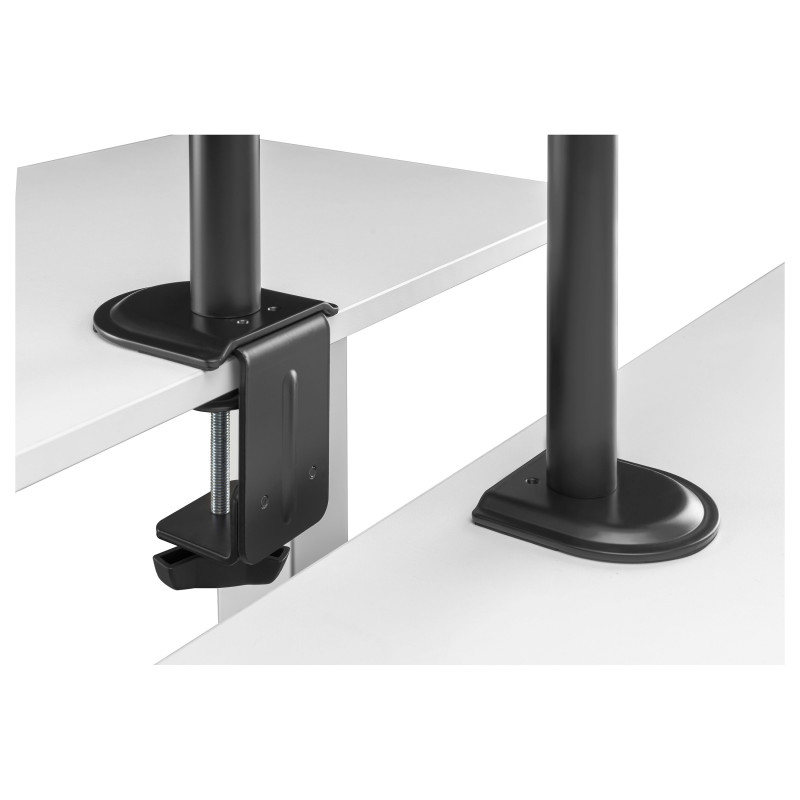

Mounting: Clamp
Mounting type: Desk

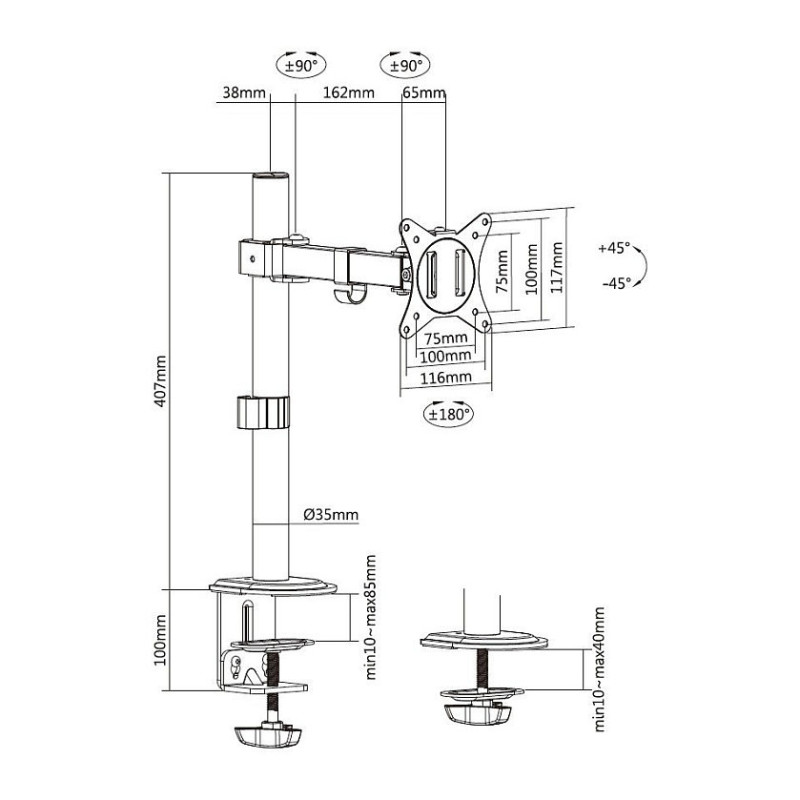

Minimum VESA mount: 75 x 75 mm
Maximum VESA mount: 100 x 100 mm
Desk thickness (min): 1 cm
Desk thickness (max): 8.5 cm

Ergonomics

Feature: Height adjustment
Feature: Tilt adjustment

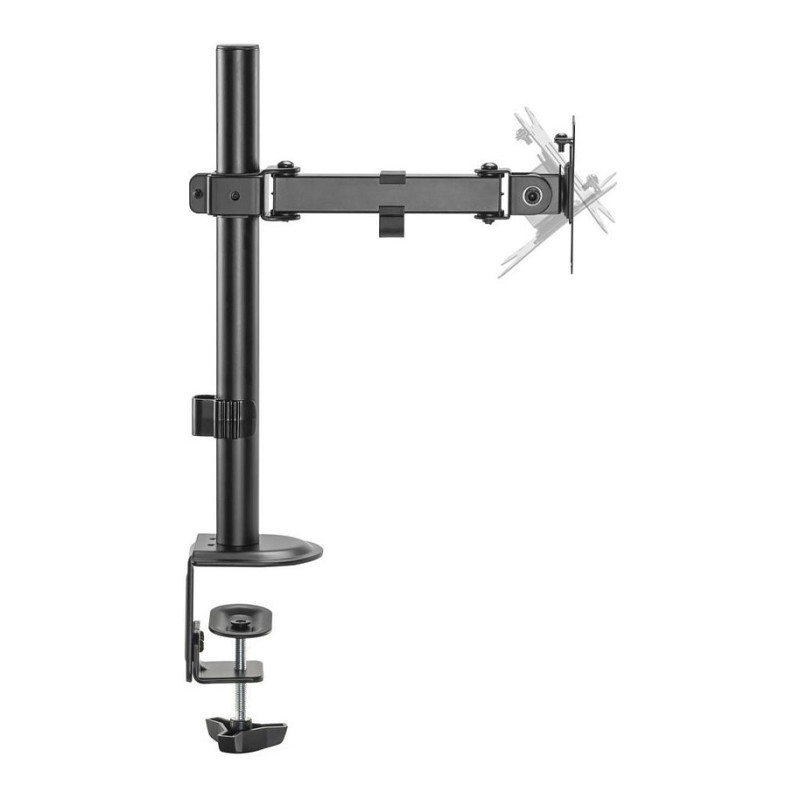

Tilt angle range: -45 - 45°
Pan range: -90 - 90°
Feature: Cable management

Design

Housing material: Metal, Plastic
Product colour: Black

Weight & dimensions

Width: 308 mm
Depth: 561 mm
Height: 116 mm
Weight: 2.42 kg

Packaging data

Package width: 125 mm
Package depth: 97 mm
Package height: 428 mm
Package weight: 2.65 kg

Packaging content

Feature: Screws included
Feature: Manual

Other features

Compliance certificates: RoHS

Logistics data

Master (outer) case width: 270 mm
Master (outer) case length: 310 mm
Master (outer) case height: 445 mm
Master (outer) case gross weight: 2.65 kg
Products per master (outer) case: 6 pc(s)
Harmonized System (HS) code: 85299097
