Equip 650112 monitor mount / stand

Equip 17"-32" Articulating Monitor Desk Mount Bracket. Mounting: Clamp/Grommet, Maximum weight capacity: 9 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -90 - 90°. Product colour: Silver

The equip® is 17"-32" Articulating Monitor Desk Mount Bracket with Gas Spring Structure is a versatile and ergonomic solution designed to enhance your workspace. This mount is crafted to securely hold and adjust flat-panel monitors within the 17 to 32-inch size range. Its standout feature is the integrated gas spring mechanism, which enables effortless height adjustment and smooth tilting and swiveling of the monitor. This ensures optimal viewing angles, reducing neck and eye strain.

The bracket is easy to install and clamps onto your desk, saving valuable workspace. Its articulating arms provide a wide range of motion, allowing you to position your monitor at the perfect height and angle for your needs. The gas spring structure adds a level of flexibility and precision to monitor positioning, enhancing comfort and productivity. With its durable construction and sleek design, this bracket is an excellent choice for creating a more ergonomic and organized workstation.

Mounting

Maximum weight capacity: 9 kg
Minimum screen size: 43.2 cm (17")
Number of displays supported: 1
Maximum weight capacity (per display): 9 kg
Maximum screen size: 81.3 cm (32")
Mounting: Clamp/Grommet
Mounting type: Desk

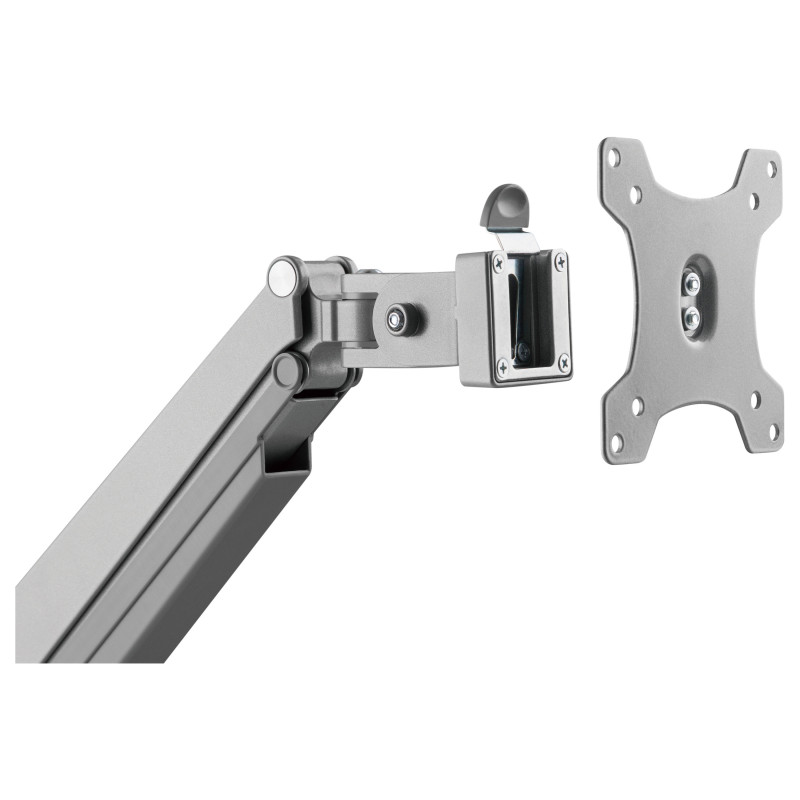

Minimum VESA mount: 75 x 75 mm
Maximum VESA mount: 100 x 100 mm
Extension arm (max): 56.2 cm

Ergonomics

Feature: Height adjustment

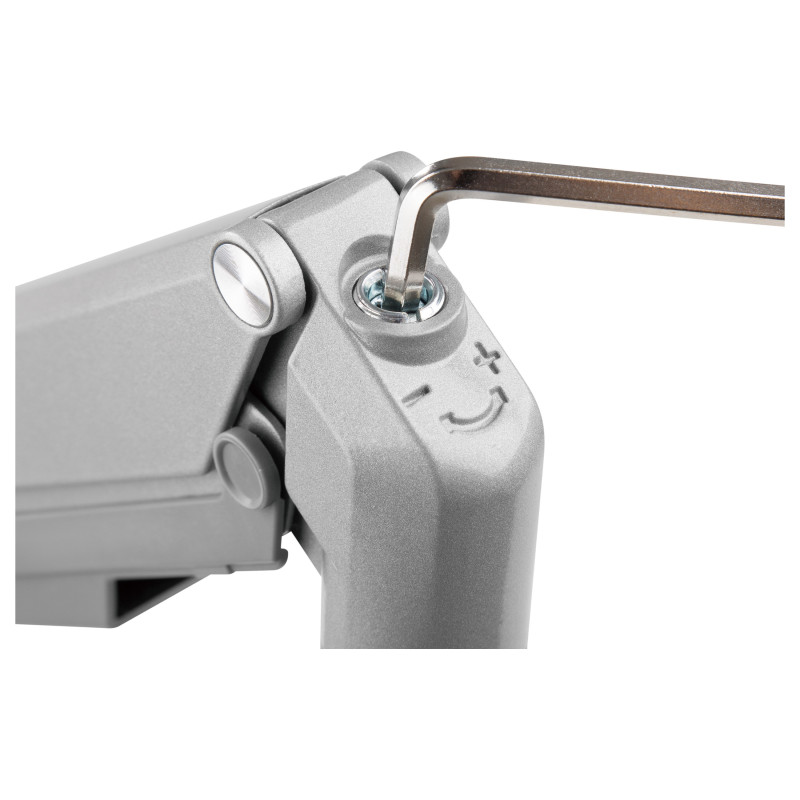

Height adjustment type: Gas spring
Feature: Tilt adjustment
Tilt angle range: -90 - 90°
Feature: Swivelling
Swivel angle range: -90 - 90°
Angle of rotation: 360°
Pan range: -90 - 90°
Number of arms: 1
Feature: Cable management

Design

Housing material: Aluminium, Plastic
Product colour: Silver

Weight & dimensions

Width: 115 mm
Depth: 627 mm
Height: 820 mm
Weight: 3.94 kg

Packaging data

Package width: 305 mm
Package depth: 112 mm
Package height: 447 mm
Package weight: 4.62 kg
Package type: Box

Packaging content

Feature: Screws included

Other features

Compliance certificates: RoHS

Logistics data

Master (outer) case width: 465 mm
Master (outer) case length: 325 mm
Master (outer) case height: 475 mm
Master (outer) case gross weight: 19.1 kg
Products per master (outer) case: 4 pc(s)
Country of origin: China
Harmonized System (HS) code: 852990
Customs product code (TARIC): 8529909700
