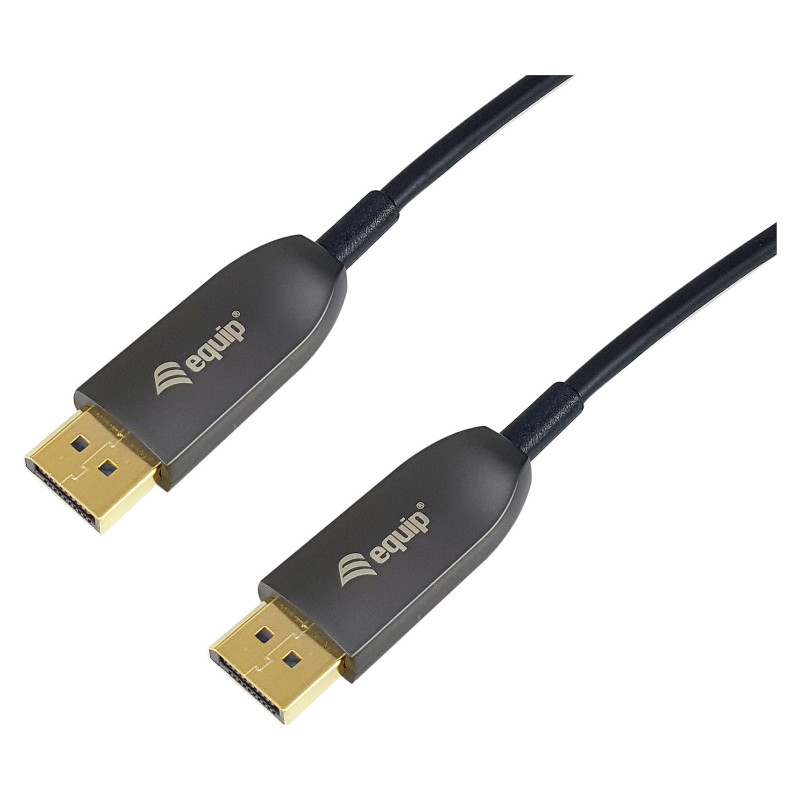

Equip 119441 DisplayPort cable

Equip DisplayPort 1.4 Active Optical Cable, 15m 8K/60Hz. Cable length: 15 m, Connector 1: DisplayPort, Connector 2: DisplayPort. Compliance certificates: CE, RoHS. Weight: 420 g. Package width: 205 mm, Package depth: 65 mm, Package height: 205 mm. Quantity per pack: 1 pc(s)

The equip 119441 DisplayPort 1.4 Active Optical Cable (AOC) is a high-performance cable used for transmitting digital video signals over long distances. Unlike copper cables, which have limitations on how far they can transmit signals without signal degradation, DisplayPort 1.4 AOC can transmit data up to 100 meters without the need for additional signal boosters or repeaters.

The cable is designed to support the DisplayPort 1.4 standard, which offers high bandwidth and supports resolutions up to 8K at 60Hz or 4K at 120Hz. DisplayPort 1.4 AOC also supports High Dynamic Range (HDR) and Display Stream Compression (DSC), which allows for even higher resolutions and refresh rates.

The active component of the cable is a microchip embedded in the connector that converts the electrical signals to optical signals, which are then transmitted over the optical fiber. The cable is also immune to electromagnetic interference (EMI) and radio frequency interference (RFI), making it ideal for use in environments with high levels of electromagnetic interference.

Features

Connector 1 form factor: Straight
Connector 2 form factor: Straight
Connector contacts plating: Gold
DisplayPort version: 1.4
Maximum resolution: 7680 x 4320 pixels
Supported graphics resolutions: 1920 x 1200 (WUXGA), 2560 x 1440, 3840 x 2160, 5120 x 2880, 7680 x 4320
Maximum refresh rate: 120 Hz
Feature: HDCP
HDCP version: 2.2
Feature: Display Stream Compression (DSC)
Cable length: 15 m
Connector 1: DisplayPort
Connector 2: DisplayPort
Connector 1 gender: Male
Connector 2 gender: Male
Product colour: Black
Feature: High Dynamic Range (HDR) supported
Bandwidth: 32400 MB/s
Feature: Multi-Stream Transport (MST)

Certificates

Compliance certificates: CE, RoHS

Sustainability

Feature: Sustainability compliance

Weight & dimensions

Weight: 420 g

Packaging data

Package width: 205 mm
Package depth: 65 mm
Package height: 205 mm
Package weight: 610 g

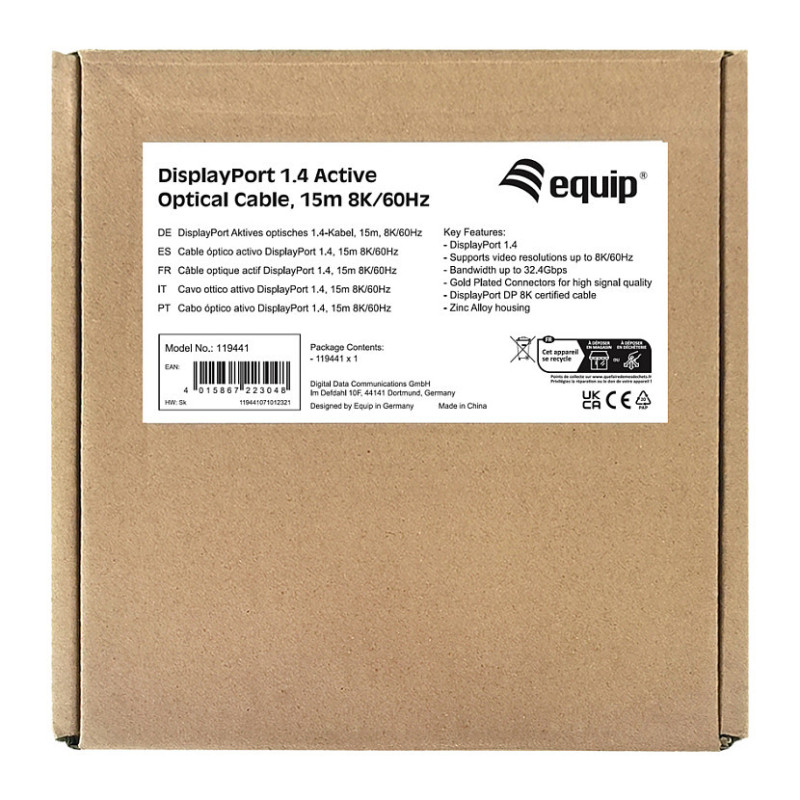

Package type: Box

Packaging content

Quantity per pack: 1 pc(s)

Logistics data

Country of origin: China
Master (outer) case width: 300 mm
Master (outer) case length: 280 mm
Master (outer) case height: 490 mm
Master (outer) case gross weight: 12.2 kg
Products per master (outer) case: 20 pc(s)
