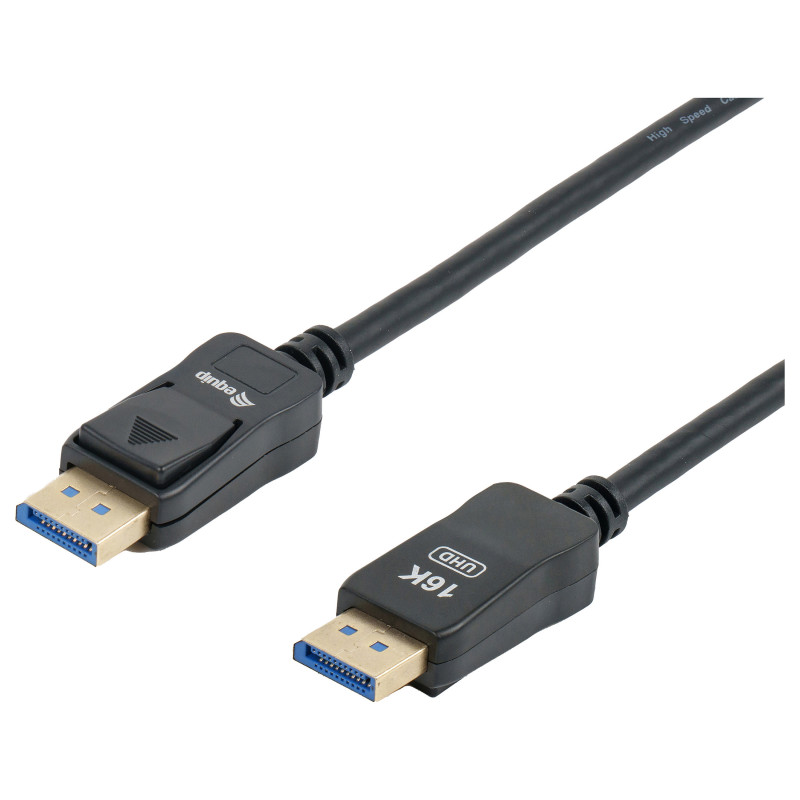

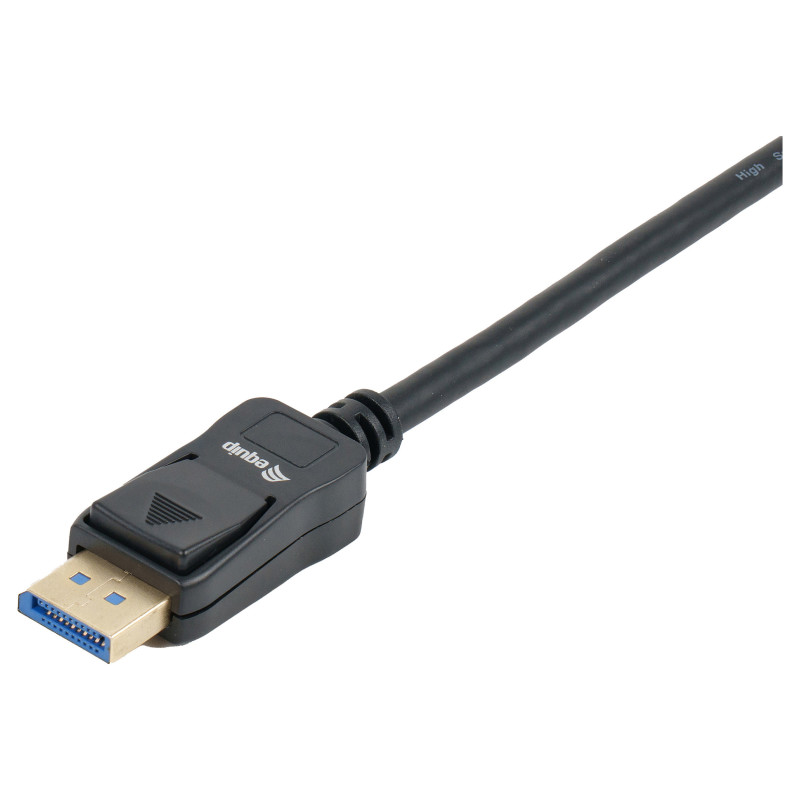

Equip 119272 DisplayPort cable

Equip DisplayPort 2.1 Cable, 2.0m, 16K/60Hz, 40Gbps. Cable length: 2 m, Connector 1: DisplayPort, Connector 2: DisplayPort. Compliance certificates: RoHS. Weight: 104 g. Package width: 175 mm, Package depth: 275 mm, Package height: 23 mm. Country of origin: China, Master (outer) case width: 400 mm, Master (outer) case length: 300 mm

DisplayPort 2.1 is a cutting-edge video interface designed to meet the increasing demands for high-resolution, high-refresh rate displays in various applications, from gaming to professional content creation. With a maximum bandwidth of 40 Gbps, it significantly surpasses its predecessor, DisplayPort 1.4, enabling the transmission of multiple high-resolution video streams simultaneously. DisplayPort 2.1 supports resolutions up to 16K at 60Hz, and 8K at 120Hz, making it an ideal choice for ultra-high-definition displays.

With support for advanced features such as HDR and Display Stream Compression (DSC), this DisplayPort 2.1 cable delivers excellent performance and visual fidelity. Whether for high-end gaming setups or professional workstations, this cable is engineered to meet the demanding requirements of modern displays while maintaining a stylish and durable design

Features

Connector 1 form factor: Straight
Connector 2 form factor: Straight
Connector contacts plating: Gold
DisplayPort version: 2.1
Maximum resolution: 15360 x 8640 pixels
Supported graphics resolutions: 3840 x 2160, 2560 x 1440, 5120 x 2880, 1920 x 1200 (WUXGA), 7680 x 4320, 10240 x 4320, 15360 x 8640
Maximum refresh rate: 240 Hz
Feature: HDCP
HDCP version: 2.3
Feature: Display Stream Compression (DSC)
Cable length: 2 m
Connector 1: DisplayPort
Connector 2: DisplayPort
Connector 1 gender: Male
Connector 2 gender: Male
Product colour: Black
Feature: High Dynamic Range (HDR) supported
Bandwidth: 40000 MB/s
Feature: Multi-Stream Transport (MST)
Colour sampling: 4:2:2, 4:4:4, 4:2:0
Cable type: Round cable

Certificates

Compliance certificates: RoHS

Weight & dimensions

Weight: 104 g

Packaging data

Package width: 175 mm
Package depth: 275 mm
Package height: 23 mm
Package weight: 111 g

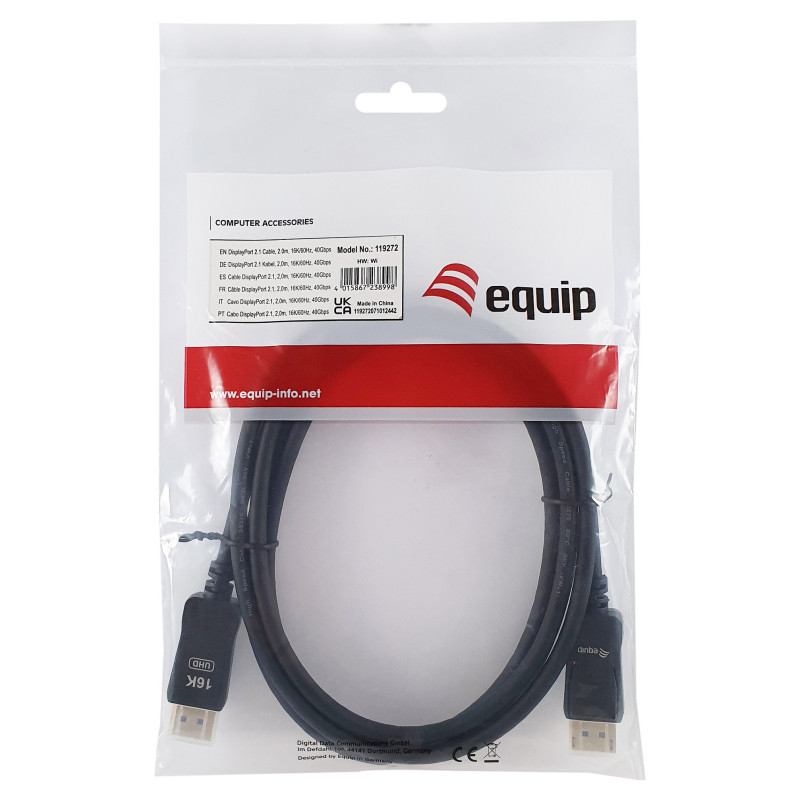

Package type: Polybag

Logistics data

Harmonized System (HS) code: 8544421000
Country of origin: China
Master (outer) case width: 400 mm
Master (outer) case length: 300 mm
Master (outer) case height: 300 mm
Master (outer) case gross weight: 9.58 kg
Products per master (outer) case: 80 pc(s)
