Edimax EW-7822ULC network card

Edimax EW-7822ULC. Connectivity technology: Wireless, Host interface: USB, Interface: WLAN. Maximum data transfer rate: 867 Mbit/s, Top Wi-Fi standard: Wi-Fi 5 (802.11ac), Wi-Fi band: Dual-band (2.4 GHz / 5 GHz). Product colour: Black

The EW-7822ULC is a AC1200 USB adapter that can pair with an 11ac Wave 2 MU-MIMO router. It upgrades your older laptop or PC to a MU-MIMO device and runs selectable dual-band Wi-Fi at speeds up to 300Mbps on 2.4GHz and 867Mbps on 5GHz.

Ultra-Speed with 802.11ac
The EW-7822ULC runs ultra-speed 802.11ac Wi-Fi that's almost three times faster than 802.11n. Upgrade your laptop or PC to sport 802.11ac Wi-Fi so you can enjoy online video streaming and multiple data transfers at the fastest speeds.

Dual-Band Experience
Experience better performance and greater flexibility for your laptop with dual-band connectivity.
Either the 2.4GHz or 5GHz frequency band can be selected with top speeds at 300Mbps and 867Mbps respectively.
Surf the internet and check emails on the longer-range 2.4GHz band, or use the high-speed 5GHz band for online gaming and YouTube or Netflix HD streaming.

11ac Wave 2 Compliant MU-MIMO
The latest 11ac Wave 2 MU-MIMO (Multi-User - Multiple Input Multiple Output) technology runs four streams and serve multiple devices simultaneously, for the fastest speeds and uninterrupted Wi-Fi connectivity to all devices.

MU-MIMO for Non-Stop Streaming
Instantly upgrades your older laptop or PC to the latest 11ac Wave 2 speeds with MU-MIMO functionality. Everyone in the room can enjoy smooth surfing, streaming and gaming at the same time when the EW-7822ULC is successfully paired with a MU-MIMO router.

Why should you need MU-MIMO?
- 11ac Wave 2 MU-MIMO offers up to 3x faster Wi-Fi speeds
- High performance for mobile speed and range
- Online streaming without interruptions and buffering from other devices

Beamforming Wi-Fi
The EW-7822ULC's beamforming enables your Wi-Fi signal to be targeted at your adapter for a stronger, more reliable and efficient Wi-Fi connection when it paired with any beamforming router. Meanwhile, beamforming generates directional-targeted Wi-Fi signals, instead of standard Wi-Fi which radiates outwards. This means better audio quality and HD video streaming as you explore your digital wonderland.

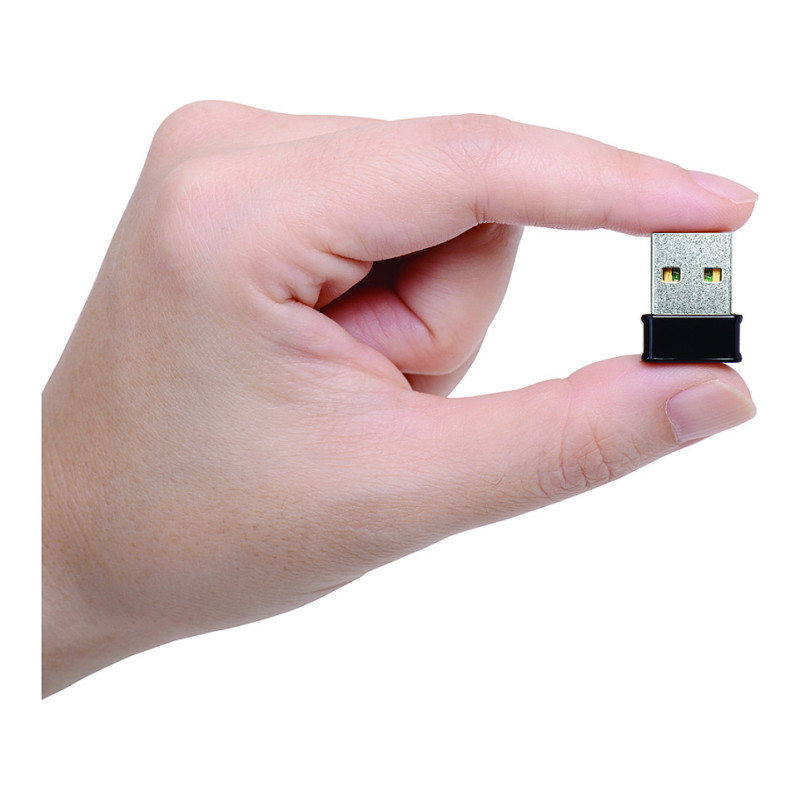

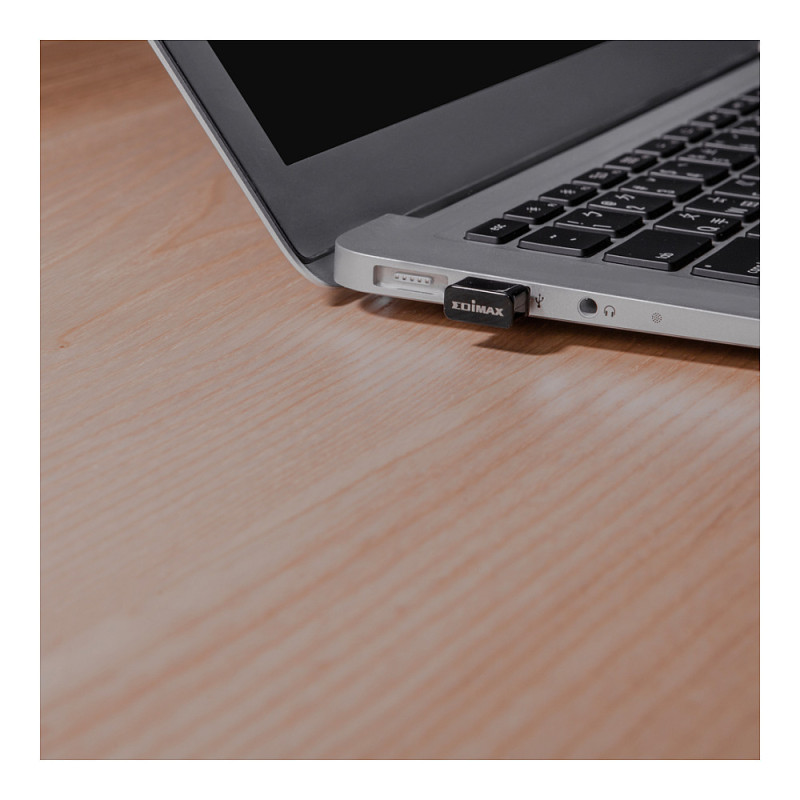

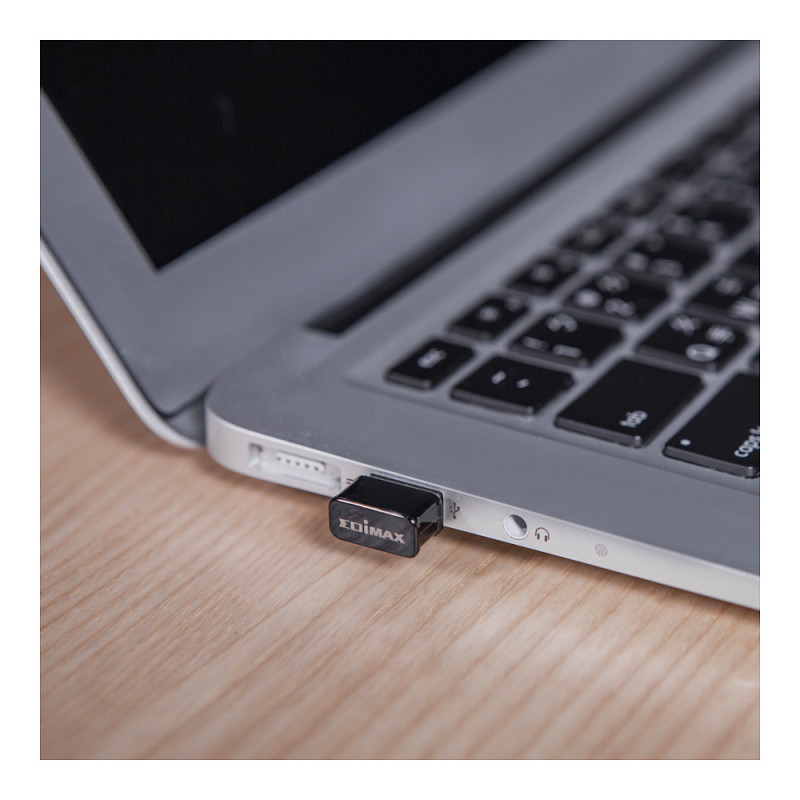

Small, Travel-Size For Laptops
Featuring a nano, lightweight design that can be plugged into any type of laptop for more mobility and convenience. It's so tiny that it feels like nothing to carry around, and can always be with your laptop.

- Fits your laptop perfectly
- Doesn't block other USB ports
- Easy portability and won't fall out of your laptop

Ports & interfaces

Connectivity technology: Wireless
Host interface: USB
Interface: WLAN
USB version: 2.0

Network

Maximum data transfer rate: 867 Mbit/s
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Feature: Wi-Fi
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
Wi-Fi standards: 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rates supported: 6,9,12,24,36,48,54,144,300,867 Mbit/s
Security algorithms: 64-bit WEP, 128-bit WEP, WPA, WPA2, WPS

Design

Product colour: Black
Antenna: Yes
Antenna design: Internal
LED indicators: Activity, Link
Certification: CE, FCC

System requirements

Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.9 Mavericks

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 90%
Storage relative humidity (H-H): 0 - 95%

Weight & dimensions

Width: 14.9 mm
Depth: 20 mm
Height: 7.1 mm
Weight: 2 g

Packaging data

Quantity per pack: 1 pc(s)

Packaging content

Feature: Quick installation guide

Technical details

Compliance certificates: RoHS

Logistics data

Harmonized System (HS) code: 85176990

Other features

Antennas quantity: 2
Transmit power range: 4 - 8 dBmW
