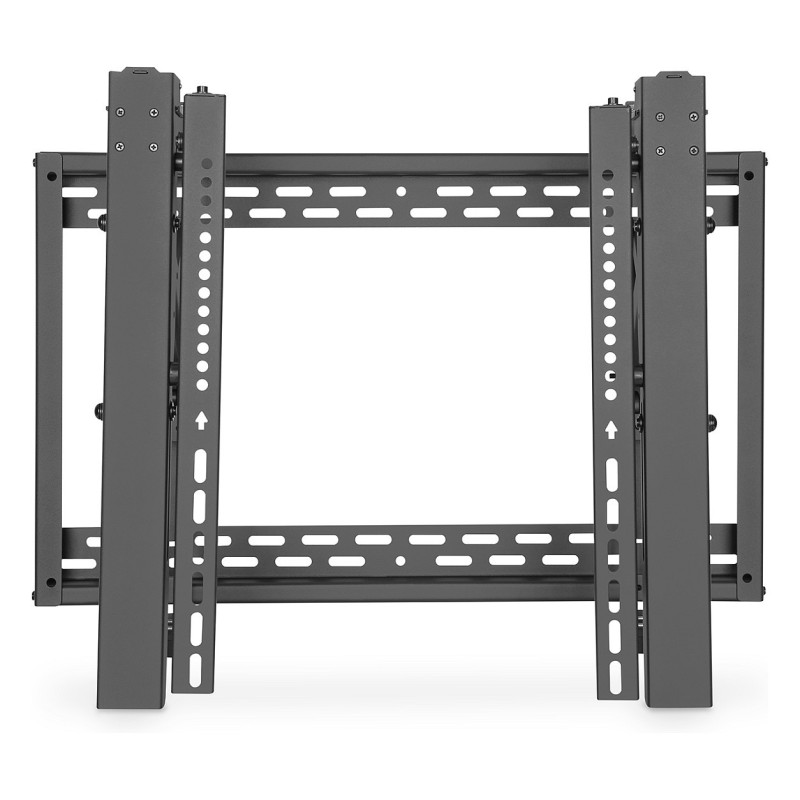

Digitus DA-90446 TV mount / stand

Digitus Pop-Out Video Monitor Wall Mount, 45-70". Maximum weight capacity: 70 kg, Minimum screen size: 114.3 cm (45"), Maximum screen size: 177.8 cm (70"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 600 x 400 mm. Tilt angle range: -2 - 4°. Product colour: Black

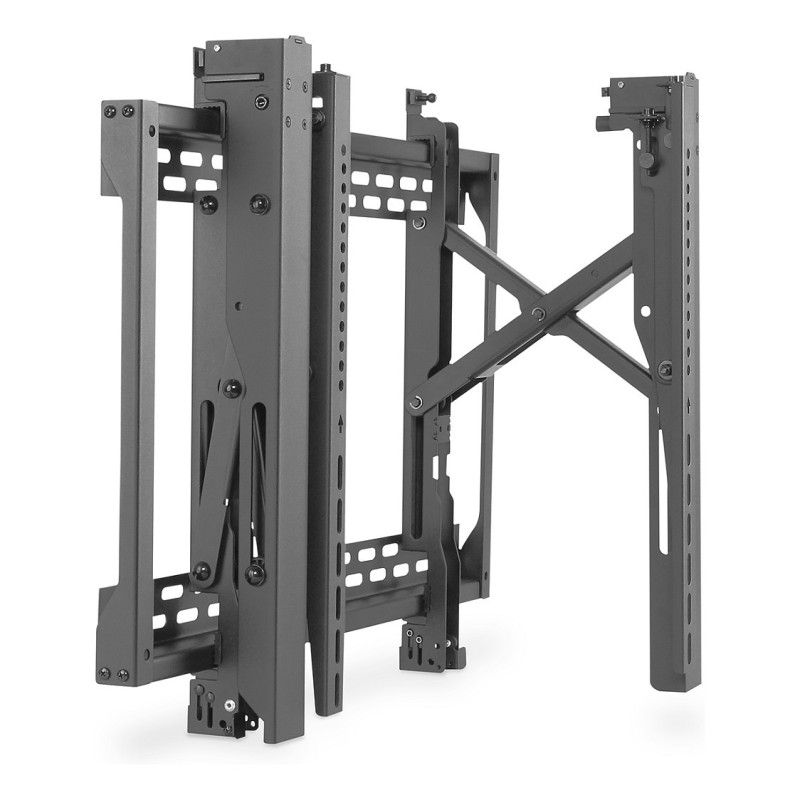

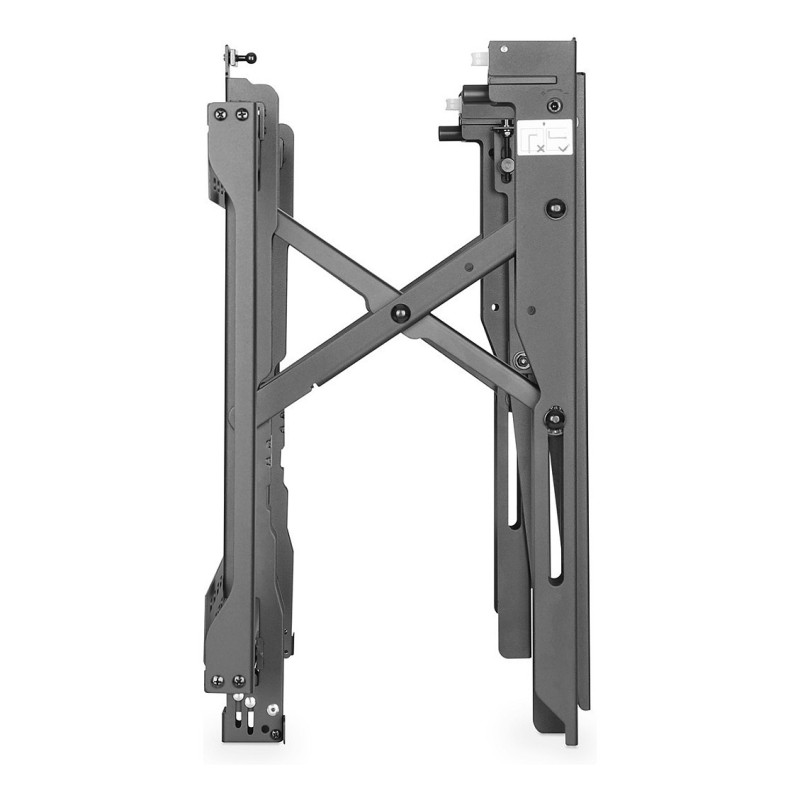

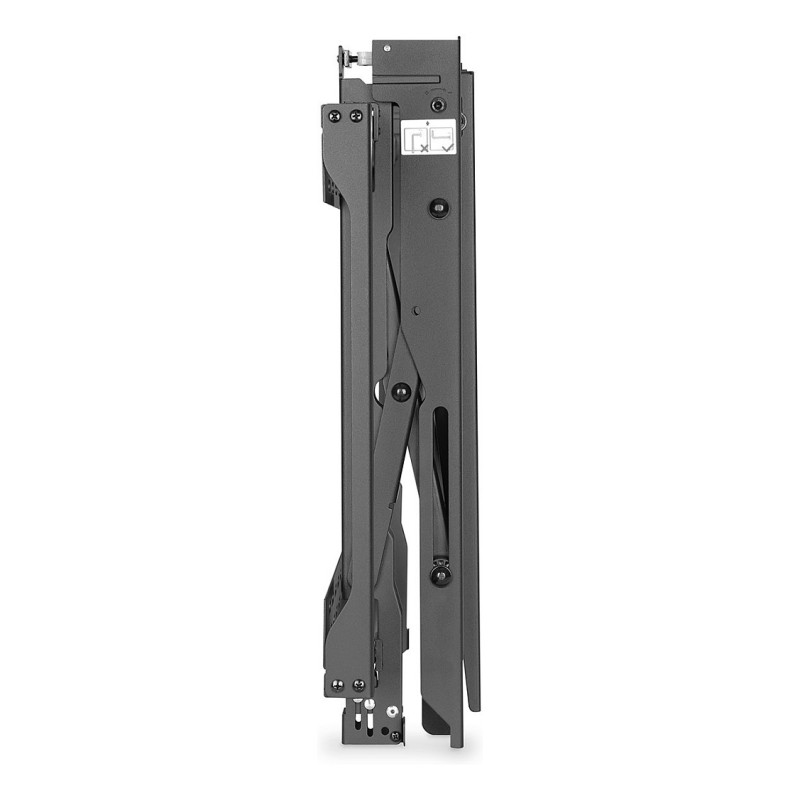

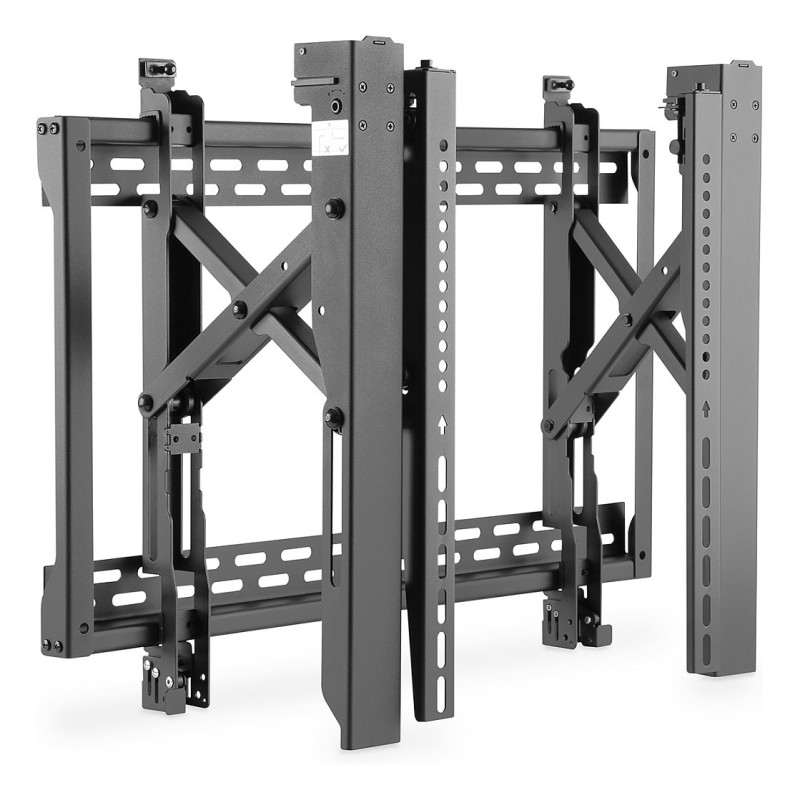

Pop-out function: Provides quick access for installation and maintenance and allows precise alignment of your video walls

- Pop-out function - Quick access for installation and maintenance
- Supported screen sizes: 45" - 70"
- Maximum load capacity: 70 kg

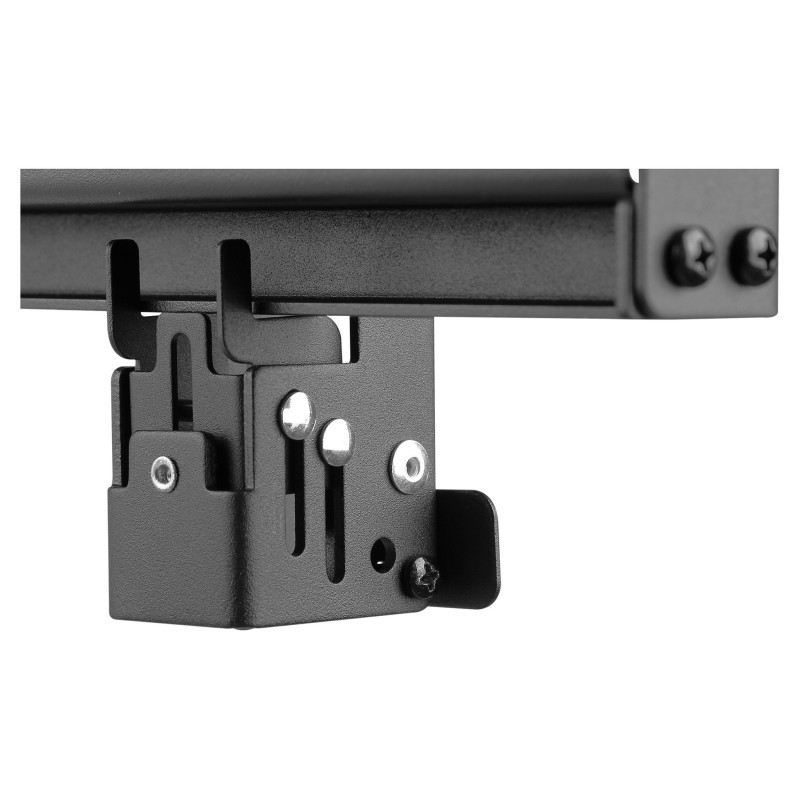

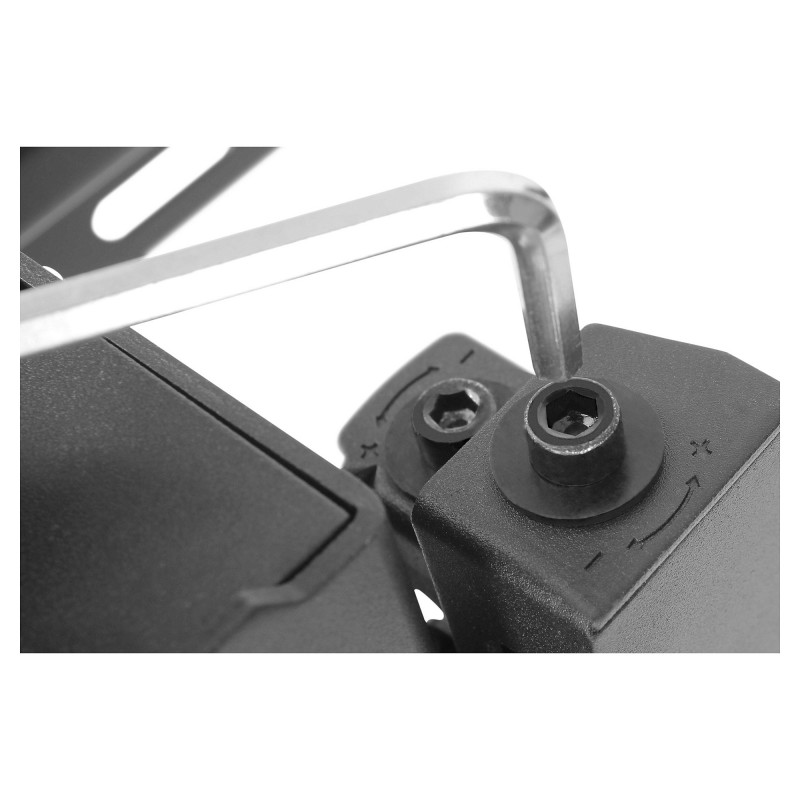

- Fine adjustment: Depth 20 mm / height 25 mm
- Tilt range: +4° to -2° / Screen level: +3° to -3°
- VESA compatibility: 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x400
- Precise display alignment: Height/depth adjustment

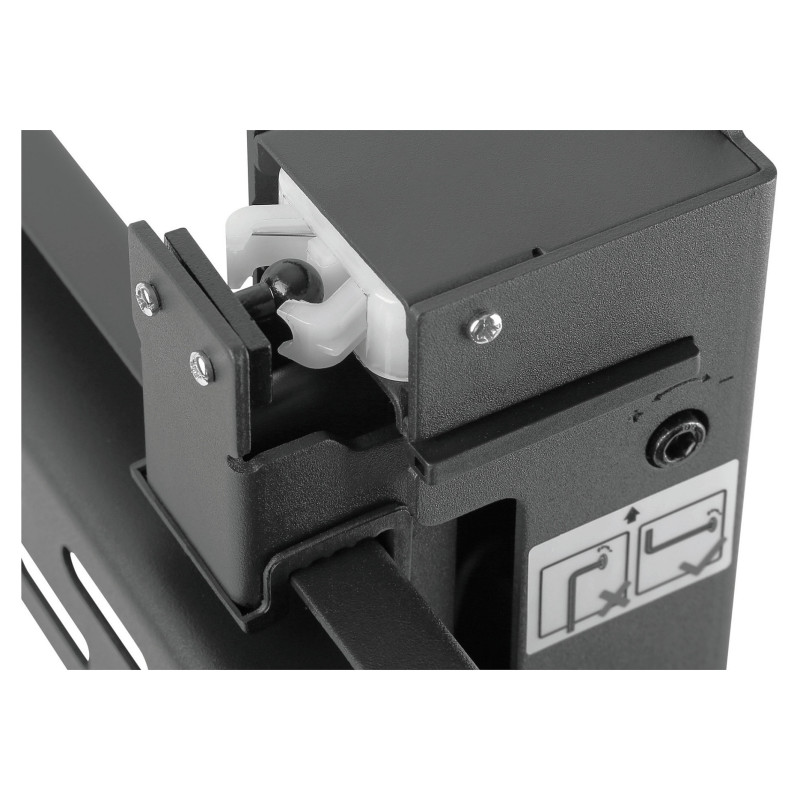

- Quick lock: Locks/unlocks the display
- Pop-out lock system: Ensures safety by preventing the possibility of accidental pop-out
- Anti-theft lock hole: For added security against unintentional removal (additional padlock required)

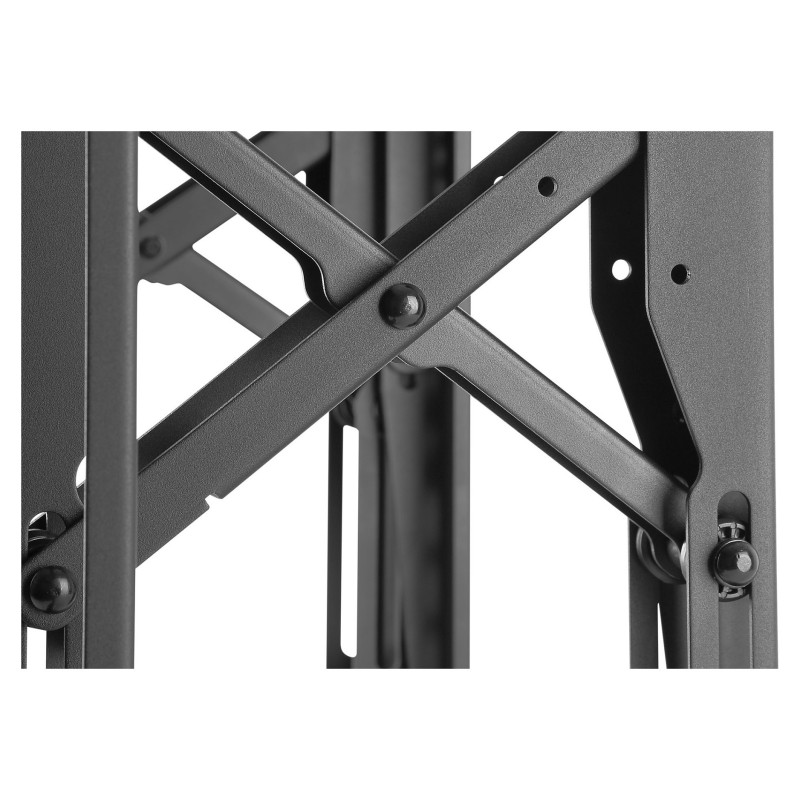

DA-90446 provides a professional video wall solution while being universally compatible with a maximum load capacity of 70 kg / 154 lbs and max. VESA 600x400 hole pattern. Multi-dimensional micro-adjustment allows precise alignment of the video wall configuration including depth, height and tilt. This video wall mount features a quick-lock mechanism for easy installation and maintenance. The quick-lock mechanism holds the screens in place, thanks to a locking and unlocking system. It is the perfect solution for public and commercial displays with an anti-theft design (padlock required).

Mounting

Maximum weight capacity: 70 kg
Minimum screen size: 114.3 cm (45")
Number of displays supported: 1
Maximum screen size: 177.8 cm (70")
Minimum VESA mount: 200 x 200 mm
Maximum VESA mount: 600 x 400 mm
Panel mounting interface: 200 x 200,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300,600 x 400
Mounting type: Wall

Ergonomics

Feature: Height adjustment
Height adjustment type: Manual
Feature: Tilt adjustment
Tilt angle range: -2 - 4°

Design

Product colour: Black
Housing material: Steel
Feature: Anti-theft function

Technical details

Country of origin: China

Packaging content

Feature: Manual
Feature: Mounting kit

Weight & dimensions

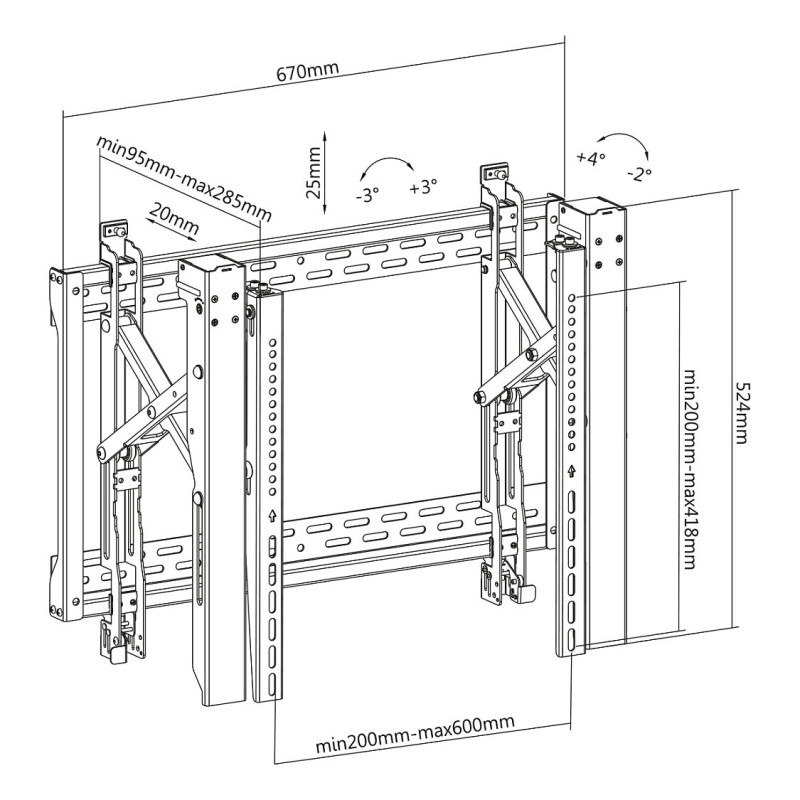

Width: 670 mm
Depth (max): 52.4 cm
Height: 95 mm
Weight: 10.6 kg

Packaging data

Quantity per pack: 1 pair(s)
Package width: 740 mm
Package depth: 271 mm
Package height: 138 mm
Package volume: 27674.5 cm³
Package weight: 11.8 kg

Logistics data

UK Trade Tariff code: 73269098

Other features

Mounting: Screws
