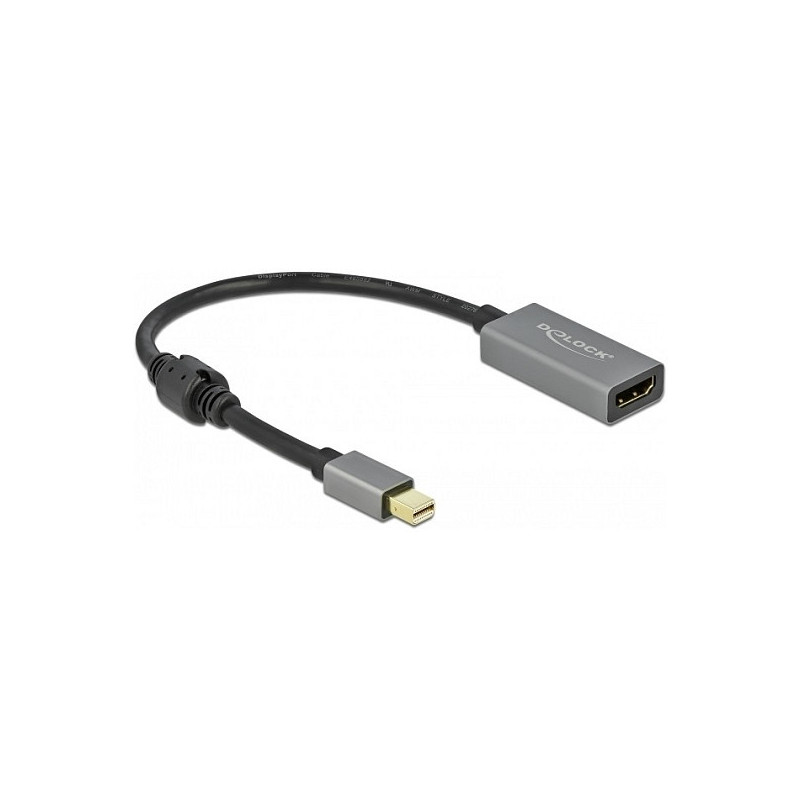

DeLOCK 66570 video cable adapter

DeLOCK Active mini DisplayPort 1.4 to HDMI Adapter 4K 60 Hz (HDR). Cable length: 0.2 m, Connector 1: Mini DisplayPort, Connector 2: HDMI Type A (Standard). Cable diameter: 5 mm, Width: 20 mm, Depth: 45 mm

This adapter by Delock enables the connection of an HDMI monitor to the system via a free mini DisplayPort interface. The adapter supports a resolution up to 4K Ultra HD at 60 Hz and is backward compatible to Full-HD 1080p.

Active adapter
The adapter offers an active conversion, thus it is also suitable for graphics cards that are not capable of outputting DP++ signals.

Features

Connector 1 form factor: Straight
Connector 2 form factor: Straight
Connector contacts plating: Gold
Cable length: 0.2 m
Connector 1: Mini DisplayPort
Connector 2: HDMI Type A (Standard)
Connector 1 gender: Male
Connector 2 gender: Female
Feature: HDCP
HDCP version: 1.4/2.3
DisplayPort version: 1.4
Feature: High Dynamic Range (HDR) supported
Maximum resolution: 3840 x 2160 pixels
Data transfer rate: 18 Gbit/s
Maximum refresh rate: 60 Hz
Product colour: Black, Grey
Chipset: Parade PS186
Feature: Ferrite bead
AWG wire size: 32/28
Converter type: Active video converter
Windows operating systems supported: Yes
Mac operating systems supported: Yes

Weight & dimensions

Cable diameter: 5 mm
Width: 20 mm
Depth: 45 mm
Height: 10 mm

Logistics data

Harmonized System (HS) code: 84733080
