DeLOCK 11476 KVM switch

DeLOCK DisplayPort 1.4 KVM Switch 8K 60 Hz with USB 5 Gbps and Audio. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 8K Ultra HD, Maximum resolution: 7680 x 4320 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal. Power source: AC, Input voltage: 100-240 V, AC input frequency: 50-60 Hz. Width: 74 mm, Depth: 170 mm, Height: 30 mm

Description

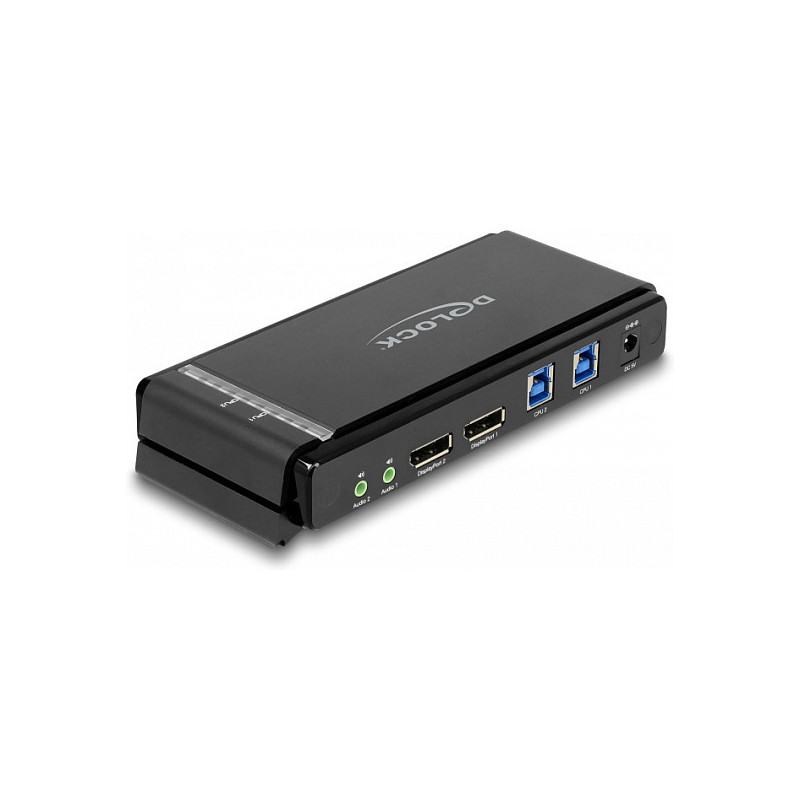

This KVM switch by Delock is a convenient solution for connecting two computers with DisplayPort output to one DisplayPort monitor.

Peripheral devices
Furthermore, two USB 2.0 ports for a mouse and keyboard, and two USB 5 Gbps ports for a hard drive or USB memory can be connected.

Multi-Stream Transport (MST)
With the support of MST (Multi-Stream Transport), multiple monitors can be used at the DisplayPort output with an optional MST hub.

Note
MST (Multi-Stream Transport) requires either monitors that are capable of DisplayPort daisy-chaining, or use of a powered DisplayPort MST Hub. The PC source must be DisplayPort MST compliant.

Ports & interfaces

Number of computers controlled: 2
Keyboard port type: USB
Mouse port type: USB
Video port type: DisplayPort
DisplayPorts quantity: 3
DisplayPort version: 1.4
USB 2.0 Type-B ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
Console ports: 3.5mm headphone, DisplayPort, USB B
Feature: Audio connections

Performance

HD type: 8K Ultra HD
Maximum resolution: 7680 x 4320 pixels
Video bandwidth: 60 Hz
Feature: High Dynamic Range (HDR) supported
Feature: HDCP
HDCP version: 1.4/2.2

Design

Product colour: Black
Housing material: Metal
Feature: Display switch button
Feature: Hot keys

Power

Power source: AC
Input voltage: 100-240 V
AC input frequency: 50-60 Hz
Input current: 0.8 A
Output voltage: 5 V
Output current: 4 A

Weight & dimensions

Width: 74 mm
Depth: 170 mm
Height: 30 mm

Packaging data

Package type: Box

Packaging content

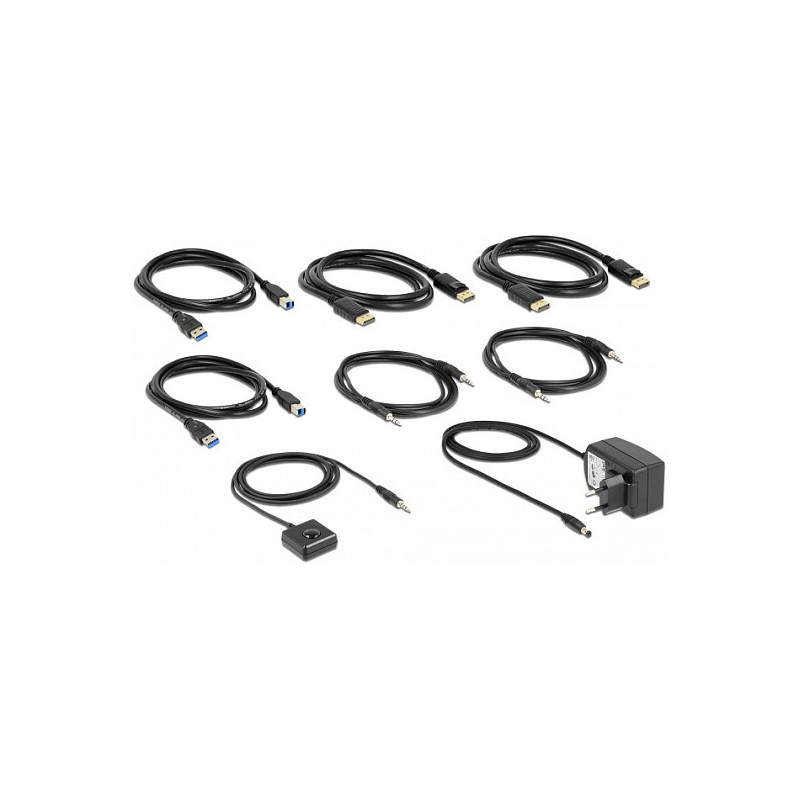

Cables included: Audio (3.5mm), DisplayPort, USB
Feature: Manual
Feature: AC adapter included
