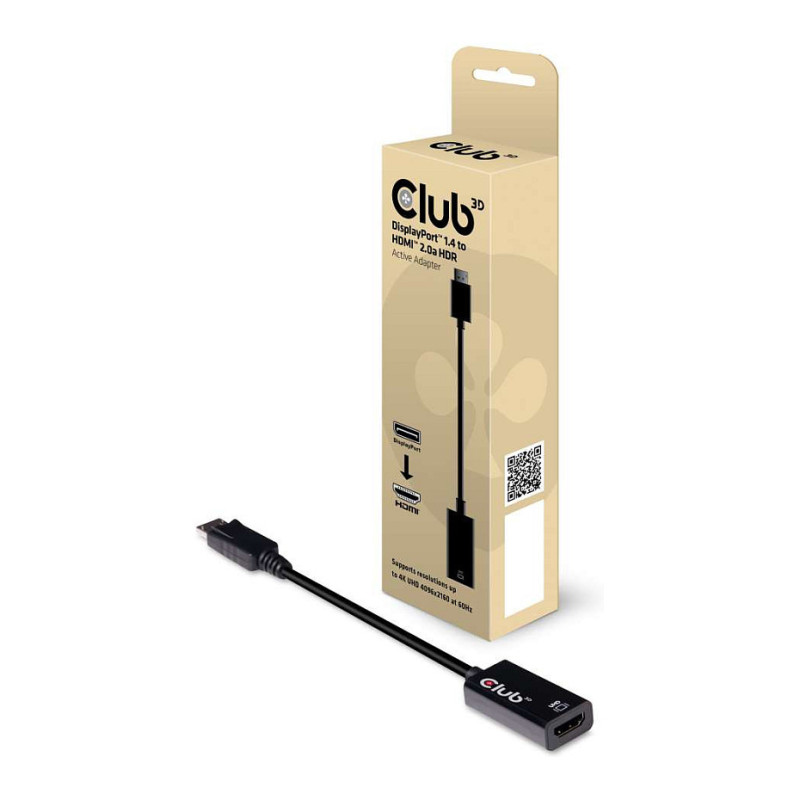

CLUB3D CAC-1080 cable gender changer

CLUB3D DisplayPort 1.4 to HDMI 2.0b HDR Active Adapter. Connector 1: DisplayPort 1.4, Connector 2: HDMI 2.0b, Connector contacts plating: Copper. Product colour: Black
CAC-1080 - The Club3D DisplayPort™ 1.4 to HDMI™ 2.0b signal converter. It features support for HDR Video quality for deep color media content playback. The DisplayPort™ receiver supports up to 5,4 Gbps per lane over 4 lanes. The HDMI™ output is fully compliant to HDMI™ specification version 2.0b.
Resolution Support

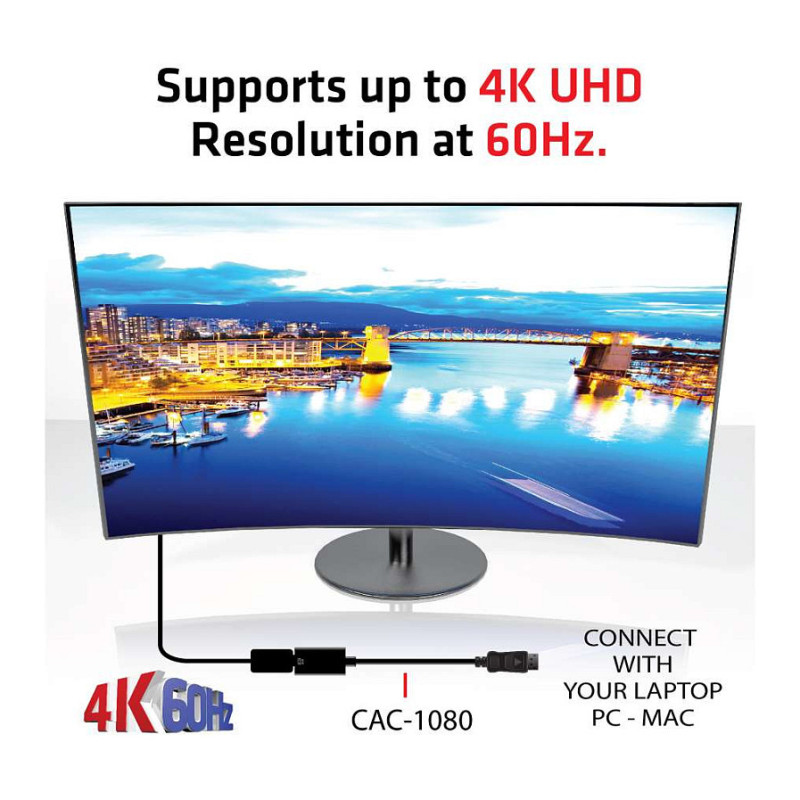

The CAC-1080 supports UHD resolutions up to 4096 x 2160p at 60Hz.
Color Formats
It supports RGB/YCbCr video color formats with a color depth of 16bpc (or 48 bits per pixel) as long as it fits within the DisplayPort™ and HDMI™ link bandwidth. The CAC-1080 also supports pixel encoding conversion from RGB or YCbCr 4:4:4 to YCbCr 4:2:0 and YCbCr 4:2:0 pass-trough function. In addition HDR with deep color up to 12Bpc at 4K 60Hz is supported through the conversion of RGB/YCbCr 4:4:4 over DP link to YCbCr 4:2:0 on the HDMI™ output with a horizontal expansion to CEA timings.
Note: For HDR to function, the source system needs to support DisplayPort™ 1.4 and the screen needs to have support for HDR and/or HDMI™ 2.0 a or b.

Ports interfaces

Connector 1: DisplayPort 1.4
Connector 2: HDMI 2.0b
DisplayPort version: 1.4
Connector contacts plating: Copper

Performance

Product colour: Black
Data transfer rate: 18 Gbit/s
Maximum resolution: 4096 x 2160 pixels
Maximum resolution (HDMI): 4096 x 2160 pixels
Converter type: Active video converter
Maximum refresh rate: 60 Hz
Feature: Plug and Play
Compatible operating systems: Windows 10, 8.1Mac OS Sierra, High Sierra

Certificates

Compliance certificates: RoHS
Certification: ROHS, FCC, CE EMI, WEEE

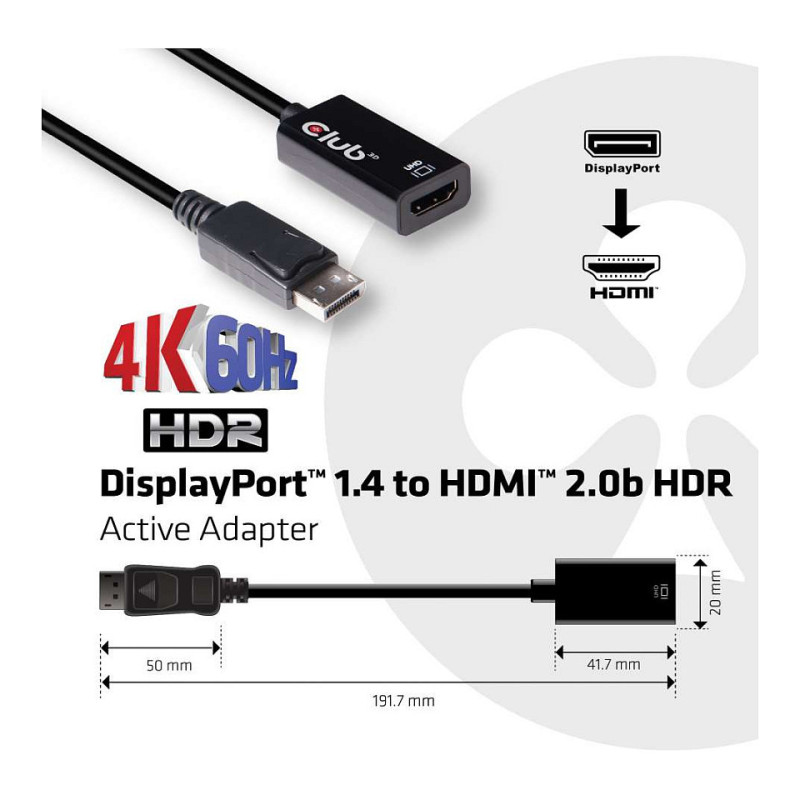

Weight dimensions

Width: 20 mm
Depth: 11, 184
Weight: 32 g

Packaging content

Quantity per pack: 1 pc(s)

Packaging data

Package width: 60 mm
Package depth: 35 mm
Package height: 182 mm
Package weight: 15 g
Package type: Box
Paper/cardboard packaging weight: 20 g
Plastic packaging weight: 2 g
Total plastic packaging weight: 0.1 g
Total paper/cardboard packaging weight: 1 g

Technical details

Cable colour: Black

Logistics data

Country of origin: China
Products per master (outer) case: 10 pc(s)
Harmonized System (HS) code: 85444290
