CLUB3D CAC-1180 video cable adapter

CLUB3D Mini DisplayPort 1.4 to HDMI 2.0b HDR Active Adapter. Connector 1: Mini DisplayPort, Connector 2: HDMI, Connector 1 gender: Male. Compliance certificates: RoHS, Certification: ROHS, FCC, CE EMI, WEEE. Plastic packaging weight: 50 g, Paper/cardboard packaging weight: 186 g. Weight: 30 g, Width: 20 mm, Depth: 11 mm. Package width: 60 mm, Package depth: 35 mm, Package height: 182 mm

CAC-1180 - The Club3D Mini DisplayPort™ 1.4 to HDMI™ 2.0b signal converter. It features support for HDR Video quality for deep color media content playback. The Mini DisplayPort™ receiver supports up to 5,4 Gbps per lane over 4 lanes. The HDMI™ output is fully compliant to HDMI™ specification version 2.0b.

Resolution Support

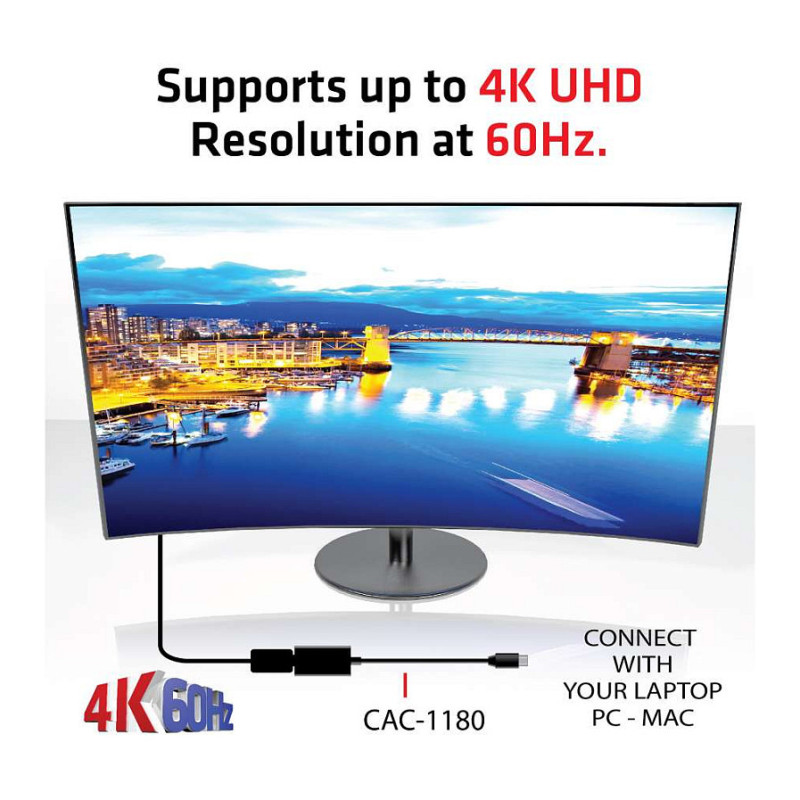

The CAC-1180 supports UHD resolutions up to 4096 x 2160p at 60Hz.

Color Formats
It supports RGB/YCbCr video color formats with a color depth of 16bpc (or 48 bits per pixel) as long as it fits within the Mini DisplayPort™ and HDMI™ link bandwidth. The CAC-1180 also supports pixel encoding conversion from RGB or YCbCr 4:4:4 to YCbCr 4:2:0 and YCbCr 4:2:0 pass-trough function. In addition HDR with deep color up to 12Bpc at 4K 60Hz is supported through the conversion of RGB/YCbCr 4:4:4 over DP link to YCbCr 4:2:0 on the HDMI™ output with a horizontal expansion to CEA timings.
Note: For HDR to function, the source system needs to support DisplayPort™ 1.4 and the screen needs to have support for HDR and/or HDMI™ 2.0 a or b

Features

Connector 1 form factor: Straight
Connector 2 form factor: Straight
Connector contacts plating: Copper
Connector 1: Mini DisplayPort
Connector 2: HDMI
Connector 1 gender: Male
Connector 2 gender: Female
HDMI version: 2.0b
DisplayPort version: 1.4
Maximum resolution: 4096 x 2160 pixels
Supported graphics resolutions: 4096 x 2160
Supported video modes: 2160p
Data transfer rate: 18 Gbit/s
Maximum refresh rate: 60 Hz
Product colour: Black
Colour sampling: 4:2:2, 4:4:4, 4:2:0
Feature: Plug and Play
Converter type: Active video converter
Country of origin: China

Certificates

Compliance certificates: RoHS
Certification: ROHS, FCC, CE EMI, WEEE

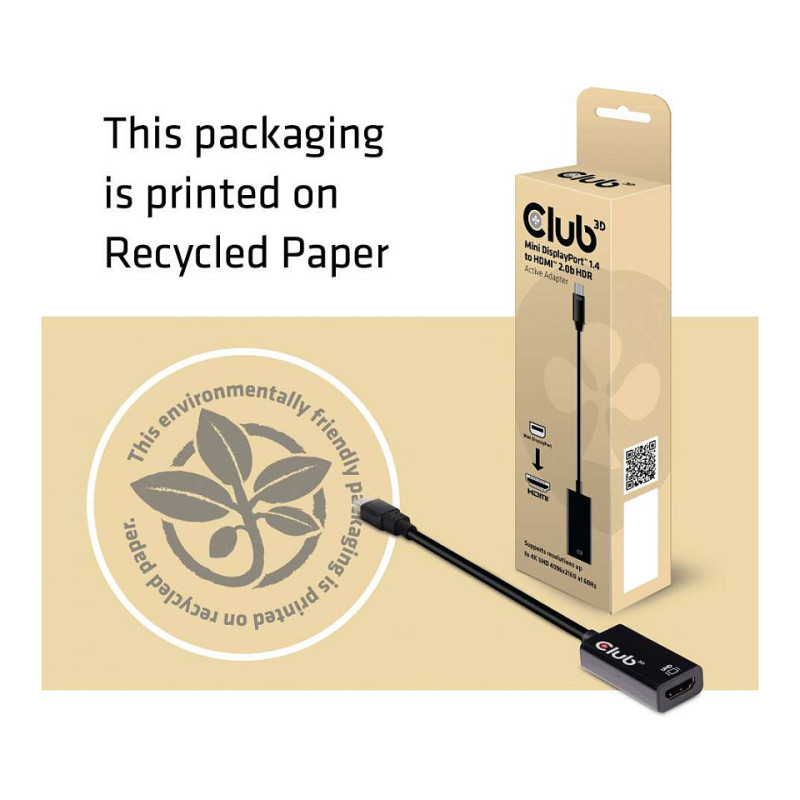

Packaging composition

Plastic packaging weight: 50 g
Paper/cardboard packaging weight: 186 g
Total plastic packaging weight: 0 g
Total paper/cardboard packaging weight: 0 g

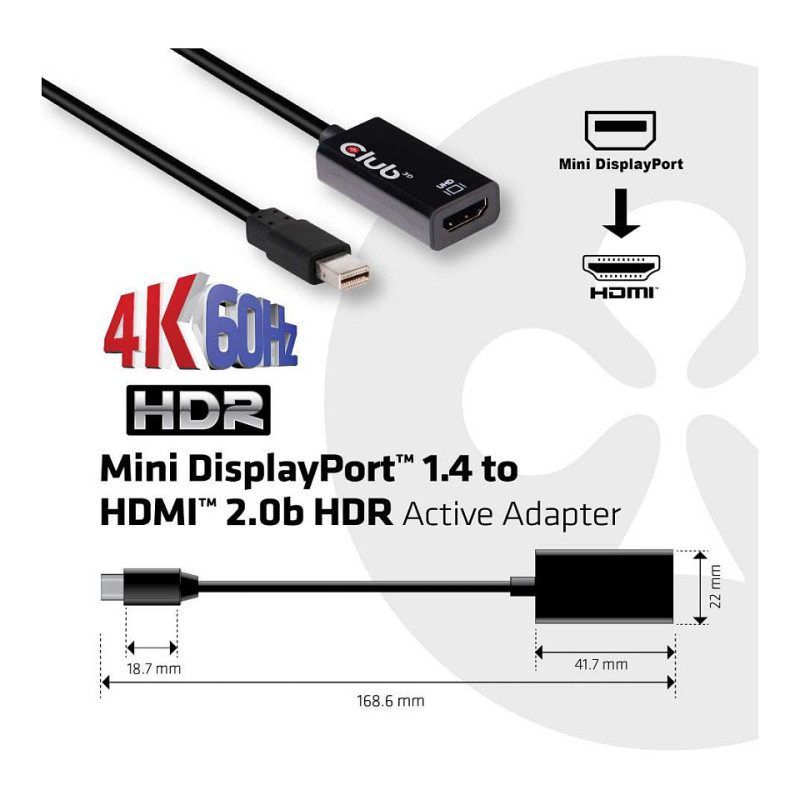

Weight & dimensions

Weight: 30 g
Width: 20 mm
Depth: 11 mm
Height: 168.6 mm

Packaging data

Package width: 60 mm
Package depth: 35 mm
Package height: 182 mm
Package weight: 10 g

Packaging content

Quantity per pack: 1 pc(s)

Logistics data

Harmonized System (HS) code: 8544 4290
Products per master (outer) case: 10 pc(s)

Other features

Cable colour: Black
