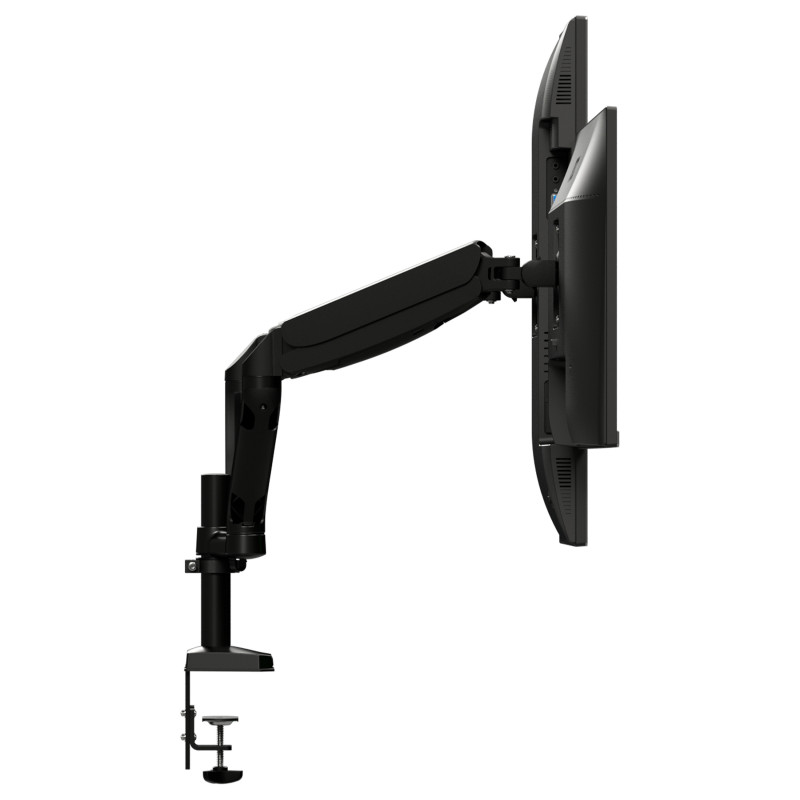

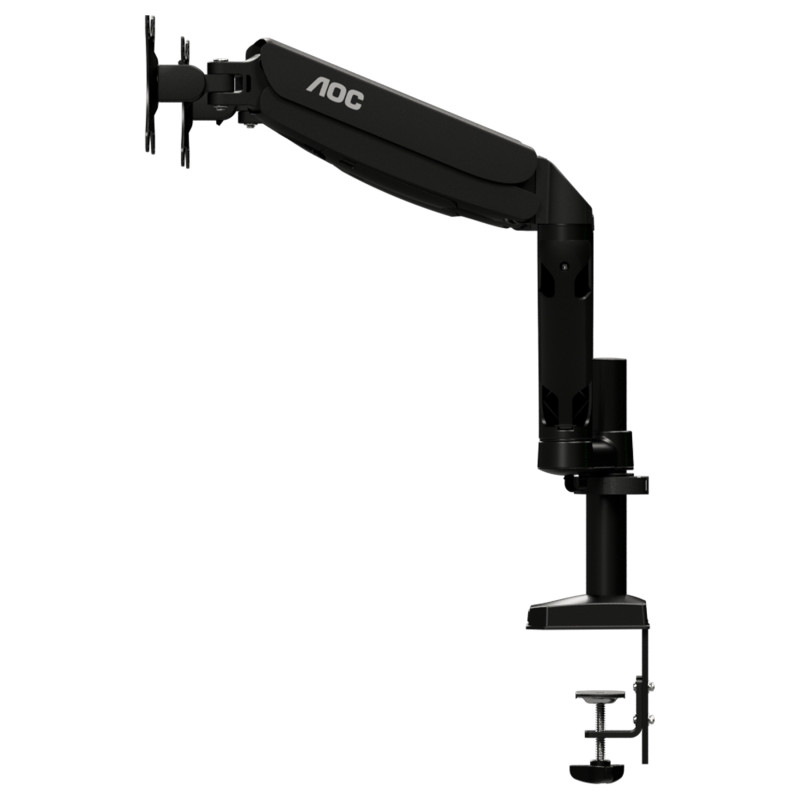

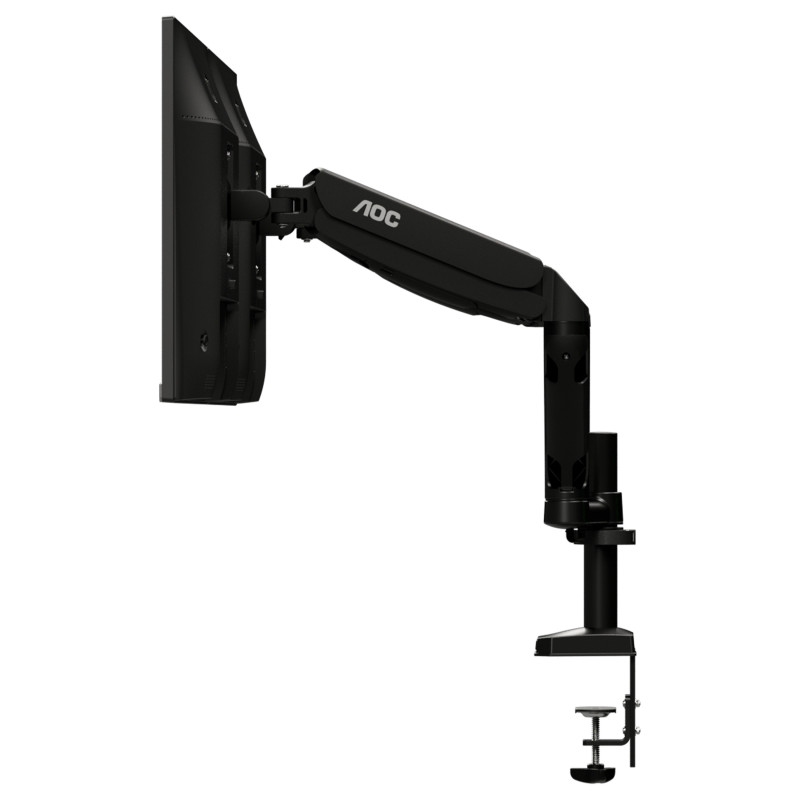

AOC AD110D0 monitor mount / stand

AOC AD110D0. Mounting: Clamp/Bolt-through, Maximum weight capacity: 9 kg, Minimum screen size: 33 cm (13"), Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -900 - 900°, Tilt angle range: -450 - 600°. Product colour: Black

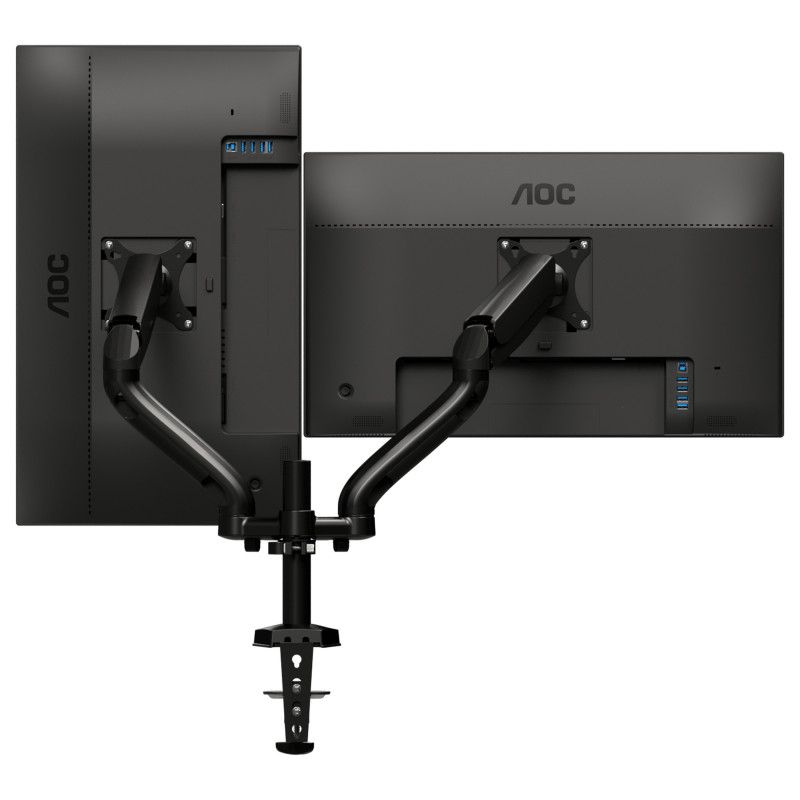

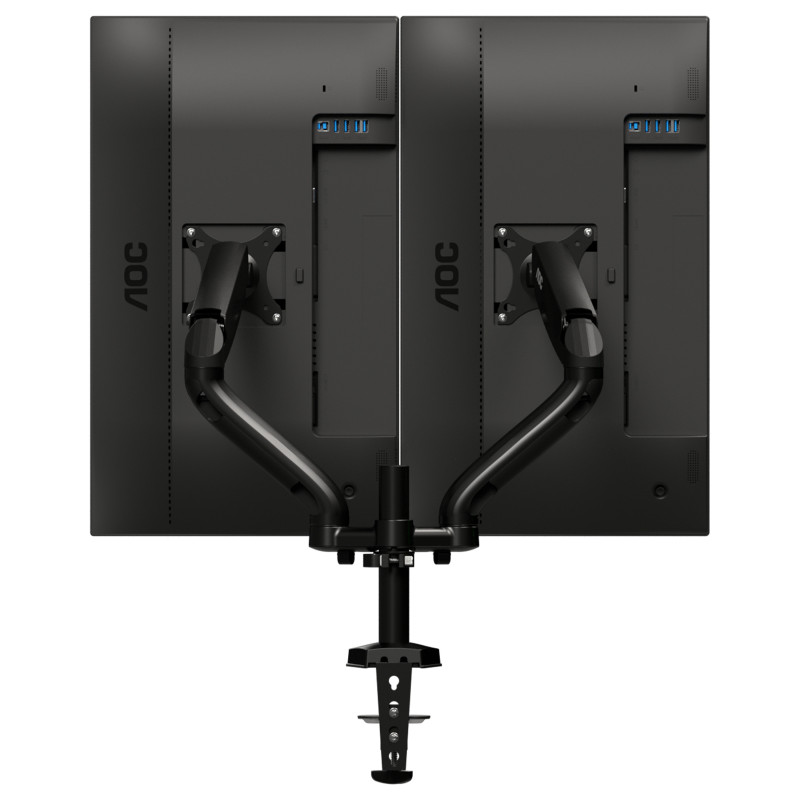

Dual monitor arm for up to 32" displays
The gas-spring loaded, sleek AD100 dual monitor arm can be clamped to desks, holds two displays up to 32" size. 360° pivot range, wide tilt range, 320 mm height range delivers huge flexibility.

Mounting

Maximum weight capacity: 9 kg
Minimum screen size: 33 cm (13")
Number of displays supported: 2
Maximum weight capacity (per display): 9 kg
Maximum screen size: 81.3 cm (32")
Mounting: Clamp/Bolt-through
Mounting type: Desk
Minimum VESA mount: 75 x 75 mm
Maximum VESA mount: 100 x 100 mm
Panel mounting interface: 100 x 100,75 x 75 mm
Desk thickness (min): 1.5 cm
Desk thickness (max): 8 cm
Clamp mount desk thickness (max): 8 cm
Grommet mount desk thickness (max): 8 cm
Mounting hole range: 7 - 87 mm

Ergonomics

Feature: Height adjustment
Height adjustment type: Gas spring
Height adjustment range: 320 - 440 mm
Feature: Adjustable depth
Depth adjustment range: 0 - 460 mm
Feature: Tilt adjustment
Tilt angle range: -450 - 600°
Feature: Swivelling
Swivel angle: 360°
Swivel angle range: -900 - 900°
Pivot angle: 0 - 3600°
Feature: Cable management

Design

Housing material: Aluminium
Product colour: Black

Weight & dimensions

Width: 69 mm
Depth: 12.5 mm
Height: 24.5 mm
Weight: 4.12 kg

Packaging data

Package width: 125 mm
Package depth: 690 mm
Package height: 245 mm
Package weight: 5.1 kg

Packaging content

Feature: Clamp included
Feature: Mounting kit
Feature: Manual
Packaging content: User Manual, Monitor Arm, Clamp mount, Grommet mount, Installation materials

Other features

Height (max): 58 cm
Warranty period: 5 year(s)

Technical details

Height adjustment: 32 cm
Weight (with stand): 5.7 kg
Adjustment type: Gas spring

Logistics data

Harmonized System (HS) code: 85299097
