AG Neovo PMK-01

AG Neovo PMK-01. Maximum weight capacity: 14 kg, Minimum screen size: 38.1 cm (15"), Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Tilt angle range: -90 - 90°, Swivel angle: 180°. Product colour: Black
Ergonomic Wall Mount Kit

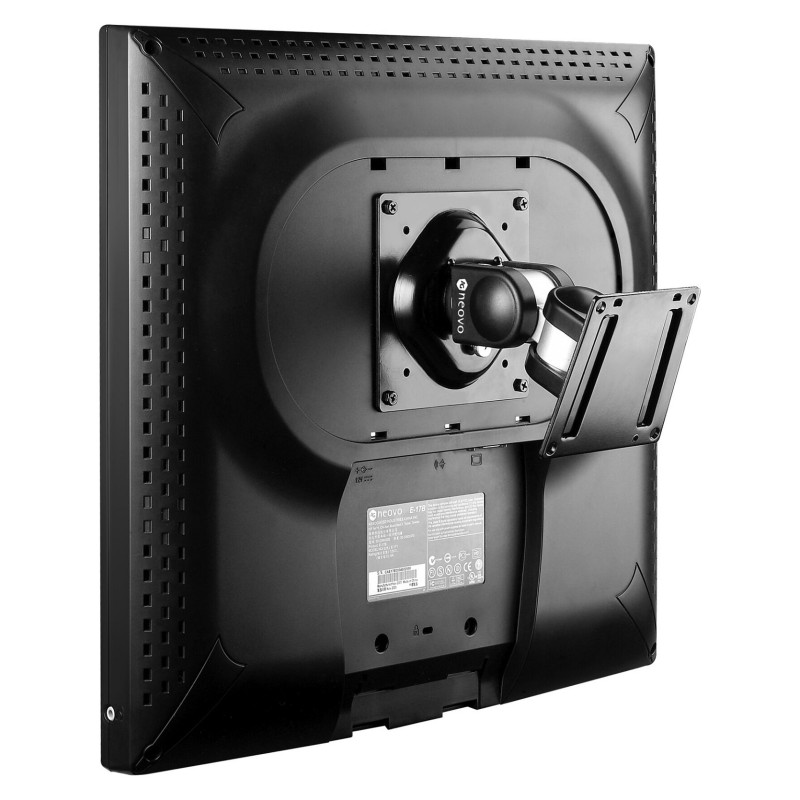

Left, Right, Up and Down: the AG Neovo PMK-01 provides up to 270 degrees of rotation for the perfect viewing angle no matter what the environment.
The e PMK-01 is perfect for museums, information kiosks or other public and multi-user environments. Made from durable steel and die-cast aluminum, the PMK-01 complies with VESA standards and supports displays up to 14.0 kg. ree pivots allow for a broad 270° rotation of the display, 180° up and down tilt, as well as 180° le to right swivel. The convenient slide in-and-out wall mount bracket allows for easy removal of the display.

Mounting

Maximum weight capacity: 14 kg
Minimum screen size: 38.1 cm (15")
Number of displays supported: 1
Maximum screen size: 81.3 cm (32")
Mounting type: Wall
Minimum VESA mount: 75 x 75 mm
Maximum VESA mount: 100 x 100 mm
Panel mounting interface: 75 x 75,100 x 100 mm

Ergonomics

Tilt angle range: -90 - 90°
Swivel angle: 180°
Swivel angle range: -90 - 90°
Pivot angle: 0 - 270°
Feature: Tilt adjustment

Design

Product colour: Black
Housing material: Steel

Weight dimensions

Width: 115 mm
Depth: 131 mm
Height: 115 mm
Weight: 1.5 kg

Packaging data

Package width: 120 mm
Package depth: 145 mm
Package height: 120 mm
Package weight: 1.6 kg
Package type: Box

Packaging content

Feature: Manual

Logistics data

Harmonized System (HS) code: 85299097
