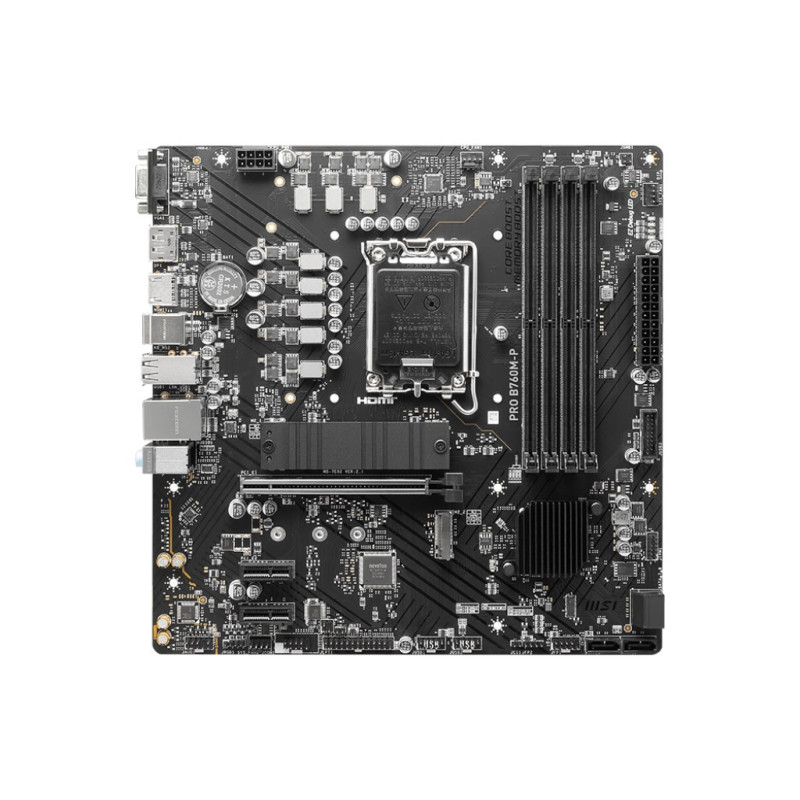

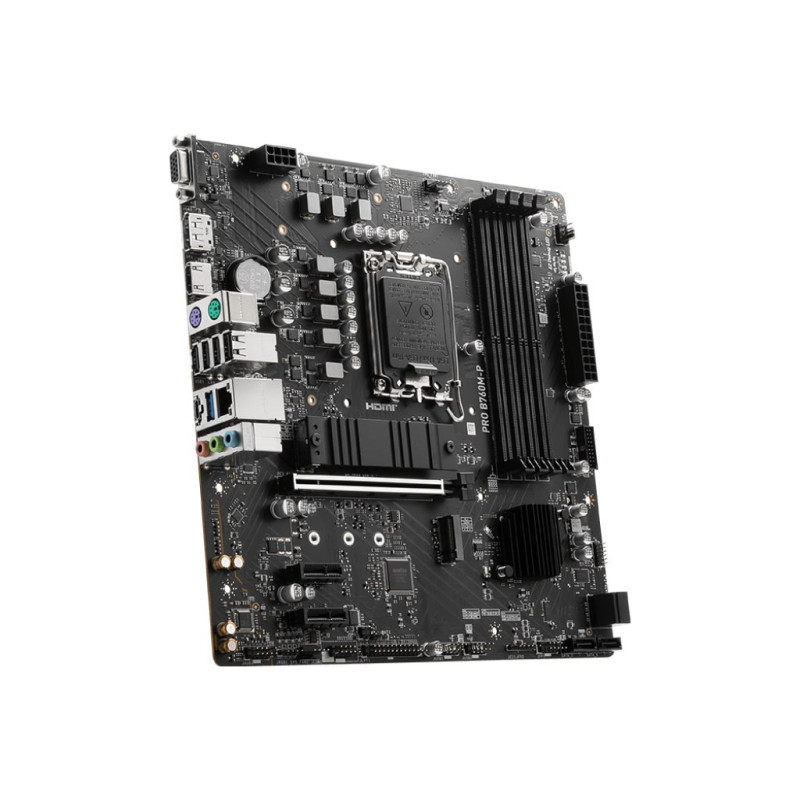

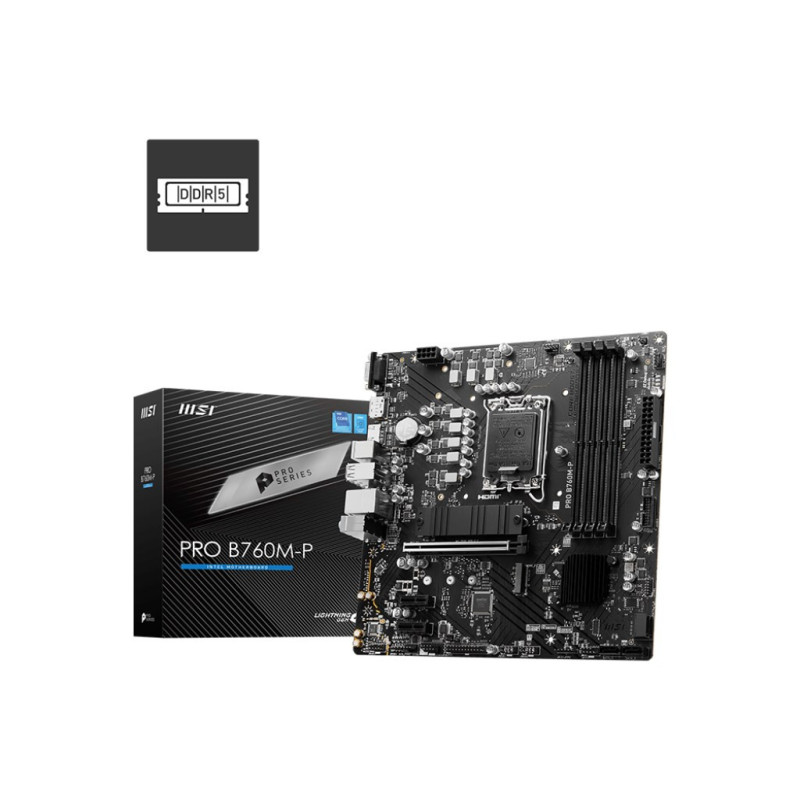

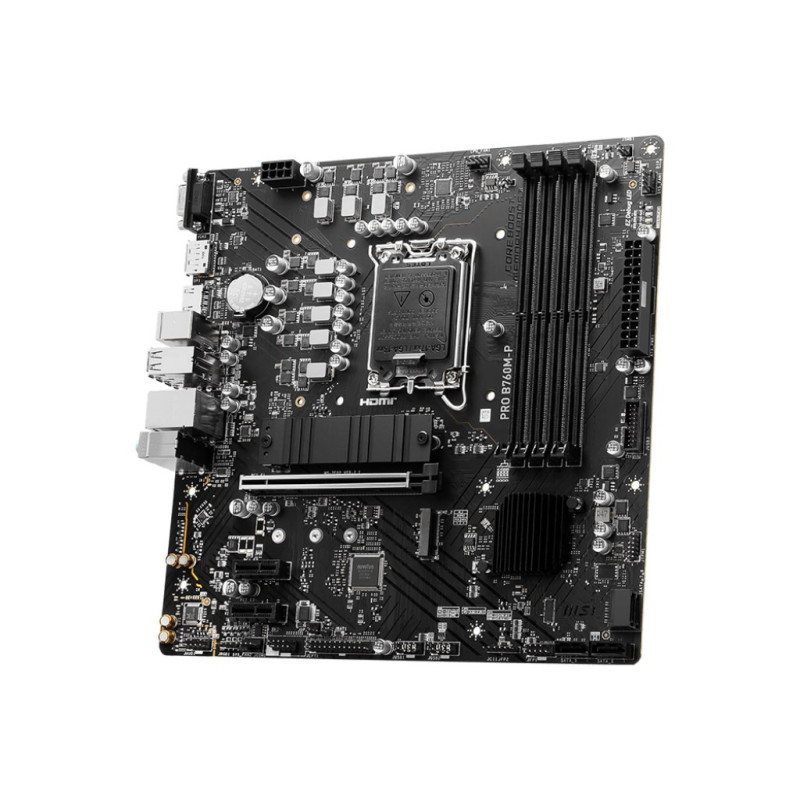

Motherboard - MSI Pro B760M-P, Micro ATX
Product reference:
14-4711377086578
The MSI PRO B760M-P motherboard supports up to 128GB of memory and Intel Core i7 processors, ensuring excellent performance with six SATA ports and a variety of expansion slots, including Gen 4.x PCIe x16.
Motherboard - MSI Pro B760M-P, Micro ATX
Product reference:
14-4711377086578
The MSI PRO B760M-P motherboard supports up to 128GB of memory and Intel Core i7 processors, ensuring excellent performance with six SATA ports and a variety of expansion slots, including Gen 4.x PCIe x16.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
Motherboard - MSI Pro B760m-p, Blue
The MSI Pro B760m-p is a micro-ATX motherboard for Intel LGA 1700 processors. It supports up to 192GB of dual-channel DDR5 memory and has one PCI Express x16 slot (Gen 4.x) and two PCI Express x1 slots (Gen 4.x).
Main features
- SATA ports: 6
- DisplayPort version: 1.4, HDMI version: 1.4
- 5 audio outputs, including 3 analog and 2 digital
Processor | |
|---|---|
| Supported processor sockets | LGA 1700 |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® Gold |
| Processor manufacturer | Intel |
Features | |
| Motherboard chip | Intel B760 |
| Audio output channels | 7.1 channels |
| Supported Windows operating systems | Windows 11 x64, Windows 10 x64 |
| Power supply type | ATX |
| Motherboard format type | micro ATX |
| Audio chip | Realtek ALC897 |
| Motherboard chipset family | Intel |
Memory | |
| Unbuffered memory | Yes |
| Supported memory frequencies | 6000, 6800, 5800, 5400, 5200, 6400, 6600, 6200, 4800, 5000, 5600 |
| Maximum internal memory | 192GB |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
Weight and dimensions | |
| Depth | 243.8 mm |
| Width | 243.8 mm |
Network | |
| LAN controller | Realtek RTL8111H |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
Internal I/O | |
| Parallel switch | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Chassis break-in connector | Yes |
| ATX power connector (24-pin) | Yes |
| Front panel audio connector | Yes |
| USB 2.0 ports | 4 |
| Number of SATA III connectors | 4 |
| Number of COM ports | 1 |
| Front panel connector | Yes |
| CPU cooler connector | Yes |
| TPM connector | Yes |
| RGB LED pin connector | Yes |
BIOS | |
| Clear CMOS switch | Yes |
| BIOS type | UEFI AMI |
Package contents | |
| Cables included | SATA |
Memory controllers | |
| RAID levels | 1, 0, 5, 10 |
| Supported storage device types | HDD SSD |
| RAID support | Yes |
| Supported memory device interfaces | SATA III |
| Number of HDDs supported | 4 |
| Number of supported storage devices | 6 |

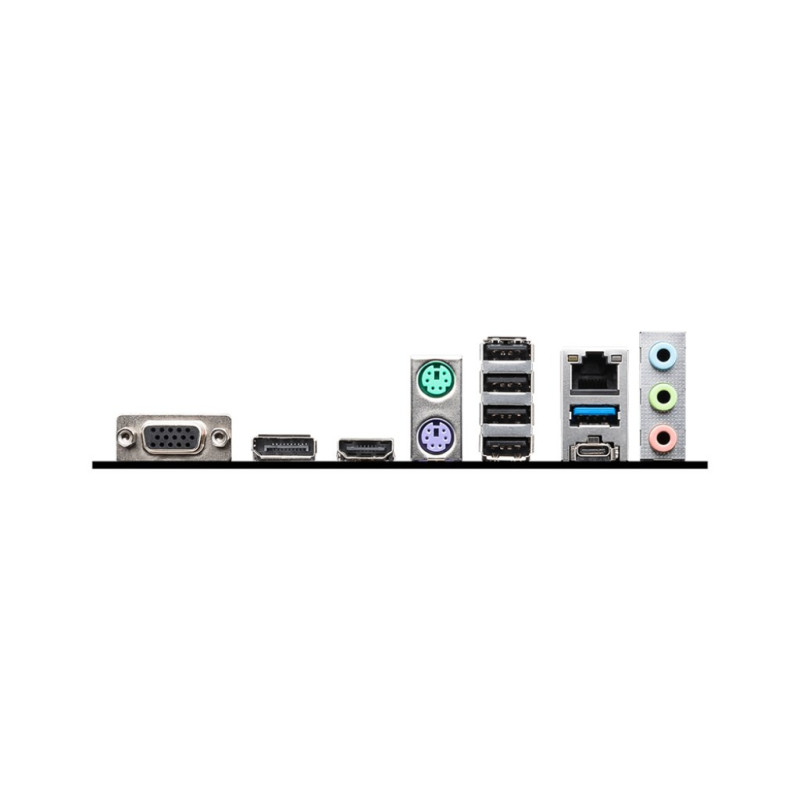

Rear panel I/O ports | |
| Number of HDMI ports | 1 |
| Number of PS/2 ports | 2 |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports | 1 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports | 1 |
| DisplayPort version | 1.4 |
| HDMI version | 1.4 |
| Number of USB 2.0 ports | 4 |
| Number of DisplayPort ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone input | Yes |
| Line-in | Yes |
| Number of VGA (D-Sub) ports | 1 |
| Headphone outputs | 1 |
Expansion slots | |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x1 (Gen 4.x) slots | 2 |
