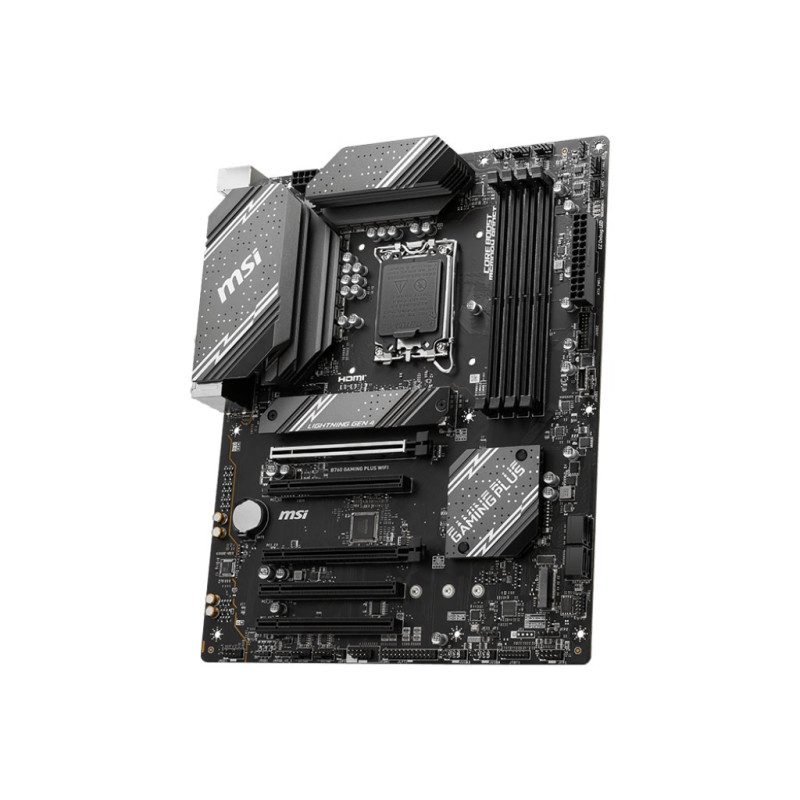

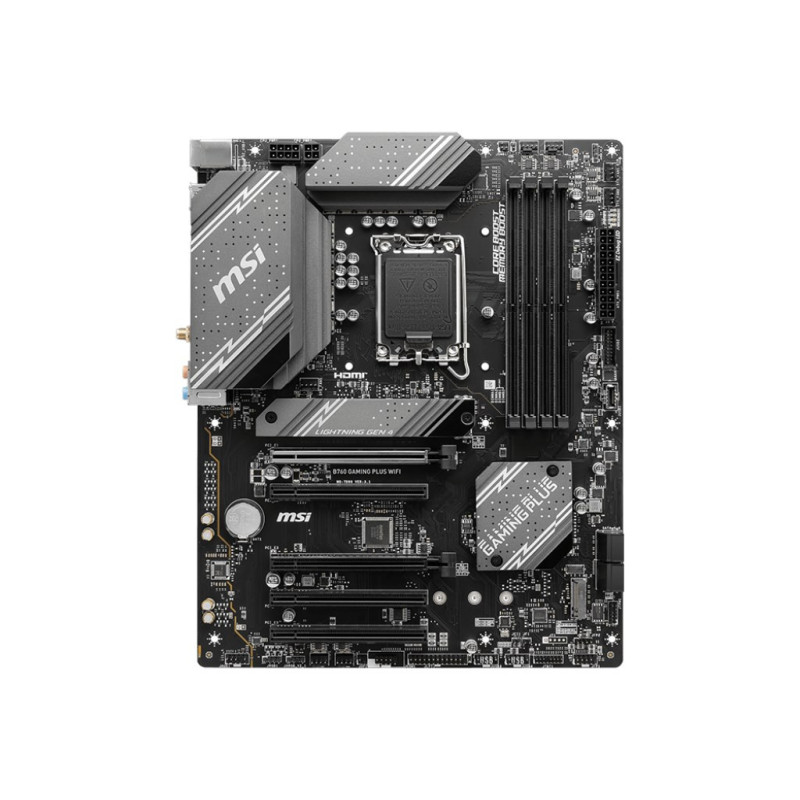

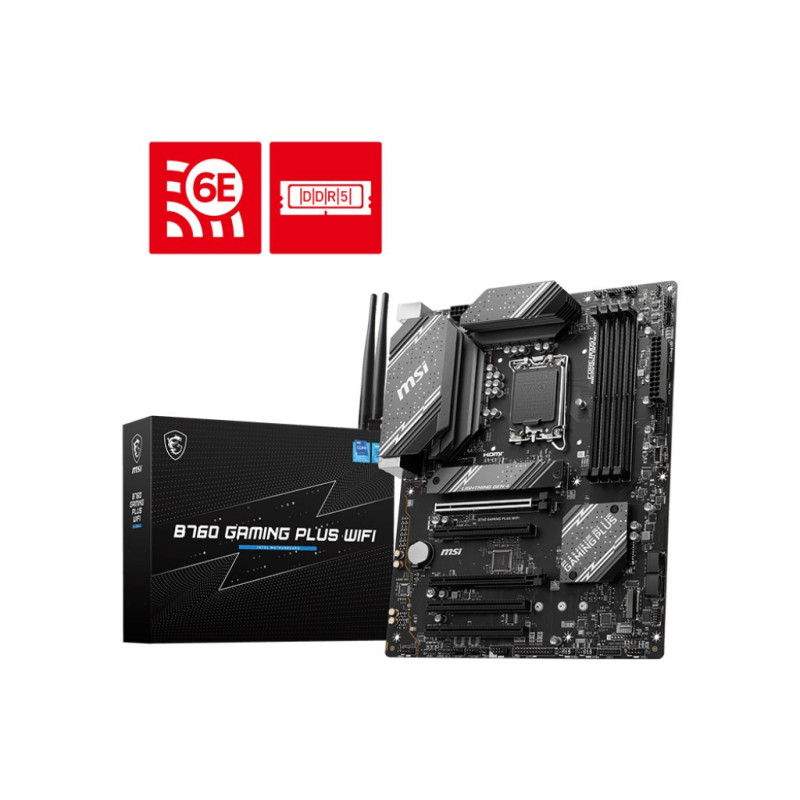

Motherboard - MSI B760 Gaming Plus WiFi LGA 1700 ATX
Product reference:
14-4711377086561
The MSI B760 GAMING PLUS WIFI motherboard supports Intel LGA 1700 processors, offers WiFi connectivity, and a wide range of expansion slots and USB ports.
Motherboard - MSI B760 Gaming Plus WiFi LGA 1700 ATX
Product reference:
14-4711377086561
The MSI B760 GAMING PLUS WIFI motherboard supports Intel LGA 1700 processors, offers WiFi connectivity, and a wide range of expansion slots and USB ports.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
0 month
Delivery from Europe in
8 - 9
business days
MSI B760 Gaming Plus WiFi
The MSI B760 Gaming Plus WiFi is a powerful ATX motherboard compatible with Intel LGA 1700 processors and equipped with WiFi connectivity, offering exceptional performance and expansion capabilities.
- Wi-Fi 6E (802.11ax) - fast wireless connection
- Up to 192 GB DDR5-SDRAM memory support
- 7.1 channel audio output with Realtek ALC897 chipset
- Multiple USB ports, including USB 3.2 Gen 2 Type-C
- RAID support for enhanced storage capabilities
Processor | |
|---|---|
| Processor socket | LGA 1700 |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Pentium® Gold, Intel® Celeron® |
Features | |
| Motherboard chipset family | Intel |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Supported Windows operating systems | Windows 11 x64, Windows 10 x64 |
| Motherboard chip | Intel B760 |
| Motherboard format type | ATX |
Memory | |
| Maximum internal memory | 192GB |
| Memory channels | Dual channel |
| Memory slot type | DIMMs |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
Weight and dimensions | |
| Width | 243.8 mm |
| Depth | 304.8 mm |
Network | |
| Bluetooth | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| LAN controller | Dragon RTL8125BG |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth version | 5.3 |
| Ethernet LAN | Yes |
Internal I/O | |
| Number of SATA III connectors | 4 |
| Number of USB 2.0 ports | 4 |
| TPM connector | Yes |
| S/PDIF output connector | Yes |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) ports | 3 |
Storage controls | |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Supported storage device interfaces | M.2, SATA |

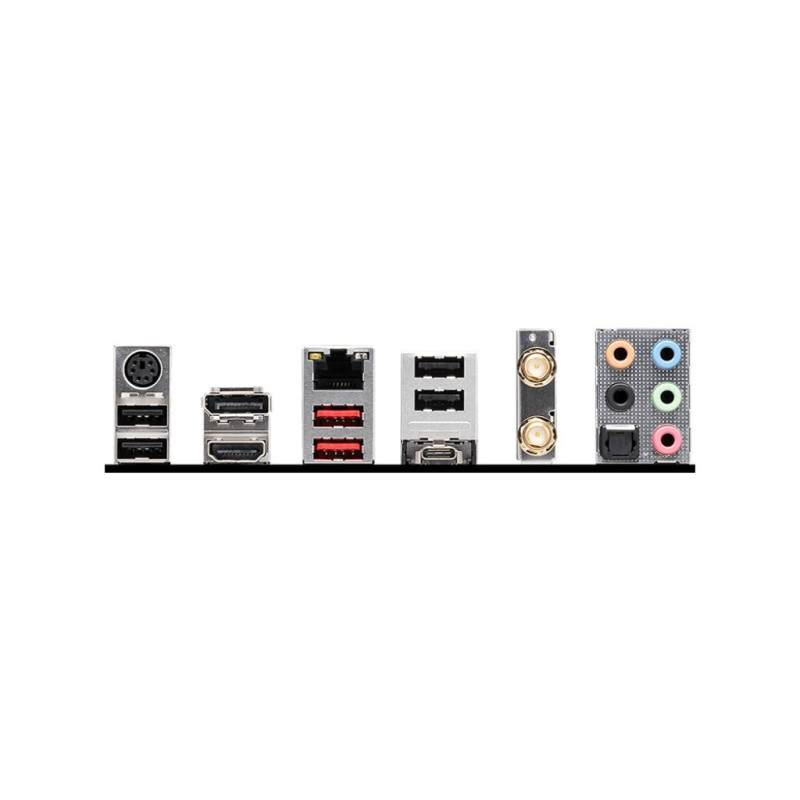

Rear panel I/O ports | |
| DisplayPort version | 1.4 |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB | |
