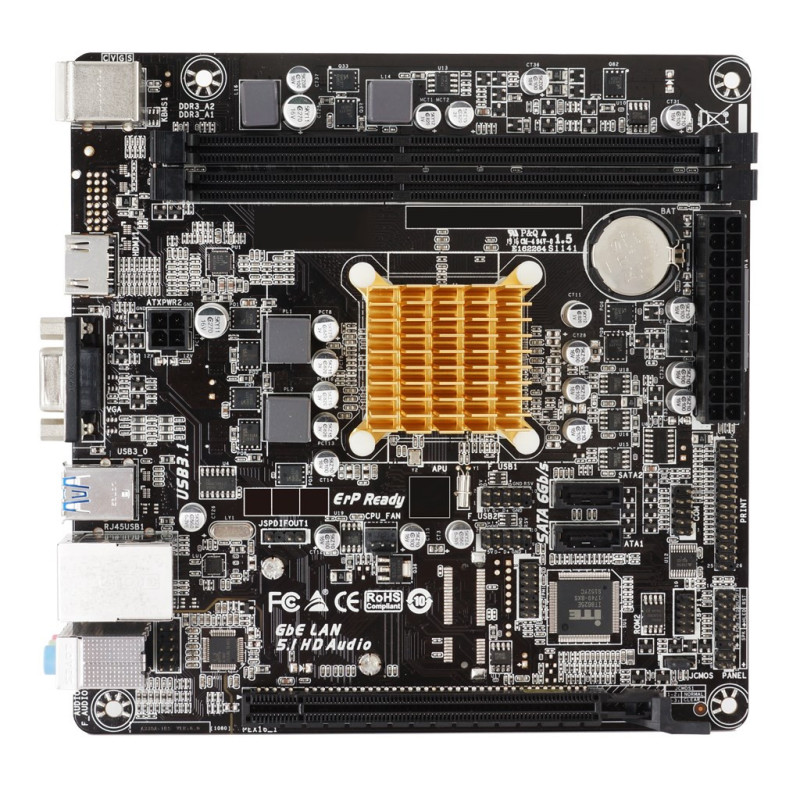

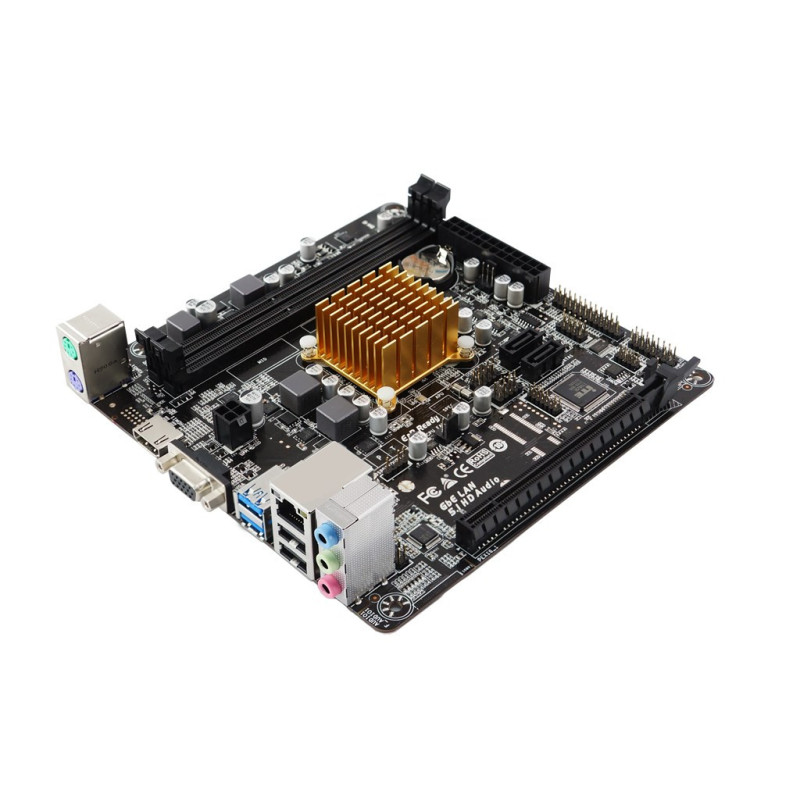

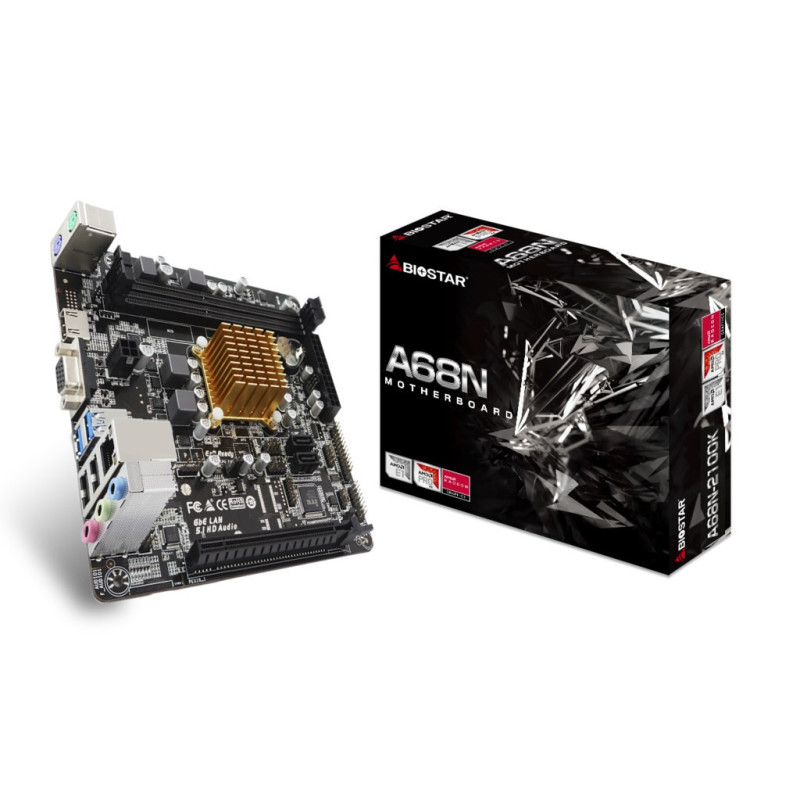

Motherboard - Biostar A68N-2100K Mini ITX
Product reference:
14-4712960682399
The Biostar A68N-2100K motherboard features an AMD E1-6010 processor with 2 cores and supports up to 16 GB of DDR3 memory. It also offers HDMI and VGA ports, 7.1 channel audio, and Gigabit Ethernet connectivity.
Motherboard - Biostar A68N-2100K Mini ITX
Product reference:
14-4712960682399
The Biostar A68N-2100K motherboard features an AMD E1-6010 processor with 2 cores and supports up to 16 GB of DDR3 memory. It also offers HDMI and VGA ports, 7.1 channel audio, and Gigabit Ethernet connectivity.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
Biostar A68N-2100K Mini ITX motherboard
The Biostar A68N-2100K motherboard features an AMD E1-6010 processor with 2 cores and supports up to 16 GB of DDR3 memory. It features HDMI and VGA ports, 7.1-channel audio, and Gigabit Ethernet.
- Compact mini ITX form factor design, perfect for space-saving solutions.
- Supports AMD E1-6010 processor with dual-core performance.
- Rich 7.1 channel audio output for an immersive audio experience.
- Various USB ports and SATA III connectors for versatile connectivity.
Processor | |
|---|---|
| Maximum number of SMP processors | 1 |
| Processor cores | 2 |
| Processor manufacturer | AMD |
| Processor model | E1-6010 |
Graphics | |
| HDCP | Yes |
| Support for parallel processing technology | Not supported |
Features | |
| PC health monitoring | CPU, Fan, Temperature |
| Audio chip | Realtek ALC887 |
| Supported Windows operating systems | Windows 7, Windows 10, Windows 8.1 |
| The component is intended for | PC |
| Motherboard chipset family | AMD |
| Motherboard format type | mini-ITX |
Memory | |
| Number of memory slots | 2 |
| Memory slot type | DIMMs |
| Memory voltage | 1.25V |
| Supported memory types | DDR3-SDRAM, DDR3L-SDRAM |
| Supported memory module capacities | 512MB, 1GB, 2GB, 4GB, 8GB |
| ECC compatibility | Non-ECC |
| Supported memory clock speeds | 1066, 1333MHz, 800 |
| Maximum internal memory | 16GB |
Weight and dimensions | |
| Depth | 170mm |
| Width | 170mm |
Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111H |
Internal I/O | |
| S/PDIF output connector | Yes |
| USB 2.0 ports | 2 |
| Number of SATA III connectors | 2 |
| Number of COM ports | 1 |
| Front panel audio connector | Yes |
| Number of chassis fan connectors | 1 |
| CPU fan connector | Yes |
| Front panel connector | Yes |
| TPM connector | Yes |
BIOS | |
| Clear CMOS switch | Yes |
Package contents | |
| Add drivers | Yes |
| Cables included | SATA |
Memory controllers | |
| Supported memory device interface types | SATA III |

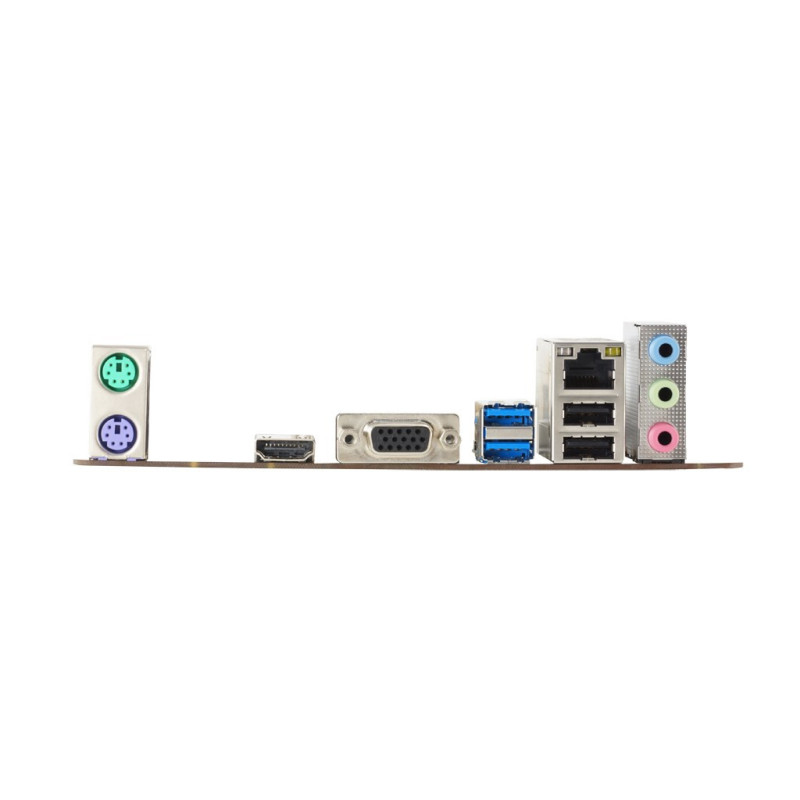

Rear panel I/O connectors | |
| Number of VGA (D-Sub) connectors | 1 |
| Number of Ethernet LAN (RJ-45) ports | 1 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports | 2 |
| Number of HDMI ports | 1 |
| Number of PS/2 ports | 2 |
| Number of USB 2.0 ports | 2 |
Expansion slots | |
| PCI Express x16 (Gen 2.x) slots | 1 |
