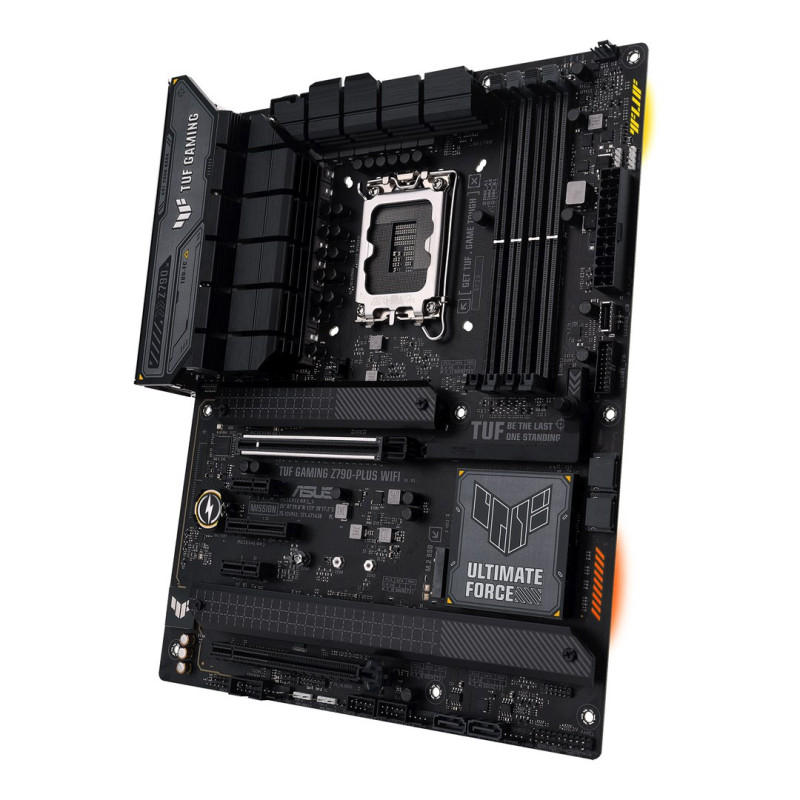

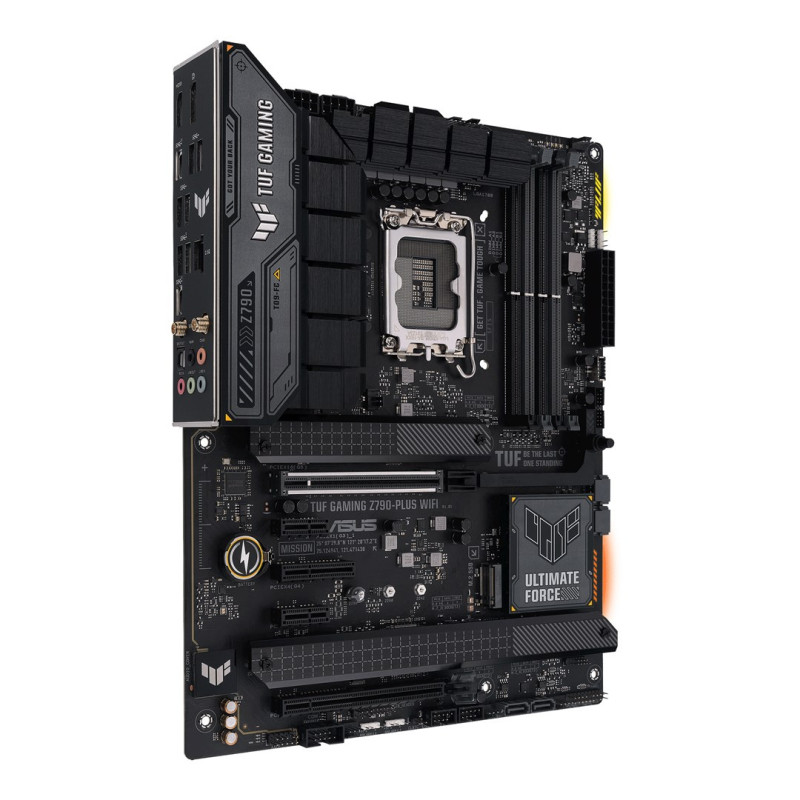

Motherboard - ASUS TUF Gaming Z790-Plus WiFi Intel Z790 LGA 1700 ATX
Product reference:
14-4711387014509
The ASUS TUF GAMING Z790-PLUS WIFI motherboard supports up to 128GB of DDR5-6400 RAM and has 4 M.2 slots for high performance and efficient cooling.
Motherboard - ASUS TUF Gaming Z790-Plus WiFi Intel Z790 LGA 1700 ATX
Product reference:
14-4711387014509
The ASUS TUF GAMING Z790-PLUS WIFI motherboard supports up to 128GB of DDR5-6400 RAM and has 4 M.2 slots for high performance and efficient cooling.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
ASUS TUF Gaming Z790-PLUS WiFi LGA 1700 ATX
This Intel Z790 motherboard features a 4-slot M.2 configuration, including an M.2 (E) slot, and supports up to 128GB of DDR5-6400 RAM. It has 4 SATA III ports for storage devices and includes high-speed USB ports.
Main features
- 4 M.2 slots, one of which is an M.2 (E) slot
- Supports up to 128GB DDR5-6400 RAM
- 1 USB 3.2 Gen 2x2 Type-C port and 2 USB 3.2 Gen 2 Type-A ports
- 5 fan connectors, including 4 case fan connectors and 1 AIO fan connector
Processor | |
|---|---|
| Supported processor sockets | LGA 1700 |
| Compatible processor models | Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i3 |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
Graphics | |
| Integrated graphics card | No |
| Support for parallel processing technology | Not supported |
Features | |
| Supported Windows operating systems | Windows 11, Windows 10 |
| Motherboard Chipset Family | Intel |
| Sound chip | Realtek S1220A |
| Audio output channels | 7.1 channels |
| Motherboard format type | ATX |
| Power supply type | ATX |
| Motherboard chip | Intel Z790 |
Memory | |
| Supported memory clock speeds | 5800, 5400, 6600, 5200, 4800, 6000, 5600, 7200 MHz, 6200, 6800, 6400, 5000, 7000 |
| Non-volatile memory | Yes |
| Memory channels | Dual channels |
| Maximum internal memory | 128GB |
| Supported memory types | DDR5-SDRAM |
| Memory slot type | DIMMs |
| Number of memory slots | 4 |
| Maximum memory frequency speed supported | 7200MHz |
Weight and dimensions | |
| Width | 305mm |
| Depth | 244 mm |
Network | |
| Bluetooth | Yes |
| Wi-Fi standards | 802.11b, Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 5 (802.11ac) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Bluetooth version | 5.3 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
Internal I/O | |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| CPU fan connector | Yes |
| USB 2.0 ports | 2 |
| Front panel audio connector | Yes |
| ATX power connector (24-pin) | Yes |
| EPS power connector (8-pin) | Yes |
| Thunderbolt connectors | 1 |
| Number of COM ports | 1 |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of chassis fan connections | 4 |
| RGB LED pin connector | Yes |
| 12V power connector | Yes |
BIOS | |
| BIOS type | UEFI AMI |
Package contents | |
| Cables included | SATA |
| User manual | Yes |
Storage controls | |
| Supported storage device types | HDD SSD |
| RAID levels | 10, 0, 1, 5 |
| RAID support | Yes |
| Supported storage device interfaces | M.2, SATA III |
Rear panel I/O ports | |
| DisplayPort quantity | 1 |
| HDMI version | 2.1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Number of HDMI ports | 1 |
| Microphone input | Yes |
| DisplayPort version | 1.4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| S/PDIF out port | Yes |
| Line-in | Yes |
| WiFi-AP antenna connector | 2 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Headphone outputs | 1 |
Expansion slots | |
| Number of M.2 (M) slots | 4 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x4 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
