Motherboard - ASUS TUF GAMING B850-PLUS WIFI AM5 ATX Black
Product reference:
14-4711387781609
Supports AMD Ryzen 7000, 8000, and 9000 series processors, with a maximum memory capacity of 192 GB and a speed of 8000 MHz. The device has Wi-Fi 7, 2.5 Gigabit Ethernet, and multiple USB ports for connectivity.
Motherboard - ASUS TUF GAMING B850-PLUS WIFI AM5 ATX Black
Product reference:
14-4711387781609
Supports AMD Ryzen 7000, 8000, and 9000 series processors, with a maximum memory capacity of 192 GB and a speed of 8000 MHz. The device has Wi-Fi 7, 2.5 Gigabit Ethernet, and multiple USB ports for connectivity.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Europe in
8 - 9
business days

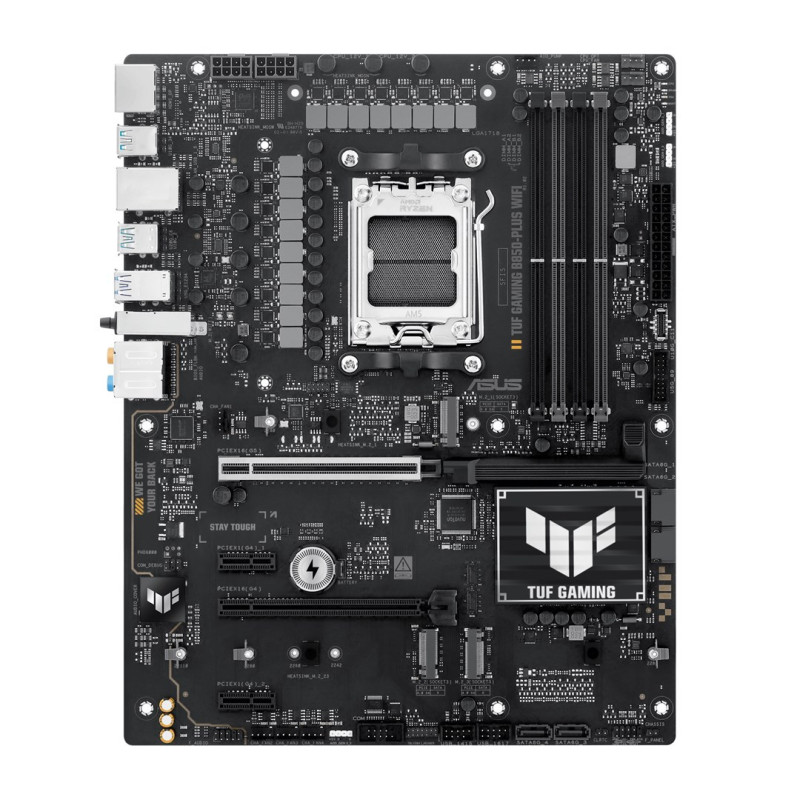

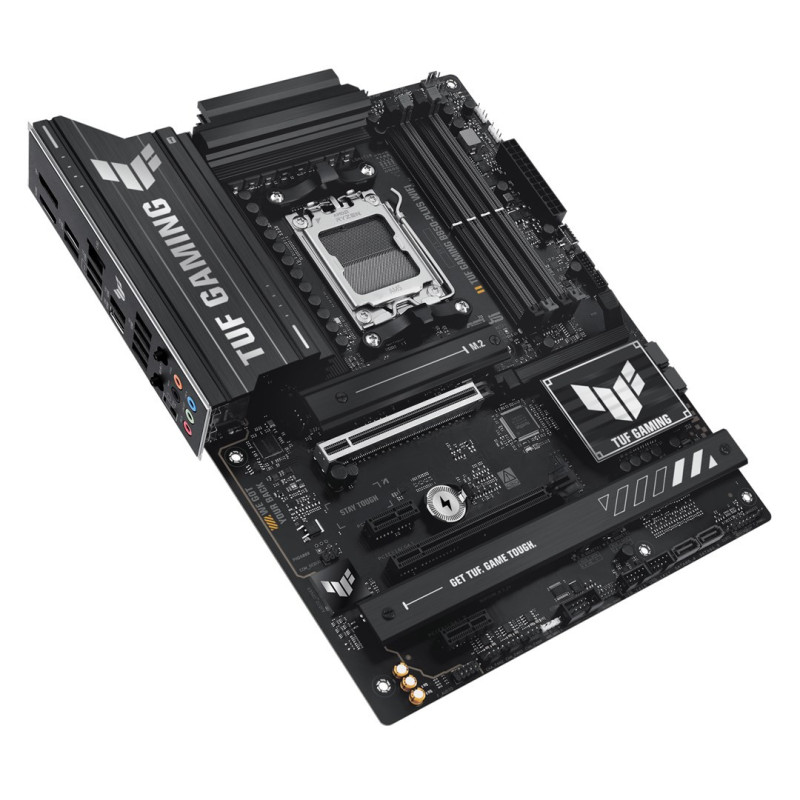

ASUS TUF Gaming B850-Plus WiFi AMD B850 Socket AM5 ATX motherboard
Compatible with AMD Ryzen 7000, 8000 and 9000 series processors, the maximum memory capacity is 192 GB and the speed reaches 8000 MHz. Equipped with Wi-Fi 7, 2.5 Gigabit Ethernet and multiple USB ports for connectivity options.
- Enables use of AMD Ryzen 7000, 8000 and 9000 series processors with Socket AM5.
- Maximum memory capacity 192 GB with 4 DIMM slots, supporting DDR5-SDRAM at speeds up to 8000 MHz.
- Equipped with Wi-Fi 7 (802.11be) and 2.5 Gigabit Ethernet for fast networking.
- Offers 7.1 channel audio output with Realtek ALC1220 audio chip for high-quality sound.
- Includes multiple expansion slots: 1 x PCIe x16 (Gen 5.x), 1 x PCIe x16 (Gen 4.x), and 2 x PCIe x1 (Gen 4.x).
Processor | |
|---|---|
| Supported processor sockets | Socket AM5 |
| Composite processor types | AMD Ryzen 7000, 8000, 9000 series |
| Processor manufacturer | AMD |
Graphics | |
| Maximum resolution level | 7680 x 4320 pixels |
Features | |
| Motherboard format type | ATX |
| Audio output channels | 7.1 channels |
| Supported Windows operating systems | Windows 11 |
| Power supply type | ATX |
| Motherboard chip | AMD B850 |
| Product color | Black |
| Audio chip | Realtek ALC1220 |
Memory | |
| Supported memory frequency (max) | 8000MHz |
| ECC compatibility | ECC Non-ECC |
| Supported memory types | DDR5-SDRAM |
| Memory slot type | DIMMs |
| Memory channels | Dual channel |
| Number of memory slots | 4 |
| Maximum internal memory | 192GB |
Weight and dimensions | |
| Depth | 244 mm |
| Width | 305mm |
Network | |
| Bluetooth version | 5.4 |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Ethernet interface type | 2.5 Gigabit Ethernet |
Internal I/O | |
| RGB LED pin header | Yes |
| Number of CPU cooler connections | 2 |
| Number of chassis cooler connections | 4 |
| Number of SATA III connectors | 4 |
| ATX power connector (24-pin) | Yes |
BIOS | |
| Clear CMOS button | Yes |
| BIOS type | UEFI AMI |
Packaging details | |
| Package weight | 1.81 kg |
| Package dimensions | 353mm x 273mm x 68mm |
Memory controllers | |
| Supported storage drive types | HDD SSD |
| RAID support | Yes |
| Number of storage drives supported | 7 |

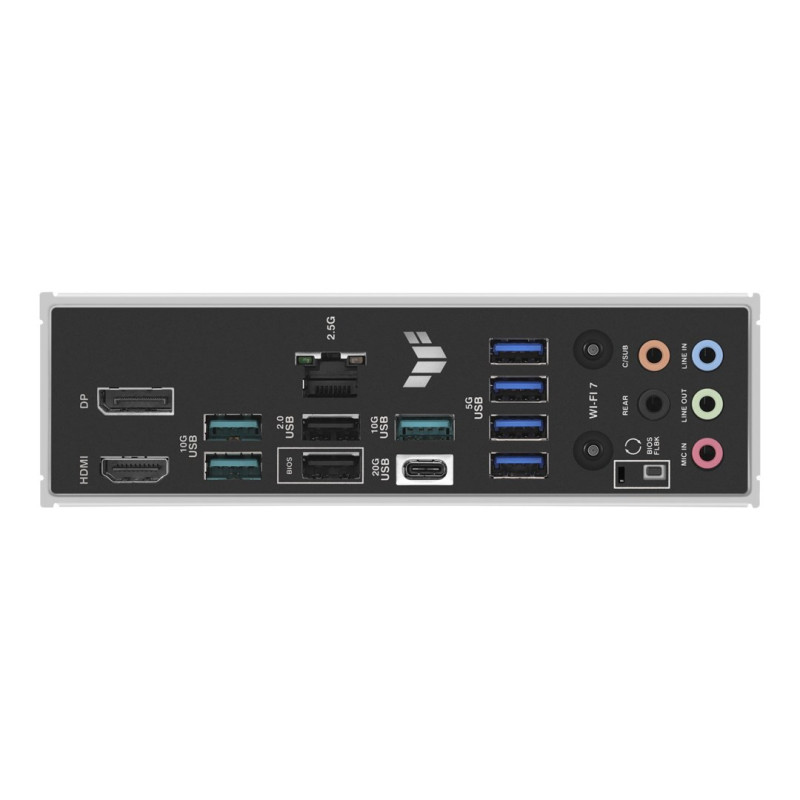

Rear panel I/O ports | |
| USB 3.2 Gen 2x2 Type-C ports | 1 |
| USB 3.2 Gen 1 Type-A ports | 4 |
| HDMI ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
Expansion slots | |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 3 |
Other features | |
| Weight | 1.32 kg |
| Quick Installation Guide | Yes |
