Motherboard - ASUS TUF Gaming B650M-Plus WiFi AM5 Micro ATX
Product reference:
14-4711081912118
This motherboard supports AM5 socket processors and up to 128GB of DDR5-SDRAM memory for high performance. It also offers Wi-Fi 6 and Bluetooth 5.2 connectivity, as well as a wealth of ports, including 4 SATA III connectors.
Motherboard - ASUS TUF Gaming B650M-Plus WiFi AM5 Micro ATX
Product reference:
14-4711081912118
This motherboard supports AM5 socket processors and up to 128GB of DDR5-SDRAM memory for high performance. It also offers Wi-Fi 6 and Bluetooth 5.2 connectivity, as well as a wealth of ports, including 4 SATA III connectors.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Europe in
8 - 9
business days

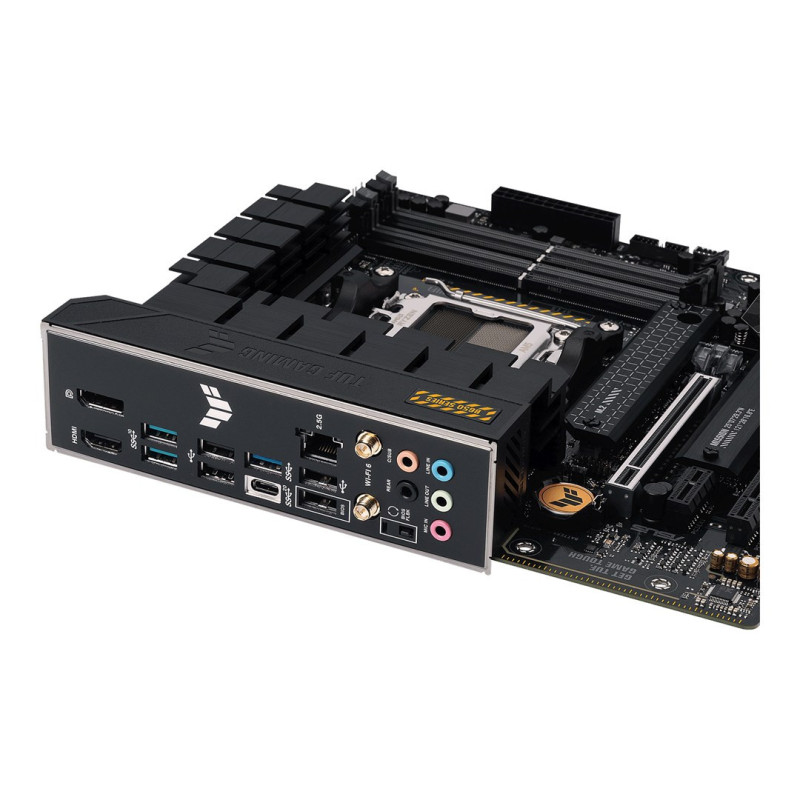

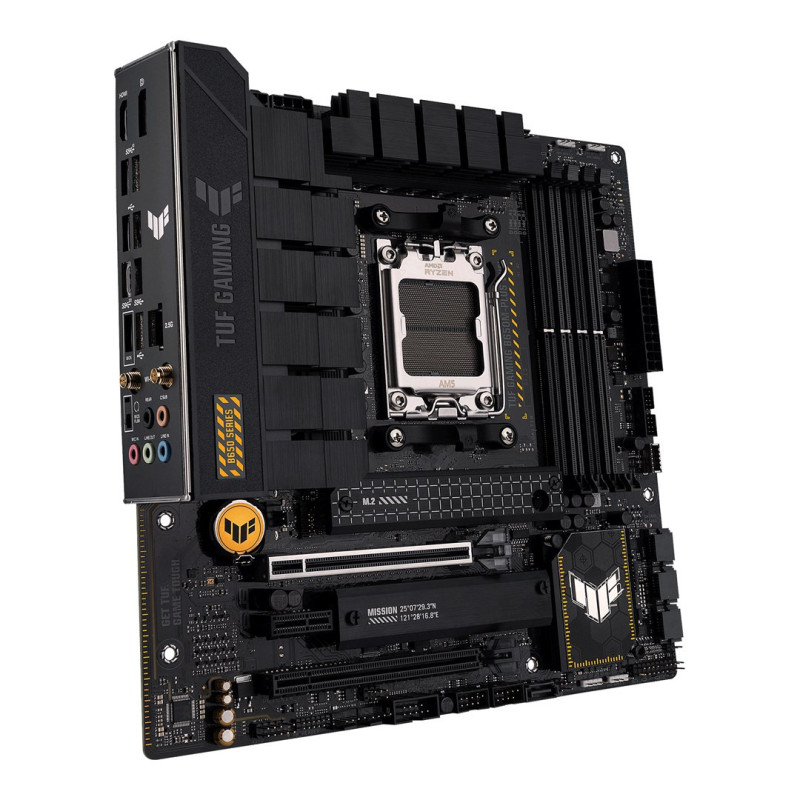

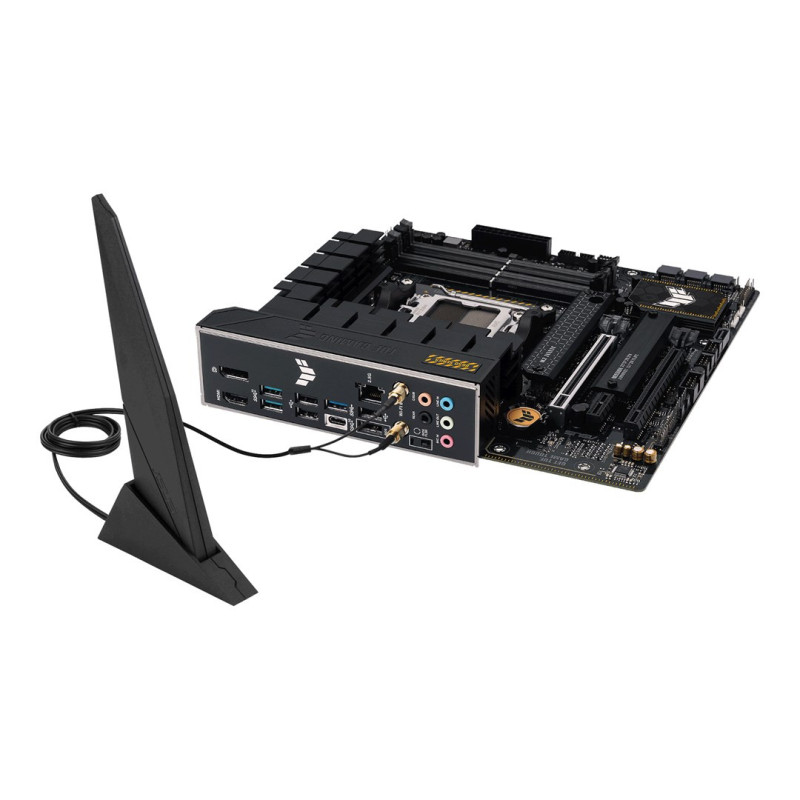

ASUS TUF Gaming B650M-PLUS WiFi AM5 Micro ATX
The ASUS TUF Gaming B650M-PLUS WiFi is a micro ATX motherboard featuring the AMD B650 chipset, supporting AM5 socket processors and up to 128 GB of DDR5-SDRAM memory.
Main features:
- Dual-channel memory architecture
- 4x DIMM slots
- Wi-Fi 6 (802.11ax) and Bluetooth 5.2 connectivity
- 1x USB 3.2 Gen 2x2 Type-C port, 2x USB 3.2 Gen 1 ports and 1x HDMI video output
Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | AM5 socket |
Graphics | |
| Integrated graphics card | No |
Features | |
| Motherboard format type | micro ATX |
| Product color | Black |
| Audio output channels | 7.1 channels |
| Motherboard chipset | AMD |
| Motherboard chipset | AMD B650 |
| Supported Windows operating systems | Windows 10 x64, Windows 11 x64 |
Memory | |
| Supported memory types | DDR5-SDRAM |
| Memory slot type | DIMMs |
| Number of memory slots | 4 |
| Supported memory clock speeds | 5800, 5200, 4800, 5000, 6000, 5400, 6200, 6400 MHz, 5600 |
| Maximum internal memory | 128GB |
| Unbuffered memory | Yes |
| Memory channels | Two-channel |
Weight and dimensions | |
| Width | 244 mm |
| Depth | 244 mm |
Network | |
| Wi-Fi | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Bluetooth version | 5.2 |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
Internal I/O | |
| RGB LED pin header | Yes |
| ATX power connector (24-pin) | Yes |
| USB 2.0 ports | 2 |
| Thunderbolt connectors | 1 |
| Number of chassis fan connectors | 3 |
| Front panel audio connector | Yes |
| CPU fan connector | Yes |
| Number of COM ports | 1 |
| EPS power connector (8-pin) | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
BIOS | |
| BIOS type | UEFI AMI |
Memory controllers | |
| Number of supported storage devices | 6 |
| Supported memory device interfaces | M.2, SATA III |
| RAID support | Yes |
| RAID levels | 1, 0, 10 |
| Supported storage device types | HDDs and SSDs |

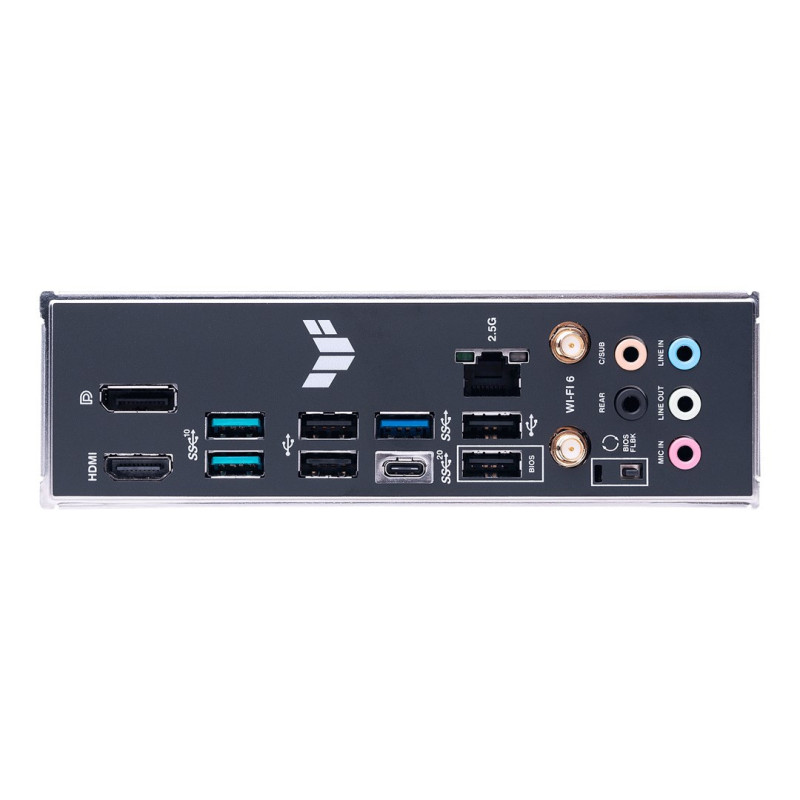

Rear panel I/O ports | |
| Microphone input | Yes |
| Line-in | Yes |
| Number of USB 3.2 Gen 2x2 Type-C ports | 1 |
| Number of DisplayPort ports | 1 |
| Number of HDMI ports | 1 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports | 1 |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of USB 2.0 ports | 4 |
Expansion slots | |
| PCI Express x16 (Gen 4.x) slots | 2 |
| PCI Express x1 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
