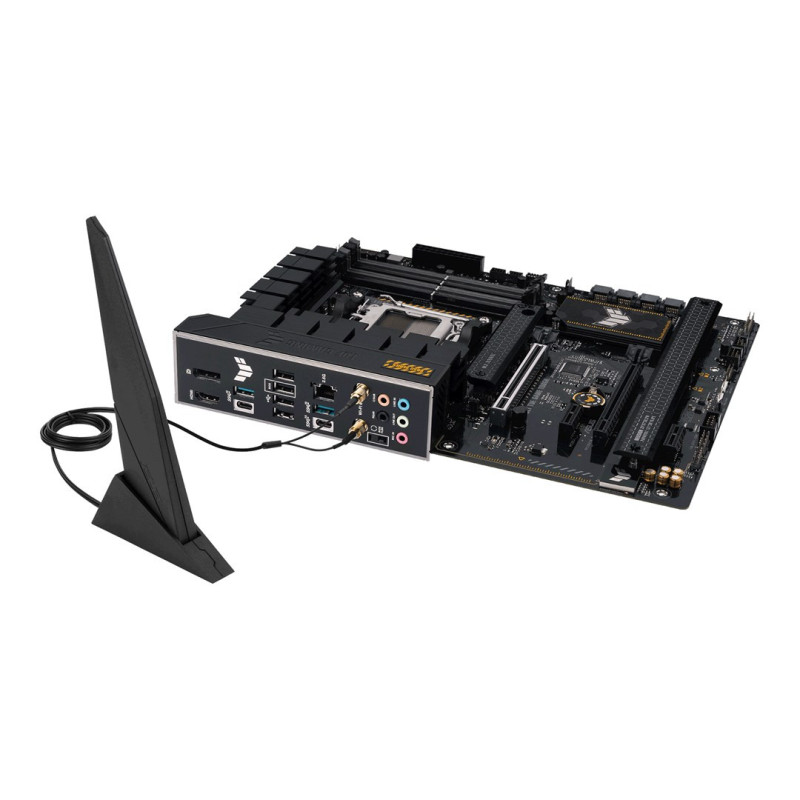

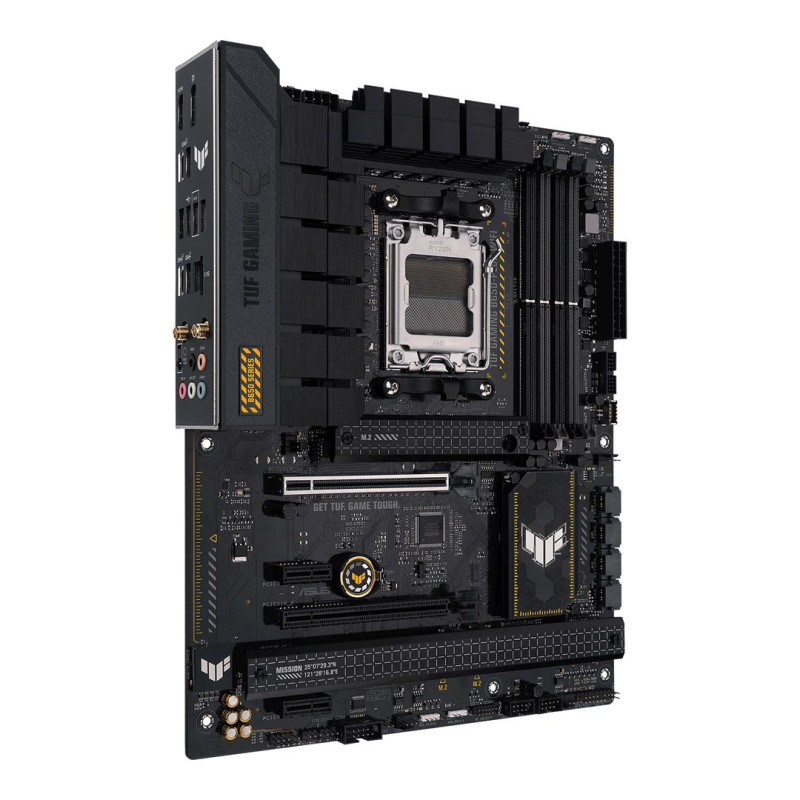

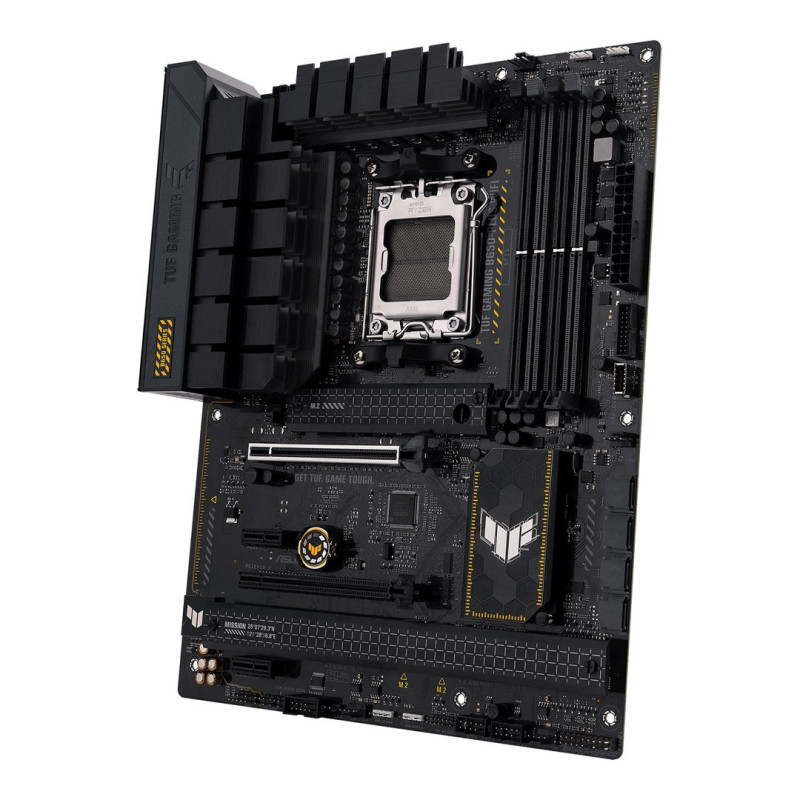

Motherboard - ASUS TUF Gaming B650 Plus WiFi
Product reference:
14-4711081912651
The ASUS TUF GAMING B650-PLUS WIFI motherboard supports up to 64GB of DDR5 memory with speeds of 5200MT/s and offers expanded connectivity, including 2 PCI Express x16 slots and a variety of USB ports, ensuring high performance and versatility.
Motherboard - ASUS TUF Gaming B650 Plus WiFi
Product reference:
14-4711081912651
The ASUS TUF GAMING B650-PLUS WIFI motherboard supports up to 64GB of DDR5 memory with speeds of 5200MT/s and offers expanded connectivity, including 2 PCI Express x16 slots and a variety of USB ports, ensuring high performance and versatility.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Europe in
8 - 9
business days
ASUS TUF B650 Plus WiFi
ASUS TUF B650-PLUS WIFI is a high-performance motherboard for the AMD B650 socket AM5 platform. It features 4 DDR5 memory slots, supporting up to 128GB of RAM with speeds up to 7600MT/s.
Main features
- Supports AMD Ryzen 7000 series processors
- Supports 7 storage devices, including RAID levels: 10, 1, 0
- 2 PCI Express x16 (Gen 4.x) slots and 3 M.2 (M) slots
- UEFI AMI BIOS
Processor | |
|---|---|
| Supported processor sockets | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 series |
| Processor socket | Socket AM5 |
| Processor manufacturer | AMD |
Graphics | |
| Support for parallel processing technology | Not supported |
| Integrated graphics card | No |
Features | |
| Audio output channels | 7.1 channels |
| Motherboard format type | ATX |
| Motherboard chipset | AMD B650 |
| Motherboard chipset family | AMD |
| Product color | Black |
Memory | |
| Unbuffered memory | Yes |
| Maximum internal memory | 128GB |
| Supported memory clock speeds | 7600, 5600, 7200, 6200, 4800, 6600, 5800, 5400, 5200, 5000, 7000, 6400, 6800, 6000 MHz |
| Number of memory slots | 4 |
| Memory slot type | DIMMs |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual channels |
| ECC compatibility | ECC Non-ECC |
Weight and dimensions | |
| Width | 305mm |
| Height | 50mm |
| Depth | 244 mm |
Network | |
| Bluetooth | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Bluetooth version | 5.2 |
| Wi-Fi standards | 802.11g, Wi-Fi 5 (802.11ac), 802.11a, Wi-Fi 6 (802.11ax), 802.11b, Wi-Fi 4 (802.11n) |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
Internal I/O | |
| Thunderbolt connectors | 1 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Number of COM ports | 1 |
| ATX power connector (24-pin) | Yes |
| Number of chassis fan connectors | 4 |
| USB 2.0 ports | 2 |
| CPU fan connector | Yes |
| RGB LED pin connector | Yes |
BIOS | |
| BIOS type | UEFI AMI |
Packaging details | |
| Package width | 338 mm |
| Package weight | 1.36 kg |
| Package depth | 273 mm |
| Package height | 68 mm |
Storage controls | |
| Supported storage device interface types | M.2, SATA III |
| RAID levels | 10, 1, 0 |
| Supported storage device types | HDD SSD |
| RAID support | Yes |
| Number of storage devices supported | 7 |

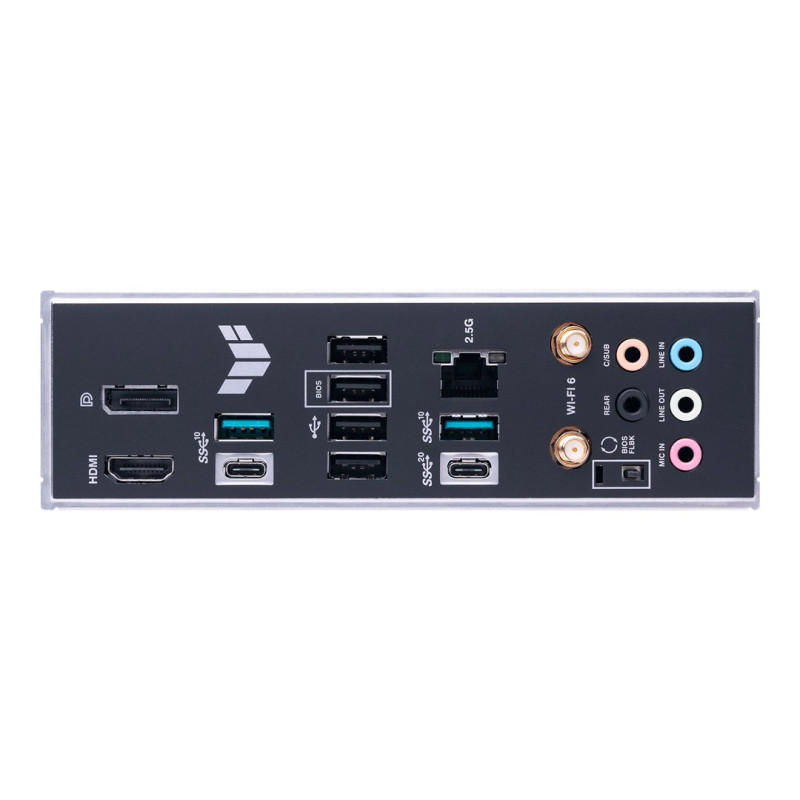

Rear panel I/O ports | |
| DisplayPort quantity | 1 |
| Number of USB 2.0 ports | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| S/PDIF out port | No |
| Number of HDMI ports | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Line-in | Yes |
| Microphone input | Yes |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Headphone outputs | 1 |
Expansion slots | |
| Number of M.2 (M) slots | 3 |
| PCI Express x1 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 2 |
Other features | |
| Weight | 1.2 kg |
