Motherboard - ASUS TUF Gaming B650-Plus AM5 ATX
Product reference:
14-4711081912767
Supports up to 128 GB of DDR5 RAM, has PCIe 4.0 x16 and x4 NVMe M.2 SSD interfaces, and an HDMI connector that allows for a resolution of 5120x2880 at 60 Hz.
Motherboard - ASUS TUF Gaming B650-Plus AM5 ATX
Product reference:
14-4711081912767
Supports up to 128 GB of DDR5 RAM, has PCIe 4.0 x16 and x4 NVMe M.2 SSD interfaces, and an HDMI connector that allows for a resolution of 5120x2880 at 60 Hz.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Europe in
8 - 9
business days

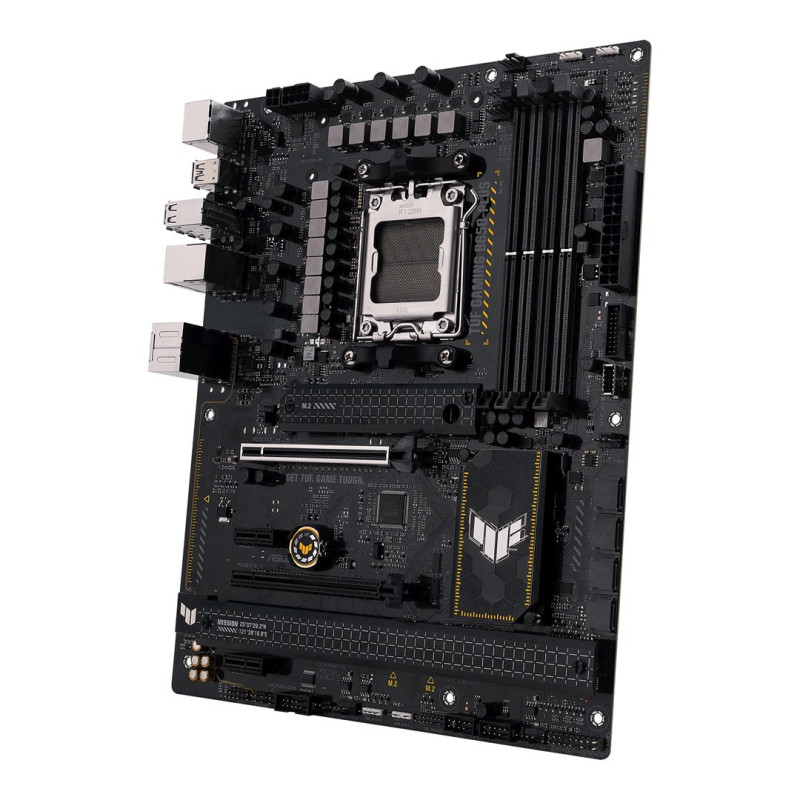

ASUS TUF Gaming B650-Plus AM5 ATX
The ASUS TUF Gaming B650-Plus AM5 ATX is a high-end motherboard for AMD systems, supporting AMD Ryzen 7000 series processors. It has 4 x DDR5 DIMM slots, supporting up to 128 GB of RAM.
Main features
- Supports AMD Ryzen 7000 series processors
- 4 x DDR5 DIMM slots with support for up to 128 GB RAM
- 6 x SATA III ports and NVMe M.2 SSD support via PCIe 4.0 interfaces
- HDMI and DisplayPort 1.4 outputs supporting resolutions up to 5120x2880 at 60 Hz
Processor | |
|---|---|
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 series |
| Processor socket | Socket AM5 |
| Supported processor sockets | Socket AM5 |
Graphics | |
| Support for parallel processing technology | Not supported |
Features | |
| Motherboard chip | AMD B650 |
| Motherboard chipset family | AMD |
| Motherboard format type | ATX |
| Power supply type | ATX |
| Supported Windows operating systems | Windows 10, Windows 11 x64 |
| Audio output channels | 7.1 channels |
Memory | |
| Supported memory types | DDR5-SDRAM |
| Memory slot type | DIMMs |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 6400MHz |
| Supported memory frequencies | 6200, 5000, 5600, 6400, 5200, 6000, 5800, 5400, 4800 |
| Maximum internal memory | 128GB |
| Unbuffered memory | Yes |
| Memory channels | Dual channels |
Weight and dimensions | |
| Depth | 244 mm |
| Width | 305mm |
Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet interface type | 2.5 Gigabit Ethernet |
Internal I/O | |
| RGB LED pin header | Yes |
| 12V power connector | Yes |
| ATX power connector (24-pin) | Yes |
| Front panel audio connector | Yes |
| Thunderbolt connectors | 1 |
| CPU cooler connector | Yes |
| USB 2.0 ports | 2 |
| EPS power connector (8-pin) | Yes |
| Number of chassis cooler connections | 4 |
| Number of SATA III connectors | 4 |
| Number of COM ports | 1 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) ports | 2 |
BIOS | |
| BIOS type | UEFI AMI |
Packaging details | |
| Package height | 68 mm |
| Package width | 338 mm |
| Package weight | 1.36 kg |
| Package depth | 273 mm |
Memory controllers | |
| Supported storage device types | HDD SSD |
| RAID support | Yes |
| Supported memory device interfaces | M.2, SATA III |
| RAID levels | 0, 1, 10 |
Rear panel I/O ports | |
| Headphone outputs | 1 |
| Line-in | Yes |
| Microphone input | Yes |
| Number of USB 3.2 Gen 2x2 Type-C ports | 1 |
| DisplayPort version | 1.4 |
| HDMI version | 2.1 |
| Number of HDMI ports | 1 |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports | 1 |
| Number of DisplayPort ports | 1 |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of USB 2.0 ports | 4 |
Expansion slots | |
| PCI Express x16 (Gen 4.x) slots | 2 |
| PCI Express x4 (Gen 1.x) slots | 2 |
| Number of M.2 (M) slots | 3 |
Other features | |
| Return to BIOS button | Yes |
Safety warning | |
| Warnings | Do not disassemble to avoid damage to internal components and voiding the warranty. |
