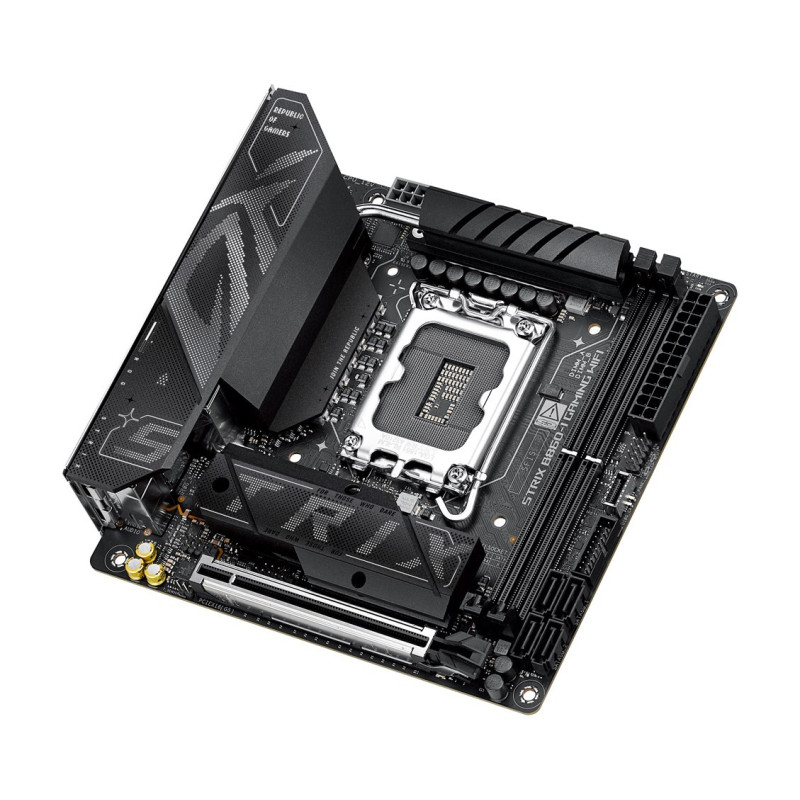

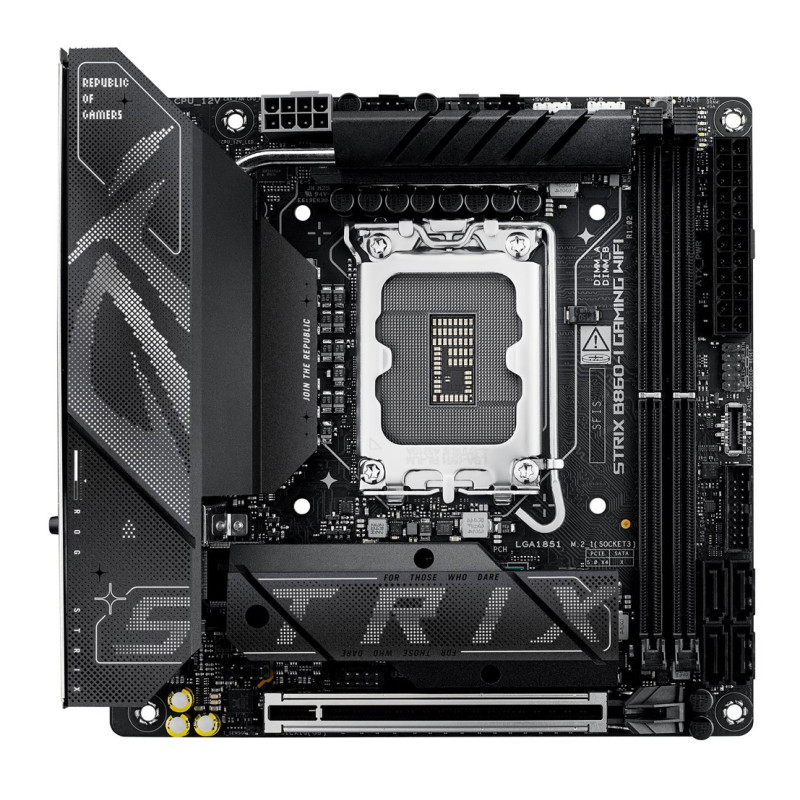

Motherboard - ASUS ROG STRIX B860-I GAMING WIFI Intel B860 LGA 1851 mini ITX
Product reference:
14-4711387815991
Supports Intel Core Ultra processors with LGA 1851 socket and mini ITX form factor. Features include Wi-Fi 7, up to 128GB of memory, and dual-channel DDR5 support.
Motherboard - ASUS ROG STRIX B860-I GAMING WIFI Intel B860 LGA 1851 mini ITX
Product reference:
14-4711387815991
Supports Intel Core Ultra processors with LGA 1851 socket and mini ITX form factor. Features include Wi-Fi 7, up to 128GB of memory, and dual-channel DDR5 support.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Europe in
8 - 9
business days
ASUS ROG STRIX B860-I GAMING WIFI Intel B860 LGA 1851 Mini ITX
Supports Intel Core Ultra processors with LGA 1851 socket and mini ITX form factor. Key features include Wi-Fi 7, maximum memory size of 128 GB, and dual-channel DDR5 support.
- Supports Intel Core Ultra processors with LGA 1851 socket for high-quality gaming.
- Compact mini ITX format design, perfect for saving space.
- Equipped with Wi-Fi 7 and Bluetooth 5.4 for fast wireless connectivity.
- Maximum memory size 128 GB with DDR5-SDRAM support for better multiprocessor performance.
Processor | |
|---|---|
| Processor manufacturer | Intel |
| Compatible processor series | Intel Core Ultra (2 series) |
| Processor socket | LGA 1851 (Socket V1) |
Graphics | |
| Support for parallel processing technology | Not supported |
| Integrated graphics card | No |
Features | |
| Product color | Multicolor |
| Audio chip | Realtek ALC1220P |
| Motherboard chip | Intel B860 |
| Motherboard chipset family | Intel |
| Component | PC |
| Motherboard format type | mini-ITX |
| Supported Windows operating systems | Windows 11 |
| Audio output channels | 7.1 channels |
Memory | |
| Maximum internal memory size | 128GB |
| Memory channels | Dual channel |
| Supported memory frequency (max) | 9066 MHz |
| Unbuffered memory | Yes |
| ECC compatibility | Non-ECC |
| Number of memory slots | 2 |
| Memory slot type | DIMMs |
Weight and dimensions | |
| Width | 170mm |
| Depth | 170mm |
Network | |
| Bluetooth | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Bluetooth version | 5.4 |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
Internal I/O | |
| Number of SATA III connectors | 4 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) ports | 1 |
| CPU cooler connector | Yes |
| Number of chassis cooler connections | 1 |
| EPS power connector (8-pin) | Yes |
| Front panel audio connector | Yes |
| ATX power connector (24-pin) | Yes |
| Number of USB 2.0 ports | 1 |
| 12V power connector | Yes |
| Number of CPU cooler connections | 1 |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) ports | 1 |
BIOS | |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Clear CMOS button | Yes |
Packaging details | |
| Package height | 96 mm |
| Package width | 228 mm |
| Package weight | 1.47 kg |
| Package depth | 187 mm |
Memory controllers | |
| RAID levels | 10, 0, 1, 5 |
| RAID support | Yes |
| Supported storage device types | HDDs and SSDs |
| Supported memory device interfaces | M.2, SATA III |
| Number of HDDs supported | 4 |
| Number of supported storage devices | 6 |

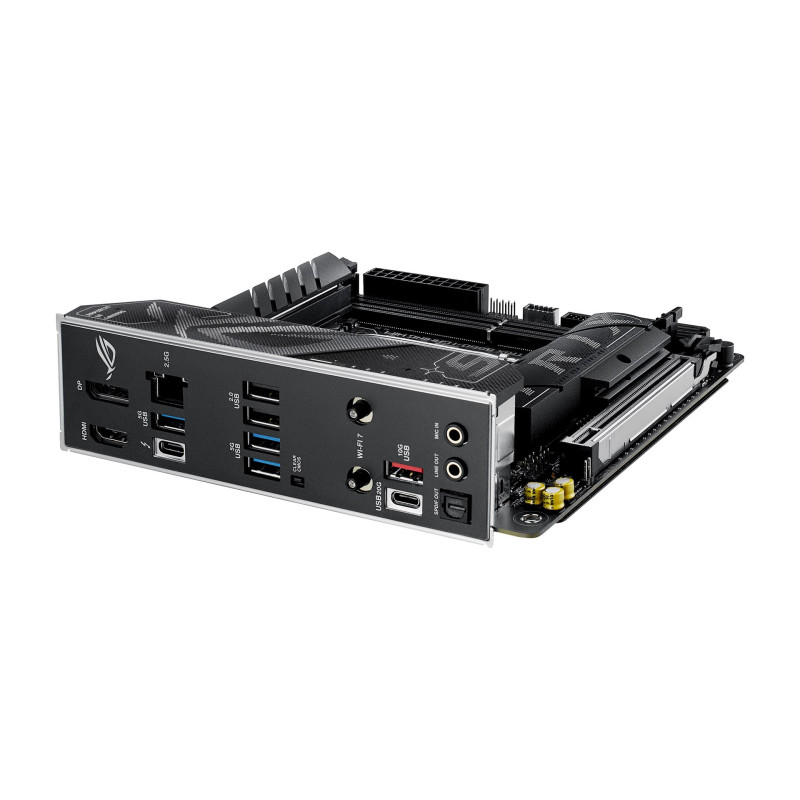

Rear panel I/O ports | |
| Number of USB 2.0 ports | 2 |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of DisplayPort ports | 1 |
| S/PDIF out port | Yes |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports | 3 |
| Number of USB 3.2 Gen 2x2 Type-C ports | 1 |
| Number of HDMI ports | 1 |
| Number of Thunderbolt ports | 1 |
| Microphone input | Yes |
Expansion slots | |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
Other features | |
| Weight | 812.6 grams |
