Motherboard - ASUS ROG STRIX B860-F GAMING WIFI Intel B860 LGA 1851 ATX
Product reference:
14-4711387806951
It supports Intel Core Ultra processors with LGA 1851 socket and has a maximum memory capacity of 256 GB DDR5-SDRAM. The device has Wi-Fi 7, 2.5 Gigabit Ethernet and multiple USB ports for convenient connectivity.
Motherboard - ASUS ROG STRIX B860-F GAMING WIFI Intel B860 LGA 1851 ATX
Product reference:
14-4711387806951
It supports Intel Core Ultra processors with LGA 1851 socket and has a maximum memory capacity of 256 GB DDR5-SDRAM. The device has Wi-Fi 7, 2.5 Gigabit Ethernet and multiple USB ports for convenient connectivity.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
ASUS ROG STRIX B860-F GAMING WIFI Intel B860 LGA 1851 ATX
Compatible with Intel Core Ultra processors with LGA 1851 socket and has a maximum memory capacity of up to 256 GB using DDR5-SDRAM. Equipped with Wi-Fi 7, 2.5 Gigabit Ethernet and multiple USB ports for connectivity.
- Compatible with Intel Core Ultra processors with LGA 1851 socket for high-quality gaming.
- Equipped with Wi-Fi 7 and 2.5 Gigabit Ethernet, ensuring ultra-fast connectivity.
- Offers 7.1 channel audio and a Realtek ALC4080 chip to experience immersive sound quality.
- Memory expansion up to 256 GB with 4 DIMM slots for optimal multiprocessor performance.
Processor | |
|---|---|
| Processor manufacturer | Intel |
| Composite processor series | Intel Core Ultra (2 series) |
| Processor socket | LGA 1851 (Socket V1) |
Features | |
| Product color | Multicolor |
| Motherboard Chipset Family | Intel |
| Motherboard format type | ATX |
| Sound chip | Realtek ALC4080 |
| Component | PC |
| Motherboard chip | Intel B860 |
| Audio output channels | 7.1 channels |
| Windows operating system support | Windows 11 |
Memory | |
| Maximum internal memory | 256GB |
| ECC compatibility | Non-ECC |
| Unbuffered memory | Yes |
| Memory slot type | DIMMs |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory channels | Dual channels |
| Supported memory clock frequency (max) | 9066 MHz |
Weight and dimensions | |
| Width | 305mm |
| Height | 50mm |
| Depth | 244 mm |
Network | |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | Yes |
| Wi-Fi standard | Wi-Fi 7 (802.11be) |
Internal I/O | |
| Number of chassis fan connectors | 4 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) ports | 1 |
| Number of CPU fan connectors | 1 |
| CPU fan connector | Yes |
| Number of SATA III connectors | 4 |
| Chassis break-in connector | Yes |
| ATX power connector (24-pin) | Yes |
| Number of USB 2.0 ports | 2 |
| EPS power connector (8-pin) | Yes |
| Front panel audio connector | Yes |
| Number of Thunderbolt ports | 1 |
| 12V power connector | Yes |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) ports | 1 |
BIOS | |
| BIOS memory size | 256 Mbit |
| Clear CMOS button | Yes |
| BIOS type | UEFI AMI |
Memory controllers | |
| Supported storage drive types | HDD SSD |
| RAID levels | 5, 0, 1, 10 |
| Supported storage drive interfaces | M.2, SATA III |
| RAID support | Yes |
| Number of HDDs supported | 4 |
| Number of supported storage drives | 8 |

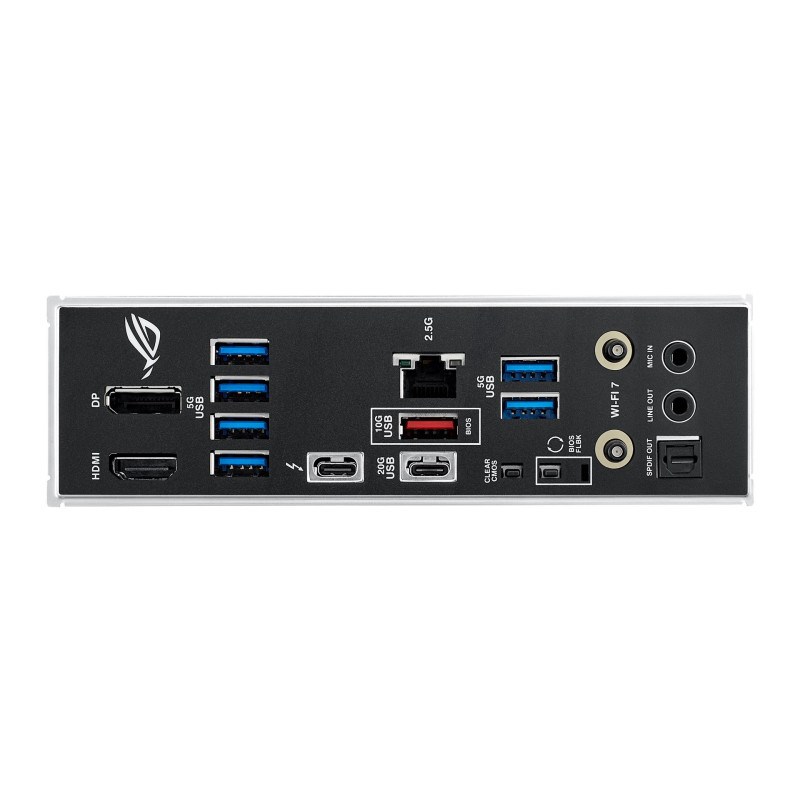

Rear panel I/O ports | |
| Ethernet LAN (RJ-45) ports | 1 |
| S/PDIF out port | Yes |
| Number of DisplayPorts | 1 |
| Number of Thunderbolt ports | 1 |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports | 1 |
| Number of USB 3.2 Gen 2x2 Type-C ports | 1 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports | 6 |
| Microphone input | Yes |
| Number of HDMI ports | 1 |
Expansion slots | |
| Number of M.2 (M) slots | 4 |
| PCI Express x16 (Gen 4.x) slots | 1 |
Other features | |
| Weight | 1.51 kg |
